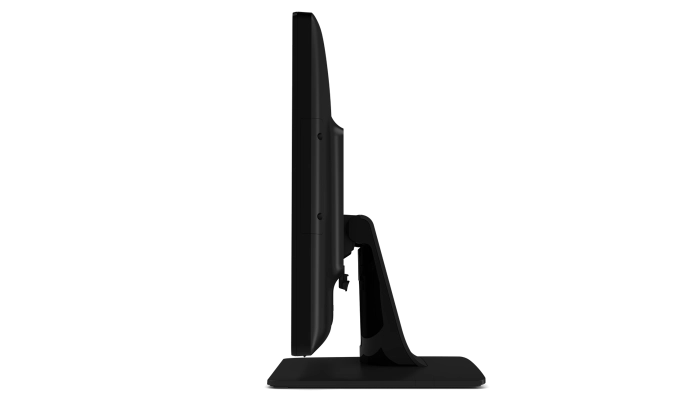

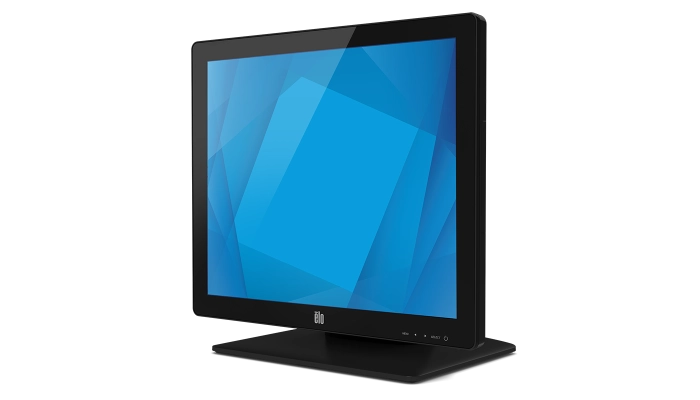

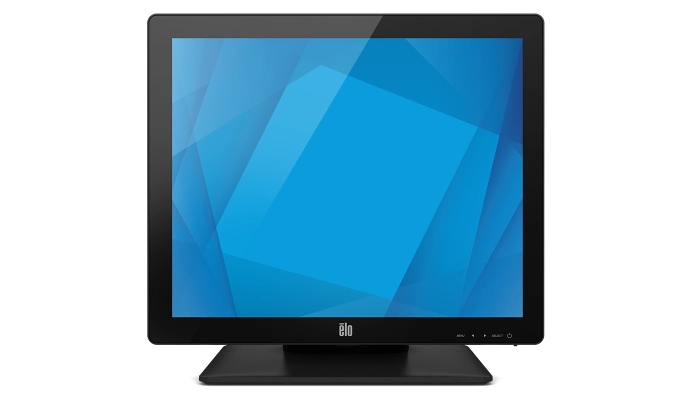

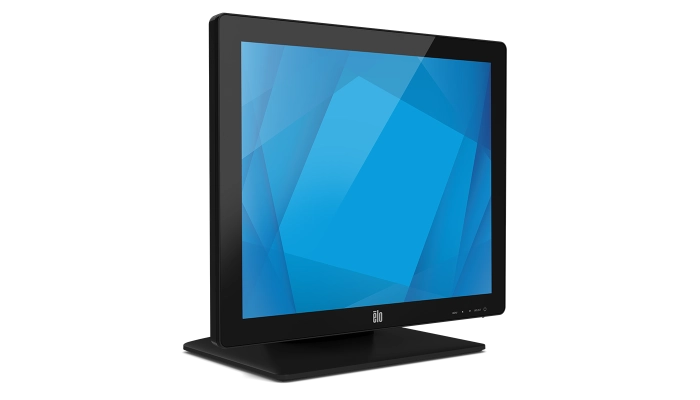

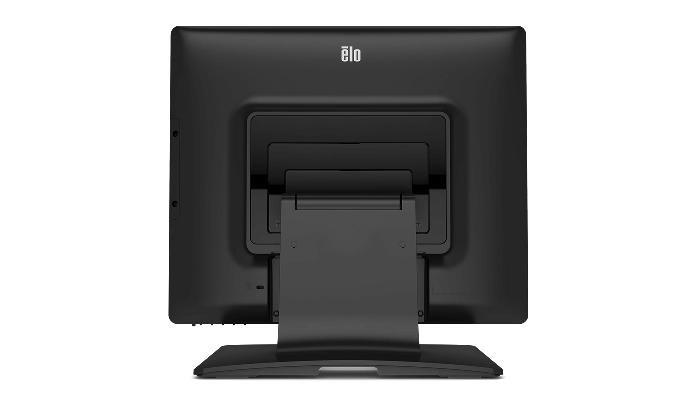

Elo 1717L 17" SXGA Class TFT LCD IntelliTouch Black Anti-glare Touchscreen Monitor | E077464
SKU: E077464
£474.42 (Excl. VAT)
- Display Size17"
- Touch CapabilitiesSingle-Touch
- Net Weight5.5 kg
- Operating SystemNone
- VESA Patterns75x75
- Panel TypeTFT Panel
- ResolutionSXGA
- Screen TypeFlat
- Response Time20ms
- Screen Ratio5:4
- Brightness225 cd/m2
- Operating Hours24/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
Elo 1717L 17" Touchscreen Monitor | SXGA 1280x1024 | IntelliTouch/PCAP | HDMI VGA USB
The Elo 1717L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch.
The 17‑inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five‑wire resistive is widely used in retail and hospitality environments for its proven ability to withstand splashing liquids, food, and grease. IntelliTouch® surface acoustic wave (SAW) and IntelliTouch zero‑bezel provide high optical clarity for dry-use applications. TouchPro® projected capacitive (PCAP) delivers edge-to-edge glass with excellent optical performance, multi-touch capability, and long-term durability—ideal for modern, high-traffic environments.
MSR ready.
The 1717L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1717L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Other features.
Sleek and thin design with built-for-touch reliability
Flexible and space-saving
60% Energy savings using LED technology
Sealed touchscreen against dirt, dust and liquids
Removable base and mounting options including VESA, wall and pole-mounting
USB and RS232 serial connections
Typical power consumption: 20W, internal and external power options
Three-year standard warranty -
Feature Description Part Number(s) IntelliTouch Black Anti-glare (Worldwide) — E077464 Enclosure Color Black Touch Technology & Capacity SAW (IntelliTouch® Surface Acoustic Wave) — Single Touch; Anti-glare Diagonal Size 17" diagonal, Active matrix TFT LCD (LED) Aspect Ratio 5:4 Active Area 13.3" x 10.64" / 337.92 mm x 270.34 mm Resolution 1280 x 1024 Other Supported Resolutions 640x480 60/75Hz; 720x400 70Hz; 800x600 56/60/75Hz; 1024x768 60/75Hz; 1280x1024 60/75Hz Viewing Angle Horizontal: ±85° (170° total) / Vertical: ±80° (160° total) Number of Colors 16.7 million Brightness (typical) LCD panel: 250 nits; IntelliTouch: 225 nits Response Time (typical) 20 ms Contrast Ratio 1000:1 Touch Interface Serial (RS-232) and USB I/O Ports VGA; HDMI; DC jack; AC jack; USB Type-B; RS-232 (DB-9) Video Analog VGA (DB-15); Digital HDMI (Type A). H-sync: 31.5–80 kHz; V-sync: 56–75 Hz Power AC input: IEC 60320 C6, 100–240 VAC, 50/60 Hz; DC input: 12 VDC ±5% via coaxial jack (2.0 mm pin OD, 6.4 mm barrel ID) Power Consumption (Typical) Monitor only — ON: 11.5 W (100%); ON: 10 W (80% default); SLEEP: 1.40 W; OFF: 0.3 W On Screen Display Controls: Menu, Up, Down, Select, Power
Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerMonitor Dimensions (without Stand) Bezel: 15.4" x 2.15" x 14.2" / 392.0 x 54.5 x 361.6 mm Monitor Dimensions (with Stand) 15.43" x 8.48" x 14.24" / 391.9 x 215.4 x 361.6 mm Shipping Box Dimensions 20.12" x 9.17" x 20.08" / 511 x 233 x 510 mm Weight (Unpackaged) 11.9 lbs / 5.4 kg Weight (Packaged) 18.3 lbs / 8.3 kg Operating Temperature 0°C to 40°C / 32°F to 104°F Storage Temperature 20°C to 60°C / -4°F to 140°F Humidity Operating: 20%–80%; Storage: 10%–95% MTBF 50,000 hours demonstrated Mounting Options VESA 75 mm (4-hole) rear; 3-hole threaded mount on bottom of stand Warranty 3-year (Extended options: 4 yr – E898247; 5 yr – E898449; 3 yr + AUR – E898648; 4 yr + AUR – E894921; 5 yr + AUR – E895125) Regulatory Approvals Argentina S-mark; Australia RCM; Canada cUL, IC; China CCC; Europe CE; United Kingdom UKCA; Japan VCCI; Korea KCC, e-Standby; Mexico NOM; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE What's in the Box Touch monitor; Quick Install Guide; VGA cable (DB-15 male to DB-15 male); Touch USB cable (USB-A to USB-B); Power cable (IEC 60320-C5 to NA/EU plug); Stand base assembly; Filler Plate; HDMI cable Optional Peripherals Magnetic Stripe Reader (Black MSR) – E500356; Power adapter & cable kits: NA – E005277, EU & Korea – E571601, UK – E180092, China – E558862, Taiwan – E818655, Japan – E182546, Argentina – E887099, Australia – E637593 Stands, Mounts & Kits 1717L VESA Mount Plate (Black) – E000405; 1717L Replacement Stand (Black) – E904304; China AC power cable – E501749; UK AC power cable – E540272 -
Description Downloads Elo 1717L 17" Class TFT LCD IntelliTouch Black Anti-glare Touchscreen Monitor | E077464 DataSheet Download
