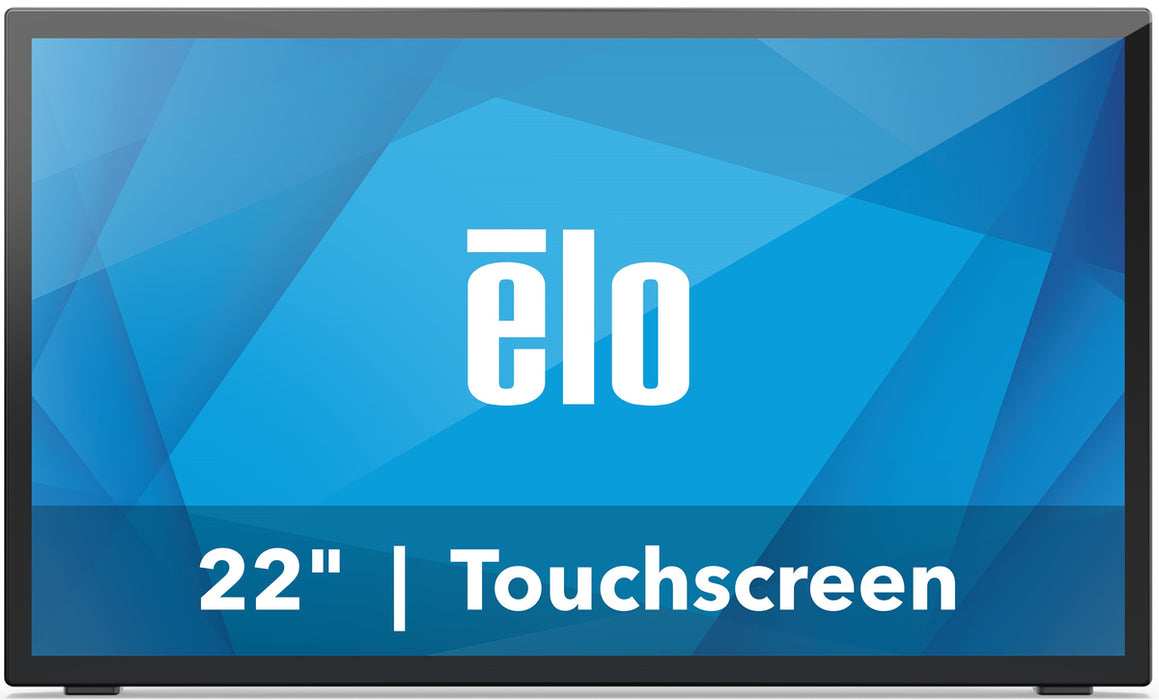

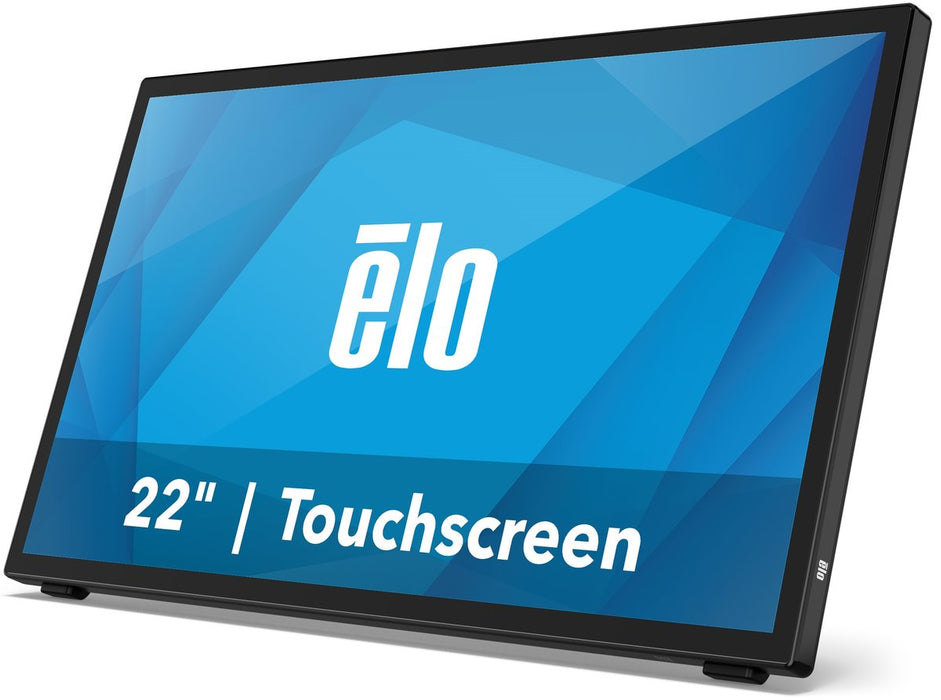

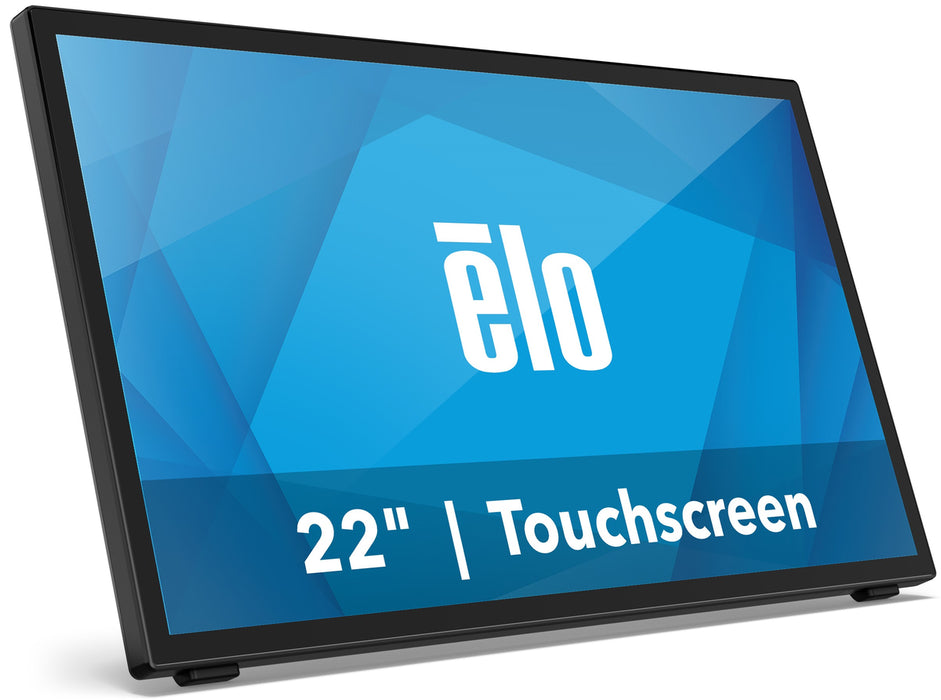

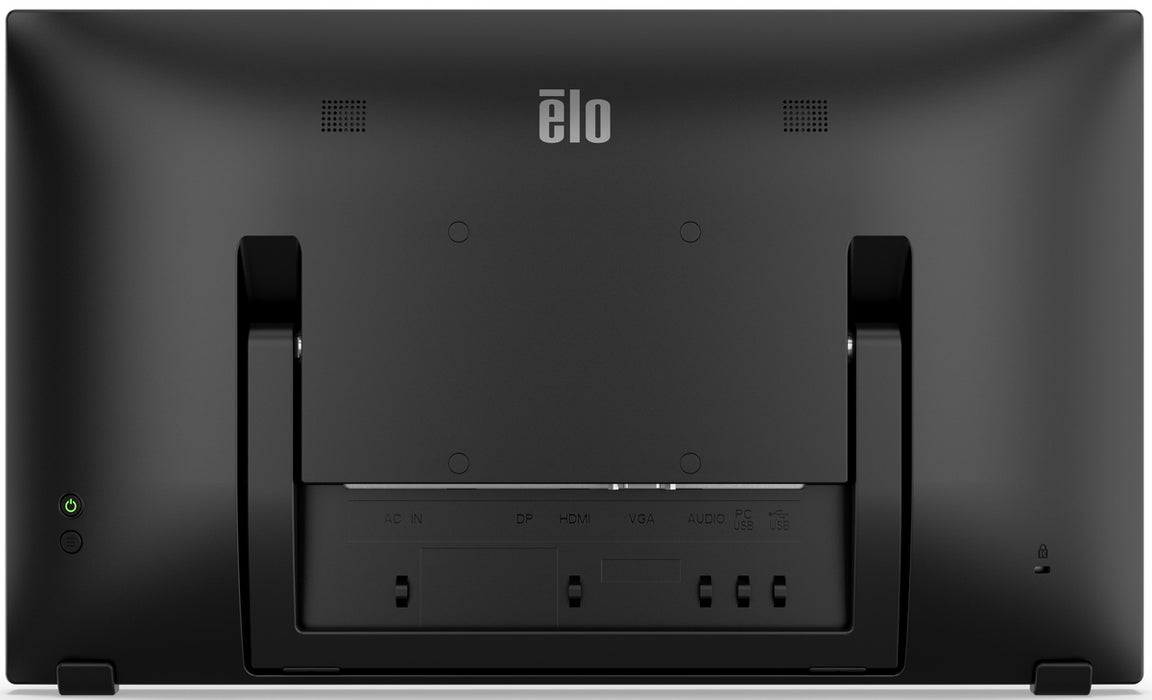

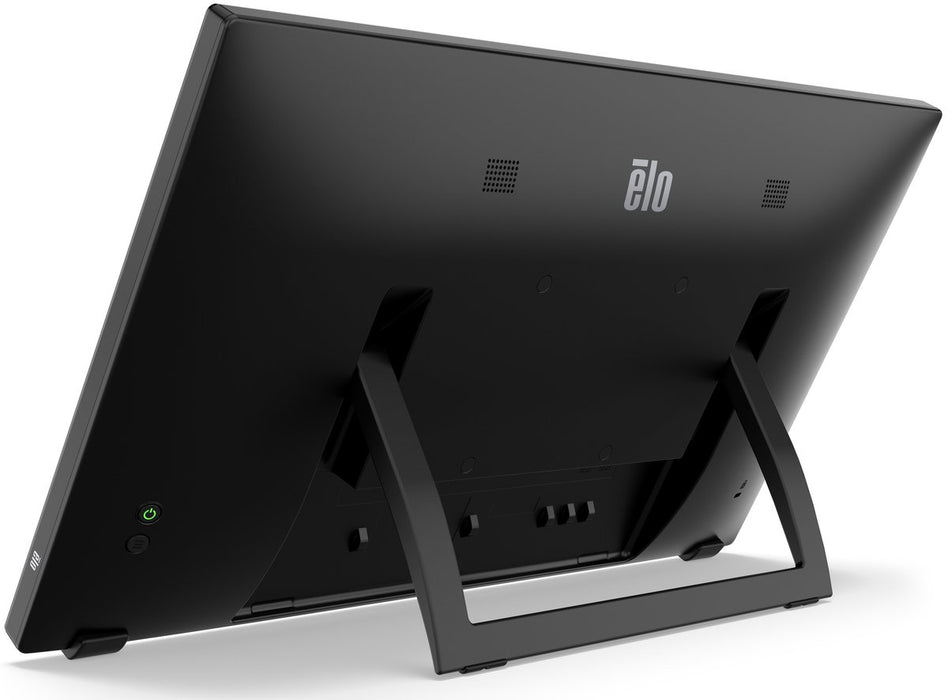

Elo 2270L 22" FHD Class TFT-LCD Black Touchscreen Monitor
SKU: E510259
£278.31 (Excl. VAT)
- Display Size21.5"
- Touch Capabilities10pt multi-touch
- Net Weight4 kg
- Operating SystemNone
- VESA Patterns100x100
- Panel TypeTFT Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
- Response Time14ms
- Screen Ratio16:9
- Brightness225 cd/m2
- Operating Hours24/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
Elo 2270L 22" Touchscreen Monitor | Full HD 1920x1080 | PCAP 10-Touch | HDMI DP USB | Clear/Anti-Glare
The bezel just got smaller.
The 2270L 22" touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Minimalistic design to fit any space.
From 20 degrees to 70 degrees, angle the display where you want it.
Place it on a desktop, mount it on a wall or configure the 2270L to fit your space with VESA compatibility.
Built-in
Speakers and integrated IO.
Durable, energy efficient touchscreen.
Scratch-resistant glass surface.
IK07 impact resistant.
ES8.0 certified for greater energy efficiency.
Increase viewing comfort with low blue light and flicker free features.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls - Now you can use the touchscreen or the controls you are used to on the rear side of the monitor. -
Feature Description Part Numbers E510259 (Black, Clear)
E511214 (Black, Anti-glare)Enclosure Color Black Touch Technology PCAP (TouchPro® Projected Capacitive), 10 Touch Diagonal Size 21.5" TFT LCD (LED) Aspect Ratio 16:9 Active Area 18.74" x 10.54" / 476.06 mm x 267.79 mm Resolution 1920 x 1080 @ 50/60Hz (Full HD) Viewing Angle 178° (89°/89° Horizontal, 89°/89° Vertical) Colors 16.7 million Brightness LCD: 250 nits | TouchPro PCAP: 225 nits Response Time 14 ms (typical) Contrast Ratio 1000:1 Touch Interface USB Surface Treatment Clear or Anti-glare (Black models only) Speakers 2 x 2W Internal Speakers I/O Ports AC Input (IEC60320 C6), Audio In/Out,
VGA, HDMI, DisplayPort,
USB 2.0 Type-B, 2x USB 2.0 Type-APower Consumption 12.2W (80% Brightness), 13.8W (100%), Sleep: 0.5W, Off: 0.16W Dimensions 19.87" x 11.91" x 1.63" / 504.7 mm x 302.4 mm x 41.3 mm Weight 4.1 kg (unpackaged) / 6.4 kg (packaged) Operating Temp 0°C to 40°C (32°F to 104°F) Storage Temp -20°C to 60°C (-4°F to 140°F) Humidity Operating: 20%–80% | Storage: 10%–95% Mounting Options VESA 100mm, 4-hole Impact Protection IK07 MTBF 50,000 hours demonstrated Regulatory CE, UKCA, FCC, UL, IC, CCC, VCCI, PSE, BSMI, KCC, RCM, EAC, NOM, RoHS, WEEE, REACH Warranty 3 years (extendable options available) What's in the Box 2270L Touchmonitor, Quick Install Guide,
HDMI Cable, Touch USB Cable,
NA & EU Power Cables, EEI Labels,
2x Replace foot cover, 5x Cable ties -
Description Downloads Elo 2270L 22" FHD Class TFT-LCD Black Touchscreen Monitor DataSheet Download Elo 2270L 22" FHD Class TFT-LCD Black Touchscreen Monitor |User Manual Download Elo 2270L 22" FHD Class TFT-LCD Black Touchscreen Monitor |Quick Installation Guide Download
