Elo 4304L 43" Full HD TFT LCD Interactive Touchscreen Display | E103351
SKU: E103351
£1,044.00 (Excl. VAT)
- Display Size43"
- Touch Capabilities40pt multi-touch
- Net Weight17.5 kg
- Operating SystemNone
- VESA Patterns400x400
- Panel TypeTFT Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
- Response Time8ms
- Screen Ratio16:9
- Brightness430 cd/m2
- Operating Hours24/7
- Description
- Specifications
- Downloads
-
Elo 4304L 43" Interactive Touch Display | Full HD | PCAP | E103351 – Commercial-Grade 24/7 Touchscreen
Interactive Display
Elevate your applications with Elo’s 4304L 43‑inch touch screen monitor that brings
interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast
responsiveness, and anti-friction glass, Elo's 4304L prioritizes the user experience. And
by combining the touch display with the Elo Backpack or a Brightsign player, you can
effortlessly convert this display into a versatile, life-sized 43‑inch tablet.

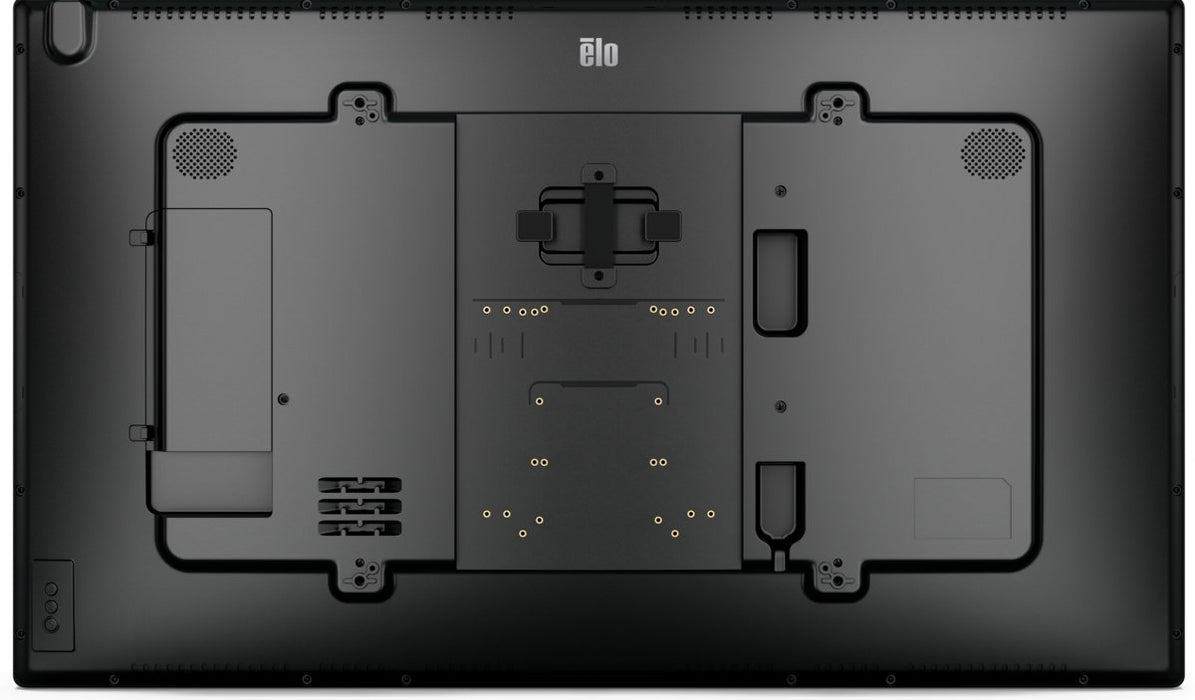

The back of your display never looked so clean.
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with
EloView, Crestron or your preferred MDM solution via provided APIs.
Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.
Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.
Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 4304L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.
Touch Thru Glass Enabled with PCAP With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Versatile mounting options for commercial interactive displays.

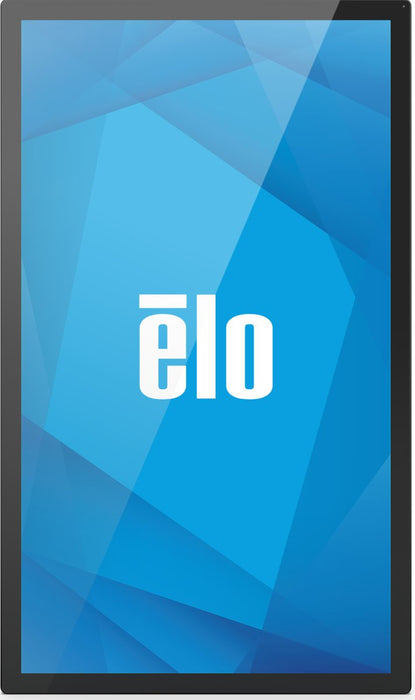

Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 4304L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 4304L for diverse international markets. -
Feature Description Model / Part Number 4304L – TouchPro PCAP (clear with anti-friction) – E103351 Enclosure Color Black Touch Technology & Capacity PCAP (TouchPro® Projected Capacitive), 40-touch with Palm Rejection and Touch Thru Touch Thru Up to 6mm glass / 3mm plastic (2 touches), gloves up to 1.4mm Touch Interface USB-C Diagonal Size 42.5" diagonal, Active matrix TFT LCD (LED) Active Area 37.04" × 20.84" / 940.9 × 529.3 mm Aspect Ratio 16:9 Resolution 1920 × 1080 @ 60 Hz Other Supported Resolutions 640×480 @60Hz; 800×600 @56/60Hz; 1024×768 @60Hz; 1280×720 @60Hz; 1280×960 @60Hz; 1280×1024 @60Hz; 1920×1080 @50/60Hz Viewing Angle Horizontal: ±89° (178° total) / Vertical: ±89° (178° total) Number of Colors 8-bit (16.7 million) Brightness (typical) LCD Panel: 500 nits; PCAP: 430 nits Response Time 8 ms Contrast Ratio 4000:1 Compute Mounting Options Elo Backpack 4; Intel NUC (100 × 100 mm VESA plate); BrightSign XT/XD/XC/HD Built-in IoT Control EloView (Cloud) supported; Crestron Connected V2 supported On-Screen Display Language/Time setup; Source Select (HDMI-1/2, DP, USB-C); Video, Color, Audio, Power, Time, OSD, Configuration. See manual for full list. I/O Ports 2× HDMI 1.4; USB-C; USB-A (Wi-Fi adapter only); RJ45 (IoT LAN); RJ45 (OSD remote); DisplayPort 1.2; 3.5mm TRS (RS232/MDC); 3.5mm audio out; 4× Elo Edge Connect Micro USB 2.0 Control Buttons Power; Video Source Select; OSD Video Interfaces 2× HDMI (HDCP-capable); DisplayPort 1.2 (HDCP-capable); USB-C (HDCP-capable) Sync Frequency Horizontal: 30–70 kHz; Vertical: 24–64 Hz Headphone Output 3.5 mm TRS jack Speakers 2 × 8 W stereo Power Input: IEC 60320-C13; 100–240VAC 50/60Hz. Output: IEC 60320-C14. Short cable C14→C5: 100V/2A (200W), 220V/2A (440W) Maximum Operating Time 24 hours/day Power Consumption On: 47 W; Sleep: 1.43 W; Off: 0.29 W Dimensions 39.66" × 23.45" × 2.19" / 1007.4 × 595.7 × 55.6 mm Shipping Box Dimensions 45.28" × 7.36" × 32.28" / 1150 × 187 × 820 mm Weight (Unpackaged) 40.72 lbs / 17.87 kg Weight (Packaged) 50.76 lbs / 22.96 kg Operating Temperature 0–40°C (32–104°F) Portrait/Landscape/Tilt ≤15°; 0–35°C (32–95°F) Tabletop Storage Temperature -20–60°C (-4–140°F) Humidity Operating: 20–80%; Storage: 10–95% (38.7°C max wet bulb) Mounting Options VESA 400 × 400 mm, M6 Sealability Touchscreen sealed to bezel; sealed to LCD MTBF 50,000 hours demonstrated Warranty 3-year with AUR included Extended Service Options 4 yr AUR – E740135; 5 yr AUR – E740330; 3 yr OSE – E740527*; 4 yr OSE – E740728*; 5 yr OSE – E740918* (*US only) Regulatory UL 62368-1; FCC/CEC (US); cUL, IC (Canada); CB (IEC/EN60950-1 + IEC/EN62368-1); CE (EU); VCCI (Japan); RCM (Australia); CCC/CEL, China RoHS; NOM (Mexico); IK07 & UL60950 ball drop Energy Star 8.0 Other Features Ambient Light Sensor; Auto Wake; OTA firmware upgrade What’s in the Box 4304L Interactive Display; Quick Install Guide; AC power cables (NA, EU/KR, UK); AC out cable C14→C5 (0.3m, PSE cert.); USB Type-C↔Type-C (1m); Energy labels (EU EEI ×1, UK EEI ×2); 4× M4×6mm screws (BrightSign) IDS Optional Accessories 2D Barcode Scanner SE4107 – E245047; SE2707 – E393160; Fingerprint Scanner – E134286; Stand – E722153; Wired OSD Remote – E483757; Wall Mount – E721949; Cable Kit – E285277; Elo Backpack® 4 Value – E393754; Standard – E393359; RFID – E673037; 4K Camera – E988153; Wi-Fi Kit – E131942; HDMI 2.0 Cable 1.8m – E951189; RS232 Cable 1.8m – E959434; USB-A→C Cable 1.8m – E951381; DP Cable 1.8m – E582895; USB-C Cable Kit 1m – E802914 -
Description Downloads Elo 4304L 43" Full HD TFT LCD Interactive Touchscreen Display | E103351 DataSheet Download Elo 4304L 43" Full HD TFT LCD Interactive Touchscreen Display | E103351 User Manual Download Elo 4304L 43" Full HD TFT LCD Interactive Touchscreen Display | E103351 Quick Installation Guide Download
