Elo 5554L 55" 4K UHD TFT LCD PCAP Touchscreen Display | E104315
SKU: E104315
£1,655.29 (Excl. VAT)
- Display Size55"
- Touch Capabilities40pt multi-touch
- Net Weight30 kg
- Operating SystemNone
- VESA Patterns400x400
- Panel TypeTFT Panel
- ResolutionUltra HD (4K)
- Screen TypeFlat
- Response Time8ms
- Screen Ratio16:9
- Brightness430 cd/m2
- Operating Hours24/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
Elo 5554L 55" Interactive Touch Display | 4K UHD | TouchPro PCAP (anti-glare) – Commercial-Grade 24/7 Touchscreen
5554L 55" Interactive Display
Elevate your applications with Elo’s 5554L 55‑inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 5554L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 55‑inch tablet.

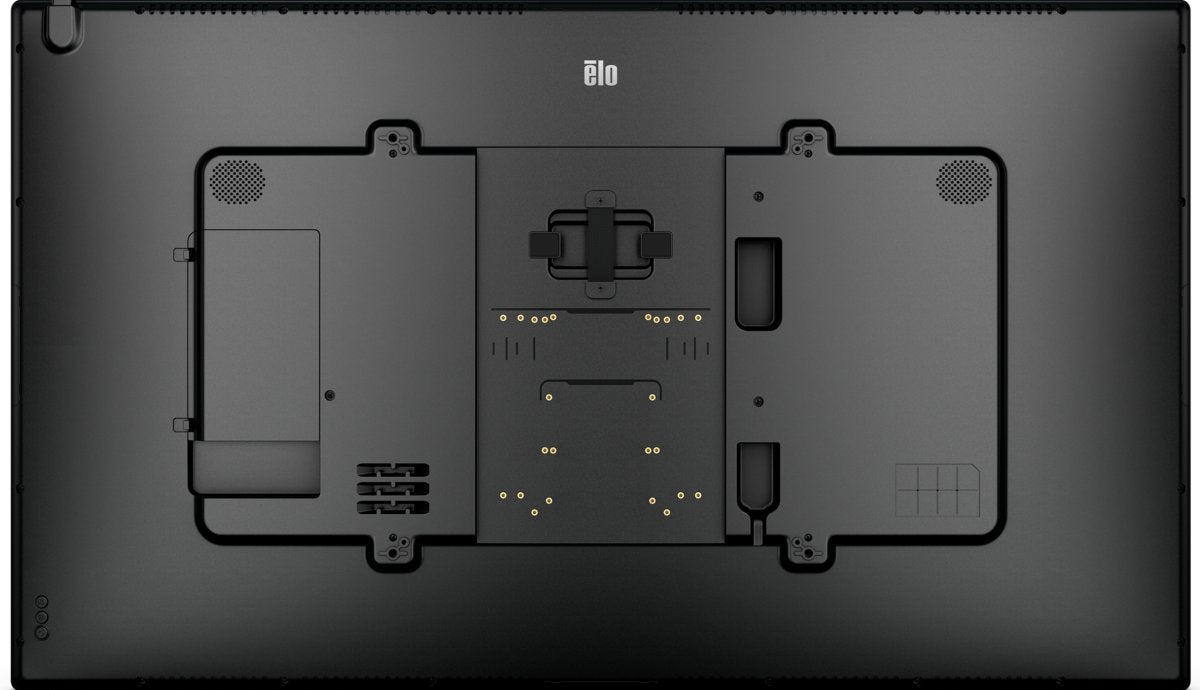

The back of your display never looked so clean.
⦁ VESA for PC mounting
⦁ Power brick and power cable mounting
⦁ External PC power passthrough
⦁ Contained cable routing
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.
Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.
Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.
Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 5554L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.
Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Versatile mounting options for commercial interactive displays.

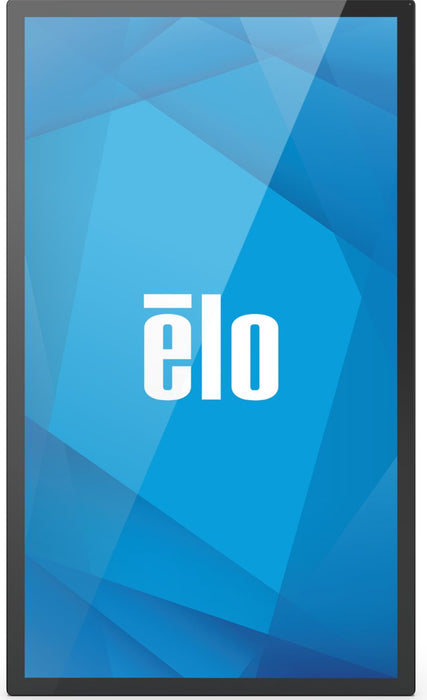

Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 5554L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 5554L for diverse international markets. -
Feature Description Model / Part Number 5554L – IR (anti-glare) – E104520 Available Variants TouchPro PCAP (clear, anti-friction) – E104131; TouchPro PCAP (anti-glare) – E104315; IR (anti-glare) – E104520 Enclosure Color Black Touch Technology & Capacity Infrared – 20 Touch (E104520). PCAP (TouchPro®) variants support 40 Touch with Palm Rejection & Touch Thru. Touch Thru Supports up to 6 mm glass / 3 mm plastic with up to 2 touches; supports gloves up to 1.4 mm. Touch Interface USB-C Diagonal Size 54.6" diagonal, Active matrix TFT LCD (LED) Active Area 47.62" × 26.79" / 1209.6 mm × 680.4 mm Aspect Ratio 16:9 Resolution 3840 × 2160 @ 60 Hz (4K UHD) Other Supported Resolutions 640×480 @60Hz; 800×600 @56/60Hz; 1024×768 @60Hz; 1280×720 @60Hz; 1280×960 @60Hz; 1280×1024 @60Hz; 1920×1080 @50/60Hz; 2560×1440 @60Hz; 2560×1600 @60Hz; 3840×2160 @30/60Hz Viewing Angle Horizontal: ±89° (178° total) / Vertical: ±89° (178° total) Number of Colors 10-bit (1.07 billion) Brightness (typical) LCD Panel: 500 nits; IR: 450 nits (E104520). PCAP: 430 nits. Response Time (typ.) 8 ms Contrast Ratio 1100:1 Compute Mounting Options Elo Backpack 4; Intel NUC (100 mm × 100 mm VESA); BrightSign XT/XD/XC/HD Series Player Built-in IoT Control EloView (Elo Cloud) supported; Crestron Connected V2 supported On-Screen Display (OSD) Let’s Get Started (Language/Time/Zone); Video Source Select (HDMI-1/HDMI-2/DisplayPort/USB-C); Video Settings (Port Discovery, Brightness, Contrast, Black Level, Sharpness, Aspect Ratio); Color Settings (Color Temp, Color Sensor, User Preset, Picture Modes, HDMI Full Range); Audio (Output, Mute, Volume); Information (Monitor, Temperature, IoT status, Error, Help); Power (Loss Behavior, Lock, Energy Saving, Status Light, HDMI CEC); Time (Set, On/Off Schedule); OSD Settings (Recall Defaults, Timer, Language, Lock, Portrait Rotation, Touch Through, Tabletop); Configuration (Source Port Lock; FW Update via OTA/USB). See user manual for full details. I/O Ports 2× HDMI 2.0; USB-C (touch + video); USB-A (Wi-Fi adapter only); RJ45 (IoT LAN); RJ45 (optional OSD remote); DisplayPort 1.4; 3.5 mm TRS jack (RS232/MDC); 3.5 mm audio headphones out; 4× Elo Edge Connect Micro USB 2.0 Control Buttons Power; Video Source Selection; OSD Video Interfaces 2× HDMI (Type-A, HDCP-capable); DisplayPort 1.2 connector (HDCP-capable); USB-C connector (HDCP-capable) Sync Frequency Ranges Horizontal (FHD): 30–135 kHz; Vertical (frame rate): 24–64 Hz Headphone Output 3.5 mm TRS jack Speakers 2 × 10 W stereo speakers Power (Input/Output) Input connector: IEC 60320-C13; Input: 100–240 VAC 50/60 Hz; Output connector (bypass to backside device): IEC 60320-C14; AC outlet short cable (C14→C5) rating: 100V/2A (200 W), 220V/2A (440 W) Maximum Operating Time 24 hours/day Power Consumption (Typical) IR (E104520): On 110.72 W; Sleep 1.52 W; Off 0.38 W. (PCAP: On 111.87 W; Sleep 1.52 W; Off 0.38 W) Dimensions (W×H×D) IR: 50.07" × 29.24" × 2.76" / 1271.8 mm × 742.6 mm × 70.0 mm. (PCAP: 50.07" × 29.24" × 2.37" / 1271.8 mm × 742.6 mm × 60.2 mm) Shipping Box Dimensions 57.48" × 40.94" × 8.86" / 1460 mm × 1040 mm × 225 mm Weight (Unpackaged) IR: 80.6 lbs / 30.15 kg. (PCAP: 81.1 lbs / 30.07 kg) Weight (Packaged) IR: 101.9 lbs / 38.62 kg. (PCAP: 102.5 lbs / 38.52 kg) Operating Temperature Portrait/Landscape/Tilt (≤15°): 0°C to 40°C / 32°F to 104°F; Tabletop: 0°C to 35°C / 32°F to 95°F Storage Temperature −20°C to 60°C / −4°F to 140°F Humidity Operating: 20%–80%; Storage: 10%–95% (38.7°C max wet bulb) Mounting Options VESA 400 mm × 400 mm (M6); VESA 600 mm × 600 mm (M8) Sealability Touchscreen sealed to bezel; touchscreen sealed to LCD MTBF 50,000 hours demonstrated Warranty 3-year with AUR included Extended Service Options 4-yr AUR – E740135; 5-yr AUR – E740330; 3-yr OSE – E740527*; 4-yr OSE – E740728*; 5-yr OSE – E740918* (*Continental US only) Regulatory UL 62368-1; FCC/CEC (US); cUL, IC (Canada); CB (IEC/EN60950-1 + IEC/EN62368-1); CE (Europe); VCCI (Japan); RCM (Australia); CCC/CEL, China RoHS (China); NOM (Mexico); IK07 and UL60950 ball drop test Energy Star 8.0 Other Features Ambient Light Sensor (auto color match), Auto Wake; OTA firmware upgrade What’s in the Box 5554L Interactive Display; Quick Install Guide; AC(in) power cables: C13→NA, C13→EU/KR, C13→UK; AC(out) power cable C14→C5 (0.3 m, PSE certified); USB Type-C↔Type-C (1 m); Energy labels (1× EU EEI, 2× UK EEI); 4× M4×6 mm flat-head screws (for BrightSign players) IDS Optional Accessories 2D Barcode Scanner (SE4107) – E245047; 2D Barcode Scanner (SE2707) – E393160; Fingerprint Scanner – E134286; Wired OSD Remote – E483757; Wall Mount Kit – E727774; Replacement Cable Kit – E285277; Passive Stylus – E727568; Elo Backpack® 4 (Value) – E393754; Elo Backpack® 4 (Standard) – E393359; RFID – E673037; 4K Conference Camera – E988153; Wi-Fi Adapter Kit – E131942; 1.8 m HDMI 2.0 Cable – E951189; 1.8 m RS232 Cable – E959434; 1.8 m USB Type-A→Type-C Cable – E951381; 1.8 m DisplayPort→DisplayPort Cable – E582895; Elo 1 m USB Type-C Cable Kit – E802914 -
Description Downloads Elo 5554L 55" 4K UHD TFT LCD PCAP Touchscreen Display | E104315 DataSheet Download Elo 5554L 55" 4K UHD TFT LCD PCAP Touchscreen Display | E104315 User Manual Download Elo 5554L 55" 4K UHD TFT LCD PCAP Touchscreen Display | E104315 Quick Installation Guide Download
