BIAMP Desono CM20DTS 2-Way Ceiling Speaker
SKU: 911.0631.900
£267.95 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Biamp Desono CM20DTS Ceiling Loudspeaker | 4.25" 2-Way, 40W, 70/100V, Zoom Certified

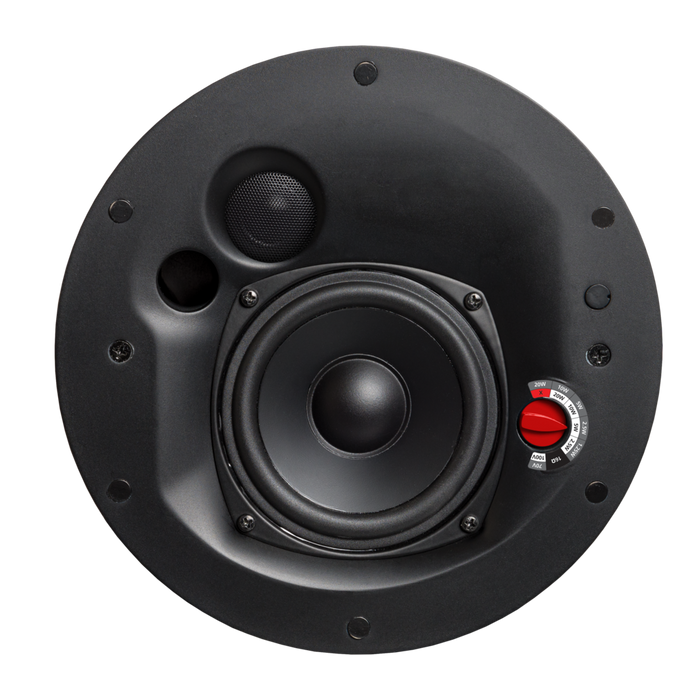

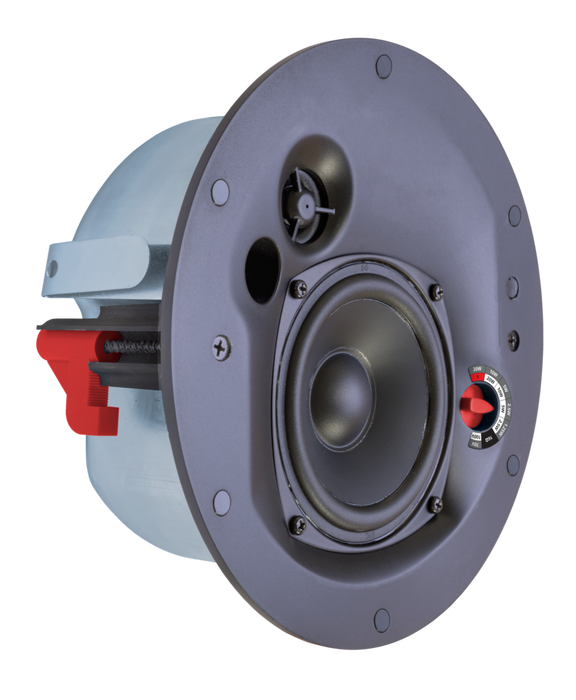

The Desono CM20DTS is a 2-way 4.25-inch ceiling loudspeaker that delivers crystal clear audio for all your public address and background music needs. Its 4.25-inch coated paper cone woofer and a 1-inch tweeter results in a high SPL and extremely low distortion, ensuring exceptional clarity over the entire frequency spectrum.
The CM20DTS utilizes a 5-position switchable transformer ranging from 1.25W to 20W (has a rotatable 70V/100V power tapping selector on the front and offers 16 ohms connectivity) with low-impedance bypass for constant-voltage operation, making it an excellent choice for large areas of BGM.

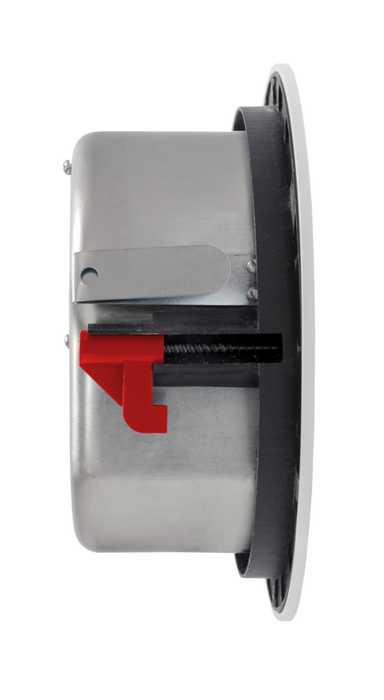

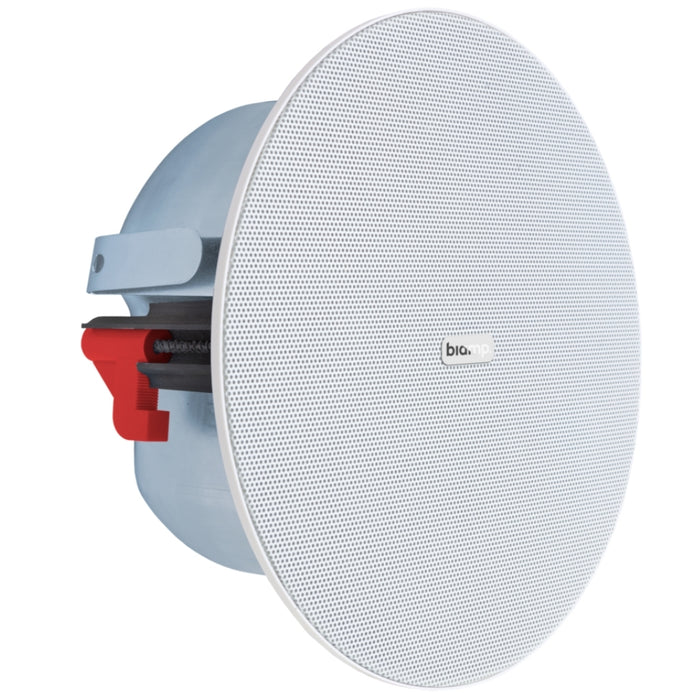

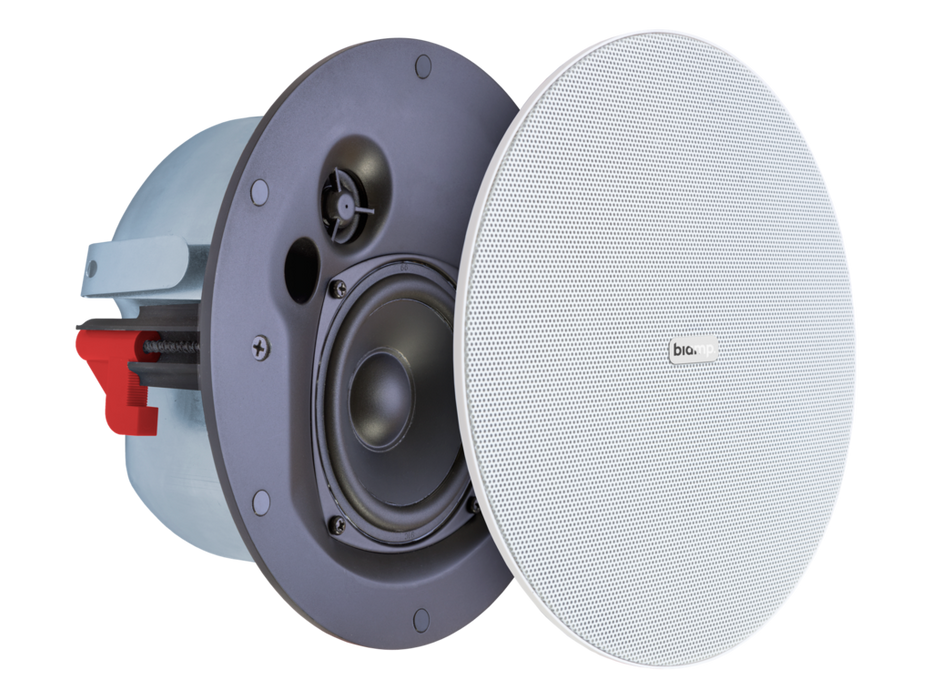

Designed with the installer in mind, they can be blind-mounted from below the ceiling, and feature a magnetic grille for easy toolless installation and removal that can also be painted to match the room decor. Additionally, the tap switch is located on the face of the loudspeaker, so adjustments can be made without requiring ceiling access.
Desono CM20DTS loudspeakers are an ideal choice for a multitude of environments that demand superior speech intelligibility and full range music reproduction. -
Feature Specification General Depth 3.3 in (84 mm) Diameter 8.8 in (223 mm) Cutout Diameter 7.6 in (193 mm) Weight 4.4 lbs (2.0 kg) Finish White RAL 9010 Environmental Operating Environment Indoor Power Power 40 W continuous / 160 W peak Loudspeaker Type Two-way 4.25″ ceiling loudspeaker Operating Range 90 Hz – 22 kHz Transformer 70V: 20W, 10W, 5W, 2.5W, 1.25W
100V: 20W, 10W, 5W, 2.5WSensitivity 87 dB (1W/1m) Dispersion 150° H × 100° V Drivers LF: 1 × 4.25″
HF: 1 × 1″Audio Impedance 16 Ω nominal Maximum Output 103 dB @1m / 109 dB peak Certified Solutions Zoom Zoom Certified Compliance Certifications UL1480A, UL2043, CSA C22.2#62368-1 -
Description Downloads BIAMP Desono CM20DTS 2-Way Ceiling Speaker DataSheet Download
