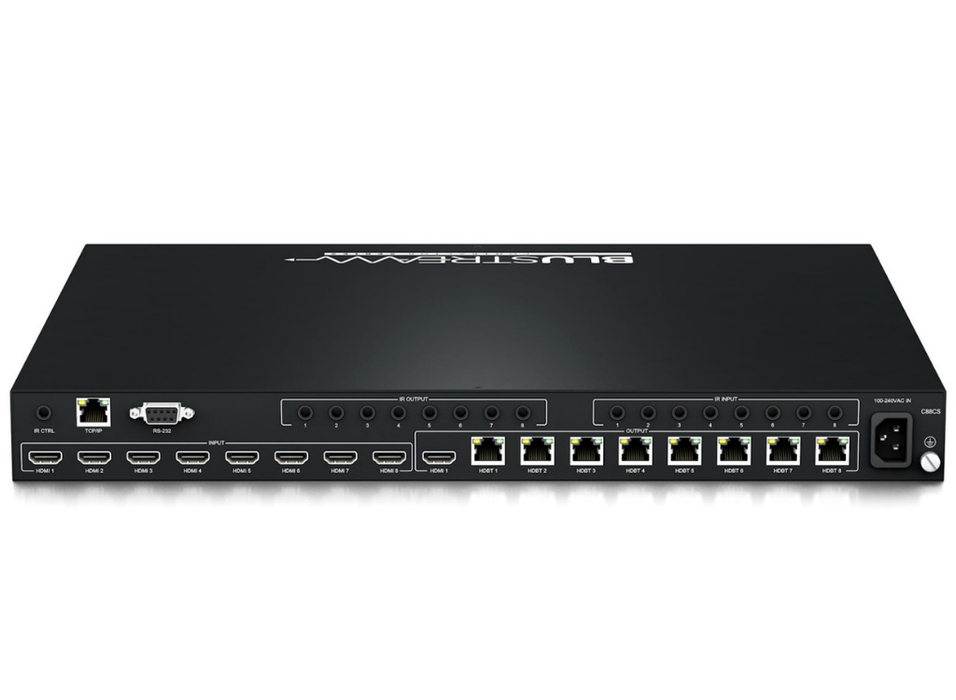

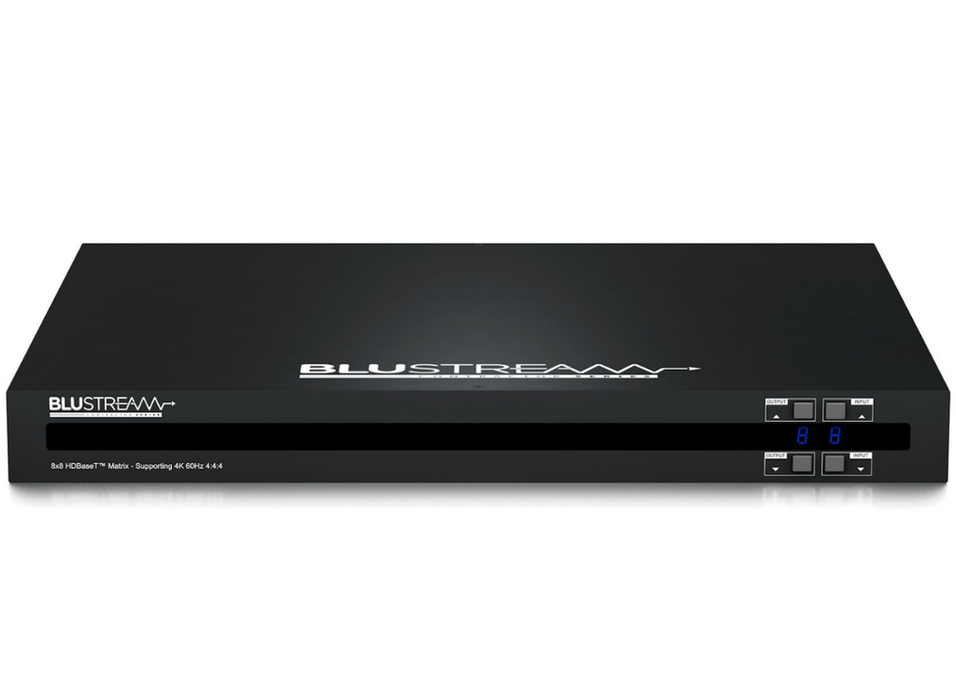

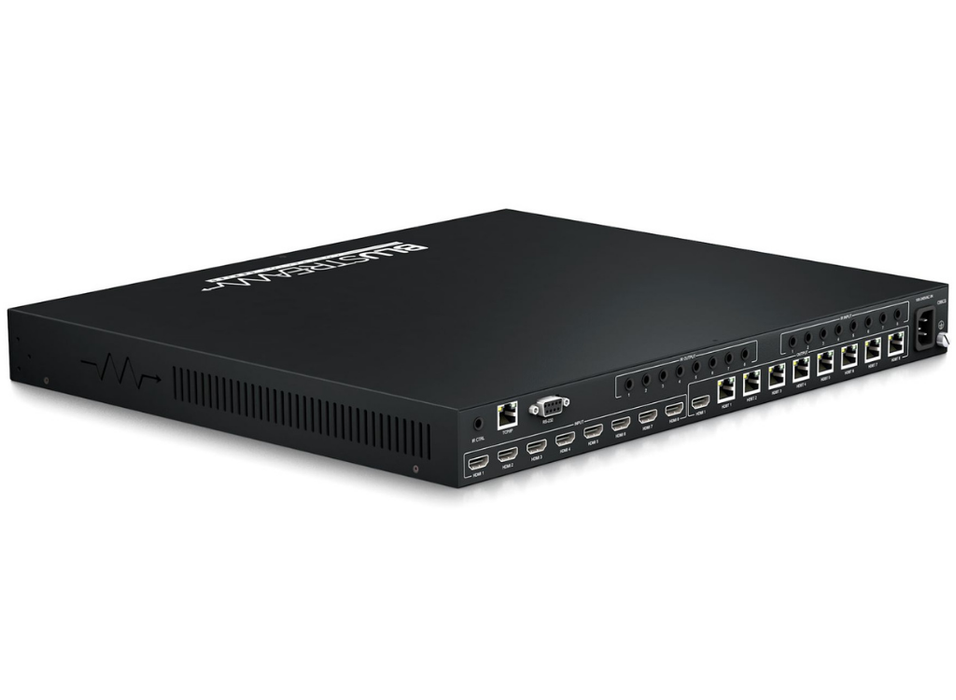

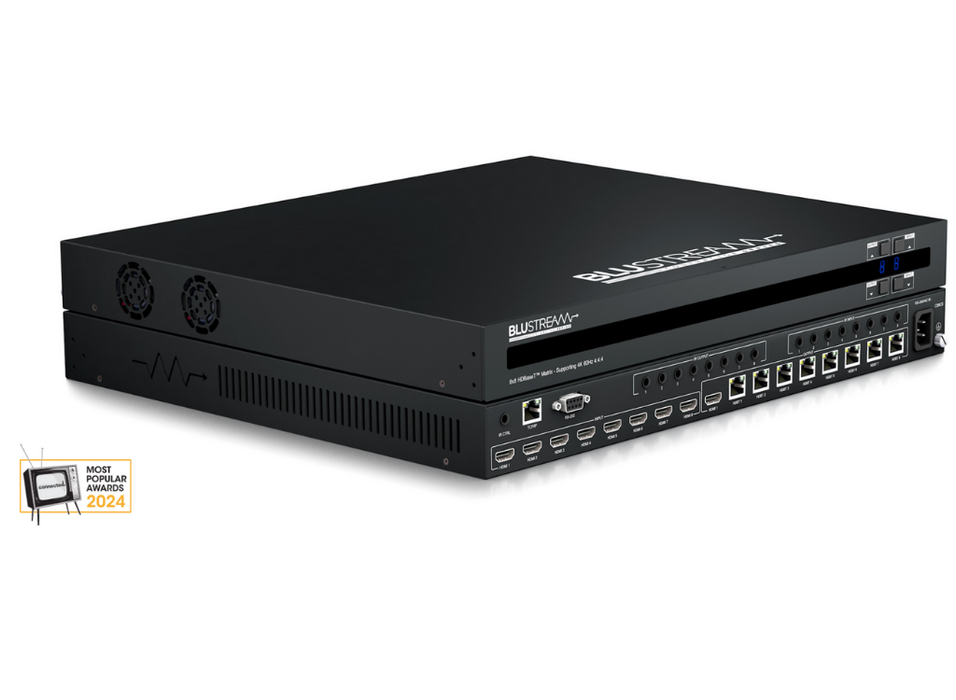

BluStream Contractor 8x8 HDBaseT™ CSC Matrix - 70m | C88CS
Our Contractor 8x8 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.
The C88CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).
The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs, and a web browser interface module for control and configuration of the matrix.
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers (RX70CS recommended)
• Supplied with Blustream IR receivers and emitters
• 3rd party drivers available for major control brands
• 1U Design for 19" rack mount integration - mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant
• Recommended receiver: RX70CS (where 18Gbps CSC support is required)*For 18Gbps CSC support use RX70CS receivers
Box Contents
1 x C88CS
1 x Rack Mounting Kit
1 x Remote Control
8 x IR Emitters
9 x IR Receivers
1 x RS-232 Control Cable
1 x IR Control Cable - 3.5mm-3.5mm Cable
1 x Quick Reference Guide
Power Cable(s) -
Feature Specification Video Input Connectors 8 x HDMI Type A, 19-pin, female Video Output Connectors 1 x HDMI Type A, 19-pin, female; 8 x HDBaseT™ RJ45 connector RS-232 Serial Port 1 x DB9 Serial connector TCP/IP Control 1 x RJ45, female IR Input Ports 9 x 3.5mm stereo jack IR Output Ports 8 x 3.5mm mono jack Rack Mountable 1U rack height, rack ears included Case Dimensions (without feet & connections) 437mm x 377mm x 44mm Case Dimensions (with feet & connections) 437mm x 384mm x 53mm Shipping Weight 6.25kg Operating Temperature 32°F to 104°F (-5°C to +55°C) Storage Temperature -4°F to 140°F (-25°C to +70°C) Power Supply Internal 100-240V AC -
Description Downloads Datasheet Download Manual Download
