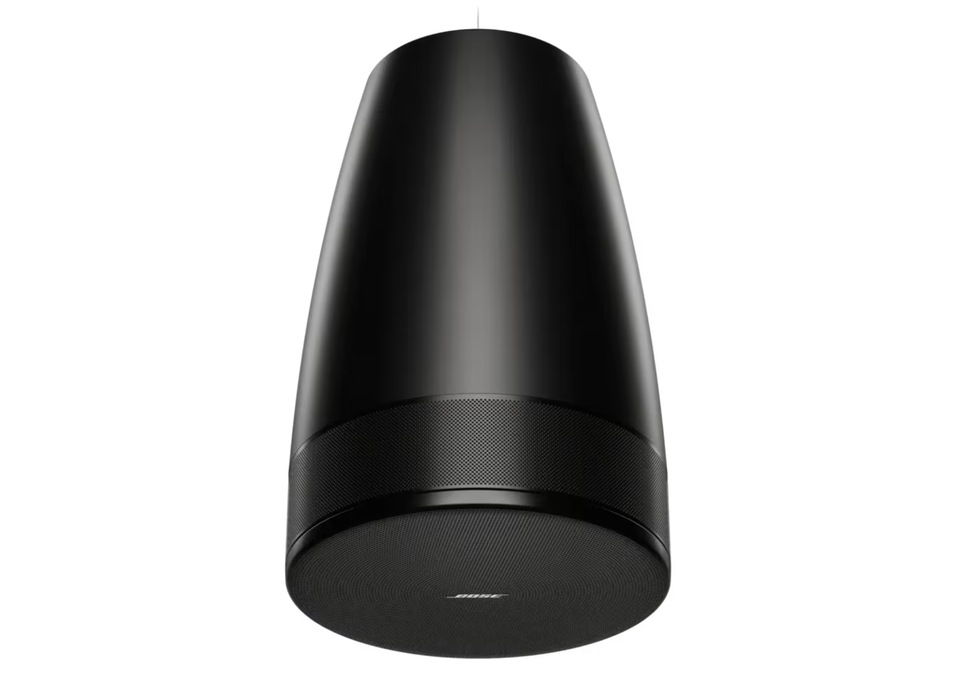

BOSE DesignMax Luna DML88P Loudspeaker | 892117-0100
SKU: 892117-0100
£487.20 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Full-Range Pendant Audio Performance
The DesignMax Luna pendant loudspeaker offers full-range performance from a sleek, modern design—making it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs—even in challenging ceiling conditions—while concealed wiring keeps everything looking clean. Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces.
FEATURES

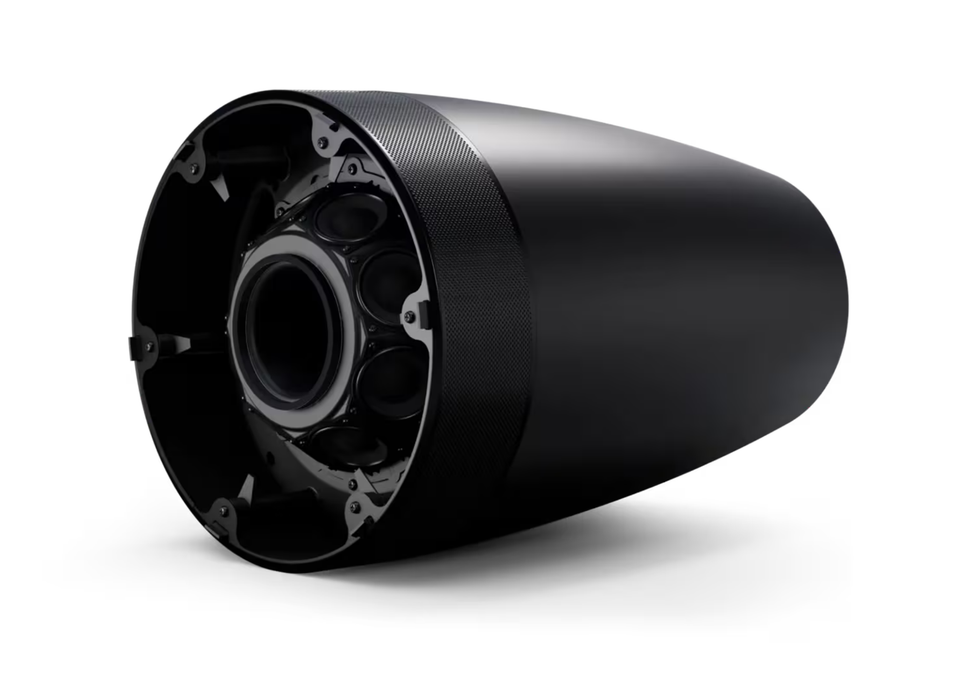

Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zonesIntegrated 8” woofer extends down to 40 Hz—no subs needed
Wide-throw 140° coverage reduces speaker count and installation costs
Flexible mounting lets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs
Streamlined design with concealed wiring and premium finish options
Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter
Applications
Designed for a wide range of applications, including:Retail stores
Restaurants and breweries
Fitness clubs and studios
Amusement and recreation spaces
Education and gymnasiums -
Safety Agency Ratings UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant Colors Black (similar to RAL 9005), white (similar to RAL 9003), paintable Enclosure Material Engineered plastics Environmental Indoors only; UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant Grille Perforated steel, powder-coated finish, paintable Logo Rotatable, removable Suspension/Mounting (1) 3-hole suspension cable attachment point Product Dimensions (H×W×D) 308 mm × 492 mm (12.1 in × 19.4 in), loudspeaker diameter x depth Net Weight 10.0 kg (22.0 lb) Frequency Range (-10 dB) 40 Hz – 20,000 Hz Coverage, Horizontal 140° conical Calculated Maximum SPL @ 1 m 107 dB Nominal Impedance 8 Ω (transformer bypass) Power Handling (Continuous) 140 W Power Handling (Peak) 560 W Recommended Processing Not required; Bose Professional EQ voicing and SmartBass processing available Sensitivity (1W/1m) 85 dB Transformer Taps (100V) 25 W, 50 W, 100 W, bypass Transformer Taps (70V) 12 W, 25 W, 50 W, 100 W, bypass High-Frequency Drivers 8 × 2.0-in (51 mm) drivers in circular array Low-Frequency Woofer 1 × 8 in (203 mm) woofer Product Code (Black) 892117-0100 (DESIGNMAX DML88P BLK) Product Code (White) 892117-0200 (DESIGNMAX DML88P WHT) Included Item (1) DesignMax Luna DML88P Included Item (1) connection panel cover Included Item (1) adjustable suspension cable system Included Item (4) cable ties Included Item (1) installation guide -
Description Downloads Datasheet Download
