Bose Panaray MA12 Modular Line Array Loudspeaker

SKU: 40189

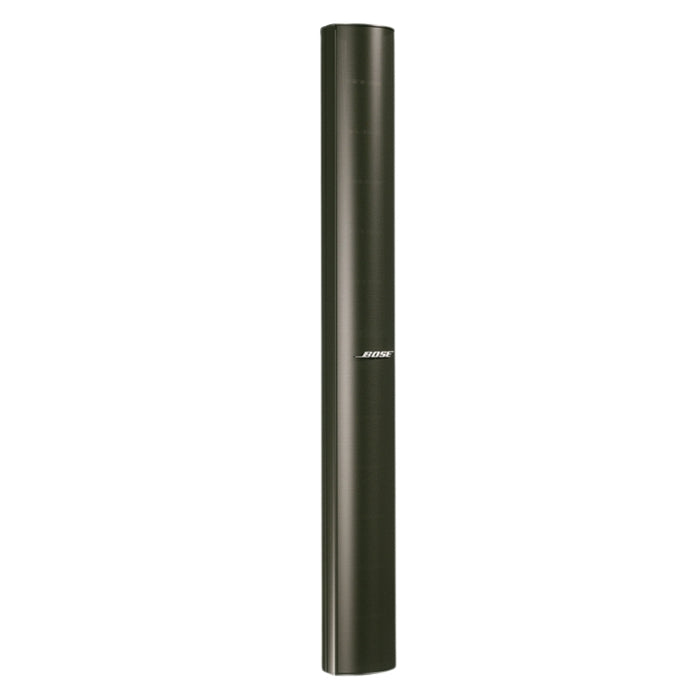

Bose Panaray MA12 Modular Line Array Loudspeaker Bose Loudspeakers BOSE Black
Availability:
Only 2 left at this price!
Availability:
34 in stock
🚚 Order before 3PM, get it by tomorrow.
Free Express Delivery Guaranteed on all orders over £100 ex VAT.
Save £511.81 Save £511.81

£715.95 (Excl. VAT)

- £859.14 (Inc. VAT)
£715.95 - £715.95
- - £859.14
Availability:
Only 2 left at this price!
Availability:
34 in stock
Color: Black
payment-icons
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.

Book a Free Product Demo

Remote or on-site. No obligation.

Integrator or Installer?

Trade pricing, volume discounts, same-day collection.

Request a Trade Account

Education & Public Sector Solutions

Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.

Create an Account Email Public Sector Team
Official Purchase Orders We accept formal POs with VAT-compliant invoicing for all verified institutions.
Contract & Volume Discounts Competitive rates for multi-site, long-term, or framework-based deployments.
Dedicated Account Management Single point of contact for lead times, coordination, and sourcing.
Flexible 30-Day Terms Available to verified schools, councils, and government bodies.
  • Description
  • Specifications
  • Downloads

  • Bose Panaray MA12 Modular Line Array Loudspeaker – 12×2.25" Drivers, 145° Wide Coverage, 300W, Slim Column Design for Clear Speech & Music

    Wide 145° horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any décor.

    FEATURES
    Twelve 2.25" (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control

    Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections

    145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration

    Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement

    Optional brackets allow easy installation of single-, double- or triple-stack line array modules

    Applications
    Houses of worship
    Multi-purpose spaces
    Recreation
    Restaurants and bars
    Auditoriums
    Transportation facilities
    Gymnasiums
    Atriums and malls

  • Feature Description
    EN 54-24 Certified No
    Colors Black, White
    Enclosure Material Extruded-aluminum sidewalls with steel top & bottom endcaps, powder-coated
    Grille Aluminum, powder-coated finish
    Suspension/Mounting 4 × M6 threaded inserts
    Product Dimensions (H×W×D) 38.8 in × 4.2 in × 5.0 in (984 mm × 105 mm × 128 mm)
    Net Weight 19.0 lb (8.5 kg)
    Frequency Range (-10 dB) 100 Hz – 16,000 Hz
    Coverage (Horizontal) 145°
    Coverage (Vertical) 20°
    Calculated Max SPL @ 1 m 113 dB continuous, 119 dB peak
    Nominal Impedance 8 Ω
    Power Handling (Continuous) 300 W
    Power Handling (Peak) 1200 W
    Recommended Signal Processing Bose Professional loudspeaker EQ
    Sensitivity (SPL/1 W @ 1 m) 88 dB
    Transformer Taps (100V) CVT-MA12 transformer available
    Transformer Taps (70V) CVT-MA12 transformer available
    Driver Protection Overload protection
    Low-Frequency Driver 12 × 2.25 in (57 mm) high-excursion mid/high-frequency drivers
    Product Codes 040189 (MA12, black), 040188 (MA12, white)
    Warranty Period 5 years
    Included in Packaging (1) installation guide, (1) MA12 loudspeaker
  • Description Downloads
    Bose Panaray MA12 Modular Line Array Loudspeaker DataSheet Downloads
Bose Panaray MA12 Modular Line Array Loudspeaker
Bose Panaray MA12 Modular Line Array Loudspeaker
SKU: 40189
Bose Panaray MA12 Modular Line Array Loudspeaker
SKU: 40189
