Bose Sub1 Powered Bass Module | 840918-2100
SKU: 840918-2100
£649.12 (Excl. VAT)
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
Bose Sub1 Powered Bass Module | 840918-2100

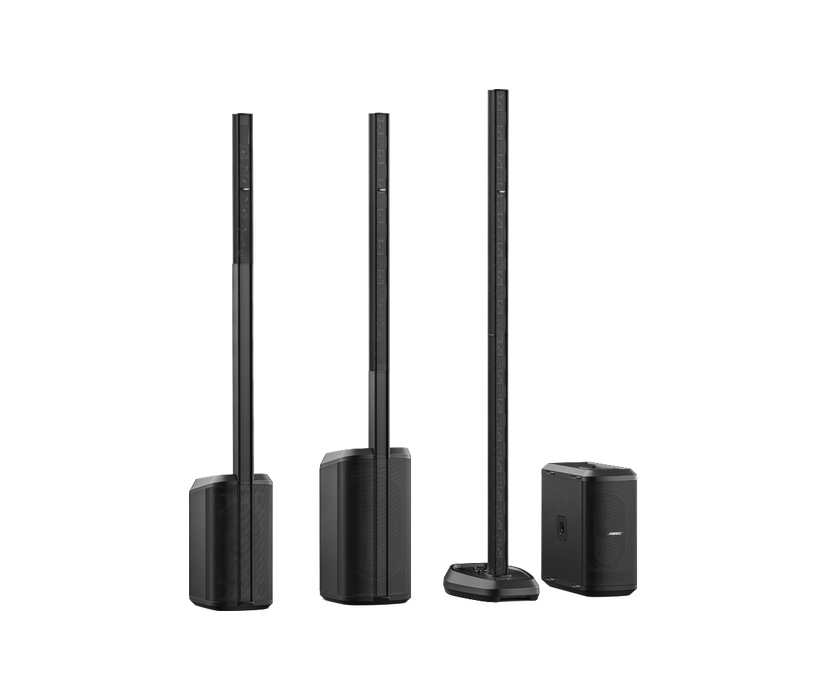

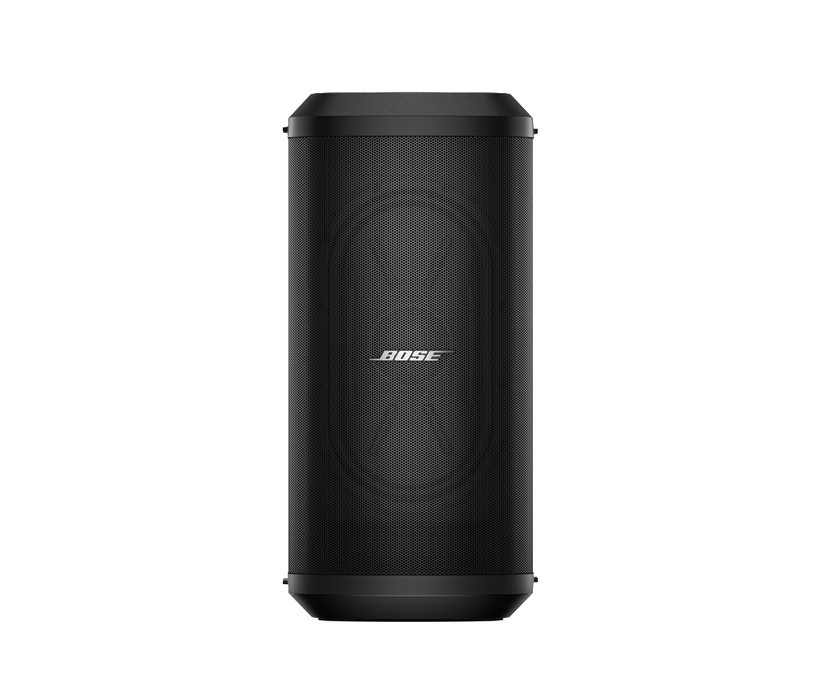

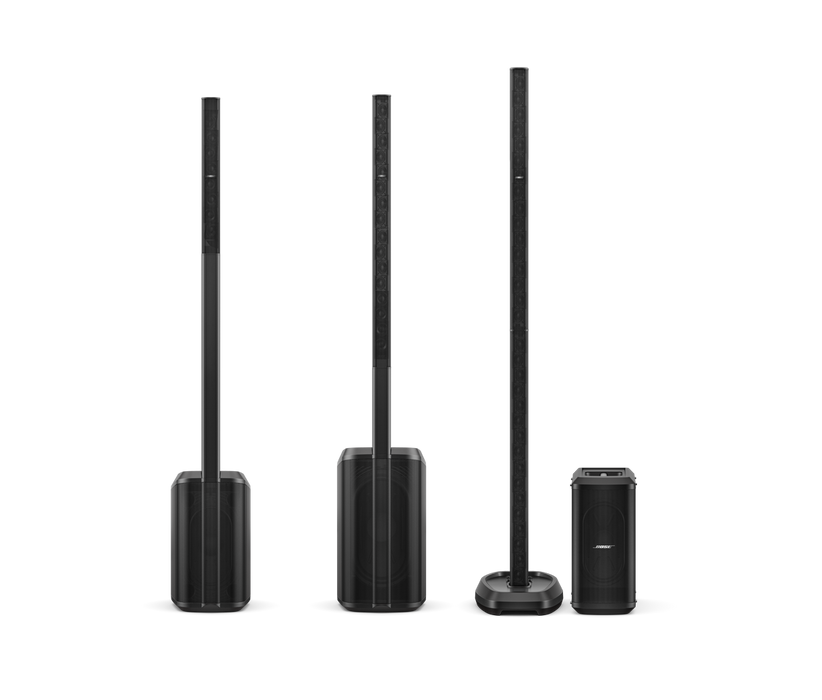

A powered, portable bass module, the Sub1 subwoofer combines with virtually any portable PA and delivers low-end performance down to 40 Hz. Its unique 7 × 13-inch high-excursion RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub2 subwoofer, Sub1 is the more compact subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub1 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub1, you get a subwoofer that goes virtually anywhere and effortlessly fills out your sound.
FEATURES
Go from vehicle to venue easily with a slim design featuring a unique 7 × 13-inch high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

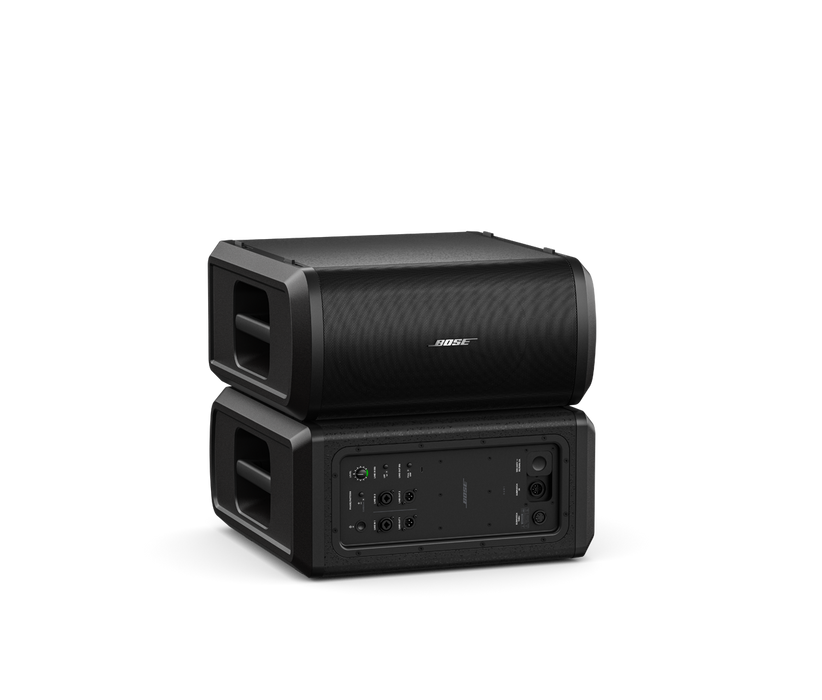

Stack multiple Sub1 subwoofers for even more bass or unleash Cardioid Mode for focused, directional performance that steers the bass out front and decreases feedback

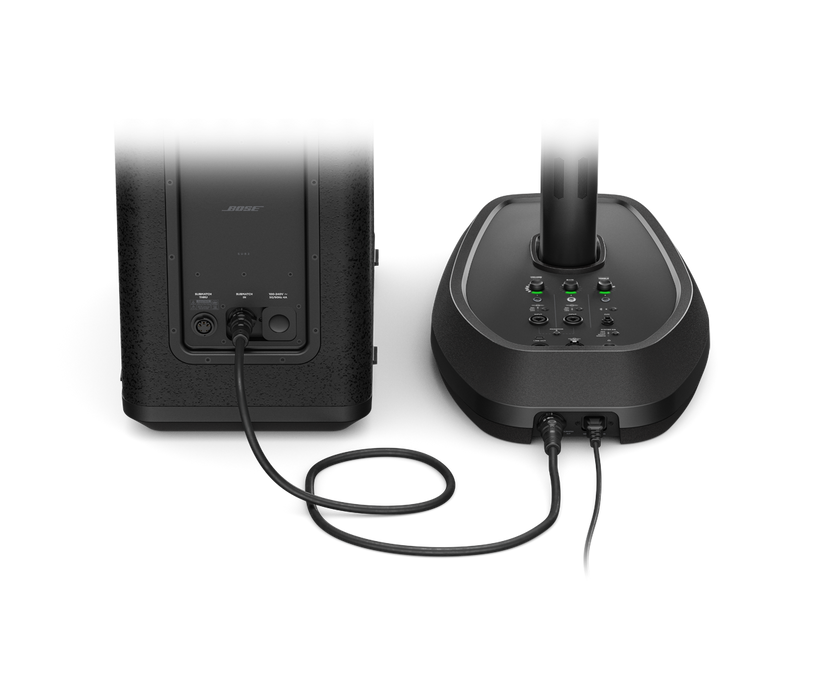

Combine seamlessly with Bose L1 Pro32 portable line array via proprietary SubMatch connectivity, which delivers both power and audio over a single cable

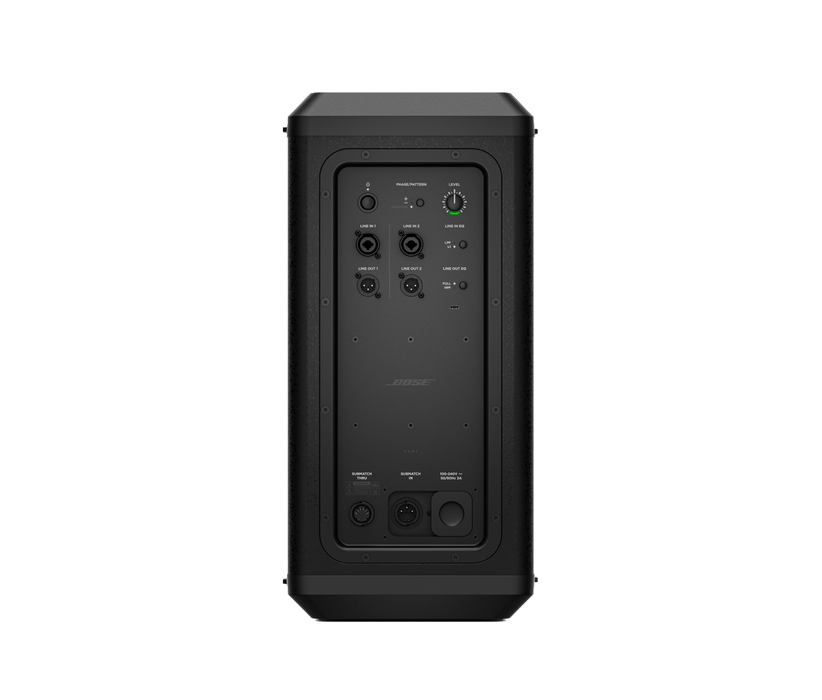

Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more
Applications
Designed for a wide range of applications, including:
Houses of worship
Schools and universities
Resorts and hospitality venues
Live music performances
Business presentations
Mobile DJs -
Category Attribute Value AMPLIFICATION Number of Channels 1 Power Class Class D AUDIO INPUTS Input Channels 2 Connectors XLR-1/4" combo, SubMatch Sensitivity Options +10 dB to +45 dB Phantom Power No COMPLIANCE Safety UL/IEC/EN62368-1 ELECTRICAL AC Power Connector IEC, SubMatch AC Power Input 100–240 VAC ±20%, 50/60 Hz Inrush Current Draw 14.9 A @ 120V / 29.3 A @ 230V GENERAL Software Applications Bose Music (Android, iOS) Computer Interface USB Type-C CONTROLS Rear Panel Controls Power, EQ, Volume LED Indicators Standby, signal/clip, EQ, phase LEDs DSP DSP-Enabled Yes Processing Input/output EQ, polarity/phase control PHYSICAL Colors Black Enclosure Material Polypropylene & birch plywood Grille Powder-coated perforated steel Cooling Convection cooling Product Dimensions (H×W×D) 21.0 × 10.2 × 20.8 in (533 × 260 × 529 mm) Net Weight 34.1 lb (15.5 kg) Shipping Dimensions 24.4 × 24.4 × 13.0 in (620 × 620 × 330 mm) Shipping Weight 39.6 lb (18.0 kg) PERFORMANCE Frequency Range (-10 dB) 32 Hz – 250 Hz Horizontal Coverage 0° Vertical Coverage Omni / Cardioid (-10 dB rear) Max SPL @ 1 m 124.6 dB Power Handling (Peak) 480 W TRANSDUCERS Crossover 200 Hz Low-Frequency Driver 7 × 13 in RaceTrack (178 × 330 mm) Product Codes US Version 840918-1100 EU Version 840918-2100 JP Version 840918-3100 UK Version 840918-4100 AU Version 840918-5100 India Version 840918-5130 Warranty Warranty Period 2 years Packaging Included in Packaging (1) IEC power cord, (1) slip cover -
Description Downloads Bose Sub1 Powered Bass Module | 840918-2100 DataSheet Downloads Bose Sub1 Powered Bass Module | 840918-2100 Quick Start Guide Downloads
