Elo E-Series 3 15.6" 8GB RAM 128GB SSD Full HD Intel Celeron Windows 11 IoT Touchscreen Computer | E849902
SKU: E849902
£671.74 (Excl. VAT)
- Display Size15.6"
- Touch Capabilities10pt multi-touch
- Net Weight3.2 kg
- Operating SystemWindows 11
- VESA Patterns75x75
- Panel TypeTFT Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
- Response Time25ms
- Screen Ratio16:9
- Brightness200 cd/m2
- Operating Hours24/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-

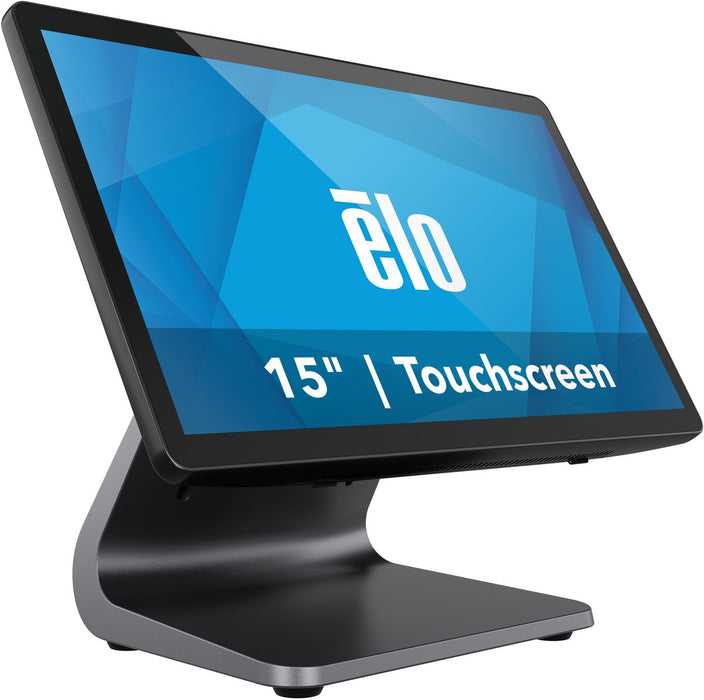

Elo E-Series 3 15.6" Touchscreen Computer | Intel N97, 8GB RAM, 128GB SSD, Windows 11 IoT
E-Series 3 with Intel Touchscreen Computer.
The 15.6-inch E-Series 3 Touchcomputer features a 10-touch TouchPro® PCAP display, a powerful Intel® N97 processor, and your choice of Windows 11 or No OS with support for Linux. With integrated connectivity for all the peripherals you need—cash drawers, printers, barcode scanners, and payment devices—the E-Series 3 delivers the I/O flexibility to support a wide range of use cases.
Modular design. Endless versatility.
Available with and without stand options, you can easily configure the E-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Add a customer-facing display.
The E-Series 3 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.
Expand with Elo Edge Connect.™
Seamlessly attach up to two peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

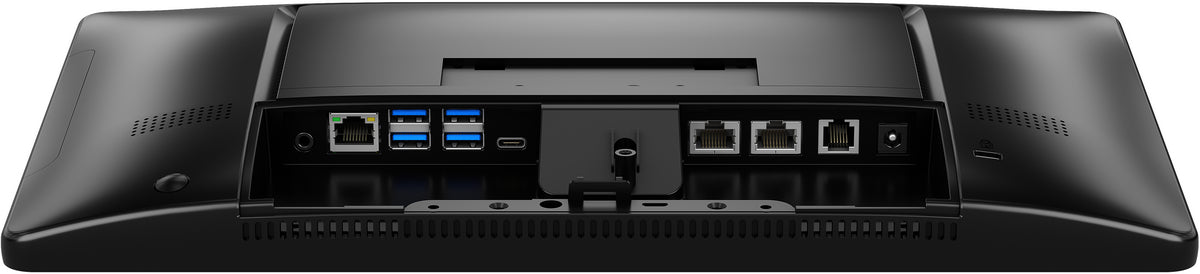

Enhanced connectivity for all your accessories.
1x USB-C full function
1x Gigabit LAN
2x USB 3.0
2x USB 2.0
2x Micro-USB 2.0 Edge Connect
2x Powered RJ45 Serial
1x 12V/24V Cash Drawer
1x Audio Port -
Feature Description Part Number E849902 (Win 11, 8GB RAM, 128GB SSD, WiFi, Stand) Enclosure Color Black Touch Technology PCAP (TouchPro® Projected Capacitive) - 10 Touch Processor Intel® Celeron® Processor N97 (6M Smart Cache, up to 3.60 GHz) Graphics Intel UHD Graphics Memory 8GB 4800MHz DDR5 SO-DIMM (Expandable to 16GB) Storage 128GB M.2 PCIe (NVMe) SSD Display 15.6'' TFT LCD (LED), 1920x1080 @ 60Hz
Brightness: 200 nits (LCD) / 170 nits (PCAP)
Contrast: 500:1
Viewing Angle: ±89° H/V (178° total)Active Area 13.55" x 7.62" / 344.2 mm x 193.5 mm I/O Ports 1x RJ45 LAN (Gigabit)
2x USB 3.0, 2x USB 2.0
2x Micro USB 2.0 (Edge Connect)
2x RJ45 Serial Ports
1x 12V/24V Cash Drawer Port
1x USB-C (27W Power, DP, Video Out)
1x 3.5 mm Audio PortWireless WiFi 802.11 a/b/g/n/ac/ax (2.4/5/6GHz), Bluetooth 5.3 Speakers 2 x 2W internal speakers Operating System Windows 11 IoT Enterprise LTSC 64-bit (36 Language Groups) Power Supply External 19VDC, 90W Power Adapter
AC Input: 100-240V, 50-60 HzPower Consumption On: <30W
Sleep: <2W
Off: <0.5WDimensions With Stand: 14.56" x 7.19" x 11.75"
370.4 mm x 182.6 mm x 298.4 mmWeight Unpackaged: 7 lbs / 3.2 kg
Packaged: 11 lbs / 5.0 kgOperating Temperature 0°C to 35°C / 32°F to 95°F Mounting Options 75mm VESA mount Warranty 3 years (extended options available) What's in the Box E-Series 3
North America & EU Power Cords
Power Adapter – 90W
Serial Port Cable RJ-45 to DB-9
Quick Installation Guide (QIG)
Cable tie -
Description Downloads Elo E-Series 3 15.6" 8GB RAM 128GB SSD Full HD Intel Celeron Windows 11 IoT Touchscreen Computer | E849902 DataSheet Download Elo E-Series 3 15.6" 8GB RAM 128GB SSD Full HD Intel Celeron Windows 11 IoT Touchscreen Computer | E849902 User Manual Download Elo E-Series 3 15.6" 8GB RAM 128GB SSD Full HD Intel Celeron Windows 11 IoT Touchscreen Computer | E849902 Quick Start Guide Download
