Lindy 8m USB 3.0 Active Extension Pro | 43158
SKU: 43158
£61.99 (Excl. VAT)
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
High-Speed USB 3.2 Gen 1 Extension – 8m Solution
Your USB Extension, Your Way.
The Modular USB 3.2 Gen 1 Extension System.

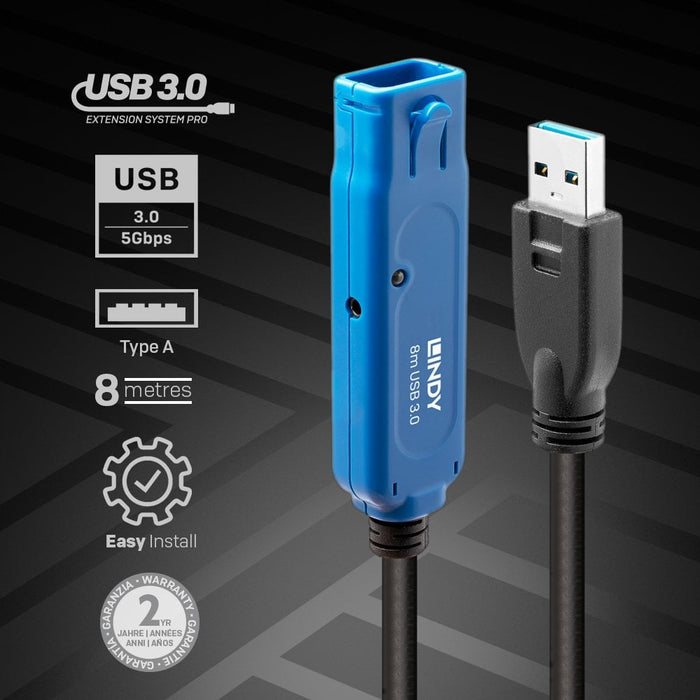

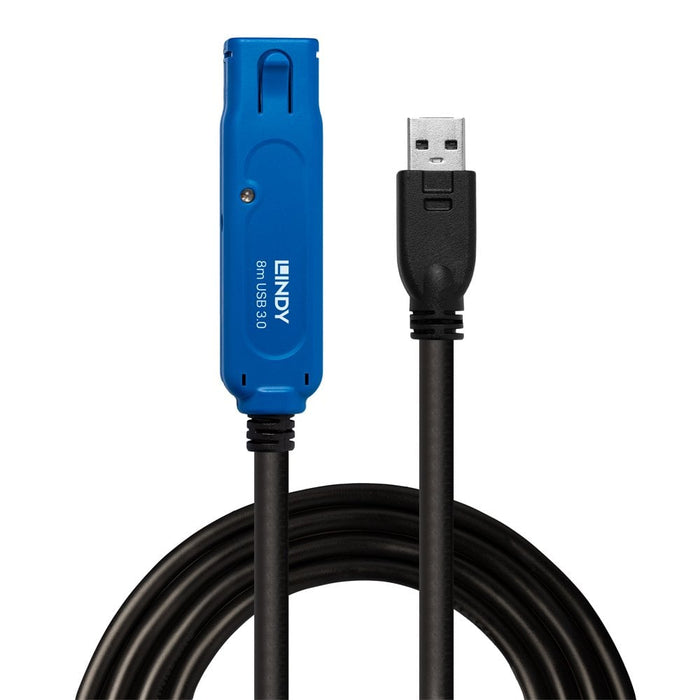

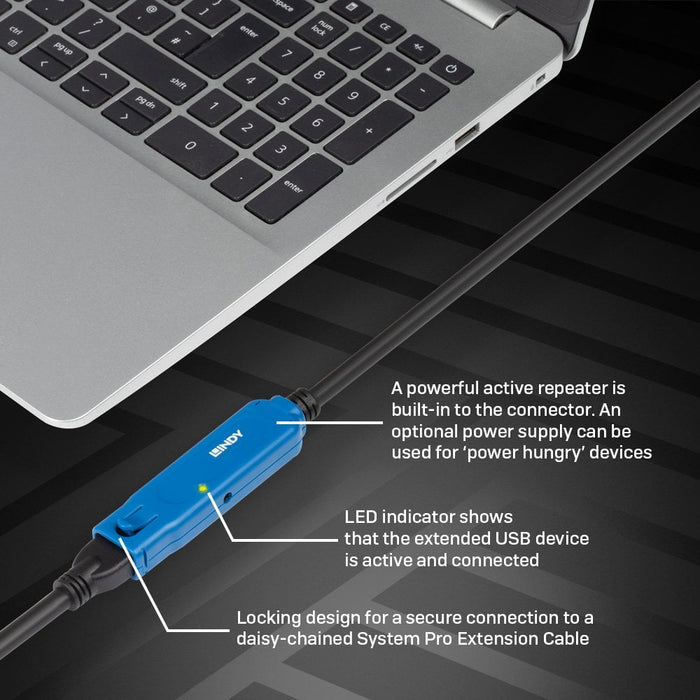

The Lindy 8m USB 3.2 Gen 1 Active Extension Pro Cable enables reliable, high-performance USB connectivity at extended distances. Designed for both standalone use and as part of Lindy’s modular Active Extension System Pro, it delivers full SuperSpeed 5Gbps performance over 8 metres — and supports bespoke installations of over 40 metres when cascaded with other system components. With active signal boosting, locking connectors, and rugged construction, it's ideal for AV, IT, and industrial environments where long-distance USB performance is a must.AT A GLANCE
10m Active USB Extension Cable
Reliable USB performance far beyond standard cable lengths.USB 3.2 Gen 1 (SuperSpeed)
Full 5Gbps data bandwidth for fast device communication.Modular System Support

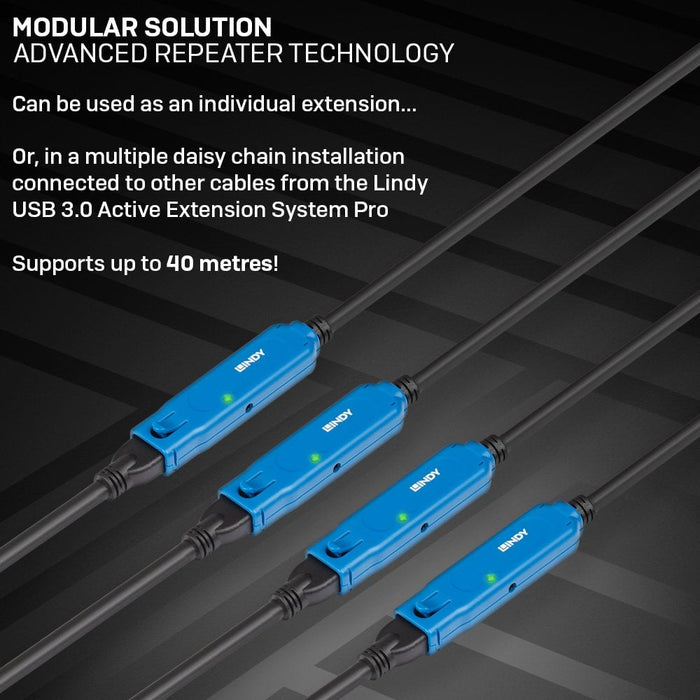

Combine with other components for custom lengths up to 40m.Locking Connectors
Secure fit for professional and industrial applications.Rugged, shielded construction
Built for stability for professional and industrial applications.Plug & Play
Easy installation with no drivers or configuration needed.INSTALLATION EXAMPLE
APPLICATIONS
AV Installations
Extended USB peripherals for conference room AV setups.Industrial Use
Long distance connection of control devices and data loggers.Broadcast & Production
Connect high-speed USB devices (e.g. drivers, cameras) in studio environment.Education
USB connection to whiteboards or student devices over longer distances.Secure PC Setups
Place host systems in secure areas with user devices extended out.Home Offices & Offices
Ensure fast, reliable connectivity from webcams and printers to conference room, even over longer distances.HIGH SPEED USB, WHEVER YOU NEED IT.
The Lindy 8m USB 3.2 Gen 1 Active Extension Pro Cable lets you connect USB devices far beyond the standard 5m limit — with full 5Gbps performance and plug & play simplicity. Use it on its own or combine with other system components to build a custom USB extension network up to 40m.
-
Connector A USB Type A Male Connector B USB Type A Female Power 2.5/0.7mm DC Connector Housing Material Plastic Connector Plating Nickel Pin Construction Brass Pin Plating Gold Flash USB A Male Dimensions 15x49x8mm (0.59x1.93x0.31in) USB A Female Dimensions 20x80x13mm (0.79x3.15x0.51in) Length 8m (26.25ft) Standard USB 3.1 Gen 1 / 3.0 Colour Black Type Round Jacket Diameter 7mm +/- 0.15mm (0.28in +/- 0.01in) Jacket Material Half matt PVC low toxic Conductor Material Tinned Copper Conductor Gauge 24/24/20AWG Shielding AL Mylar and braid Supported Bandwidth 5 Gbps Included Hubs 1x USB 3.0 Nominal Attenuation 0.064MHz - <0.08dB ... 400MHz - <5.80dB Minimum Bend Radius 36mm (1.42in) Operating Temperature 0°C - 50°C (32°F - 122°F) Storage Temperature -20°C - 60°C (-4°F - 140°F) Transmission Medium Twisted Pair Transmission Technology USB 3.1 Gen 1 / 3.0 Packaging Type Carton Box Packaging Dimensions 240x200x70mm (9.45x7.87x2.76in) Net Weight 0.75kg (1.65lb) Gross Weight 0.9kg (1.98lb) Warranty (Years) 2 Certified CE, UKCA, FCC, RoHS, REACH, Prop 65 Package Contents USB 3.0 Active Extension Pro 10m, Power Adapter Cable Nr. 70265, Lindy Manual Purchasing No. 43158 EAN 4002888431583 Other Lengths 43157 - 10m, 43159 - 10m w/ hub, 43229 - 15m, 43361 - 20m, 43362 - 30m -
Description Downloads Product Safety Information Downloads
