Lindy 8m USB 3.2 5Gbps C/A Active Extension Pro | 43381
SKU: 43381
£63.76 (Excl. VAT)
- Description
- Specifications
- Downloads
-

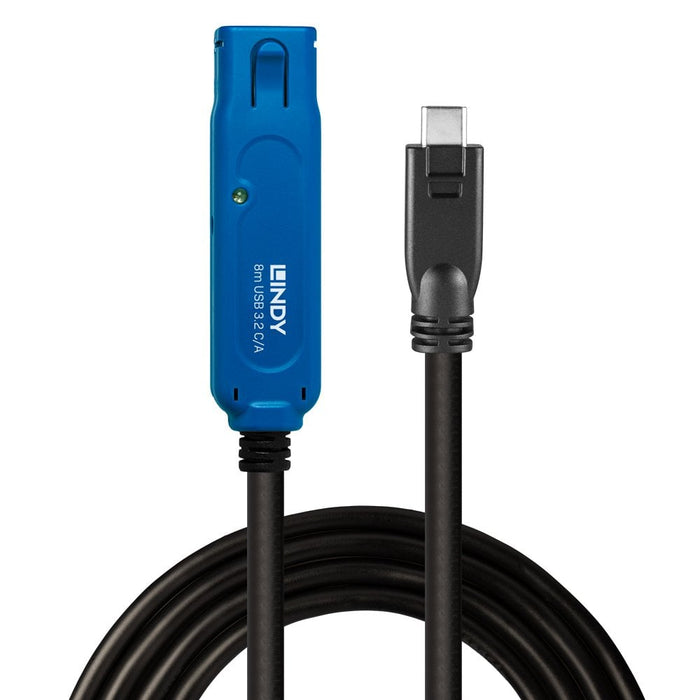

Professional 8 Metre USB 3.2 C/A Active Extension Pro
The Lindy USB 3.2 Gen 1 C/A Active Extension Cable Pro is a high performance active cable that allows access to USB peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.

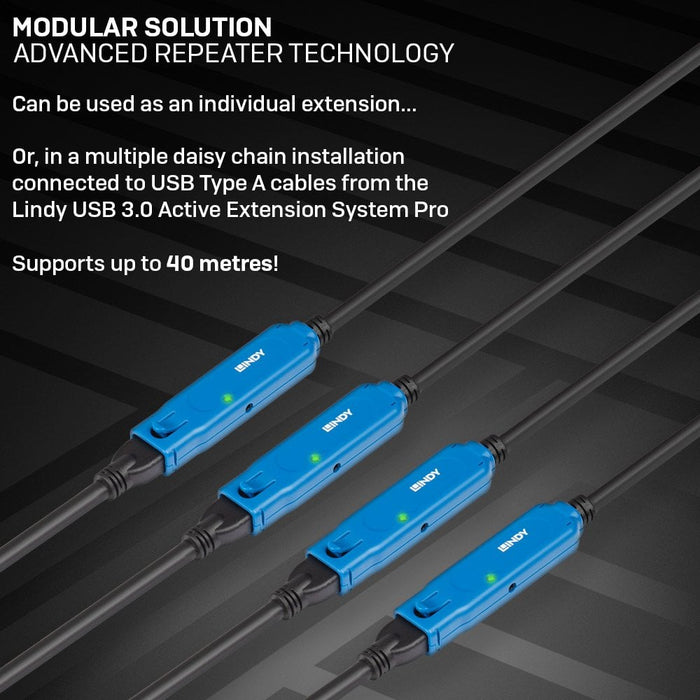

This 8m USB 3.2 C/A Active Extension Cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at about 40m (depending on the cable configurations used).
Please note that only the USB 3.2 C/A Active Extension Pro 8m (Nr. 43381) or the 5m version (Nr. 43380) can be connected directly to your computer. Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any segment of the Extension Pro System (Nr. 43157, 43158, 43229, 43361). If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension.
If a USB Type C device is to be connected, a USB 3.0 Active Extension Type A to C (no. 43375 or 43376) can also be used as the last segment.

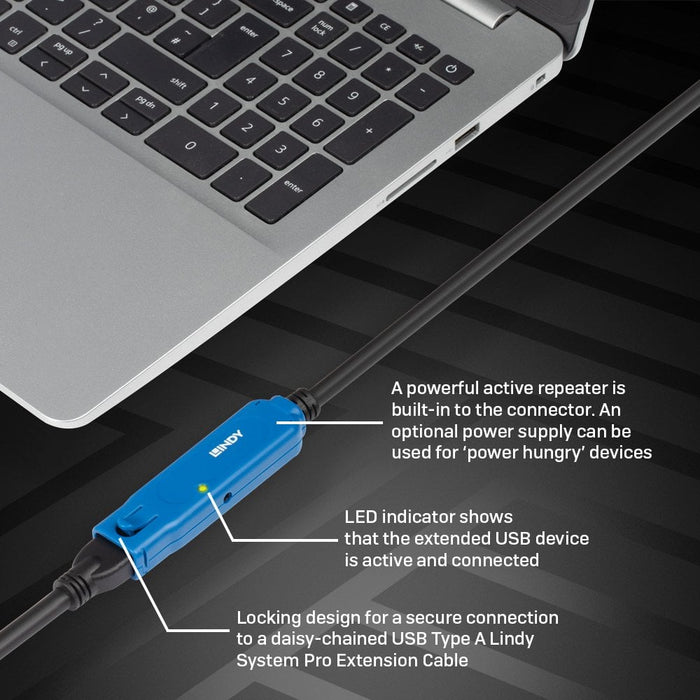

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 & 3.2USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
-

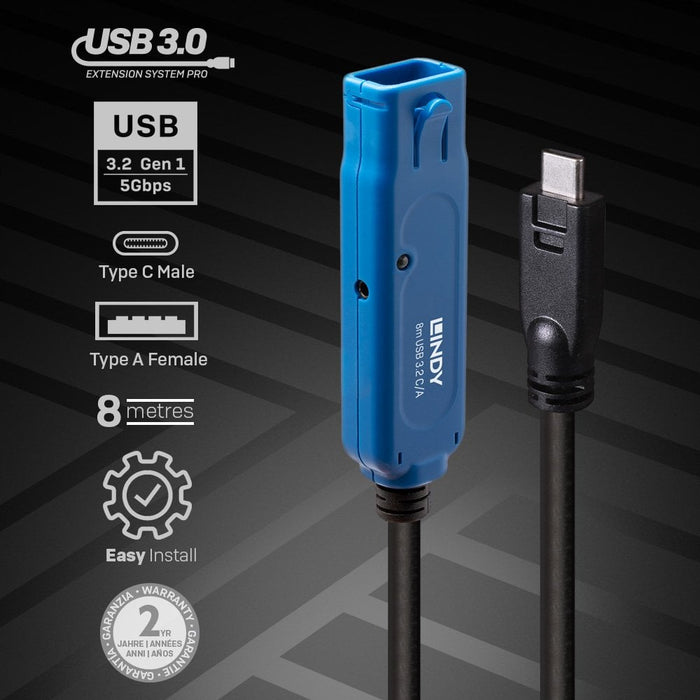

Connector A USB Type C Male Connector B USB Type A Female Power 2.5/0.7mm DC Connector Housing Material Plastic Connector Plating Nickel Pin Construction Brass Pin Plating Gold Flash USB C Male Dimensions 14x43.65x11.2mm (0.55x1.72x0.44in) USB A Female Dimensions 20x80x13mm (0.79x3.15x0.51in) Cable Length 8m (26.25ft) Standard USB 3.2 / 3.1 Gen 1 / 3.0 Colour Black Type Round Jacket Diameter 7mm ± 0.15mm (0.28in ± 0.01in) Jacket Material Half matt PVC low toxic Conductor Material Tinned Copper Conductor Gauge 24/24/20AWG Shielding AL Mylar and braid Supported Bandwidth 5 Gbps Included Hubs 1x USB 3.0 Minimum Bend Radius 70mm (2.76in) Operating Temperature 0°C - 50°C (32°F - 122°F) Storage Temperature -20°C - 60°C (-4°F - 140°F) Transmission Medium Twisted Pair Transmission Technology USB 3.2 / 3.1 Gen 1 / 3.0 Packaging Type Carton Box Packaging Dimensions 230x198x63mm (9.06x7.8x2.48in) Net Weight 0.63kg (1.39lb) Gross Weight 0.83kg (1.83lb) Warranty 2 Years Certifications CE, FCC, RoHS, REACH & California Proposition 65 Package Contents USB 3.2 C/A Active Extension Pro 8m, Power Adapter Cable Nr. 70265, Lindy Manual Product Number 43381 EAN 4002888433815 -
Description Downloads Manual Downloads
