NovaStar LED Screen Controller Sending Box | MCTRL660
SKU: MCTRL660
£515.30 (Excl. VAT)
- Description
- Specifications
- Downloads
-

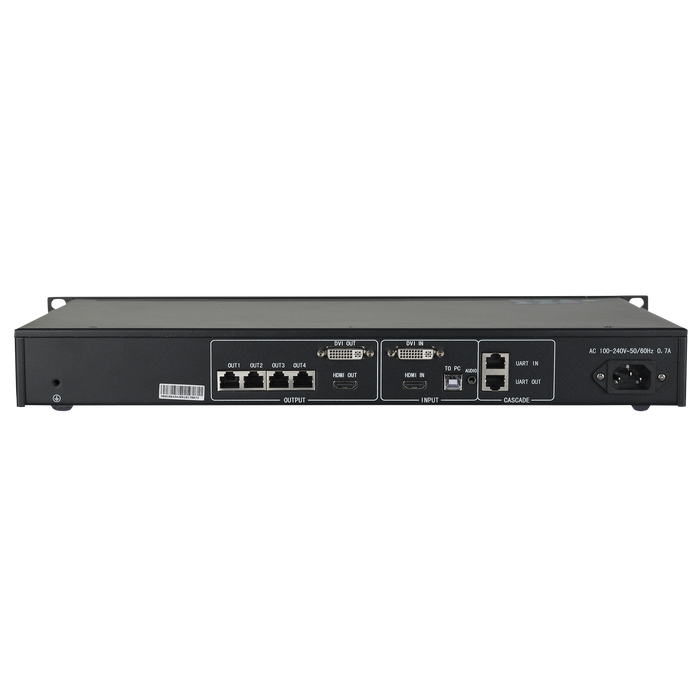

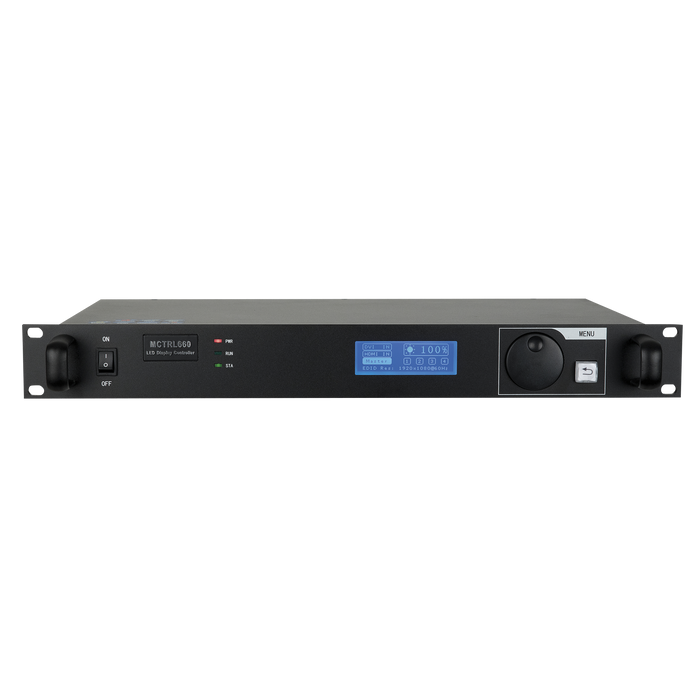

NovaStar LED Screen Controller Sending Box
MCTRL660 is a controller developed by NovaStar with a single-unit loading capacity of 1920×1200@60Hz. MCTRL600 utilizes UART to cascade and control multiple units. Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more.
True hot backup, No flickering, no blackout
One-button upload of settings and parameters
12bit/10bit HDMI input, DVI input
HDMI.DVI loop output for cascading or monitoring
HDCP Blue-ray directly input
8bit video source loading capacity of 1920×1200@60Hz.
12bit video source loading capacity of 1440×900@60Hz
Support for custom resolutions: 3840 pixels of H resolution, 3840 pixels of V resolution
Supports cascading for control of multiple units
Support for multiple signal formats: RGB, YCrCb4:2:2, YCrCb4:4:4
Certifications, CE, RoHS, FCC, UL, EAC -
Category Specifications Input Connectors DVI IN: Single-link DVI, max 1920x1200@60Hz, downward compatible. HDMI IN: HDMI 1.3 compliant, max 1920x1080@60Hz, downward compatible. Audio IN: Audio input connector for external audio sources. Output Connectors RJ45 (x4): 4 Gigabit Ethernet outputs, max 650,000 pixels per port. Video Output Resolution Up to 1920×1200 @ 60Hz (default), supports custom resolutions. Custom Resolutions Max Width: 3840px Color Depth 8-bit standard, 18-bit grayscale processing for enhanced image quality. Control Ports USB Type-B: PC connection for configuration. UART IN/OUT: For cascading multiple controllers (up to 20 devices). Calibration Technology Supports NovaStar's new-generation calibration technology. Video Processing HDCP 1.4 support, real-time brightness adjustment, enhanced grayscale output. Supported Video Formats Multiple video formats supported, including standard broadcast resolutions. Power Supply Input Voltage: AC 100-240V, 50/60Hz Mechanical Specifications Dimensions: 482mm × 268.5mm × 44.4mm Cooling System Passive cooling design for silent operation. Mounting Standard 1U rack-mountable design. Certification Standards FCC, CE, RoHS, EAC, IC, LVD, EMC compliant. Accessories Included Power cord, USB cable, DVI cable, carrying case, and accessory box. Special Features Quick screen configuration, support for multiple cascaded controllers. Temperature Range Operating: -20°C to 60°C -
Description Downloads NovaStar LED Screen Controller Sending Box | MCTRL660 User Manual Downloads
