Novastar MX40 Pro New Range 4K Video Controller

SKU: MX40_PRO
Novastar MX40 Pro New Range 4K Video Controller NovaStar Controller NovaStar
Availability:
Only 1 left at this price!
Save £1,074.75 Save £1,074.75

£5,924.25 (Excl. VAT)

- £7,109.10 (Inc. VAT)
£5,924.25 - £5,924.25
- - £7,109.10
Availability:
Only 1 left at this price!
payment-icons
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.

Book a Free Product Demo

Remote or on-site. No obligation.

Integrator or Installer?

Trade pricing, volume discounts, same-day collection.

Request a Trade Account

Education & Public Sector Solutions

Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.

Create an Account Email Public Sector Team
Official Purchase Orders We accept formal POs with VAT-compliant invoicing for all verified institutions.
Contract & Volume Discounts Competitive rates for multi-site, long-term, or framework-based deployments.
Dedicated Account Management Single point of contact for lead times, coordination, and sourcing.
Flexible 30-Day Terms Available to verified schools, councils, and government bodies.
  • Description
  • Specifications

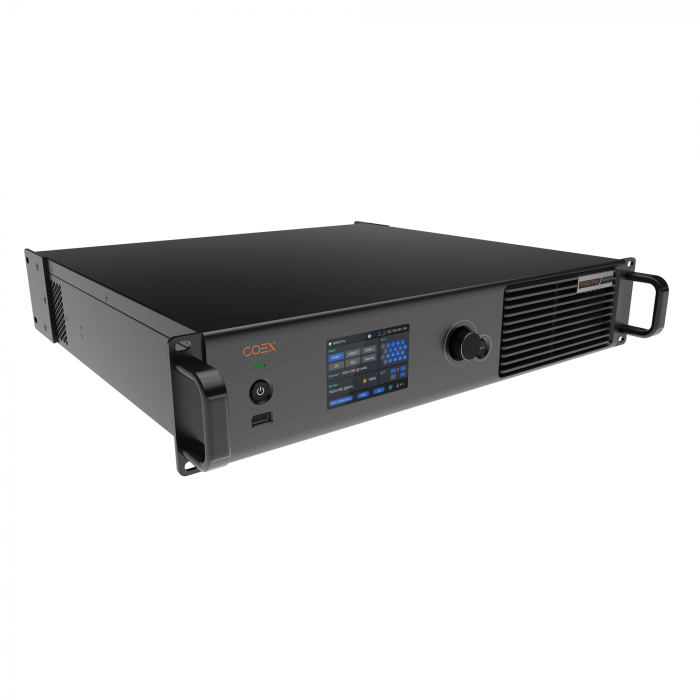

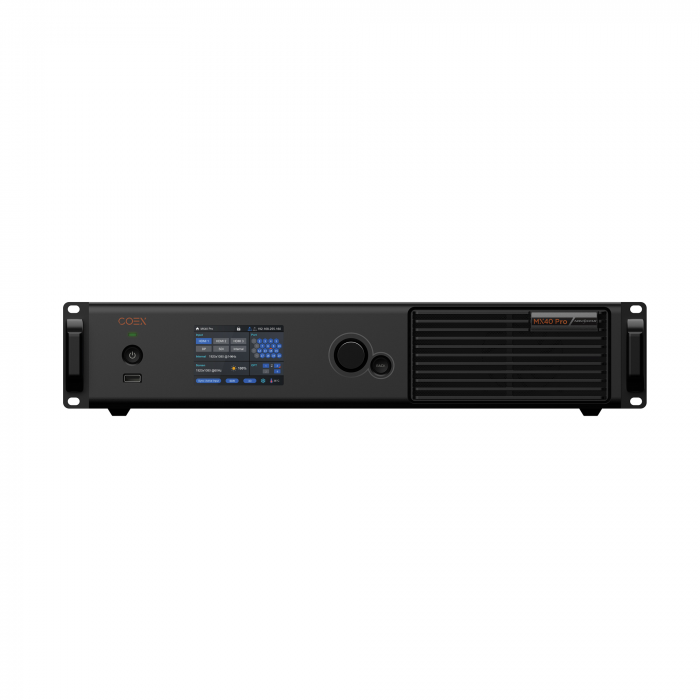

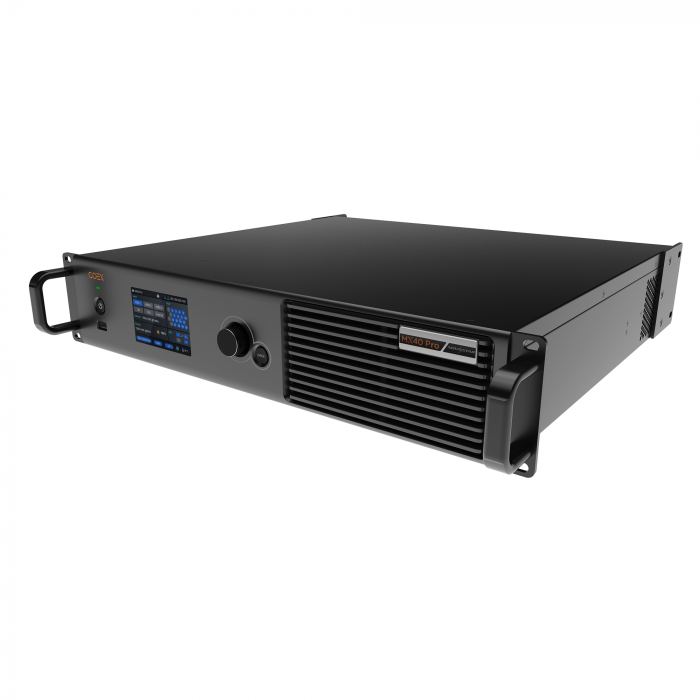

  • Novastar MX40 Pro New Range 4K Video Controller

    MX40PRO

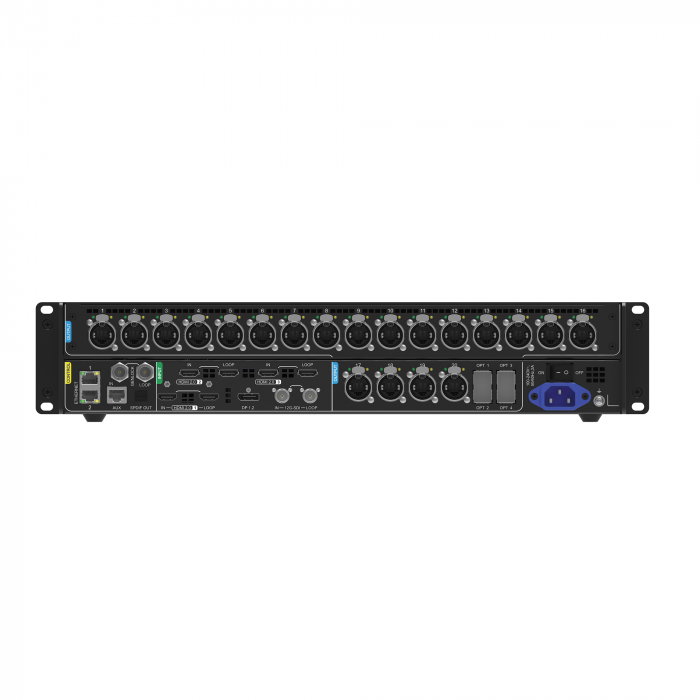

    The MX40 Pro is NovaStar’s flagship 4K LED display controller with lots of new options that offers an all-in-one solution for driving big LED screens at high resolutions. It has HDMI 2.0, DP 1.2, and 12G-SDI inputs that accept input resolutions of up to 4096x2160@60 Hz at up to 12 bit. The 20 Ethernet output ports and/or 4 SFP fibre optic outputs can be used to drive the LED screens directly. Please note that the required SFP modules and CVT10 fibre convertors need to be purchased separately.
    The MX40 Pro’s internal capabilities support the best possible image quality. The Dynamic Booster improves contrast and lowers panel power consumption. HDR10 and HLG video sources are supported, providing a more lifelike image. The LED Image Booster improves the colour gamut by switching between multiple gamuts, it improves greyscale images by allowing individual corrections of the greyscale in 16-bit, and it prevents greyscale loss in low-brightness scenes by using 22bit+ technology. The 4K video controller is capable of processing 3D imaging, using the EMT200 3D emitter and 3D glasses.
    The MX40 Pro can be controlled by the new, intuitive, and user-friendly VMP software platform, which allows you to configure your screens in almost any layout you want. Regular and irregular screen sizes can be configured extremely fast. Up to ten MX40 Pro devices can be cascaded and uniformly controlled via the control PC. The integrated Genlock function enables you to easily synchronise multiple controllers.

  • Category Specification
    Inputs
    DP 1.2 1
    HDMI 2.0 3
    12G-SDI 1
    Ethernet Speed 1 Gbit/s
    Outputs
    Main Outputs 20
    HDMI 2.0 (Loop) 3
    12G-SDI (Loop) 1
    S/PDIF (Out) 1
    Optical
    SFP Slot Type 10G
    SFP Slot Quantity 4
    Software Specifications
    Control Software VMP
    Extra Features Scaling Function: Yes
    GenLock: In & Out
    Control and Programming
    Display TFT
    Control System Novastar
    Max Loading Capacity 13 Mpx
    Max Input Resolution 4096 x 2160, 8192 x 1080
    Control Options Ethernet
    Greyscale Processing 22 bit
    Electrical Specifications
    Power Supply 100-240 V AC 50/60 Hz
    Power Consumption 70 W
    Power Connector In IEC
    Data Connector In RJ45, USB
    Data Connector Out etherCON, RJ45
    Mechanical Specifications
    Width (Including Handles) 483 mm (19.016″)
    Width (Without Handles) 440 mm (17.323″)
    Height (Including Handles) 94 mm (3.701″)
    Height (Without Handles) 88 mm (3.465″)
    Depth (Including Handles) 467 mm (18.386″)
    Depth (Without Handles) 437 mm (17.205″)
    Weight 7.5 kg (16.535 lb)
    Rack Units 2 U
    IP Rating IP20 (indoor use only)
    Housing Metal
    Colour Black
    Product Properties
    Cooling Active
    Thermal Specifications
    Max Ambient Temp 60 °C (140 °F)
    Min Ambient Temp -20 °C (-4 °F)
    Operating Humidity 0-95 %rH
    Included Items
    Included Cables CAT-5 Cable, DP-DP Cable, HDMI-HDMI Cable, IEC Cable
