Ubiquiti UniFi Gen2 24 Port Non-PoE Gigabit Network Switch - USW-PRO-24
SKU: USW-PRO-24
£304.06 (Excl. VAT)
- Description
- Specifications
-

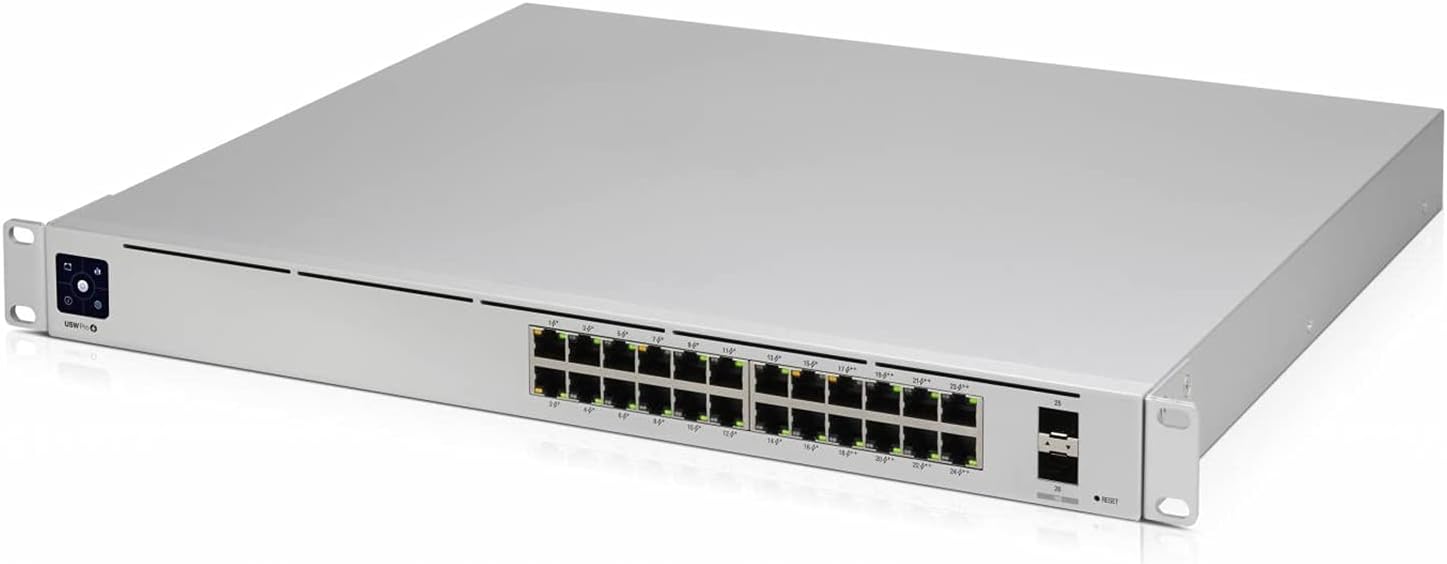

Ubiquiti UniFi Gen2 24 Port Non-PoE Gigabit Network Switch
UniFi Switch Pro 24 is a fully managed Layer 3 switch with (24) Gigabit Ethernet ports. (2) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 24 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 24 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.
Features
(24) Gigabit RJ45 ports
(2) 10G SFP+ ports
Layer 2 and Layer 3 features
UniFi SmartPower RPS DC input
Near-silent cooling
1.3" touchscreen display
Managed by UniFi Network Controller -
Category Specification Mechanical Dimensions 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") Weight Without mounting brackets: 3.5 kg (7.7 lb) With mounting brackets: 3.6 kg (7.9 lb) Enclosure material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (24) GbE RJ45 ports (2) 1/10G SFP+ ports Total non-blocking throughput 44 Gbps Switching capacity 88 Gbps Forwarding rate 65.472 Mpps Power method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input 11.5V DC, 2.61A Power supply AC/DC, internal, 36W Supported voltage range 100—240V AC Max. power consumption 30W ESD/EMP protection Air: ± 16kV, contact: ± 12kV LCM display (1) 1.3" touchscreen Button Factory reset Shock and vibration ETSI300-019-1.4 Standard Ambient operating temperature -5 to 45° C (23 to 113° F) Ambient operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC Switching Features Layer 2 features IGMP snooping, STP / RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN Port mirroring, LACP port aggregation, Multicast / broadcast rate limiting, MAC address blocking, Flow control 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping / guarding, Egress rate limit LLDP-MED, Port restricted by MAC, Device isolation with ACLs Layer 3 features DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch Static routing between local networks, Network isolation with ACLs LEDs System Status Ethernet Speed/link/activity SFP+ Speed/link/activity RPS Status Application Requirements UniFi Network Version 5.12.11 and later
