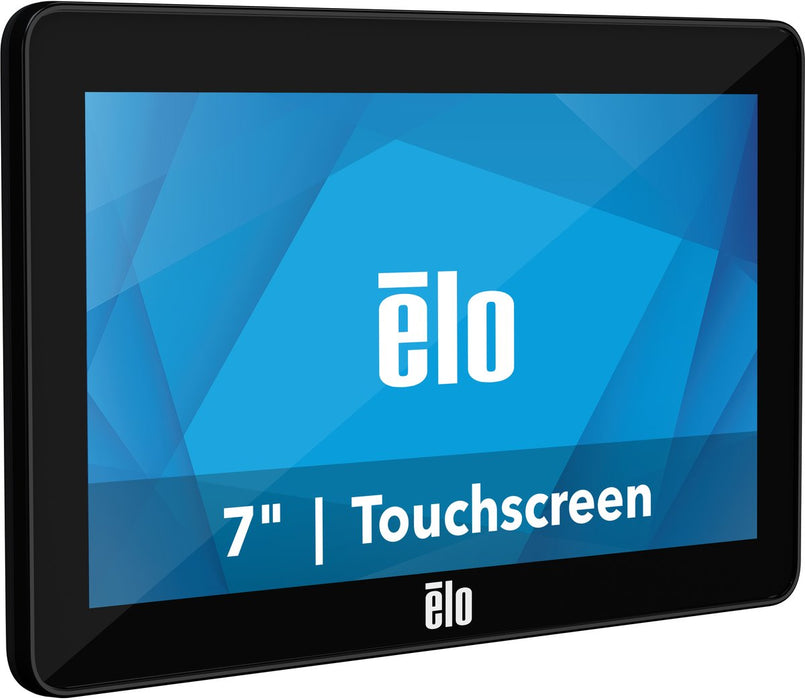

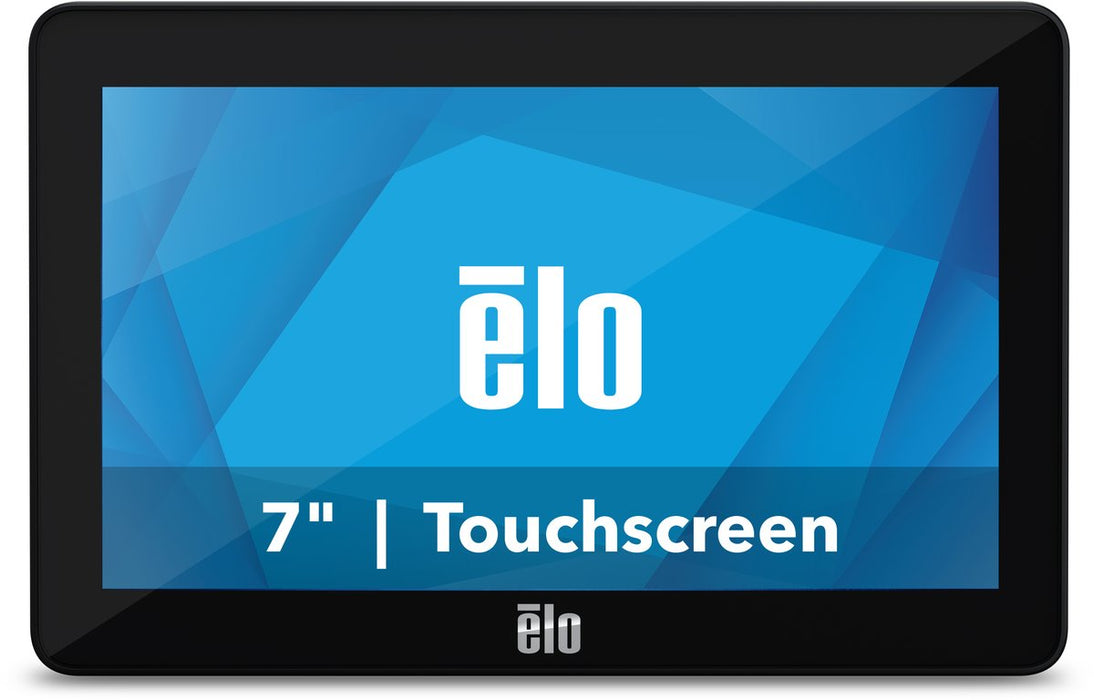

Elo 0702L 7" Class TFT LCD WVGA Touchscreen Monitor | E796382
SKU: E796382
£214.53 (Excl. VAT)
- Display Size7"
- Touch Capabilities10pt multi-touch
- Net Weight0.5 kg
- Operating SystemNone
- VESA Patterns75x75
- Panel TypeTFT Panel
- ResolutionWVGA
- Screen TypeFlat
- Response Time25ms
- Screen Ratio16:9
- Brightness430 cd/m2
- Operating Hours24/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Downloads
-
Elo E796382 0702L 7" Touchscreen Monitor | WVGA PCAP | USB DisplayLink | 3-Year Warranty
Elo's 0702L Touchscreen Monitor
The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems.
Single-Cable Connection
Using DisplayLink technology, the 0702L provides a single-cable solution that combines power, video and touch signals into one USB connection. By reducing the number of cables from 3 to 1, installation is a breeze, and you never have to worry about a power adapter again.
DisplayLink technology supports Windows, Android and Linux operating systems.
Mount With Flexibility
Customers demand a seamless shopping experience from the moment they enter the store through check-out. From stands and pole mounts to shelf mounts, wall mounts and 3rd-party VESA mounts, the touchscreens can be integrated with ease.
Brilliant Displays from 7 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution and light transmission for accurate touch response and vivid images. Capable of handling up to 10 simultaneous touches, the 02-Series touchscreen monitors provide an enhanced tablet-like experience.
EloCareSM - We Have Your Back
When a technology outage happens, retailers, restaurants and business operators want to know the right person to call, right away. EloCare offers services you can count on in case the unexpected happens. -
Feature Description Part Number(s) TouchPro PCAP (Worldwide) - E796382 Enclosure Color Black Touch Technology & Capacity PCAP (TouchPro® Projected Capacitive) - 10 Touch Diagonal Size 7'' diagonal, Active matrix TFT LCD (LED) Aspect Ratio 5:3 Active Area 6.07'' x 3.38'' / 154.08 mm x 85.92 mm Resolution 800 x 480 Other Supported Resolutions 800 x 480 60 Hz Viewing Angle Horizontal: 75° (150° total) / Vertical: 55°/65° (120° total) Number of Colors 16.2 million Brightness (typical) Panel: 500 nits; TouchPro PCAP: 430 nits Response Time 25 ms Contrast Ratio 500:1 Touch Interfaces USB Surface Treatment Anti-glare I/O Ports 1 x Micro USB Input Video Frequency Horizontal: 31.5K KHz; Vertical: 60Hz Power Input: Micro-USB, 5V ±5% Power Consumption (Typical) ON: 3.7W; SLEEP: 0.9W; OFF: 1.9W Dimensions (without Stand) 4.61" x 7.11" x 0.7" / 117.22 mm x 180.58 mm x 17.7 mm Shipping Box Dimensions 6.69" x 9.13" x 3.74" / 170 mm x 232 mm x 95 mm Weight (Unpackaged) 0.77 lbs / 0.35 kg Weight (Packaged) 1.43 lbs / 0.65 kg Operating Temperature 0°C to 40°C / 32°F to 104°F Storage Temperature -20°C to 60°C / -4°F to 140°F Humidity Operating: 20%–80%; Storage: 10%–95% MTBF 50,000 hours demonstrated Mounting Options VESA 75 mm x 75 mm Other Features IK06 impact compliant Warranty 3-year Extended Service Options 4 yr - E898247; 5 yr - E898449; 3 yr + AUR - E898648; 4 yr + AUR - E894921; 5 yr + AUR - E895125 Regulatory Approvals Canada cUL, IC; China CCC; Europe CE; UK UKCA; US FCC, UL; Japan VCCI; International CB; Australia RCM; Mexico NOM; Korea KCC; Taiwan BSMI Ingress Protection IP65 What's in the Box Touchmonitor; Micro USB Y-cable; Quick Install Guide Stands, Mounts & Kits Elo Backpack® - E611864; Elo Backpack® 3.0 - E901355; Short Tabletop Stand for 10'' I-Series - E160104; Shelf Mount Bracket (75/100 mm VESA) - E043382; 2.5m Cable Kit - E796577 -
Description Downloads Elo 0702L 7" Class TFT LCD WVGA Touchscreen Monitor | E796382 User Manual Download
