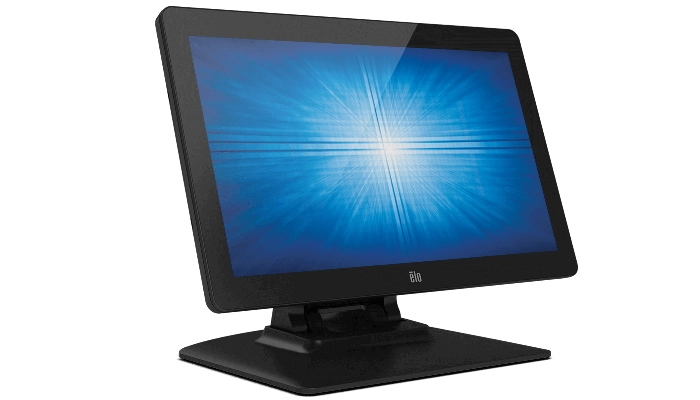

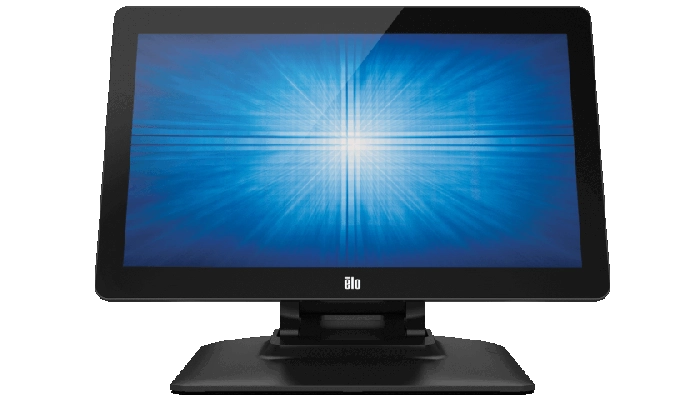

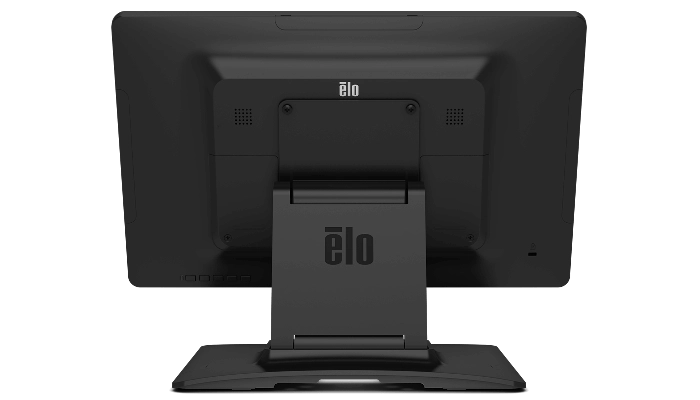

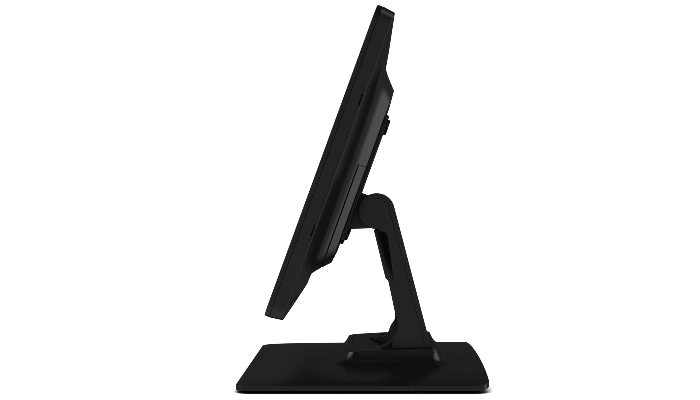

Elo 1502L 15.6" HD TFT LCD PCAP Touchscreen Monitor With Stand | E318746
SKU: E318746
£393.83 (Excl. VAT)
- Display Size15.6"
- Touch Capabilities10pt multi-touch
- Net Weight3.2 kg
- Operating SystemNone
- VESA Patterns100x100
- Panel TypeTFT Panel
- ResolutionHD (720p)
- Screen TypeFlat
- Response Time10ms
- Screen Ratio16:9
- Brightness200 cd/m2
- Operating Hours24/7
- Description
- Specifications
- Warranty
- Downloads
-
Elo 1502L 15" Touchscreen Monitor | Full HD PCAP | Slim, Anti-Glare, POS Ready
Overview
The Elo 1502L 15-inch widescreen LED touchscreen monitor delivers a seamless zero-bezel, edge-to-edge glass design with Elo’s industry-leading TouchPro® PCAP technology. The sleek, low-profile, retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use, making the 1502L well suited for high-traffic environments.
Installation flexibility.
The Elo M-Series is available in 10-, 15-, and 20-inch sizes with multiple mounts and stand options to ensure installation flexibility with tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns.
POS ready.
The 1502L offers optional retail accessories with easy installation including a mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display, and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications.
Commercial grade.
The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Sleek and modern widescreen design with built-for-touch reliability
Energy savings using LED technology
Edge-to-edge glass display with anti-glare for retail interiors full HD model (1920x1080) provides best-of-class resolution
Installation flexibility with mounting in portrait, landscape, and table-top orientation, adjustable height stand
Typical power consumption: 8.7W
Three-year standard warrantyConfigurations
-
Specification Value Part Number E318746 (HD) Enclosure Color Black Active Area 13.59" x 7.66" / 345.2mm x 194.6mm Surface Treatment Anti-glare Resolution 1366 x 768 Operating Temperature 0°C to 40°C / 32°F to 104°F Storage Temperature -20°C to 60°C / -4°F to 140°F Number of Touches Multi Touch (Up to 10) Contrast Ratio 700:1 Response Time-total (typical) 10 ms Brightness (typical) LCD Panel: 220 nits PCAP: 187 nits Number of Colors 262,000 Input Voltage 12VDC +/- 5%; 100-240VAC, 50/60Hz Humidity Operating: 20% to 80%; Storage: 10% to 95% MTBF 50,000 hours demonstrated Diagonal Size 15.6'' diagonal, Active matrix TFT LCD (LED) Touch Interface USB Monitor Width 15.24" / 387mm Monitor Height 9.62" / 244.4mm Monitor Depth 1.29" / 32.9mm Availability Worldwide Bezel No-Bezel Power Consumption (Typical) Monitor + AC/DC adapter ON: 10.2 W SLEEP: 0.4 W OFF: 0.2 W Power Supply No -
Touchscreen Monitors LCD Monitors 3 years
-
Document Type Download Dimensional Drawing Download
Dimensional Drawing - Pole Mounts Download Dimensional Drawing - Floor Stand (E048069) Download Dimensional Drawing - Pole Mount Bracket (E045151) Download Dimensional Drawing - Shelf Mount (E043382) Download CAD Drawings Download Agency Approval Certificates Download EU Regulation 2019/2013Energy Efficiency Label Download Spec Sheet Download
