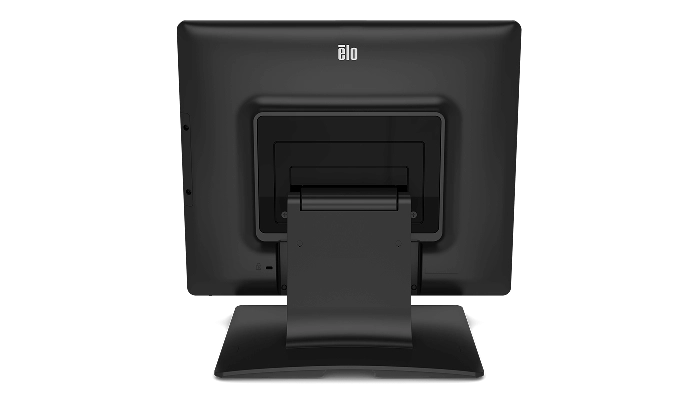

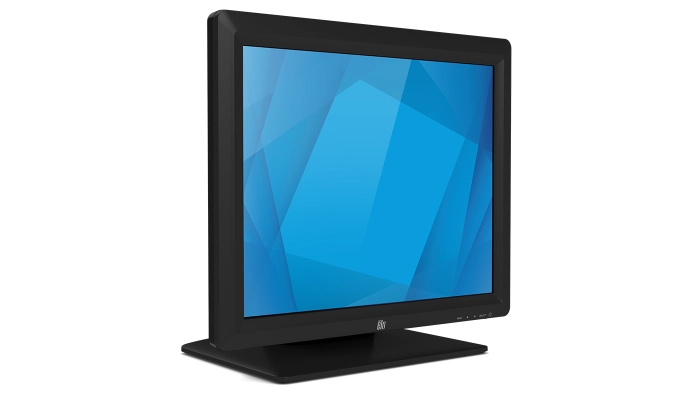

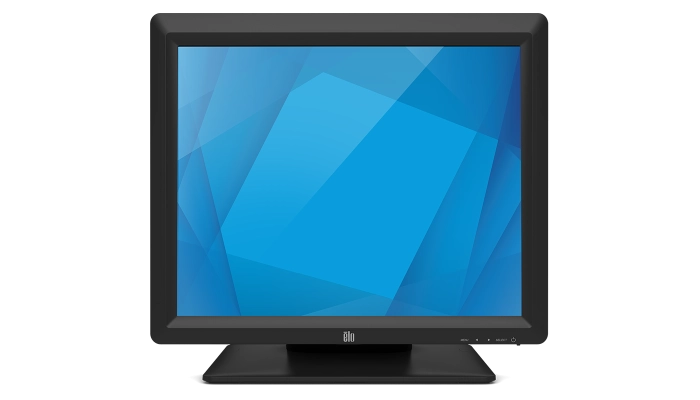

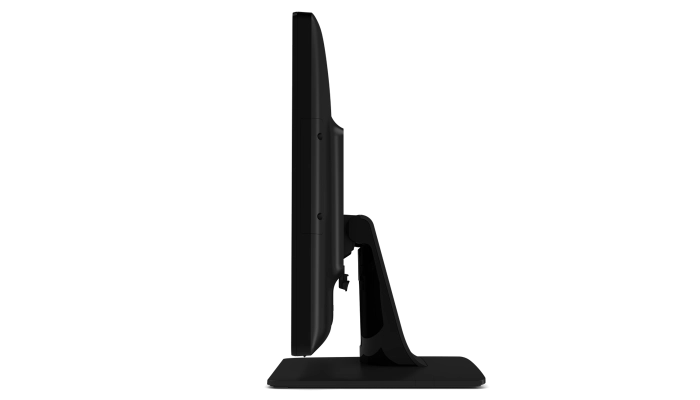

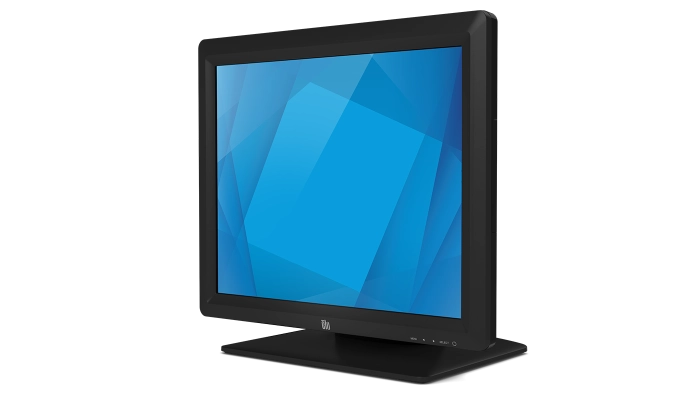

Elo 1517L 15" XGA Class TFT LCD AccuTouch ZB Black Touchscreen Monitor | E144246
SKU: E144246
£458.55 (Excl. VAT)
- Display Size15"
- Touch CapabilitiesSingle-Touch
- Net Weight4.5 kg
- Operating SystemNone
- VESA Patterns75x75
- Panel TypeTFT Panel
- ResolutionXGA
- Screen TypeFlat
- Response Time23 ms
- Screen Ratio4:3
- Brightness240 cd/m2
- Operating Hours24/7
- Description
- Specifications
- Downloads
-
Elo 1517L 15" Touchscreen Monitor | XGA 1024x768 | AccuTouch | HDMI VGA USB RS232
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch.
MSR ready.
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Other features.
Sleek and thin design with built-for-touch reliability
Flexible and space-saving
60% Energy savings using LED technology
Sealed touchscreen against dirt, dust and liquids
Removable base and mounting options including VESA, wall and pole-mounting
USB and RS232 serial connections
Typical power consumption: 12W, internal and external power options
Three-year standard warranty -
Feature Description Part Number AccuTouch ZB Black (Worldwide) - E144246 Enclosure Color Black Touch Technology 5-Wire Resistive (AccuTouch®) - Single-Touch Diagonal Size 15'' diagonal, Active matrix TFT LCD (LED) Aspect Ratio 4:3 Active Area 11.97" x 8.98" / 304.13 mm x 228.10 mm Resolution 1024 x 768 @ 60Hz, 75Hz Brightness (typical) AccuTouch: 240 nits Response Time 23 msec Contrast Ratio 800:1 Touch Interface Serial (RS232) and USB I/O Ports VGA, HDMI, DC jack, AC jack, USB Type B, RS-232 (DB-9) Power Consumption ON: 10.5W / SLEEP: 1.40W / OFF: 0.3W Dimensions (with Stand) 14.1" x 7.8" x 12.5" / 358 mm x 197 mm x 319 mm Weight Unpackaged: 9.48 lbs / 4.3 kg | Packaged: 16.09 lbs / 7.3 kg Operating Temperature 0°C to 40°C / 32°F to 104°F Humidity Operating: 20% to 80% | Storage: 10% to 95% MTBF 50,000 hours demonstrated Mounting Options VESA 75mm, 3-hole threaded mounting on bottom of stand Warranty 3-year (extended service options available) Regulatory Approvals UL, FCC, CE, UKCA, CCC, VCCI, KCC, NOM, BSMI, RCM, IC, S-mark, CB, RoHS, WEEE What's in the Box Touch monitor, Quick Install Guide, VGA Cable, USB Cable, Power Cable, Stand Base, Filler Plate, HDMI Cable -
Description Downloads Elo 1517L 15" XGA Class TFT LCD AccuTouch ZB Black Touchscreen Monitor | E144246 DataSheet Download Elo 1517L 15" XGA Class TFT LCD AccuTouch ZB Black Touchscreen Monitor | E144246 User Guide Download Elo 1517L 15" XGA Class TFT LCD AccuTouch ZB Black Touchscreen Monitor | E144246 Quick Installation Guide Download
