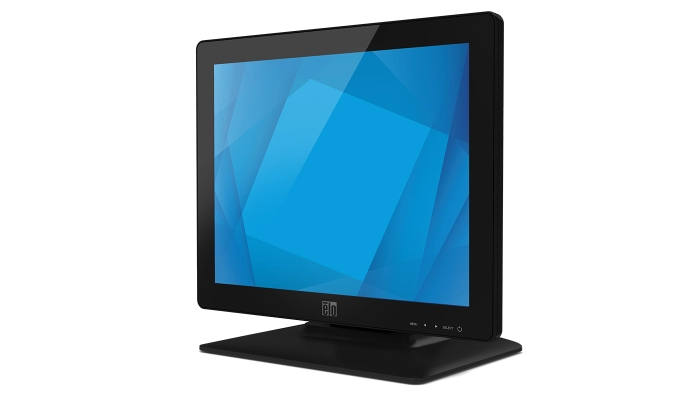

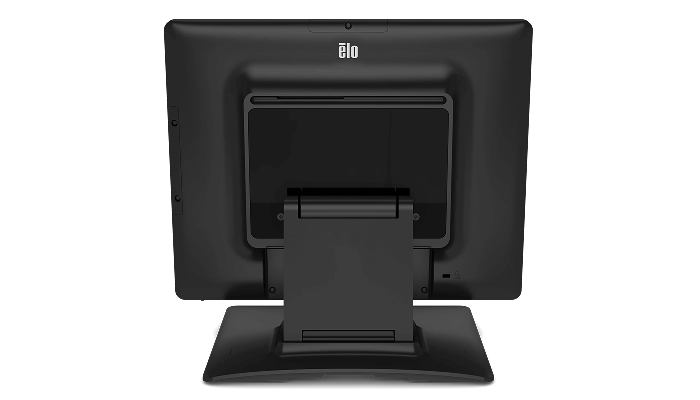

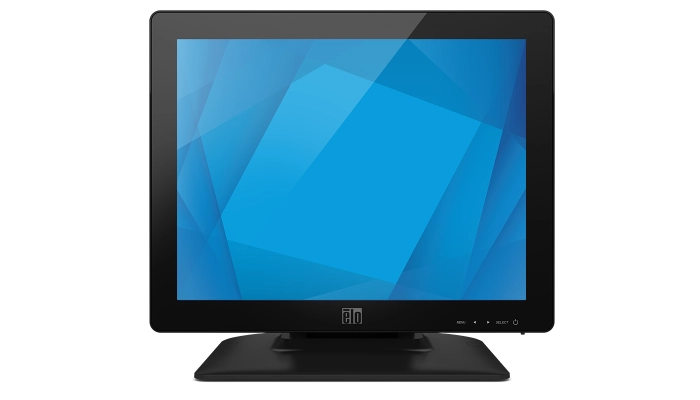

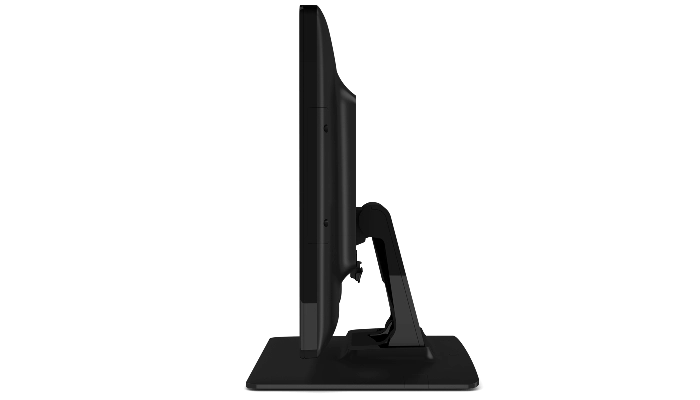

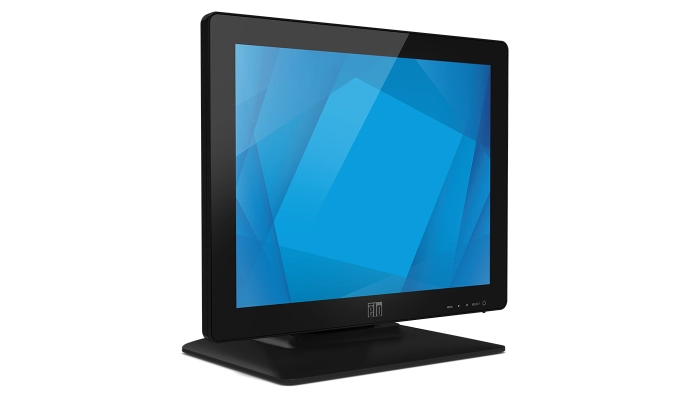

Elo 1523L 15" XGA TFT LCD PCAP Black Touchscreen Monitor | E738607

SKU: E738607
Elo 1523L 15" XGA TFT LCD PCAP Black Touchscreen Monitor | E738607 Touchscreen Monitor Elo
Availability:
26 in stock
Save £392.02 Save £392.02

£492.50 (Excl. VAT)

- £591.00 (Inc. VAT)
£492.50 - £492.50
- - £591.00
Availability:
26 in stock
payment-icons
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Display Size15"
  • Touch Capabilities10pt multi-touch
  • Net Weight4 kg
  • Operating SystemNone
  • VESA Patterns75x75
  • Panel TypeTFT Panel
  • ResolutionXGA
  • Screen TypeFlat
  • Response Time23 ms
  • Screen Ratio4:3
  • Brightness270 cd/m2
  • Operating Hours24/7

Book a Free Product Demo

Remote or on-site. No obligation.

Integrator or Installer?

Trade pricing, volume discounts, same-day collection.

Request a Trade Account

Education & Public Sector Solutions

Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.

Create an Account Email Public Sector Team
Official Purchase Orders We accept formal POs with VAT-compliant invoicing for all verified institutions.
Contract & Volume Discounts Competitive rates for multi-site, long-term, or framework-based deployments.
Dedicated Account Management Single point of contact for lead times, coordination, and sourcing.
Flexible 30-Day Terms Available to verified schools, councils, and government bodies.
  • Description
  • Specifications
  • Downloads

  • Elo 1523L 15" Touchscreen Monitor | XGA 1024x768 | PCAP 10-Touch | HDMI VGA DVI

    The Elo 1523L 15-inch standard format touchscreen monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1523L brings a clean, modern feel to any environment. The zero-bezel touchmonitor is available in both black or white with Elo’s industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.


    E738607


    Integrated touch.
    The 15-inch monitor offers a choice of two industry leading Elo touchscreen technologies. Both enable multi touch functionality, with a seamless zero-bezel display. IntelliTouch® surface acoustic wave (SAW) zero-bezel delivers the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro® PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.

    E738607


    Installation flexibility.
    The multiple mount and stand options for the 1523L ensures installation flexibility and accommodates tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns. The dual position stand offers a single hinge design with high/low settings and tilt functionality.


    E738607


    Commercial grade.
    The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

    Other features.
    Integrated cable management
    Long-lasting product cycle
    Dual position stand - single hinge with high/low settings and tilt functionality
    Screen is resistant to dirt, dust, liquid
    Desktop, wall or VESA mounting
    Internal speakers
    Three-year standard warranty

  • Feature Description
    Part Number(s) PCAP Black (Worldwide) - E738607
    Enclosure Color Black
    Touch Technology & Capacity PCAP (Projected Capacitive) – 10 Touch
    Diagonal Size 15" diagonal, Active matrix TFT LCD (LED)
    Aspect Ratio 4:3
    Active Area 11.97" x 8.98" / 304.13 mm x 228.1 mm
    Resolution 1024 x 768 @ 60 Hz
    Other Supported Resolutions 1024x768 @ 60/65/70/75 Hz; 800x600 @ 56/60/75 Hz; 720x400 @ 70 Hz; 640x480 @ 60/75 Hz
    Viewing Angle Horizontal: ±80° (160° total) / Vertical: 70°/80° (150° total)
    Number of Colors 16.2 million
    Brightness (typical) LCD panel: 300 nits; PCAP: 270 nits
    Response Time (typical) 23 ms
    Contrast Ratio 800:1
    Touch Interface USB
    USB Ports 2 peripheral ports (USB Interface)
    Speakers Two 2W internal speakers
    Video Analog VGA (DB-15); Digital DVI-D (Dual-Link); HDMI Type A
    Input Video Frequency Horizontal: 31.5–80 kHz; Vertical: 56–75 Hz
    Power 12VDC ±5% via coaxial power jack (2.0 mm pin OD, 6.4 mm barrel ID); AC-DC adapter included (IEC 60320 C14, 100–240 VAC, 50/60 Hz)
    Power Consumption (Typical) ON: 10.5 W; SLEEP: 1.3 W; OFF: 0.2 W (monitor + adapter)
    On Screen Display Controls: Menu, Up, Down, Select (side)
    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults
    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    Lockouts: OSD, Power
    Monitor Dimensions (with Stand) 14.1" x 7.84" x 12.53" / 358.1 mm x 199.1 mm x 318.5 mm
    Shipping Box Dimensions 17.48" x 14.88" x 8.31" / 444 mm x 378 mm x 211 mm
    Weight (Unpackaged) 9.26 lbs / 4.2 kg
    Weight (Packaged) 15.43 lb / 7.0 kg
    Operating Temperature 0°C to 40°C / 32°F to 104°F
    Storage Temperature -20°C to 60°C / -4°F to 140°F
    Humidity Operating: 20%–80%; Storage: 10%–95% (38.7 °C max wet bulb)
    Sealability Touchscreen sealed to bezel; Touchscreen sealed to LCD
    MTBF 50,000 hours demonstrated
    Stand Options Tilt, remove
    Mounting Options VESA 75 mm (4-hole) rear; 3-hole threaded mount on bottom of stand
    Other Features 2-stage DPMS; VESA DDC Plug and Play; Security lock receptacle
    Warranty 3-year
    Extended Service Options 4 yr – E898247; 5 yr – E898449; 3 yr + AUR – E898648; 4 yr + AUR – E894921; 5 yr + AUR – E895125
    Regulatory Approvals Australia RCM; Canada cUL, IC; China CCC; Europe CE; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NOM; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
    What's in the Box 1523L Touchmonitor; Quick Install Guide; 50W Power Brick & power cable; IEC 60320-C13 to NA/EU plug; DVI-D cable; VGA cable (DB-15 male to DB-15 male); USB cable (Type A to Type B); Audio cable; Stand base assembly; Filler Plate; HDMI cable; EEI Label
    Optional Peripherals Magnetic Stripe Reader (Black MSR) – E628912; Power adapter & cable kits: NA – E005277, EU & Korea – E571601, UK – E180092, China – E558862, Taiwan – E818655, Japan – E182546, Argentina – E887099, Australia – E637593; PCAP Stylus Pen – E066148
    Stands, Mounts & Kits 1523L VESA Mount Plate (Black) – E000448
