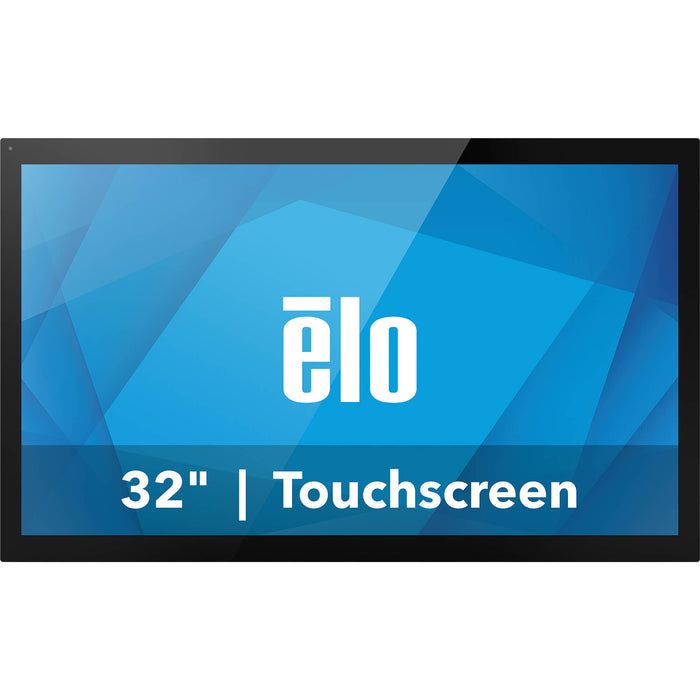

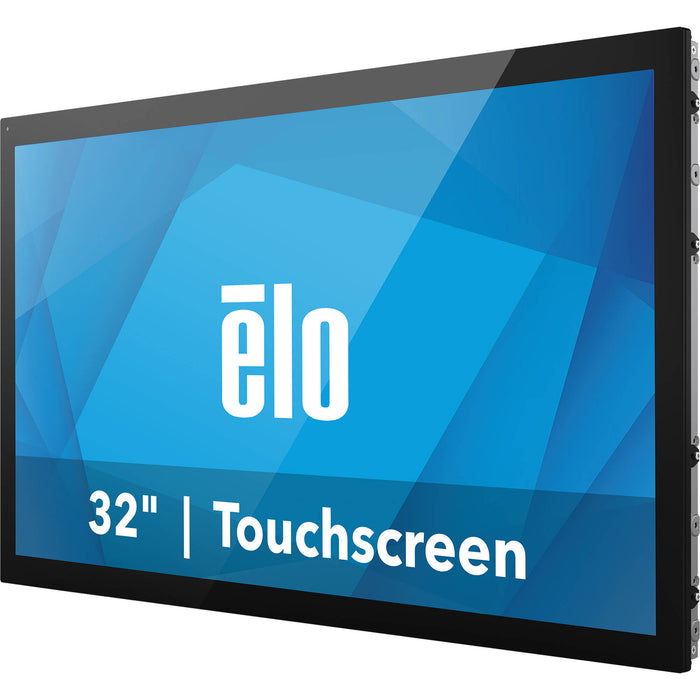

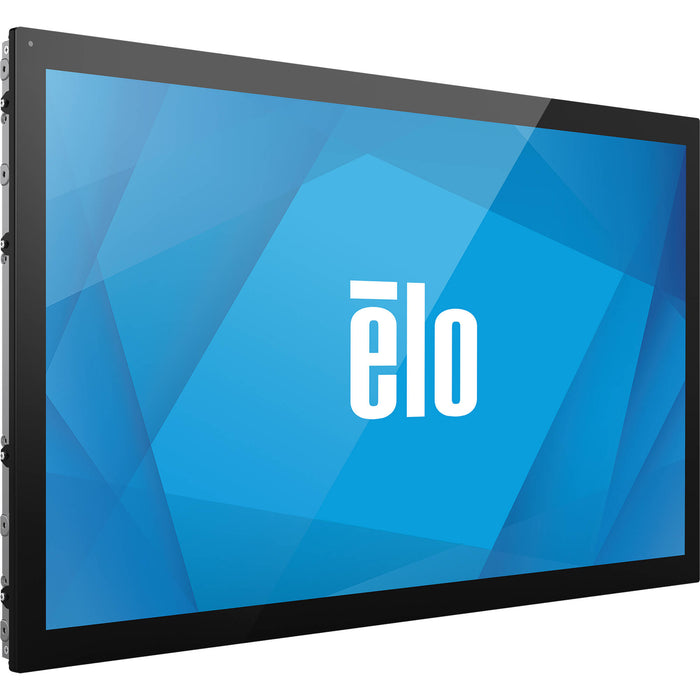

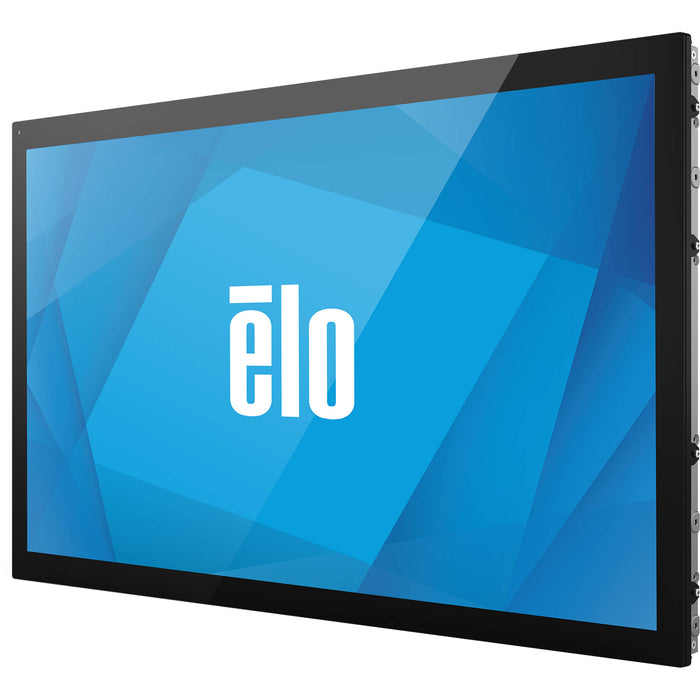

Elo 3263L 32" Full HD Class Open-Frame TFT LCD Touchscreen Monitor
SKU: E343872
£717.87 (Excl. VAT)
- Display Size32"
- Touch Capabilities40pt multi-touch
- Net Weight10.9 kg
- Operating SystemNone
- VESA Patterns400x200
- Panel TypeTFT Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
- Response Time8ms
- Screen Ratio16:9
- Brightness425 cd/m2
- Operating Hours24/7
- Description
- Specifications
- Warranty
- Downloads
-
Elo 3263L 32" Open-Frame Touchscreen Monitor | Full HD 1920x1080 | PCAP 40-Touch | HDMI VGA USB
The perfect touchscreen for any enclosure.

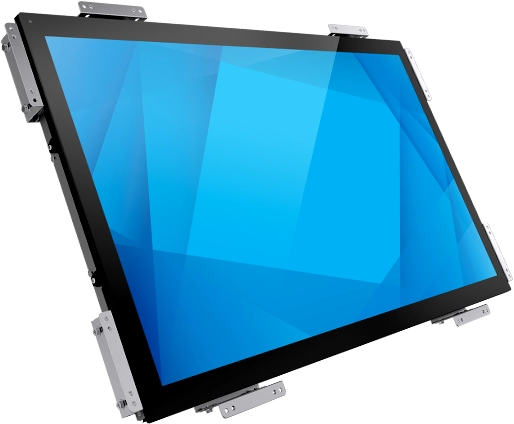

Elo's 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo’s commercial-grade interactive displays offer the versatility to add touch to your solution.
Get the durability your kiosks need.
UL60950
IK07
Ready for 24/7 Use
IP65 (requires integration)

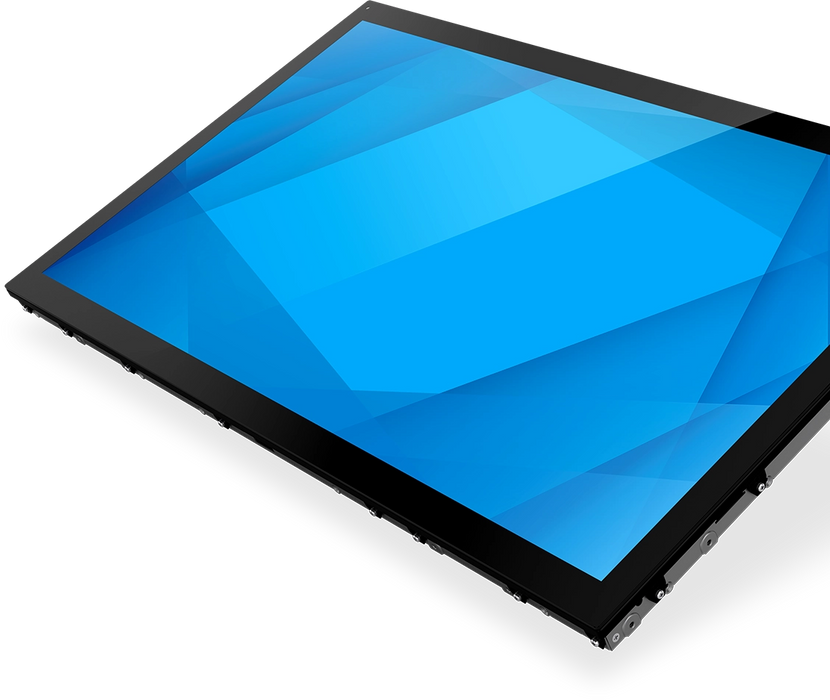

Brilliant, interactive TouchPro® PCAP display.
The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.
Integrated connectivity.
HDMI
USB 2.0
VGA
RJ45
Captivate customers and employees with reliable,easy to use interactive solutions.
Payment and Ticketing
Operating Room Control Board
Point of Information
Self-Order/Self-Checkout
Automation/Industrial Controls
Wayfinding & Interactive Signage
Designed for easy integration.

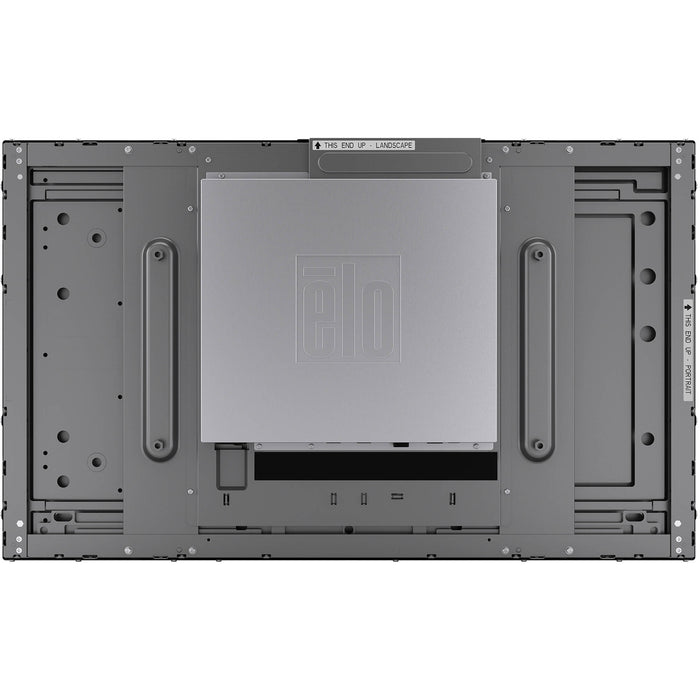

Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.

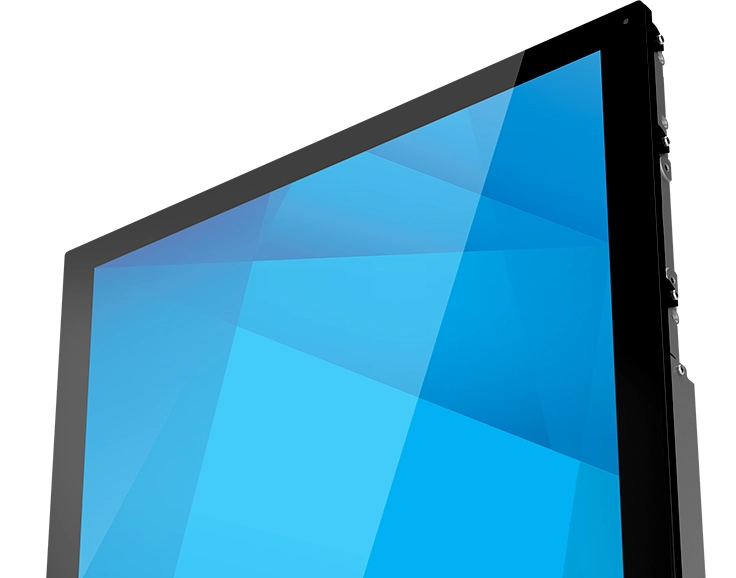

Get the viewing experience you want to see.
Whether viewing straight on or at an angle, close-up or from a distance, Elo’s touchscreen displays offer optimal clarity for the viewing experience.
Place your touchscreen behind an extra layer of protection.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Make your digital transformation faster,and more affordable.
Elo EssentialEdge™ for Android offers everything you need to build and operate interactive solutions for your business.
The Elo Backpack brings computing power that scales.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine purpose-built to fit in compact spaces. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
EloCare℠ provides service and support from the people who know your Elo products best.
Advanced Unit Replacement
Extended Warranty
Professional ServicesConfigurations
-
Feature Description Part Number(s) TouchPro PCAP (clear with anti-friction) - E343671
TouchPro PCAP (anti-glare) - E343872Enclosure Color Black Touch Technology & Capacity PCAP (TouchPro®) – 40 touch with Palm Rejection & Touch Thru Touch Thru Up to 6 mm glass / 3 mm plastic with up to 2 touches; glove support up to 1.4 mm Touch Interface USB Diagonal Size 31.5" diagonal, Active matrix TFT LCD (LED) On Screen Display OSD via Remote accessory (side controls: Menu, Up, Down, Select). Settings include Brightness, Contrast, Clock/Phase, H/V Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temp, OSD Timeout/Language, Recall Defaults, Video Source, Touch, RTC/MDC, Touch Through. Lockouts: OSD, Power. Languages EN, FR, IT, DE, ES, ZH-Simplified, ZH-Traditional, JA RTC Clock & ON/OFF schedule; auto Daylight Saving adjustment Aspect Ratio 16:9 Active Area 27.5" x 15.47" / 698.4 mm x 392.9 mm Resolution 1920 x 1080 @ 60 Hz Other Supported Resolutions 640×480 60Hz; 800×600 56/60Hz; 1024×768 60Hz; 1280×720 60Hz; 1280×800 60Hz RB; 1280×960 60Hz; 1280×1024 60Hz; 1366×768 60Hz/RB; 1440×900 60Hz/RB; 1680×1050 60Hz/RB; 1920×1080 60Hz Viewing Angle H: ±89° (178° total) / V: ±89° (178° total) Number of Colors 8-bit (16.7 million) Brightness (typical) Panel: 500 nits · TouchPro PCAP: 425 nits Response Time 8 msec (typ.) Contrast Ratio 3000:1 I/O Ports HDMI 1.4 ×2; USB 2.0 Type-B (Touch); RJ45 (OSD remote); VGA Video 2× HDCP-capable HDMI (Type-A); VGA (DE-15). H-Sync 31.5–80 kHz; V-Sync 47–63 Hz Power IEC 60320-C14 input; 100–240 VAC, 50/60 Hz Maximum Operating Time 24 hours/day Power Consumption (typ.) ON: 44.3 W · SLEEP: 0.61 W · OFF: 0.20 W Dimensions 29.42" × 17.82" × 2.16" / 747.3 mm × 452.7 mm × 55 mm Shipping Box Dimensions 39.4" × 12.05" × 26.79" / 1000 mm × 306 mm × 680 mm Weight Unpackaged: 24.17 lbs / 10.99 kg · Packaged: 37.47 lbs / 17.03 kg Operating Temperature Portrait/Landscape: 0–40 °C (32–104 °F); Tabletop: 0–35 °C (32–95 °F) Storage Temperature Portrait/Landscape: −20–60 °C (−4–140 °F); Tabletop: −20–60 °C (−4–140 °F) Humidity Operating: 20%–80% · Storage: 10%–90% (38.7 °C max wet bulb) Sealability Touchscreen sealed to bezel and LCD MTBF 50,000 hours demonstrated Warranty 3-year Extended Service Options 4-yr + AUR – E740135 · 5-yr + AUR – E740330 Regulatory & Compliance Argentina S-Mark; RCM; cUL/IC; CCC; CE; VCCI; KCC e-Standby; CoC (MX); EAC; BSMI; UL/FCC; CB; NOM; RoHS/China RoHS/WEEE; Energy Star 8.0; UL 60950 ball-drop; IK07; IEC/EN60950-1 & IEC/EN62368-1 Mounting Options VESA 400 × 200 mm (see dimensional drawings) Other Features Ambient Light Sensor; Auto Wake What's in the Box Quick Install Guide · HDMI 1.4 cable · VGA cable · USB Type-A to Type-B cable · RJ45 Wired OSD remote · Power cables (NA/EU-KR/UK) · EU energy label · 8 sets flush-mount brackets (48 screws) Options / Upgrades Remote OSD (RJ45) – E483757 · 32" Flush-mount Bracket – E312503 · Optional PCAP Stylus Pen – E066148 -
Touchscreen Monitors LCD Monitors 3 years
-
Drawings and Certificates
Description Downloads Dimensional Drawing Downloads CAD Drawings Downloads Agency Approval Certificates Downloads Material Safety Data Sheet (MSDS) Downloads EU Regulation 2019/2013 Energy Efficiency Label Downloads UK Regulation 2019/2013 Energy Efficiency Label Downloads Energy Efficiency Fiche Downloads Collateral
Description Downloads Spec Sheet Downloads Additional Support Resources
Description Downloads Extended Warranty Information Downloads Download Drivers Downloads
