Aten 4-Port USB KM Switch - CS724KM-AT
SKU: CS724KM-AT
£372.05 (Excl. VAT)
- Description
- Specifications
- Downloads
-

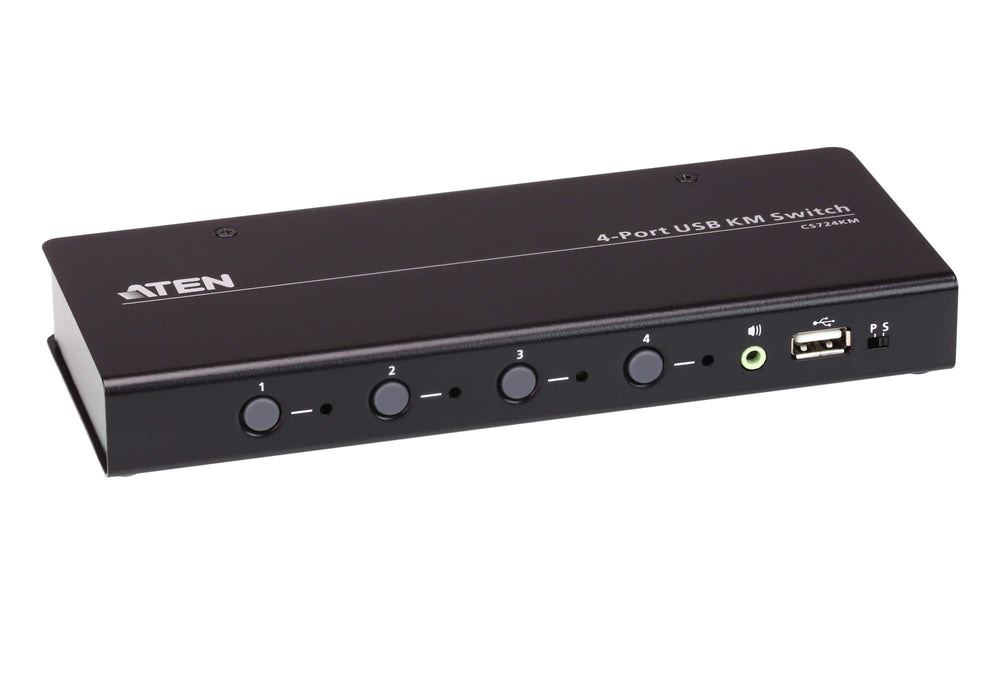

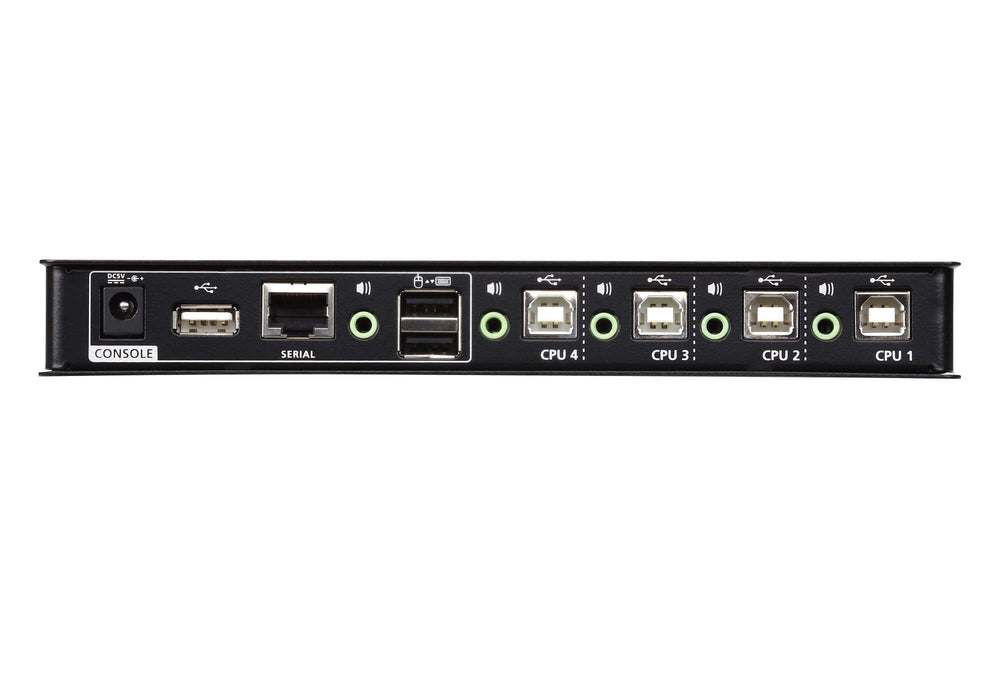

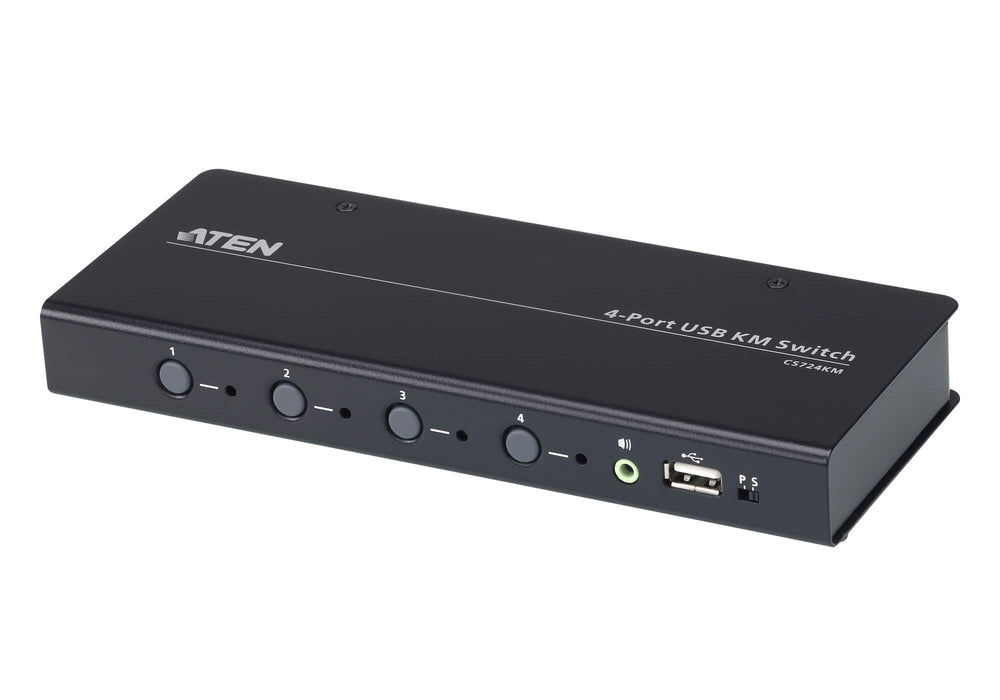

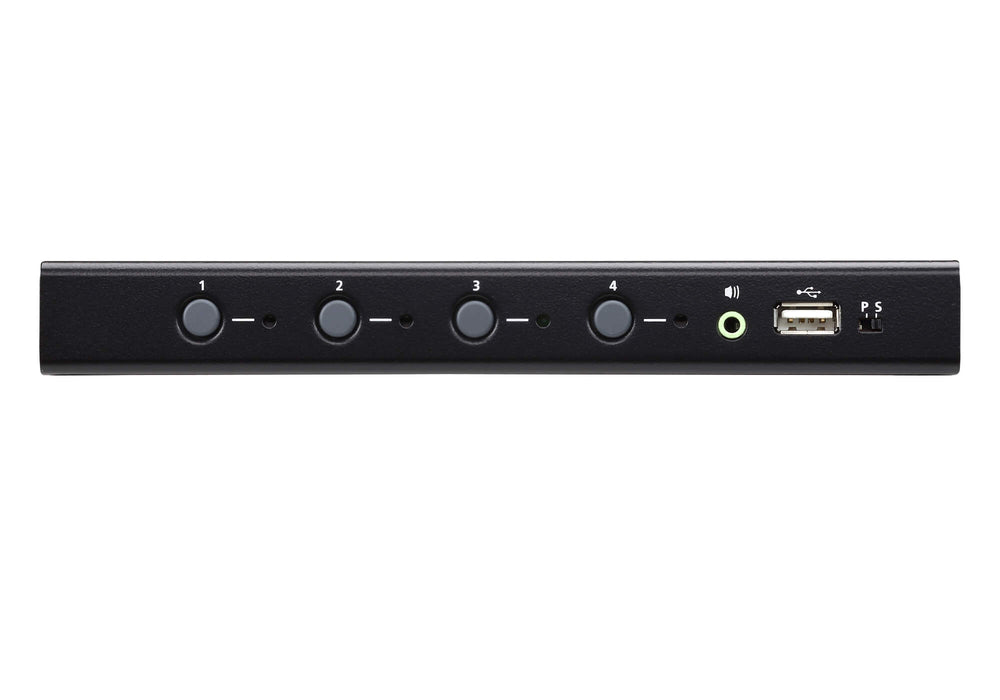

Aten 4-Port USB KM Switch - CS724KM-AT
The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.
1x 4-port USB Boundless KM Switch
4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
1x User Instructions
Single USB keyboard and mouse control up to 4 computersDaisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse
Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next
Boundless Switching Configuration Utility1 – an intuitive GUI tool that enables users to customize monitor layouts
Boundless Switching Focus 2 – a window frame to indicate which computer that it currently has the focus
Extended Desktops Boundless Switching up to 16 monitors3
Port selection via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel4, and RS-232 commands
Independently switch keyboard/ mouse, USB peripheral, and audio focus via hotkeys
Supports RS-232 serial commands
Supports Windows and Linux operating systems5
-
Design Hot keys Yes Housing material Metal/Plastic LED indicators Yes Product colour Black Push button Yes Display Built-in display No Legal Information EU ECCN Code N/A UNSPSC Code 43211601 US ECCN Code 5A992 Logistics data Harmonized System (HS) 85176200 Master case gross weight 5.73 kg Master case height 19.4 cm Master case length 33.6 cm Master case net weight 4.495 kg Master case width 30 cm Products per master case 5 pc(s) Operational conditions Operating relative humidity (H-H) 0 - 80 % Operating temperature (T-T) 0 - 50 °C Storage temperature (T-T) -20 - 60 °C Package dimensions (verified) Depth Verified 17.8 cm Gross Weight Verified 1.064 kg Height Verified 6.8 cm Width Verified 28.5 cm Packaging content Cables included Audio (3.5mm)/USB Manual Yes Performance Daisy chain Yes Ports & interfaces Console ports 3.5mm headphone/RJ–45/USB A Console USB ports quantity 2 DC-in jack Yes Keyboard port type USB Mouse port type USB Number of computers controlled 4 USB 2.0 Type-A hub ports quantity 2 USB 2.0 Type-B ports quantity 4 USB hub Yes Power Power source DC Product dimensions Net Weight (Product, kg) 0.9 kg Product Depth 28.3 cm Product Height 17.3 cm Product Width 6.2 cm Vendor information Brand Name Aten Warranty 2 Year(s) -
Description Downloads Product Brochure Downloads
