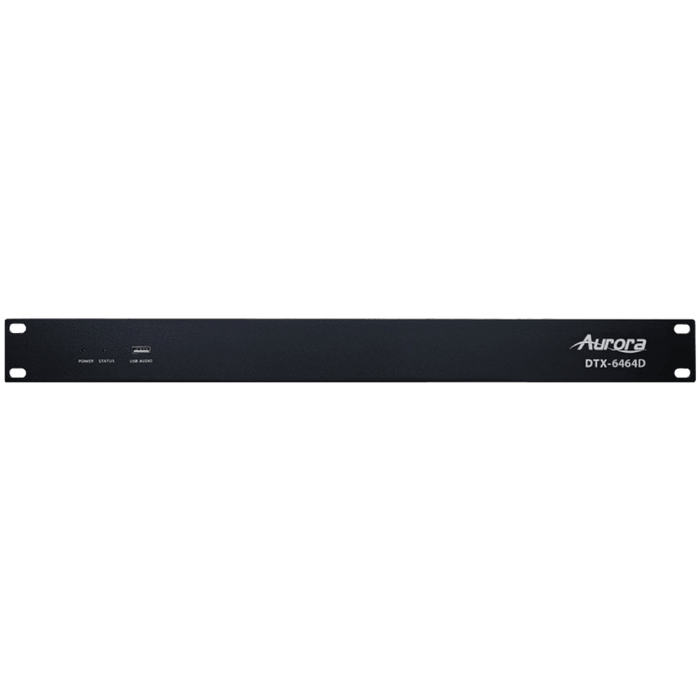

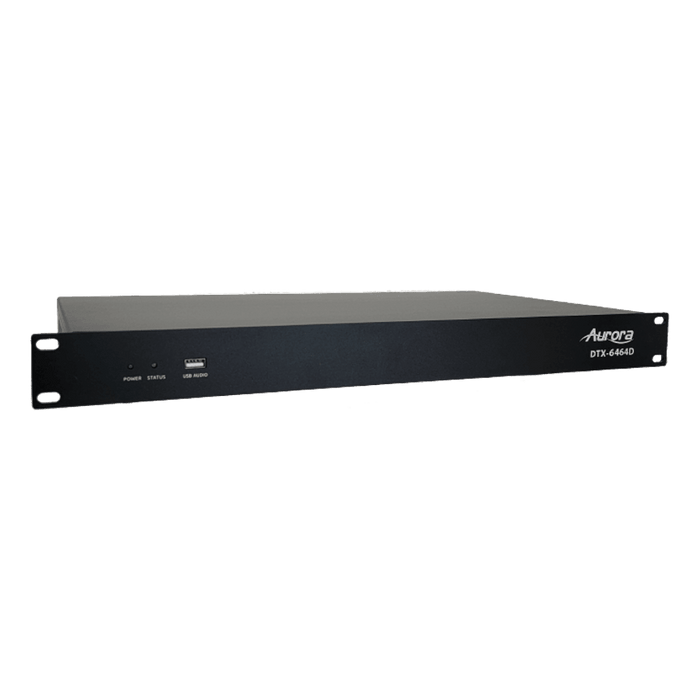

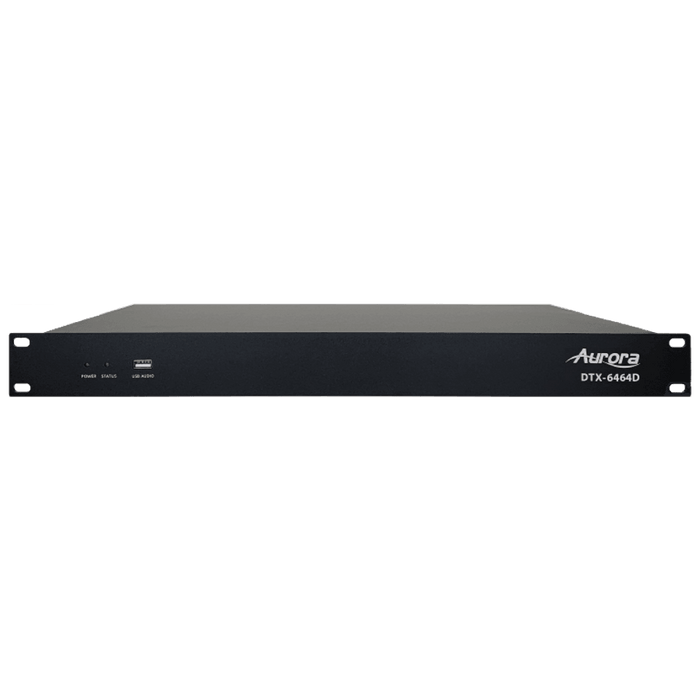

Aurora DTX-6464D 64x64 Dante DSP Aggregator

Aurora's DTX-6464D is a Dante enabled, all digital, audio DSP Aggregator. This fully networked family of professional audio products is ideal complement to Aurora’s IPX and VPX Video over IP solutions for House of Worship, Bars and Restaurants, Conferencing, and Education markets. The DTX ecosystem of products are purpose built to deliver pristine audio throughout the network while significantly reducing traditional device count and cabling costs.

DTX products use the industry-leading ADI 450Mhz SHARC 21489 chip and provides outstanding 24bit/48kHz audio quality.

The DTX-6464D is a high-density aggregator which features 64x64 Dante I/O. It is perfect for large centralized applications with multiple rooms or zones. In large, distributed systems that include analog I/O, significant benefits can be gained by using and aggregator vs a centralized DSP. This topology allows the DSP processing load to be distributed to smaller DSPs saving cost and adding survivability. The audio quality of the analog I/O also benefits by having the DSP connections close to the endpoints eliminating long analog runs, therefore reducing hum, buzz and ground loops.

• Higher quality audio by to keeping analog runs short and local.
• Considerably less cabling. Makes retrofit much easier.
• Decentralization provides survivability. One room or even the aggregator can go down and all other rooms will continue to operate normally.
• Distribution of the DSP processing load results in a less expensive solution and contributes to survivability.
• Each room can be individually secured from tampering.
• 64x64 Aggregator facilitates content sharing across rooms and allows for automated control of switching/matrix.

Features

• ADI SHARC 21489 processor
• 2 Dante audio interfaces on RJ-45 connectors
• 8 GPI/O multi-function ports on Terminal Block connectors
• Dante audio channels up to 64×64
• Definable GUI for managing and confgurating multiple units
• All Inputs and Outputs support a full suite of audio shaping tools
• 8 preset slots to store all configuration data for easy recall
• Built-in USB sound card for recording and playing digital audio
• DSP Confgurator software tool for managing all audio operations
• Warrenty: 60 Months

Specifications

• Audio
  • ADSP: ADI SHARC 21489 (×2)
  • Audio Format: 24 bits, 48 kHz sampling rates (uncompressed)
  • System Latency: < 6 ms
  • Analog I/O Channels: N/A
  • Dante I/O Channels: 64×64
  • Analog Input Gain: N/A
  • Analog Input Level: N/A
  • Analog Output Level: N/A
  • Frequency Response: ±0 2 dB (20 Hz to 20 kHz)
  • THD+N: < 0 003% (1 kHz, +4 dBu)
  • Common Mode Rejection Ration: 80 dB (60 Hz)
  • SNR: 110 dB
  • Analog Dynamic Range: N/A
  • Dante Dynamic Range: 115 dB
  • Analog Background Noise: N/A
  • Dante Background Noise: -91 dBu (A-weighted)
  • Channel Isolation: 108 dB (1 kHz)
  • Input Impedance: 9 4k ohms (Balanced)
  • Output Impedance: 102 ohms (Balanced)

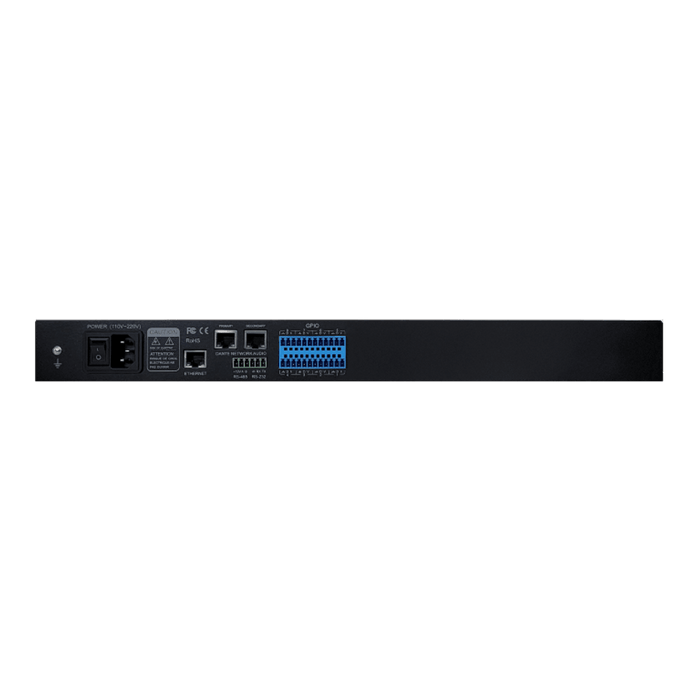

• Interface
  • Input: N/A
  • Output Port: N/A
  • Ethernet Port: 2 Dante Audio (RJ-45) 1 LAN (RJ-45)
  • USB Port: 1 USB Audio (Type-A)
  • Serial Port: 1 RS-232 (Terminal Block) 1 RS-485 (Terminal Block)
  • GPI/O Port: 8 GPI/O (Terminal Block)
• Power
  • AC Power: 110 to 240 VAC at 50 or 60 Hz
  • AC Adapter: N/A
  • Power Consumption: 15 W
• Enclosure
  • Chassis Material: Metal
  • Chassis Color: Black
  • Chassis Dimensions (Hight×Width×Depth): 45×482×260 mm
  • Chassis Weight: 3 kg
• Environment
  • Operating Temperature: +32 to +104 °F (0 to +40 °C)
  • Humidity: 10% to 90% RH (non-condensing)
• Compliance
  • Regulatory Compliance: FCC, CCC, CE, RoHS
