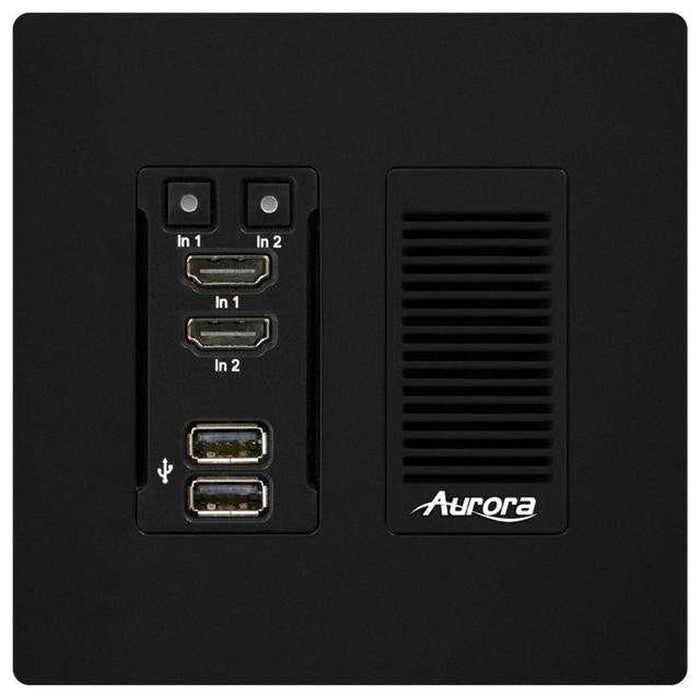

Aurora IPX-TX3A-WP2-C-B 3rd gen. 4K 10Gbps AV-over-IP Transmitter Wall Plate

This Aurora IPX-TX3A-WP2-C-B 3rd gen. 4K 10Gbps AV-over-IP Transmitter Wall Plate (ASIC model, copper version, (Black) provides one of the most advanced IP Streaming solutions on the market utilizing SDVoE technology. The 2-gang transmitter wallplate has zero compression (4K60 4:2:0, 4K30 4:4:4), lossless compression (4K60 4:4:4), and zero frame latency based on BlueRiver NT+ platform.  The IPX-TX3A-WP2-C has an option slot to add other IP capabilities, like ExtremeUSB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system.

Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches.  2 HDMI inputs allow you to switch between local sources. Seamless switching of the sources further enhances the presentation. As with all IPX devices, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSD and web server are available to be programmed as required.

Features:

• 4K60 4:4:4 Over 10G Copper
• 1.3:1 Lossless Compression and Zero Frame Latency (100us) for 4K60 4:4:4
• Zero Compression/Frame Latency (22us) for 4K60 4:2:0 and below
• Secure Content Encryption
• 128x128 Capable with HDCP, Larger for Non-Encrypted Sources
• Seamless Switching including local inputs & Break-away Switching
• 10/100/1000Mbps LAN PoE (PD)
• RS-232 Serial Port
• USB 1.1 (HID) or USB 2.0 480Mbps IP Extension
• Dante®/AES67 IP 2Ch and 8Ch Audio (Optional)
• Auto Sense Switching
• Warrenty: 60 Months

Specifications:

• Technical
  • Resolution: 4K60 4:4:4
  • Compression: Zero (4K30 4:4:4/4K60 4:2:0), 1.3:1(4K60 4:4:4)
  • Latency: Zero Frame Latency (100us without Scaling, 3ms with Scaling)
  • HDMI Inputs: Two HDMI 2.0 with HDCP 2.2
  • 10G Copper Ethernet: RJ-45 330ft(100m) with CAT 6A PoE
  • Video Bandwidth: 600MHz
  • Video support: Up to 4K2K 4:4:4 @60Hz
  • USB Function: USB 1.1 Standard 10Mbps or USB 2.0 480Mbps
  • Expansion Ports: ExtermeUSB® & Dante®
• Mechanical
  • Housing: 2 Gang Decora White or Black
  • Dimensions [L x W x H]: 3.728” x 2.83” x 1.404” (2 Gang)
  • Mounting: Wall Box or Low Voltage Electrical Rings to fit Dim Above
  • Power supply: PoE 10G LAN port or 48V DC
  • Max Power consumption: 12.9 Watts
  • Operation temperature: 0~40°C [32~100°F]
  • Storage temperature: -20~60°C [-4~140°F]
  • Relative humidity: 20~90% RH [no condensation]
