Aurora Multimedia ASP-882A 8x8 HDMI 2.0A Matrix 4K60Hz UHD
SKU: ASP-882A
£0.00 (Excl. VAT)

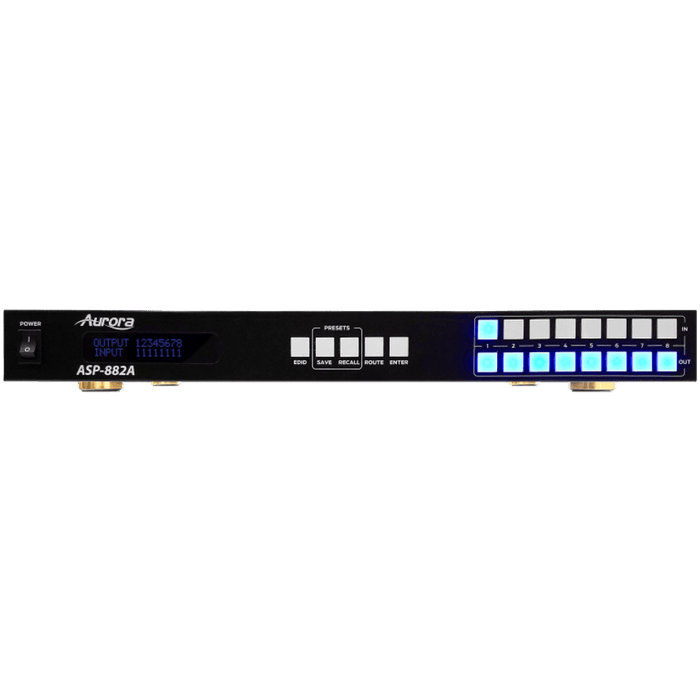

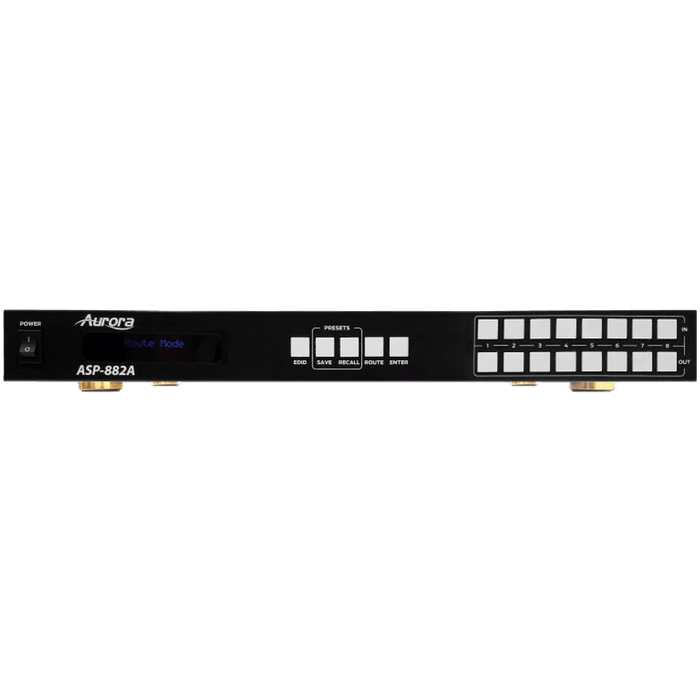

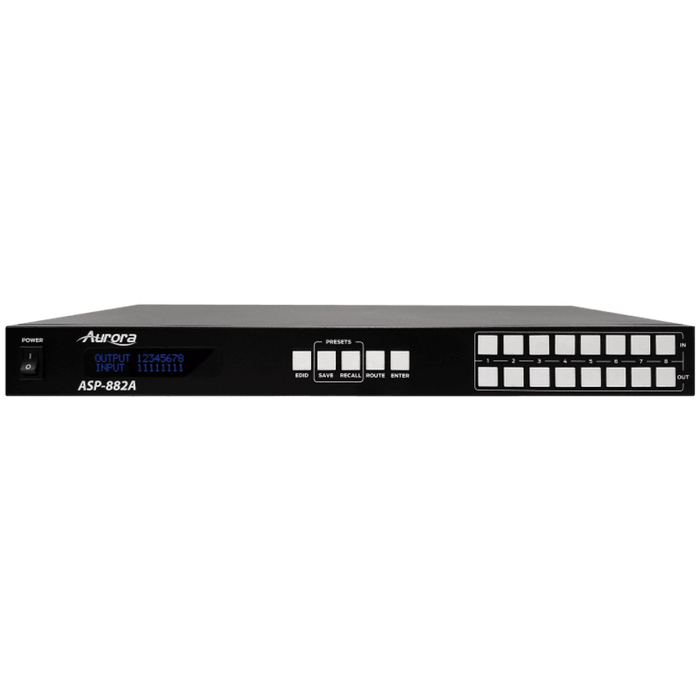

The ASP-882A is an HDMI® 2.0A 8x8 4K 60Hz matrix offering the power and flexibility you need at a cost effective price. Route Ultra High Definition video sources and multi-channel digital audio from any of the HDMI® inputs to the any of the HDMI® outputs at the same time. The front keypad and LCD display are designed for easy operation and quick status of routing. LAN and RS-232 Ports have advanced protocols allowing hot plug detection, signal detection, EDID table loading/recalling, presets, and more. The advanced protocol make the ASP-882A perfect for commercial applications with auto switching, digital signage with device detection, or residential systems with home automation.
Features
- HDMI® 2.0A HDCP 2.2
- Resolutions up to 4K2K @ 60Hz 4:4:4
- HDR High Dynamic Range
- HDMI® 3D Compliant
- HDCP 2.2 Compliant
- Allows any source to be displayed on multiple displays at the same time
- Allows any HDMI® display to view any HDMI® source at any time
- Supports 7.1 channel digital audio
- Advanced EDID Functions
- Easy installation with rack-mounting
- Front LCD Status Display
- Warrenty: 60 Months
Technical
| RS-232 Connector | DB-9 Female |
| Front Panel | Blue Backlit LCD and Selection Keys |
| Bandwidth | 600MHz |
| Resolutions | 480i / 480p / 720p / 1080i / 1080p60 8-12 bit color / 3840x2160 @ 30Hz / 4Kx2K @ 30Hz / 4Kx2K @ 60Hz |
| HDCP Compliant | 1.4 and 2.2 |
| HDMI Output Distance | 1080p up to 20m, 4K30Hz up to 10m, 4K60Hz up to 5m Note: Cable quality may impact distance |
| HDMI Connector | Type A (19 Pin Female) |
| RS-232 Baud Rate | 9600 8N1 DB9 Female (Pins 2-TX, 3-RX, 5-GND), Straight through Cable to PC |
| LAN Port | RJ-45 (Telnet Communications) |
Mechanical
| Housing | Aluminum enclosure |
| Dimensions [L x W x D] | 8.66" x 17" x 1.7" [220 x 430 x 44mm] |
| Weight | 7.2lbs (3.25kg) |
| Mounting | 1RU Rack Mount 19” x 1.75” |
| Power supply | 12v 7.5A DC |
| Power consumption | 57Watts |
| Operation temperature | 0~40°C [32~104°F] |
| Storage temperature | -20~60°C [-4~140°F] |
| Relative humidity | 20~90% RH [no condensation] |
Download
