Aurora Multimedia DXE-CAT-RX1-4K 4K HDBaseT Receiver 230ft
SKU: DXE-CAT-RX1-4K
£0.00 (Excl. VAT)
Aurora Multimedia DXE-CAT-RX1-4K 4K HDBaseT Receiver 230ft is part of Aurora's expanding Digital Xtreme Series, and one of the new HDBaseT CAT extenders. The DXE-CAT-RX1's powerful design provides usability and features not found anywhere else. Single-sided connections for HDMI, Control and Power provide a cleaner wiring and rack mounting solution.
The Patents Pending design allows the system to be powered via an AC adapter from either side! With a single CAT 5e/6/7 cable, the DXE-CAT-RX1 can go up to 230ft 1080p 60Hz 48bit color depth with bi-directional RS-232, & IR.
Features:
- Transmit HDMI up to 1080p 60Hz 48bit 230ft over one CAT 5e/6/7 cable
- HDCP Compliant
- All connectors on one side for easier installation
- Bi-directional RS-232 & IR
- Power both units from TX or RX side with wall power supply (HDBaseT POE)

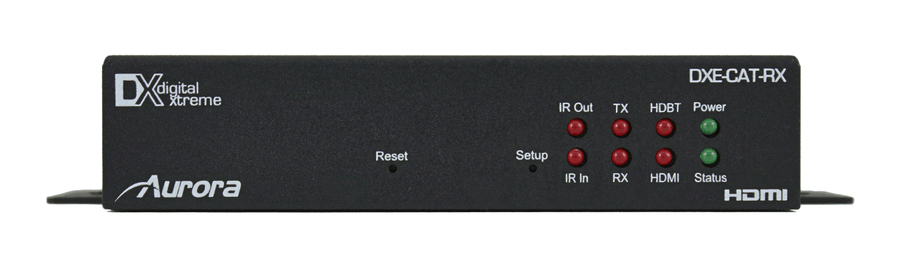

- Status LED for all connections on front
- Various mounting options
- Comes in a variety of models for different features & cost savings
- Warrenty : 60 Months
Specifications:
Video
| HDMI Compliance | HDMI 3D |
| HDCP Compliant | Yes |
| Distance | 230ft [70m] |
| Max Resolution | 4K 30Hz (340MHz) |
| Color Depth | 48bit |
Connectors

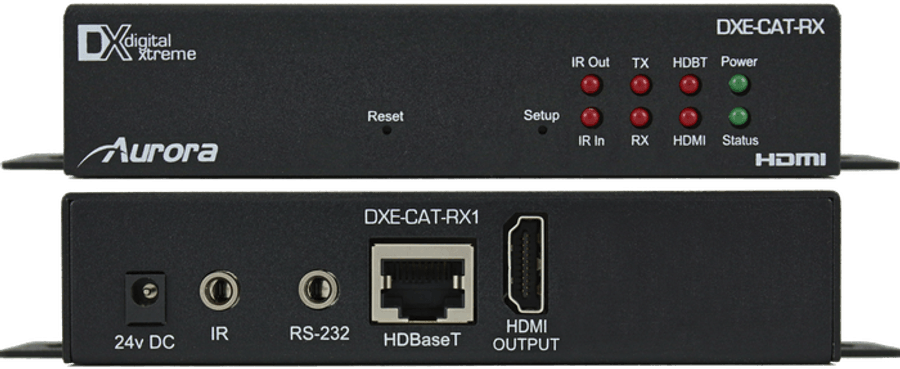

| TX Connectors | (1) HDMI in, (1) HDBaseT, (1) RS-232 3.5mm TRS, (1) IR 3.5mm TRS |

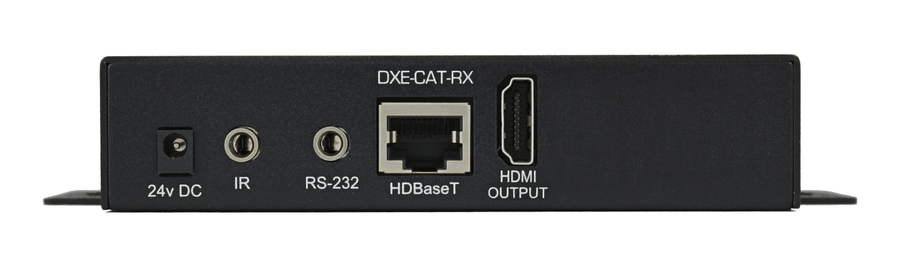

| RX Connectors | (1) HDMI in, (1) HDBaseT, (1) RS-232 3.5mm TRS, (1) IR 3.5mm TRS |
Mechanical
| Dimensions | 4.7" x 3.03" x 1.1" [120 x 77 x 28mm] |
| Weight | 0.87lbs [395g] |
| Mounting | Wall mounting tabs (included) Rack mount bracket (included) |
Power
| Power Supply | 24V 0.65A DC 5Watts |
Environmental
| Operation Temperature | 32~104°F [0~40°C] |
| Storage Temperature | -4~140°F [-20~60°C] |
| Relative Humidity | 20~90% RH [no condensation] |
