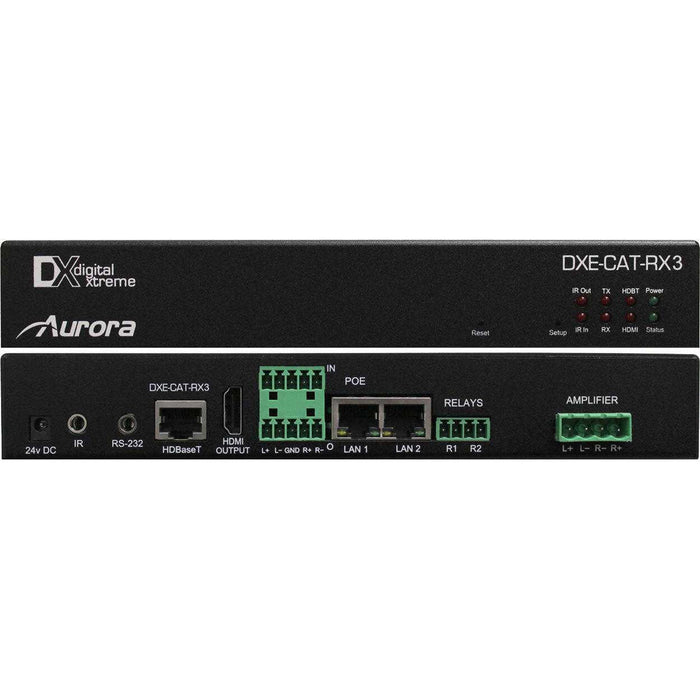

Aurora Multimedia DXE-CAT-RX3-A HDBaseT Receiver Audio Line In/Out
SKU: DXE-CAT-RX3-A
£0.00 (Excl. VAT)
Aurora Multimedia DXE-CAT-RX3-A HDBaseT Receiver 330/600 Ft. with Dual Relay & Audio Line In/Out & 2x35W Amp is unique compared to the standard CAT extender sold on the market today as it is both economical, has specific features and usability aspects. Rear mounted connectors offer for a neat, professional installation. The DXE-CAT-RX3 Series works with the Digital Xtreme Series of HDBaseT transmitters like the DXM Matrixes, DXW-2 Series HDBaseT wall plates, DXE-CAT-TX1, DXE-CAT-TX2.
The built-in relays are ideal for screen control, and the audio amplifier versions (two (2) 35 Watt) will fill the space with sound when utilized with the SKR-22T 360-degree sound-field ceiling tile speaker. An economical highly integrated solution for podiums, rolling carts, and credenzas is possible with the DXE-CAT family.
The Receiver employs HDBaseT technology, with one CAT cable, enables the DXE-CAT-RX3 to operate up to resolutions of 1080p@60Hz 48bit color depth up to 330 feet, 1080p@60Hz 24bit up to 500 feet (CAT 6), or 1080p@60Hz 24bit 600ft (CAT 6A Shielded) depending on transmitter model. Also, the IR, RS-232, and LAN can be transmitted via a single cable bi-directionally. It includes a volume control, and two (2) relays for screen control. It features differential line I/O for audio mixing and HDMI audio de-embedding.
Rear mounted connectors for easy installation. LED show status of all connections on the front. Audio operations remotely controlled via transmitter Unit or Optional IP.
Features:
- Receives HDMI up to 600ft (183m)
- 2x35 Watt Amplifier ("-A" Version)
- Differential Line Input / Output for Audio Mixing & HDMI Audio De-Embedding
- Volume Control
- Audio Functions Remotely Controlled via Transmitter Unit or Optional IP
- IP Control Engine (C Version)
- Bi-directional RS-232, & IR & LAN
- Two Relays for Screen Control
- Rear Mounted Connectors for Clean Installation
- Status LED for All Connections on Front
- Warrenty : 60 Months
Specifications:
| 1 Model Name | DXE-CAT-RX3 Series |
| Technical | DXE-CAT-RX3-A |
| Max Distance | 600ft |
| Max Resolution | 1080p 60Hz |
| RS-232 | Max 115kbps |
| Amplifier | 2x35 Watt 4/8 Ohm |
| Line W'CXit | Balanced |
| Relays | 2 Normaty Open 24VDC2A |
| IR Input & CXjtpcft | 30Hz-100kHz |
| LAN | 2-10/100 |
| LAN POE | Amplifier Requires External Power |
| IP Control System | No |
| Front LED Status | Power. Status. HDMI. HD3aseT. RS-232 TX/RX. IR In/Out |
| Front Selections | Reset |
| Distance | 328ft 100m - 1080p 60Hz 24 & 36bit CAT 5eA5/6a/7 328ft 100m - 1C60p 60Hz 48tit CAT 6a/7 230ft 70m - 1080p 60Hz 48bit CAT 5e/6A5a/7 5COft 152m - 1080p 60Hz 24bit (Long Reach Mode) CAT 6 600ft 183m - 1080p 60Hz 24bit (Long Reach Mode) CAT 6A CAT 5e/6 a achieve 328ft 100m for pixel clock <=225MHz CAT 5e/6 il achieve 230ft 70m for pixel dock >225MHz CAT 6afT wfl achieve 328ft 100m lor pixel dock >225MHz |
| LAN Connectors | Dual 8P8C Mth 2 LED indicators each |
| HDBaseT Connector | RJ-45 WE/SS 8P8C |
| RS-232 Connector | 3.5mm TRS |
| IR Connector | 3.5mm TRS (Auto Sensing Direction for Blaster a Receiver) |
| HOMI Connector | TypeA 19 pen |
| Power Connector | 2.5mm ID Haf Twist Kycon |
| Relay Connector | 381mm Euro Style Green 4 Position |
| Line In/Out | Dual 3.81mm Euro Style Green 5 Position |
| Amplifier Connector | 5.08nm Euro Style Green 4 Position |
| Mechanical | DXE-CAT-RX3 Series |
| Housing | Black Aluminum endosure |
| Dimensions (L x W x H] | 130mm x 55mm x 30mm [8.46 x 3.82* x 1J] |
| Weight Mounting | 2bs |
| Wall-mounting & Rack Mounting | |
| Power supply | 24 SO Watt DC (Only 1 recuired on RX for Amplifier model) 132mmx57mmx31mm |
| Power consumption | 5 Watts [Typical] 80 Watts (Amplifier ful use) [Max] |
| Operation temperature | 0-40˚C [32-10˚F| |
| Storage temperature | -20-60˚C [-4-140˚F| |
| Relative humility | 20-90% RH [no condensation] |
