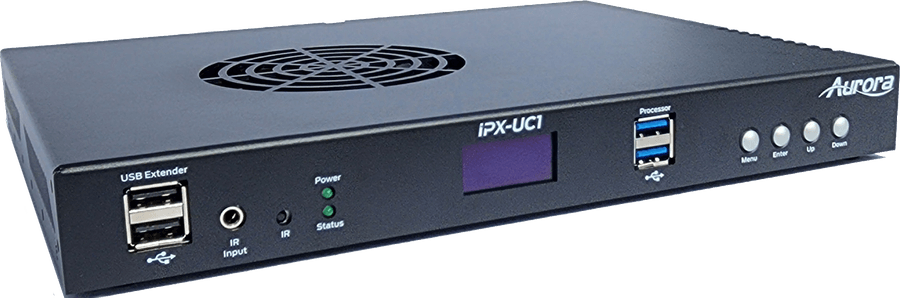

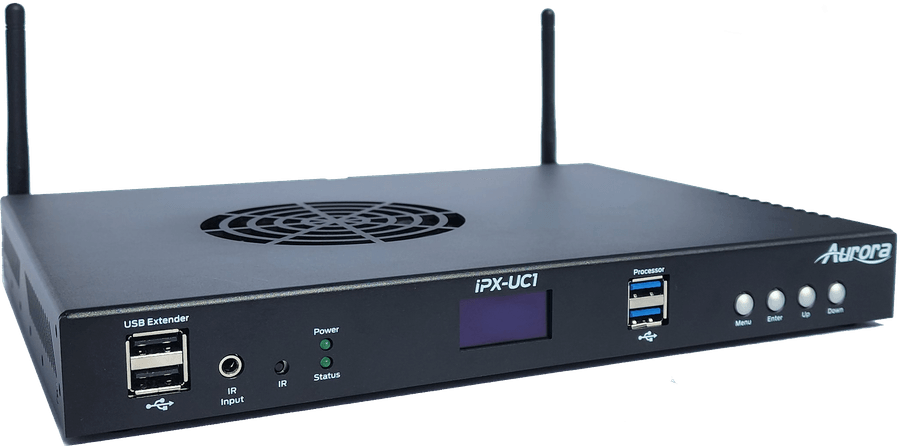

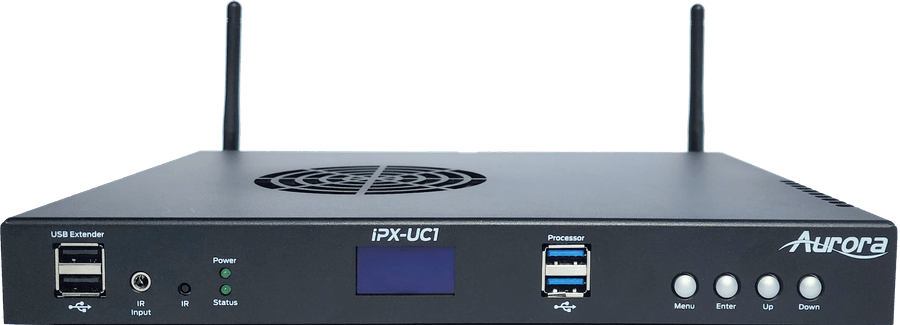

Aurora Multimedia IPX-UC1-ULTRA-1-i512-1T16G 4K Transceiver

This Aurora Multimedia IPX-UC1-ULTRA-1-i512-1T16G 4K Transceiver Apable of Simultaneous Encode is the most advanced unified communication IP Streaming solution on the market utilizing SDVoE™ technology and more. The IPX-UC1 ULTRA is the industry’s first 4K transceiver capable of simultaneous encode and decode over a single cable with zero compression or lossless compression with zero frame latency.

What really separates the IPX-UC1 is the ability to stream 10G, 1G, and 10/100 at the same time in both directions. Advanced compression CODECs for H.264, H.265, and NDI are all part of the highly integrated Ultra platform.

Features:

• Simultaneous Transmitter (Encoder) and Receiver (Decoder) over single CAT cable
• 4K60 4:4:4 Over 10G Fiber or Copper
• 1.3:1 Lossless Compression and Zero Frame Latency (100us) for 4K60 4:4:4
• Zero Compression/Frame Latency (22us) for 4K60 4:2:0 and below
• Secure Content Encryption
• 128x128 Capable with HDCP, Larger for Non-Encrypted Sources
• Windows Processor with Ability to Run Zoom, Teams, and More.
• Dual Internal HDMI Graphics Output for Processor
• Three USB 3.1, One USB2.0 Available for Processor
• Two Internal LAN for Processor
• 1TB Internal SSD
• Neural Processing Unit (NPU) Option. People Counting, Emotion Detection, Facial Recognition, & More.
• SFP selectable for 10G or 1G use with Processor for Secondary External Port
• Encode and Decode H.264/H.265
• NDI (Option)
• Video Wall Capability (16x16), Image Rotation, Edge Blending, Chroma Keying
• Waveform Monitoring, Histogram, Vector scope Display & Built-in Pattern Generator
• Bitmap & Character Based OSD for Inputs and Output Channels
• Windowing/Multi-viewer up to 32 windows with Local Windowing of Sources up to 4
• Multi-Input Mode Can Transmit up to 4 1080p Signals over Single 10G Cable
• Two HDMI Outputs with Independent Scaling & Two Internal Scalers for Internal PC and SDVoE
• 3ms Scaling
• Seamless Switching including local inputs & Break-away Switching
• Audio DSP
• SFP+ for Multi/Single Mode Fiber
• 10/100/1000Mbps LAN PoE (PD)
• Input Boards (4 HDMI, Multi-Input 1 USB Type-C, DisplayPort, 2 HDMI or 1 HDMI and 12G SDI)
• Line In/Out Stereo
• RS-232 Serial Port and IR (Bidirectional)
• Integrated Web Server for Custom Control Pages
• USB 1.1 (HID) or USB 2.0 480Mbps IP Extension
• Dante®/AES67 IP 2Ch Included and 8Ch Audio (Optional)
• ReAX IP Control
• Front Keypad with OLED Display
• Auto Sense Switching
• Rack and Under Table Mounting
• 4K Auto-Framing USB 3.1 Camera Option
• Warrenty: 60 Months

Specifications:

• Technical
  • Compression : Zero(4K30 4:4:4/4K60 4:2:0), 1.3:1(4K60 4:4:4)
  • Latency : Zero Frame Latency(100us without Scaling, 3ms with Scaling)
  • HDMI Outputs : Two HDMI 2.0 External & Two Internal
  • Audio Analog : Stereo Line In/Out
  • SFP+ : 1G for Processor or 10G for SDVoE (Single Mode or Multi-Mode)
  • 10G Copper Ethernet : RJ-45 330ft(100m) with CAT 6A PoE
  • 1G LAN : RJ-45 10/100/1000M PoE
  • Video Bandwidth : 600MHz
  • Video support : Up to 4K2K 4:4:4 @60Hz
  • Audio support :Up to 32 channels & Break-away Capable
  • RS-232 : Up to 115k Baud
  • IR : 30KHz-60KHz
  • USB Function : USB 1.1 Standard 10Mbps or USB 2.0 480Mbps
  • USB Connectors : ExtremeUSB 2 x USB 2.0 Type A, 1 x USB 2.0 Type-C
  • Processor USB : 2.0 Type A, USB Type-C 3.1
  • Expansion Ports : Processor, ExtermeUSB® & Dante®, (Populated for Ultra)
  • Interface : IR or Keypad for OSD and OLED, Webserver, IPBaseT Manager
• Scaler
  • Bandwidth : 4K60 4:4:4
  • Scaling Processors : Quad Scaler Processors
  • Effects : Image Rotation, Videowall, Windowing, OSD, Edge Blending, Chroma Keying
  • Pattern Generator : Color Bar, Moving Pattern, Hash, & More
• Processor
  • CPU : Intel 12th Gen NUC Element (i3, i5 or i7)
  • Memory : 8GB RAM (i3), 16GB RAM (i5), 32GB RAM (i7) and 500GB/1TB SSD
  • LAN : 2.5G LAN PoE++ & 1G LAN PoE++ Connected to Internal Router
  • Video : Dual HDMI Outputs Input Matrix Scaler, One Input for Video Capture
  • Video Processing Unit : H.264/H.265 4K Encode and Decode
  • USB : One USB 2.0 Type A Front, 1 USB2.0/USB 3.1 Type-C Rear
  • WiFi : Intel® Wi-Fi 6e AX211 (802.11ax)
  • Bluetooth : V5.3
  • Options : NDI Encode and Decode, Wi-Fi TeamStream BYOD
• Mechanical
  • Housing : Black Aluminum Enclosure
  • Dimensions : [L x W x H] 10.5" x 8" x 1.22"
  • Weight : 4.3lbs
  • Mounting : Rack mount (optional) and included under table/wall mount
  • Power supply : 100 Watt USB-C or PoE++ 85W (LAN)
  • Max Power consumption : 100 Watts
  • Operation temperature:   0~40°C [32~100°F]
  • Storage temperature : -20~60°C [-4~140°F]
  • Relative humidity : 20~90% RH [no condensation]
