Aurora Multimedia RXS-2-i713-1T32G Ultimate Intel Powered NUC PC For AV, Intel I7 12th Gen

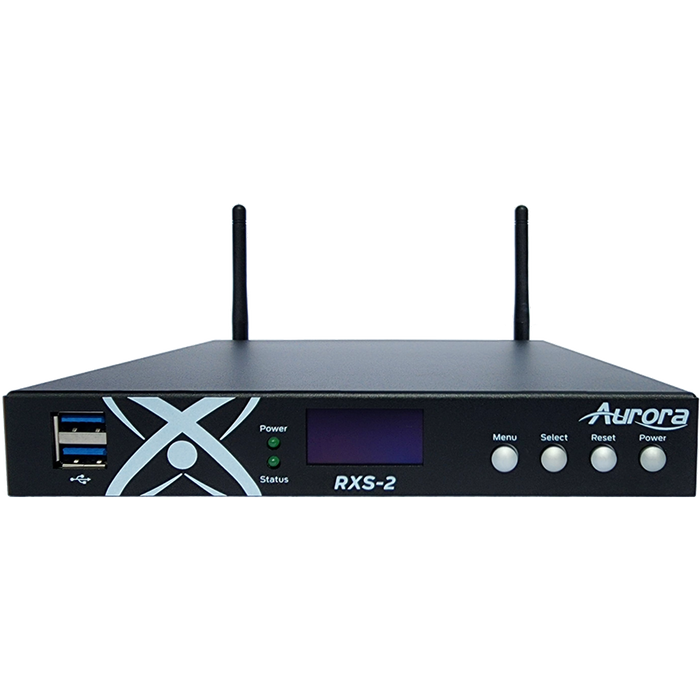

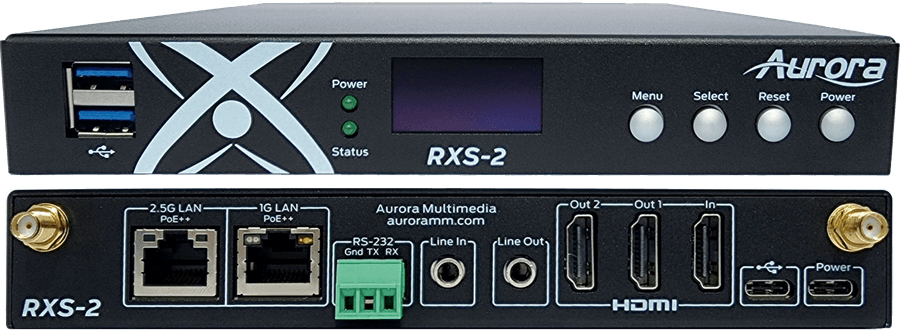

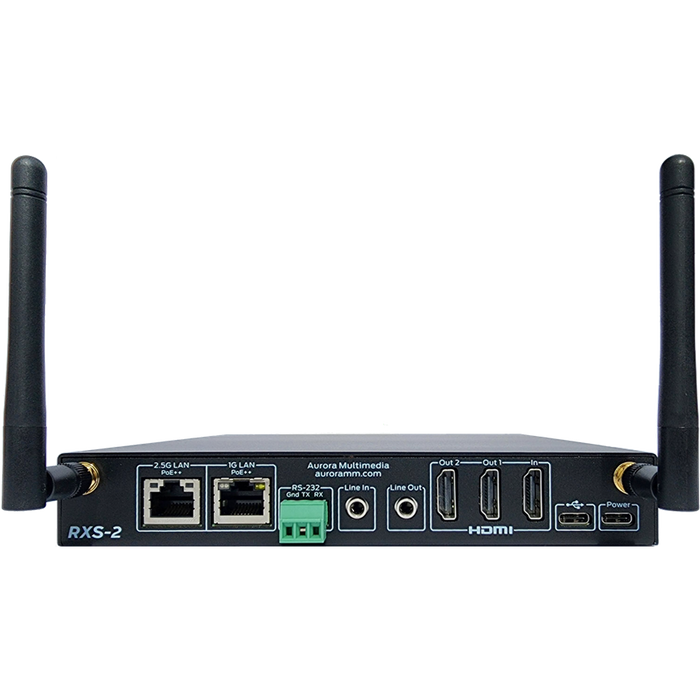

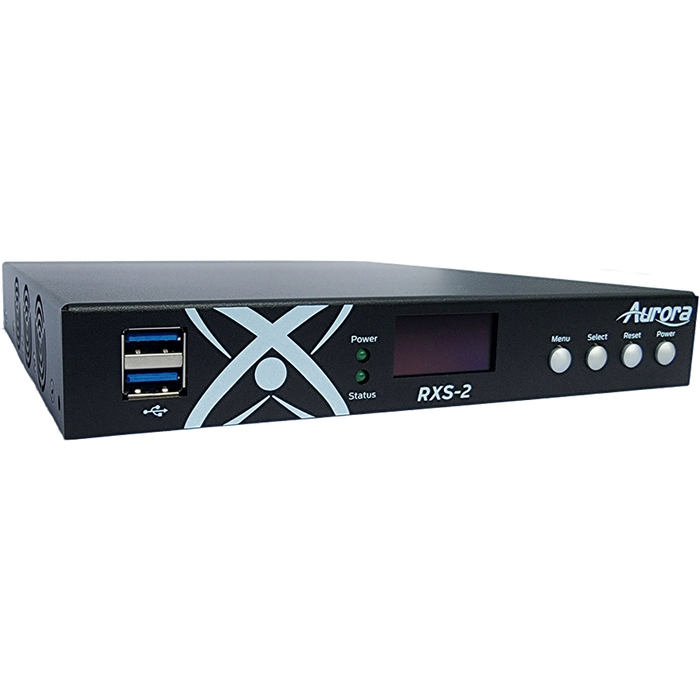

This Aurora Multimedia RXS-2-i713-1T32G Ultimate Intel Powered NUC PC For AV, Intel I7 12th Gen, 32GB RAM And 1TB SSD is a 12th Generation Intel NUC Element PC designed for the AV industry and more. Its small size allows for mounting behind displays and under tables. It can also be rack mounted as two in a 1RU or 12 in 5RU. Available in i5 & i7 with 500GB or 1TB SSD. The RXS-2 has dual 4K60 4:4:4 HDMI outputs and one HDMI input for capture of 4K signals. Wi-Fi 6e, Bluetooth, 2.5G LAN, 1G LAN, USB 3.1, and RS-232 ports make it perfect for unified communications and digital signage applications. Sometimes it is the little things that make a big difference and that is where the OLED comes in. The front OLED will display IP address, MAC address, serial number, and more which is great for servicing. Finally, a PC made to simplify installations with a powerful processor and features beyond a typical PC.

Features:

• Intel i5 or i7 Processor
• 16GB or 32GB RAM
• 500GB or 1TB SSD
• Windows or Linux OS
• 2 HDMI Outputs
• 1 HDMI Input (4K30 Capture)
• 1Gbps LAN Port (PoE++)
• 2.5Gbps LAN Port (PoE++)
• 2 USB 3.1 Front
• 1 USB 3.1 Type-C Rear
• RS-232
• Line In and Out
• Front Status Display
• Integrated Wi-Fi 6e
• Bluetooth 5.3
• USB Type-C Power
• 1RU Dual Rack Mount (RK2-1-K)
• 5RU 12 Unit Rack Mount (RK2-5-K)
• Warrenty: 36 Months

Specifications:

• Audio: Line In/Out Stereo
• Height: 1.09 in
• Housing: Metal Enclosure
• Memory: 16GB/32GB RAM
• Processor: Intel® NUC Element 12th Gen (i5, i7)
• Storage: 500GB/1TB
• Storage Temperature: -20~60° C [-4~140 °F]
• Width: 7.44 in
• Graphics: Intel® 12th Generation
• LAN: 2.5G RJ-45 PoE++, 1G RJ-45 PoE++
• Relative Humidity: 20~90% RH [No Condensation]
• DC Voltage: 20 Volts
• Serial: 3.5mm TRS RS-232
• HDMI Input: 1 HDMI 4K60 4:2:0/4K30 4:4:4
• Bluetooth: v5.3
• Product Weight: 2 lbs
• HDMI Output: 2 HDMI 4K60 4:4:4
• Wi-Fi: Intel Wi-Fi 6e AX221 (802.11ax)
• Mounting: Rack (RK2-1-K, RK2-5-K) or Wall (Included)
• Active Power: 100 Watt
• Color: Black
• Operating Temperature (Maximum): 104 F
• Operating Temperature (Minimum): 32 F
• Current Draw: 5 Amps
• Length: 7 in
• USB 3.1/2.0: 2 Type A, 1 Type-C
• PoE++: 85 Watts Required

Download

• Specification Sheet
• User Guide
