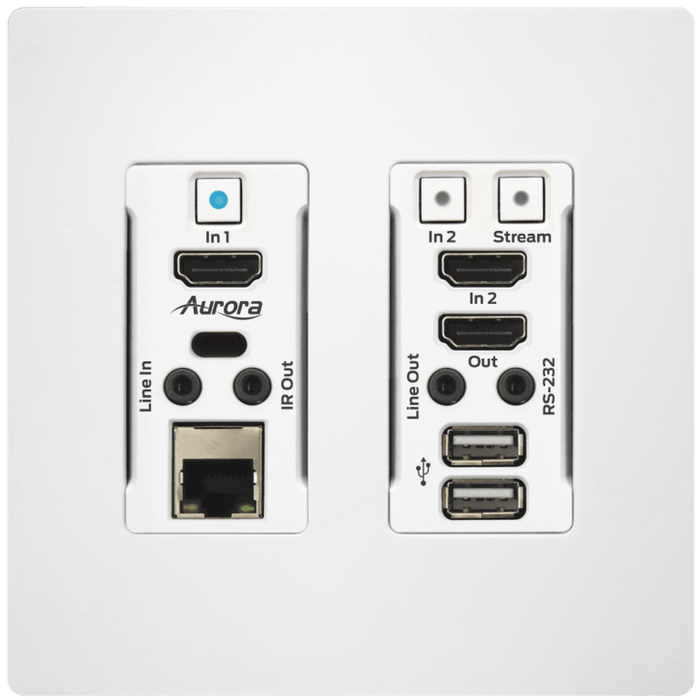

Aurora Multimedia VLX-TCW2H-C-W HDMI 4K IP Wall Plate Extender/White
SKU: VLX-TCW2H-C-W
£0.00 (Excl. VAT)
Aurora Multimedia VLX-TCW2H-C-W HDMI 4K IP Audio/Video Wall Plate Extender/White
Aurora Multimedia VLX-TCW2H-C-W HDMI 4K IP Audio/Video Wall Plate Extender/White is a state-of-the-art IP Streaming solution on the market using Aurora's IPBaseT technology, which integrates several IP/AV standards to function as one. It is Aurora's first 4K UHD transceiver with just 1.5 frames (25ms) latency and visually lossless compression. The unit has 2 HDMI® ports.
Using an encoder (transmitter) and decoder (receiver), respectively, used to be the standard - till now. The VLX-TCW2 Series can be set up to either make installation, inventory and also troubleshooting easier. The VLX-TCW2H supports HDMI® 2.0, HDCP 2.2 and PoE. It features unlimited scalability based on network topology and Auto sense switching. The selected network switch must support 1Gbps, Non-blocking IGMP, and Jumbo Frame Packets.
Features:
- 4K visually lossless over 1Gbps network
- Low 1.5 frame latency
- HDMI® 2.0/HDCP 2.2
- Unlimited scalability (based on network topology)
- Videowall with image rotation
- PoE (Power over Ethernet)
- Stereo line I/O
- RS-232 and IR Control Ports
- Auto sense switching
- USB 2.0 Host and Device Ports
- Dante® IP audio option
- Color - Black
- Warrenty: 60 Months
Specifications:
| Technical | |
|---|---|
| Compression | 8:1 |
| Latency | 1.5 Frames (25ms) |
| HDMI Inputsa | 2 HDMI 2.0/HDCP2.2 |
| HDMI Outputs | 1 HDMI 2.0/HDCP2.2 |
| Audio Analog | Stereo Line In/Out (3.5mm TRS) |
| 1G Copper Ethernet | RJ-45 |
| LAN | RJ-45 10/100/1000M PoE (PSE) |
| Video Bandwidth | 340MHz |
| Video support | Up to 4K2K 4:2:0 @60Hz |
| Audio support | Up to 32 channels & Break-away Capable |
| RS-232 | 2 qty Up to 115k Baud (3.5mm TRS) |
| IR | Bi-Directional (3.5mm TRS) |
| USB Connector | 1 USB 2.0 Type A, 1 USB 2.0 Type B 2 USB 1.1 Type A |
| Expansion Port | Dante® Option |
| Interface | IR or Keypad via OSD, Webserver |
| Mechanical | |
| Housing | Aluminum |
| Dimensions [L x W x H] | 2 Gang 3.728" x 2.83"(4.331" with tabs) x 1.404" |
| Weight | 1.13g [2.5lbs] |
| Mounting | Wall-mounting Decora® 2 Gang |
| Power supply | 48V DC (2 pin Euro) or 1G PoE |
| Power consumption | 9 Watts |
| Operation temperature | 0~40C [32~104F] |
| Storage temperature | -20~60C [-4~140F] |
| Relative humidity | 20~90% RH [no condensation] |
