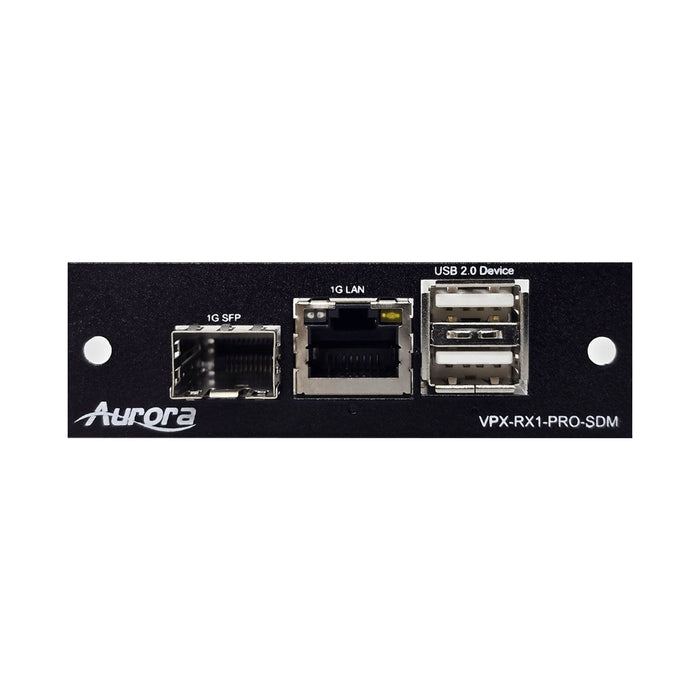

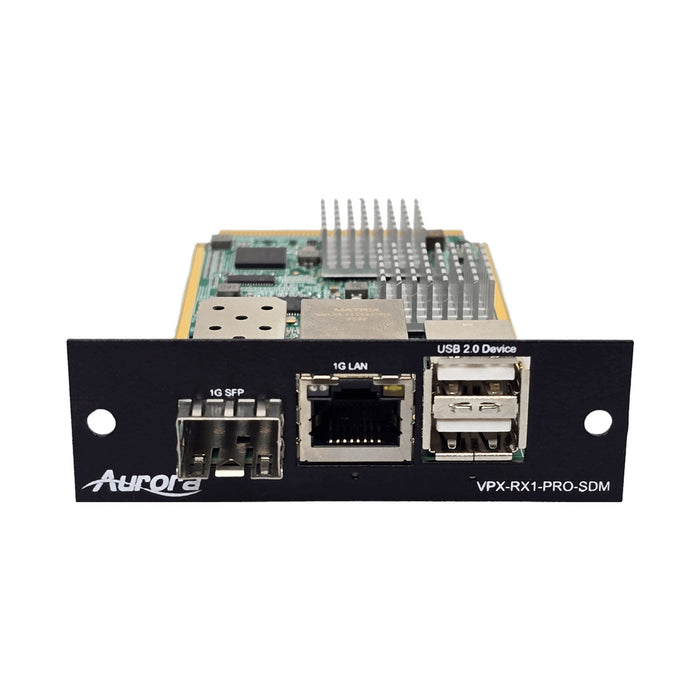

Aurora Multimedia VPX-RX1-SDM 1G AV over IP SDM Card
SKU: VPX-RX1-SDM
£0.00 (Excl. VAT)
This Aurora VPX-RX1-SDM 1G AV over IP SDM Card is over IP Smart Display Module (SDM Card). This will allow displays with Intel’s SDM slot to receive 4K 60 4:4:4 over the network using Aurora’s Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks.It has zero frame (1.78ms) latency and seamless switching for fast lag free content. The best part with SDM is no external boxes as everything is built into the display. The VPX-RX1-SDM also has advanced features like videowall, image rotation, channel mapping, 720p30 remote preview, roaming mouse, hotkeys, and more.
Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX Series.
Features:
- 4K60 4:4:4 UHD Decoder
- Zero Frame Latency (1.78ms)
- HDMI 2.0b, HDCP 2.2
- HDR10, HDR10+, Dolby Vision
- LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD DTS HD Master Audio & ATMOS
- 12 bits color depth processing, 16bits OSD
- Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
- Low Power Design
- Scaling & Seamless Switching
- MJPEG Preview up to 720p30
- Video Wall with Image Rotation
- 1G LAN PoE and SFP for Fiber or 2nd RJ-45
- Channel Mapping with On-Screen Preview
- Roaming mouse & hotkeys
- Integrated Web Server for Configuration
- USB 2.0 Ports for Cameras, HID Devices, Mass Storage, etc.
- Dante®2 Ch Audio License Options & Dante Controller
Downloads:
