Aurora TAV-BX1-B Infrared Temperature Sensing Solution - White
SKU: TAV-BX1-W
£0.00 (Excl. VAT)

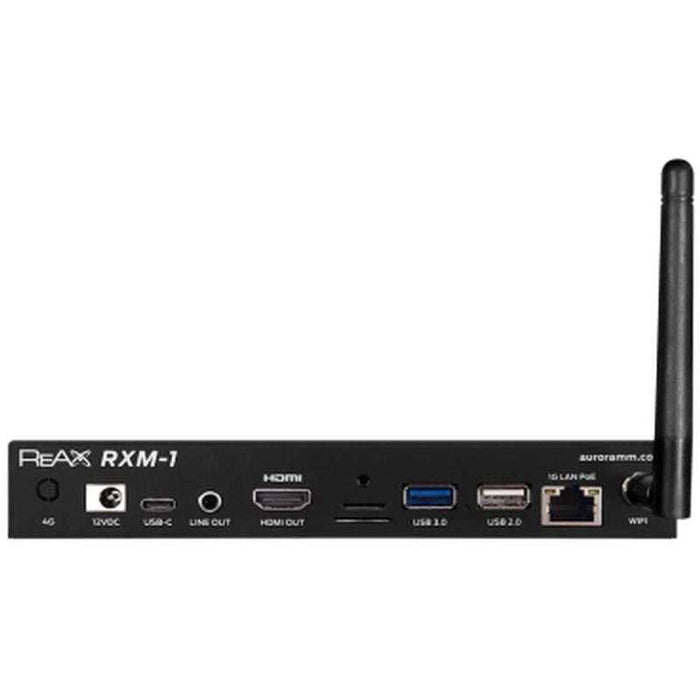

This Aurora TAV-BX1-B Infrared Temperature Sensing Solution - White is an all-in-one Infrared Temperature Sensing Solution - White comprised of the RXM-1 ReAX Media Server and the TAV-A80 Thermal Camera Unit. It is the ultimate way to turn any display into a full featured temperature sensor and much more. It is a perfect solution for creating custom kiosks or advanced digital signage with analytics. To ensure that people entering a location are not presenting a high temperature, the TAV-BX1-B will provide alerts when a person is running a high temperature within 1 second from up to 5 feet (1.5 meters) away. The system uses advanced algorithm for detecting and calculating heat signatures even the tear ducts (Canthus) at close distances, achieving more accurate readings with IR technology. The highly accurate 80??4 sensor measures with a tolerance of +/- 0.3 degrees Celsius (+/- 0.5 degrees Fahrenheit).
Why a temperature sensor?
- Provides the first layer of screening protection
- More hygienic with touchless infrared technology
- Multiple devices can be monitored by a single user
Features:
- Scan Distance: Up to 5' (1.5m)
- 2 Person Forehead Scanning
- Scan speed: Less than 1 Second
- Canthus (Tear Duct) Eye Detection (Highest Possible Accuracy from 12"away)
- Mask Detection
- Eye Wear Detection
- Anti-Spoofing (Prevents Objects Being Utilized to Simulate Pass or Fail)
- Future Firmware Upgrades & Options
- Facial Recognition (Localized or Centralized)
- Age, Gender, & Ethnicity Prediction
- QR Code Detection
- Gesture Responses
- Streaming Video for Security
- Email Alerts
- RGB Color Indicator Bar
- Portrait or Landscape Mounting
- Available in Black or White
- Made in the USA
- Embedded ReAX Control for Automation & Integration with Third-Party Devices and Access Systems
- Customizable Web Pages (Mobile too)
- Warrenty: 36 Months
Specifications:
| Hardware & OS | |
|---|---|
| CPU | RK3399 Cortex Six core Processor 1.8GHz/1.4GHz |
| RAM | 4GB DDR3 |
| ROM | 32GB eMMC Flash |
| OS | Android 9 or Linux Debian 9 (Coming Q1) |
| Video/Audio | |
| Video Output | HDMI 2.0 output |
| Audio Output | Line out |
| Communication | |
| Bluetooth | EDR 4.0 |
| WiFi | 802.11 b/g/n 2.4GHz and 5GHz |
| Ethernet | 10/100/1000 LAN |
| General Information | |
| I/O | 12v DC Input, USB Type C, 3.5mm Audio Line L/R Out, HDMI 2.0 Output, SD Card Slot, SIM Card Slot (4G Option), USB 3.0, USB 2.0, 1G LAN PoE |
| AV Capablllty | Front Facing Binocular Camera 2 MP fixed focus |
| Included in Box | RXM-1, TAV-A80, Power Adapter, Power Cable, WIFI Antenna, Mounting Ears |
| Consumption | 11W |
| Power Input | 12V 2A or PoE |
| Operating Environment - Temperature | Operating: 32°F to 100'F (0°C to 40°C); Storage: -4° F to 122°F (-20'C to 50°C) |
| Operating Environment - Humidity | Operating: 20%-80%; Storage· 10%-95% |
| Certification | CE, FCC, ROHS |
| Language | Multi language |
| VESA | VESA 75 |
| Warranty | 3 Years |
| Infrared Temperature Sensor | |
| Size | 125mm x 36.44mm x 27.20mm (39.67mm deep including lens) |
| Temperature check distance | 0.3m-1.5m |
| Temperature check range | 30°C to 45°C |
| Temperature check error | ±0.5°F@1 Hz |
| Physical | |
| RXM-1 Slze (WxHxD) | 177mm x 104.2mm x 27.3mm (6.97” x 4.1” x 1.07”) |
| Product Weight | --- |
