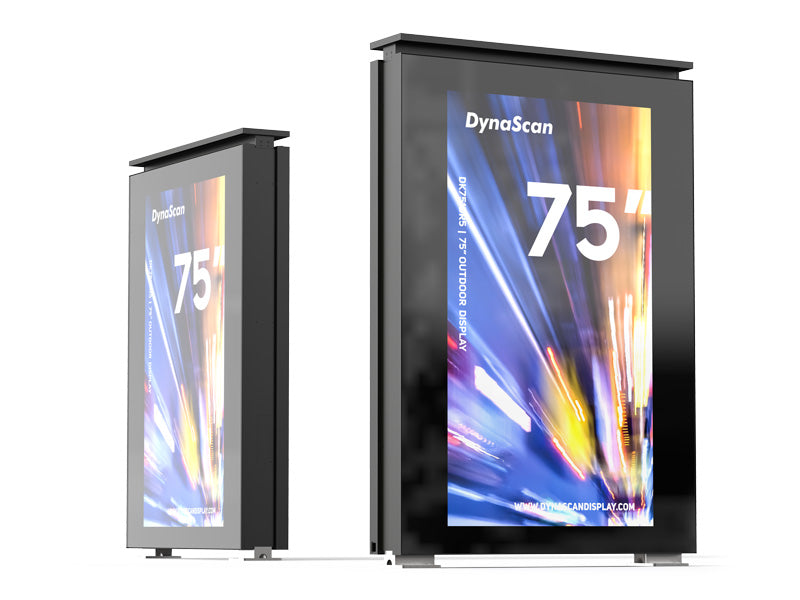

DynaScan DK751DN5

75” 4K UHD Dual-Sided Ultra-High Brightness Outdoor Kiosk

• Description
• Specifications
• Warranty
• Download

• OUTDOOR KIOSKS
  Featuring an eye-catching dual-sided design, sunlight viewable 4000 nits image, and vandal-resistant construction, the new DynaScan DK751DN5 is a 75-inch outdoor kiosk that features a 4K UHD high contrast image with TrueColor™ calibration.

  The DK751DN4 is IP56 rated for protection from water and dust, features an IK10 vandal-resistant tempered glass surface, and rugged all-metal rustproof construction.

  SUNLIGHT VIEWABLE IMAGE

  DUAL-SIDED DESIGN

  VIEWABLE WITH POLARIZED LENSES

  VANDAL RESISTANT

  WEATHERPROOF

  LOW POWER CONSUMPTION

  IP56 Weather Resistant
  Rain or shine, DynaScan outdoor displays can endure what Mother Nature has to offer. All-metal rustproof construction with IP56 weather protection resists water and dust from entering the display even in some of the harshest environments.

  Dual-Sided Design
  A double-sided display offers the flexibility to present different messaging points to customers inside as well as potential customers outside.

  IK10 Vandal Resistance
  With a tough, steel frame and double laminated glass with IK10 protection, DynaScan outdoor displays are durable and secure.

  Robust Outdoor Solution
  DynaScan outdoor kiosks offer a feature-packed display solution that can be adapted to fit a variety of applications—from bus shelters to transit depots to shopping centers.

  Sunlight Viewable Image
  With sustained brightness of 4000 nits, DynaScan outdoor displays are easily viewed in direct sunlight.

  Filterless Design
  Filters not only reduce cooling efficiency by lowering air intake, but they can also cause a product failure if not properly maintained. DynaScan employs a proprietary thermal management system that doesn’t require filters.

• PANEL
  LCD Panel Size	74.52" (x2)
  Native Resolution	3840 x 2160
  Backlight	LED
  Brightness	4000 nits
  Light Lifetime (Typ.)	100,000 hrs
  Contrast Ratio	3000:1
  Color Depth	10 bits
  Viewing Angle (H/V)	178° / 178°
  Blackening Defect-Free	Up to 110°C (230°F)
  Polarized Sunglasses Support	Yes
  Touch Function (Optional)	P-Cap Touch

  POWER
  Power Supply	Internal
  Rated Voltage	200-240 V ~ 50/60 Hz
  Power On Mode (Typ./Max.)	845 W / 1800 W

  MECHANICAL SPECS
  Bezel Width (T/B/L/R)	97.6 / 137.6 / 122.1 / 122.1 mm
  Cabinet Color	Black
  Monitor Dimension (LxHxD)	1175.7 x 1962.1 x 254.0 mm
  Weight	< 410 kg [TBD]
  Orientation	Portrait
  Reserved Space for Optional Player	Yes
  High Security Lock	Yes

  USER INTERFACE
  Language	English
  Support SNMP (Up to V3.0)	Yes
  Local Dimming Control	Yes
  Ambient Light Sensor	Yes
  Power On/Off Scheduling	Yes
  Internal Temperature Sensor	Yes
  Backup Player Built-in	Yes

  INPUT
  HDMI	x6 (2160p)
  DisplayPort	x2
  USB 3.0	x2
  Micro SD Slot	x2

  OUTPUT
  Audio	x2

  EXTERNAL CONTROL
  RS-232	In x2
  RJ-45 (LAN)	x4

  ENVIRONMENT
  Operating Temperature	-30°C~50°C
  Storage Temperature	-20°C~60°C
  Humidity	10% ~ 100% RH Non-condensing
  Environmental Rating	IP56 / IK10 / ASTM G155

  CERTIFICATION
  CE	FCC
  UL	ROHS

• DynaScan’s warranty obligations are limited to the terms set forth below:

  DynaScan warrants its professional LCD display product delivered new to the original purchaser against defects in materials and workmanship for THREE (3) YEARS from the date of original purchase.

  If a product is found to be defective in material and workmanship during the Limited Warranty Period, DynaScan will, at its sole option, (a) repair the product at no charge with new or reconditioned parts, or (b) replace the product with a functionally equivalent product. A replacement part or product assumes the remaining warranty of the original part or product, or NINETY (90) DAYS from the date of replacement or repair, whichever provides a longer coverage. When a part or product is replaced, any replacement item becomes your property and the replaced item becomes DynaScan’s property.




• Resource	Download Link
  Data Sheet	Download
