Elo I-Series 4 22" FHD Android 10 4GB RAM 32GB Storage Touchcomputer | E391414
SKU: E391414
£697.26 (Excl. VAT)
- Display Size22"
- Touch Capabilities10pt multi-touch
- Net Weight4 kg
- Operating SystemAndroid 10

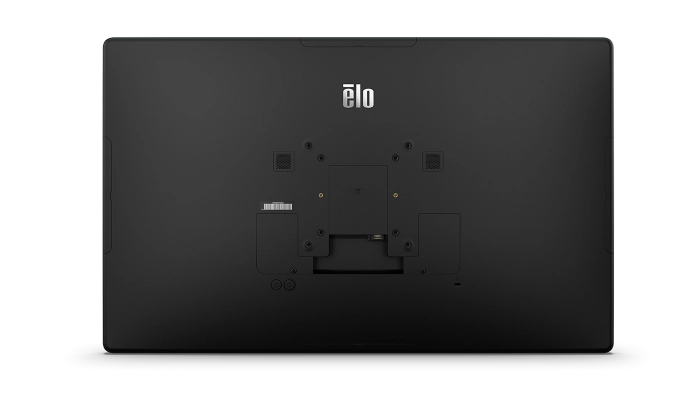

- VESA Patterns75x75
- Panel TypeTFT Panel
- ResolutionFull HD (1080p)
- Screen TypeFlat
- Response Time5ms
- Screen Ratio16:9
- Brightness215 cd/m2
- Operating Hours24/7
Book a Free Product Demo
Remote or on-site. No obligation.
Integrator or Installer?
Trade pricing, volume discounts, same-day collection.
Education & Public Sector Solutions
Exclusive pricing, flexible terms, and dedicated support for schools, universities, NHS, and government organisations.
- Description
- Specifications
- Warranty
- Downloads
-
Elo E391414 I-Series 4 22" Touchscreen Display | 1920x1080 pixels | Android 10 | 4GB RAM | 32GB Storage
All-in-one I-Series 4.
Secure. Flexible. Powerful.
It’s the next level of awesome.
Do more with I-Series 4.
Android 10 with GMS
8MP Camera
Digital Microphones
Faster Wi-fi Performance
USB Type-C Compatible
10”, 15” & 22” sizes
Perfect for any industry.
One of our most popular product lines ever, the I-Series has been used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management.
Modular & innovative.
The modular designed I-Series can be easily configured to fit nearly any use. Elo Edge Connect peripherals allow you to add a variety of accessories including payment devices, cameras, barcode readers and many others. And with the universal VESA compatibility and stand options you get additional flexibility.
Google mobile services ready.
Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.
Ready to support your digital transformation.
Many businesses are tasked with digital transformation and are trying to figure out how to incorporate consumer technologies into their business. With Elo’s approach to Android, including uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors, users gain the advantage of years of development and customizations Elo has made for many global Enterprise customers. Choose Elo to easily deliver the convenience and familiarity of Android in secure, business-friendly solutions.
One product. Thousands of uses.
Create your perfect POS system.
Easily convert your favorite I-Series into a powerful, industrial-designed POS system that scales with your business.
Amazing touchscreen kiosks simplified.
The possibilities are endless with the I-Series. From self-order and self-checkout to order pickup and virtual assistants, pair the I-Series with a variety of stands to create your perfect kiosk. And, applications with audio and video are simplified with the built-in 8MP camera and digital microphones.
Build engaging brand experiences.
Educate buyers, create brand awareness, and drive purchases in store with an easy-to-use interactive platform that can adapt as needs change.
Commercial-grade performance.
Whether equipped with the Qualcomm Snapdragon 8-core Kryo processor or the Rockchip 6-core processor, the I-Series delivers the performance you need.
Expand with Edge Connect.
With the Elo Edge Connect system, you can seamlessly attach any combination of peripherals to the edge of the touchscreen. And, you can add or move them later as your needs change!
Do more with power over ethernet (POE).
With the POE adapter, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and to connect the POE adapter to the I-Series.
Android device management made easy.
EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.
Remotely deploy content and manage your devices securely.
Provision your devices in seconds with a seamless out-of-the-box experience.
Leverage Elo Home to create a customized interface on your I-Series device.
Get peace of mind with EloCare.SM
From advance unit replacement to OS 360, EloCare delivers service and support from the people who know your Elo products best.
Advance Unit Replacement
Extended Warranty
Accidental Damage Protection
OS 360
Enterprise-grade support.
OS 360
Monthly security updates to keep your devices secure.
Seamless Provisioning
Leverage EloView, Google Zero Touch or scan a QR code to integrate with your choice of MDM solution.
Elo OEMConfig
Get immediate support of Elo’s proprietary APIs on your preferred Android MDM platform, saving you months of time as new releases become available.
-
Feature Description Part Number E391414 Configuration Value Model, Android 10, Black Enclosure Color White or Black Touch Technology & Capacity PCAP (TouchPro® Projected Capacitive) – 10 touch Touch Thru Supports up to 6 mm (0.24") glass or 3 mm (0.12") plastic with up to 2 touches Processor Rockchip RK3399 (Value Model) Memory (RAM) 4GB Storage 32GB (Value Model) Operating System Android 10 with Google Play Services (AOSP capable). Upgrade to Android 12 and planned Android 14 available with OS 360 subscription. Diagonal Size 21.5" diagonal, Active matrix TFT LCD (LED) Aspect Ratio 16:9 Active Area 18.74" × 10.54" (476 × 268 mm) Resolution 1920 × 1080 @ 60 Hz Colors 8-bit (16.7 million) Brightness (typ.) LCD: 250 nits; TouchPro PCAP: 215 nits (Value Model) Response Time (typ.) 5 ms (Value Model) Contrast Ratio 1000:1 Viewing Angle Horizontal: ±85° (170° total) / Vertical: ±80° (160° total) – Value Model Peripheral Mounting 4 × micro-USB 2.0 Elo Edge Connect ports (1.2 A on one port; 500 mA on remaining three) I/O Ports 1 × USB 3.0 (900 mA), USB-C output, Micro SD slot, GPIO, 1 × LAN (Gigabit), DC in Webcam 5 MP, max 1920×1080 @ 30 fps, Auto Focus (Value Model) Wireless 802.11 a/b/g/n/ac + Bluetooth 5.0 Audio 1 × built-in analog microphone (Value Model); Speakers: 2 × 2 W (Value Model) Power Supply AC 100–240 VAC, 50–60 Hz; power adapter included (accessory box) Power Consumption (typ.) On: 15.7 W; Sleep: 3.4 W; Off: 0.45 W (Value Model) Power over Ethernet (PoE) Supported via Elo PoE Device (PN: E413396) Dimensions (W × H × D) 20.66" × 12.79" × 1.17" (524.8 × 324.8 × 29.7 mm) Shipping Box 23.6" × 6.6" × 16.0" (600 × 168 × 406 mm) – Value Model Weight Unpackaged: 9.5 lb (4.3 kg); Packaged: 16.1 lb (7.3 kg) – Value Model Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 50°C (-4°F to 122°F) Humidity Operating: 20%–80%; Storage: 5%–95% Regulatory UL/cUL (US), FCC (US), IC (Canada), CE (Europe), CB (International), VCCI/MIC (Japan), RCM (Australia) Supported Countries CA, USA, AU, JP, NZ, AT, BE, CZ, DK, FR, DE, UK, HU, IT, NL, PL, PT, RO, ES, SE, CH, TR, BR Real-Time Clock Lithium coin cell battery MTBF 50,000 hours demonstrated Mounting Options VESA 75 mm and 100 mm Warranty 2-year Extended Service Options OS 360 (E873133); Warranty & ADP/AUR packages (E819394, E819598, E819795, E130329, E130530, E130719, E819985, E820186, E820388, E820582, E131490, E131674, E131859, E132053) OS Support Monthly Android security updates available with Elo OS 360 package Sealability Touchscreen sealed to LCD What’s in the Box I-Series 4; North American Power Cable; European Power Cable; 1 × Power Brick; Quick Install Guide; Screws for cable cover door (power/Ethernet bay) Optional Peripherals MSR (E001002); Fingerprint (E134286); 2D Scanners SE2707 Black (E393160)/White (E551946); SE4720 Black (E384627)/White (E454122); SE4107 Black (E245047)/White (E454318); POE Module Kit (E413396); Status Light (E644767); 3D Camera (E134699); Webcam (E201494); Expansion Module (E809509); RFID (E673037); Edge Connect™ Speaker Bar Black (E894719)/White (E133780) Stands, Mounts & Kits Wall Mount Kit 75/100 mm (E143088); Tabletop Stand for 22" I-Series 100 mm (E044356); Shelf Mount 75/100 mm (E043382); Floor Stand 75/100 mm (E048069); Pole Mount 6"/12"/18" (E047458/E047663/E047864); Pole Mount Bracket 75/100 mm (E045151); Elo Stand 1902/3-2202/3 Black 100 mm (E804330); Elo Stand 2402/3-2702/3 Black 100 mm (E509844); 65W Cable Kit (E514304); 90W Cable Kit (E572635); Slim Self-Service Countertop (E514693); Slim Self-Service Floor (E514881 + E515260); Wallaby™ Countertop (E421137); Wallaby™ Floor (E421325 + E797162); Wallaby™ Pro Countertop (E989127); Wallaby™ Pro Floor (E989314 + E989512); Wallaby™ Pro Double-sided Floor (E989314 + E989314 + E989705); Wallaby™ Pro Wall-mounted (E989127 + E990079)
-
Touchscreen Monitors LCD Monitors 3 years
-
Category Download Drawings and Certificates Value Model Dimensional Drawing Download Standard Model Dimensional Drawing Download Dimensional Drawing - Pole Mounts Download Value Model CAD Drawing Download Standard Model CAD Drawing Download Value Model Agency Approval Certificates Download Standard Model Agency Approval Certificates Download Standard Model Material Safety Data Sheet (MSDS) Download Value Model Material Safety Data Sheet (MSDS) Download Collateral Spec Sheet Download
