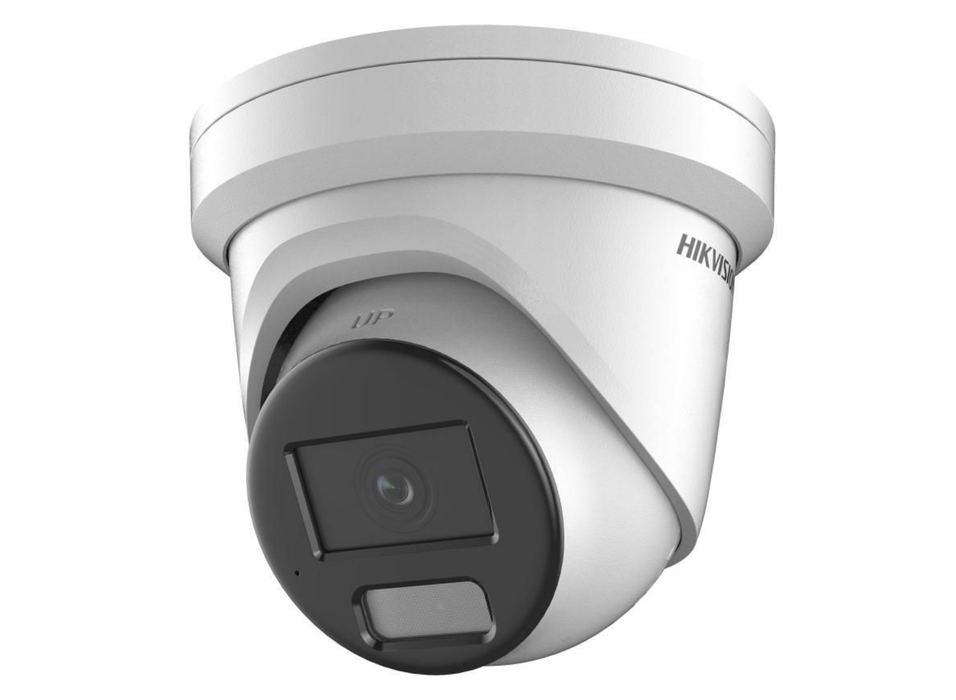

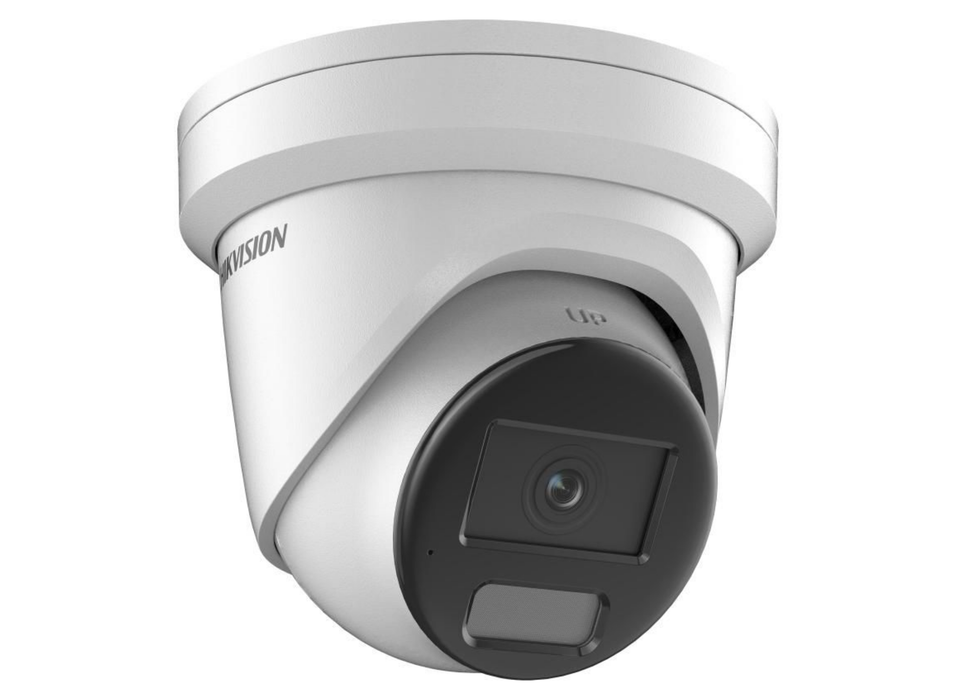

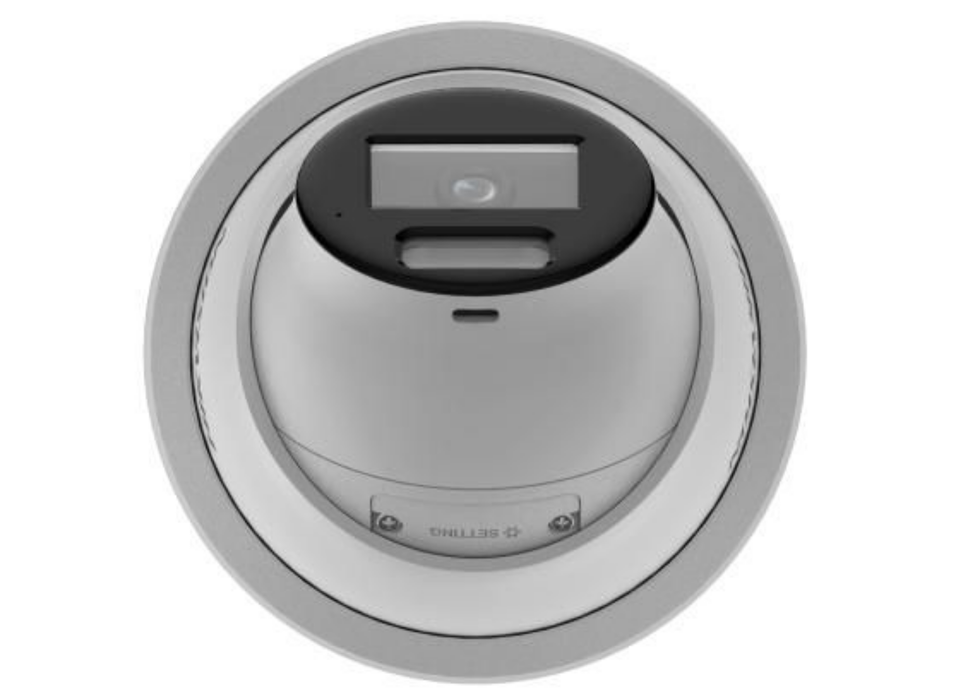

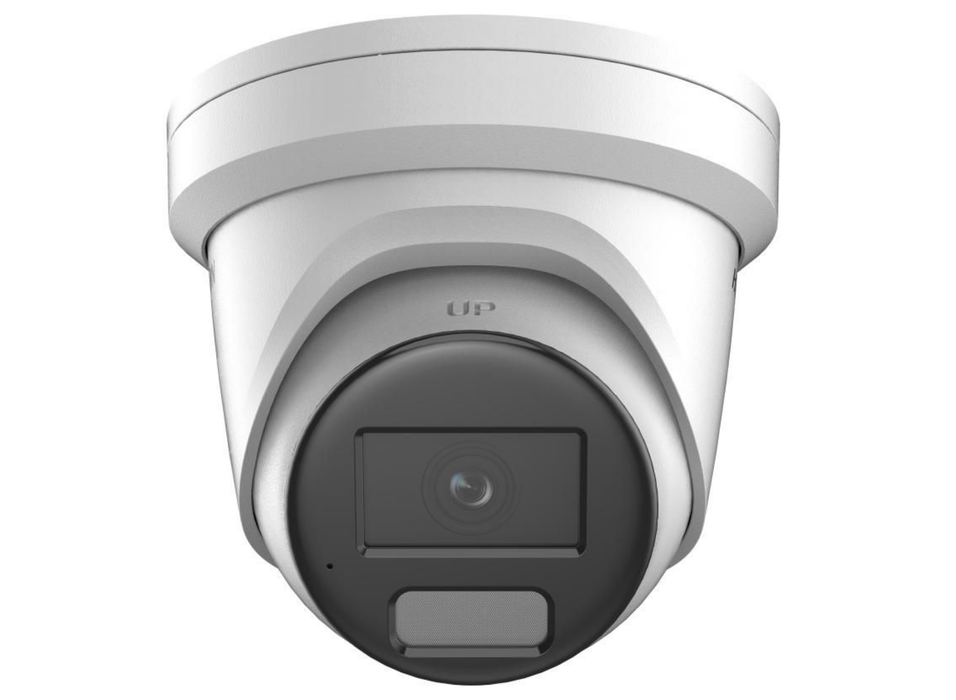

Hikvision 8MP DarkFighter Fixed Turret IP Network Camera with Built-in Mic 2.8mm White | DS-2CD2386G2H-IU-2.8MM-WHITE
SKU: DS-2CD2386G2H-IU-2.8MM-WHITE
£171.47 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Reliable 8MP IP Surveillance Camera for Outdoor Use
8 MP Powered by Darkfighter Fixed Turret Network Camera
High quality imaging with 8 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
-U: Built-in microphone for real-time audio security
Water and dust resistant (IP67)
-
Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 3840 × 2160 Min. Illumination Color: 0.0008 Lux @ F1.0, AGC ON; B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° Lens Type Fixed focal lens, 2.8 and 4 mm optional 2.8 mm FOV Horizontal 108.8°, vertical 56.4°, diagonal 134.3° 4 mm FOV Horizontal 93.3°, vertical 47.2°, diagonal 114.2° Lens Mount M16 Iris Type Fixed Aperture F1.0 2.8 mm Depth of Field 3.3 m to ∞ 4 mm Depth of Field 3.8 m to ∞ 2.8 mm DORI D: 89 m, O: 35 m, R: 17 m, I: 8 m 4 mm DORI D: 109 m, O: 43 m, R: 21 m, I: 10 m Supplement Light Type IR Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Main Stream 50 Hz 25 fps: 3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720 Main Stream 60 Hz 24 fps: 3840 × 2160; 30 fps: 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720 Sub-Stream 50 Hz 25 fps: 1280 × 720, 640 × 480, 640 × 360 Sub-Stream 60 Hz 30 fps: 1280 × 720, 640 × 480, 640 × 360 Third Stream 50 Hz 10 fps: 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360 Third Stream 60 Hz 10 fps: 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360 Third Stream Support Supported under certain settings Main Stream Compression H.265 / H.264 / H.264+ / H.265+ Sub-Stream Compression H.265 / H.264 / MJPEG Third Stream Compression H.265 / H.264 Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Bit Rate Control CBR, VBR Scalable Video Coding H.264 and H.265 encoding Region of Interest 1 fixed region for main stream and sub-stream Audio Compression -U: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC Audio Bit Rate -U: 64 Kbps, 16 Kbps, 16 to 64 Kbps, 32 to 192 Kbps, 8 to 320 Kbps Audio Sampling Rate -U: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz Environment Noise Filtering -U: Yes Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP Simultaneous Live View Up to 6 channels API Open Network Video Interface Profile S, Profile G, Profile T; ISAPI; SDK; ISUP User/Host Up to 32 users; administrator, operator, and user levels Security Password protection, complicated password, HTTPS encryption, 802.1X authentication, watermark, IP address filter, HTTP/HTTPS authentication, WSSE and digest authentication, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Client iVMS-4200, Hik-Connect, Hik-Central Plug-in Live View IE 10, IE 11 Plug-in Free Live View Chrome 57.0+, Firefox 52.0+, Edge 89+ Local Service Browser Chrome 57.0+, Firefox 52.0+, Edge 89+ Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR SNR ≥ 52 dB Wide Dynamic Range 120 dB Privacy Mask 4 programmable polygon privacy masks Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, supports microSD/microSDHC/microSDXC card up to 512 GB Built-in Microphone -U: Yes Reset Key Yes Basic Event Motion detection with human and vehicle target types, video tampering alarm, exception Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture Smart Event Scene change detection Face Capture Yes Perimeter Protection Line crossing, intrusion, region entrance, region exiting Target Classification Human and vehicle alarm triggering DC Power 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE Power PoE: IEEE 802.3af, Class 3, max. 8 W Material Cover: metal, main body: metal Dimension Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") Package Dimension 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") Weight Approx. 775 g (1.7 lb.) Package Weight Approx. 1231 g (2.7 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less non-condensing Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less non-condensing General Function Heartbeat, mirror, password reset via email, pixel counter, anti-banding Language 33 languages including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian EMC Approval CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014; IC: ICES-003 Issue 7; RCM: AS/NZS CISPR 32:2015 Safety Approval CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017 Environment Approval CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013 -
Description Downloads Datasheet Download User Manual Download
