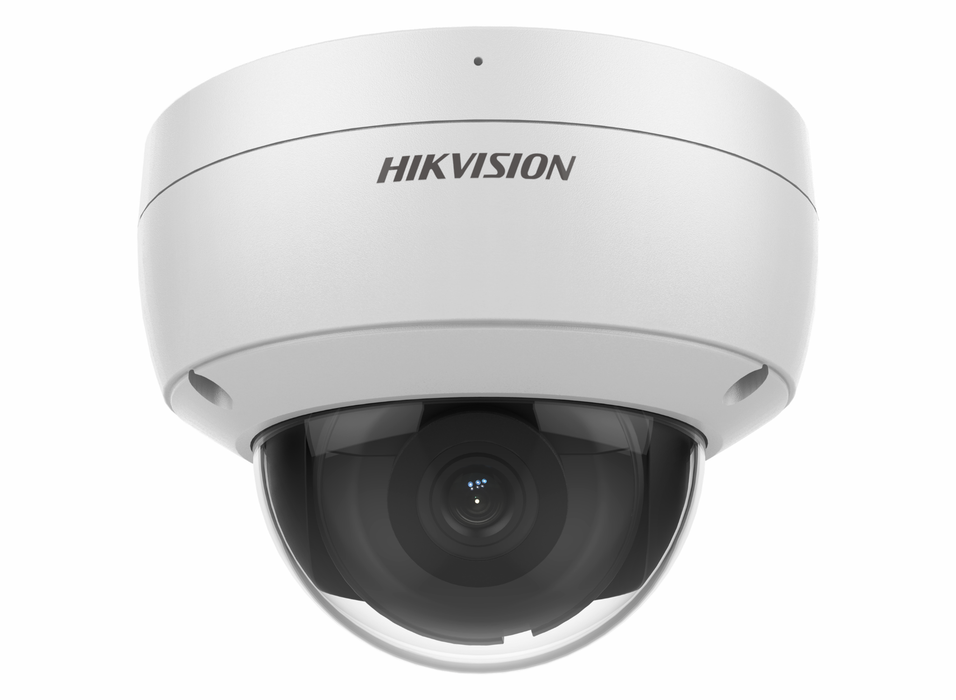

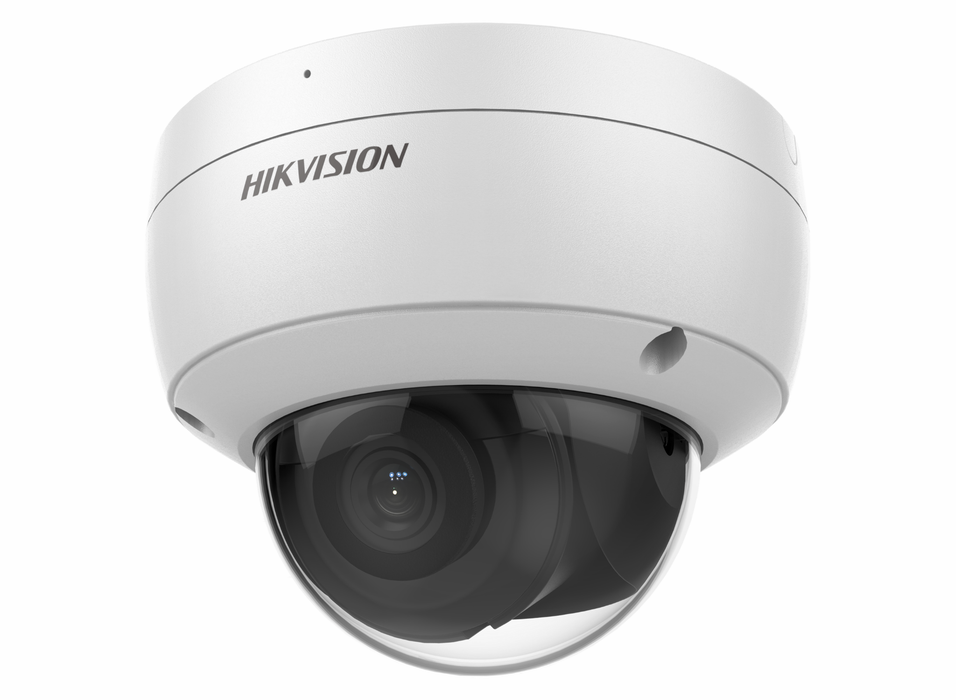

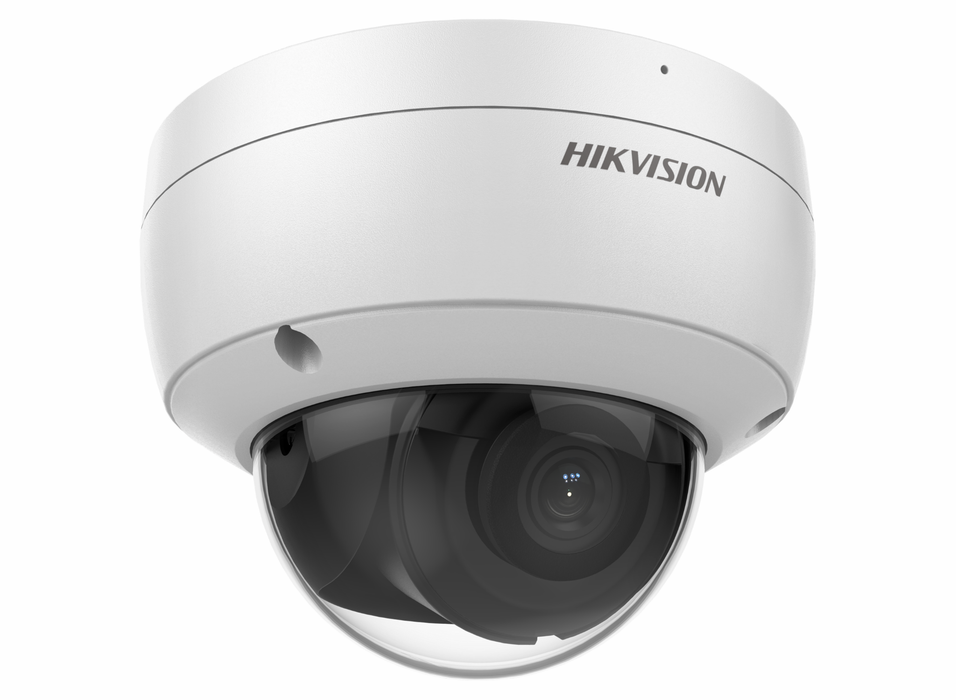

Hikvision DS-2CD2146G2-ISU 4 MP AcuSense Fixed Dome Network Camera

SKU: 311314714
Hikvision DS-2CD2146G2-ISU 4 MP AcuSense Fixed Dome Network Camera Security Cameras Hikvision
Availability:
Out of stock
Sold out

£118.00 (Excl. VAT)

- £141.60 (Inc. VAT)
£118.00 - £118.00
- - £141.60
Availability:
Out of stock
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay
  • Paypal
  • Shop Pay
  • Klarna
  • Bank Transfer (BACS)
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Description
  • Specifications
  • Downloads

  • 4MP AcuSense Dome Camera with Smart Detection

    High quality imaging with 4 MP resolution

    Excellent low-light performance with powered-by-DarkFighter technology

    Clear imaging against strong backlight due to 120 dB true WDR technology

    Efficient H.265+ compression technology

    Focus on human and vehicle targets classification based on deep learning

    Built-in microphone for real-time auto security(-SU)

    Water and dust resistant (IP67) and vandal-resistant (IK10)

  • Max. Resolution 2688 × 1520 Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
    Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter
    Image Sensor 1/3" Progressive Scan CMOS Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
    Aperture F1.4 Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
    Focal Length & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
    4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
    6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°    		 Iris Type Fixed
    Lens Mount M12 DORI 2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
    4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
    6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
    Supplement Light Type IR Supplement Light Range Up to 30 m
    Smart Supplement Light Yes IR Wavelength 850 nm
    Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)    		 Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    *Third stream is supported under certain settings.    		 Video Compression Main stream: H.265/H.264/H.265+/H.264+
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264
    *Third stream is supported under certain settings.
    Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile
    H.265 Type Main Profile Bit Rate Control CBR/VBR
    Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream and sub-stream
    Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate -S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    Audio Sampling Rate -S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering -S: Yes
    Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets Simultaneous Live View Up to 6 channels
    API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK User/Host Up to 32 users. 3 user levels: administrator, operator and user
    Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
    Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10, IE 11
    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
    Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range (WDR) 120 dB
    SNR ≥ 52 dB Image Enhancement BLC, HLC, 3D DNR
    Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
    Built-in Microphone -U: Yes Audio Interface -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
    1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
    Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA) Reset Key Yes
    Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types: human and vehicle)
    Scene change detection
    Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning Face Capture Yes
    Power 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
    PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W    		 Dimension Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
    Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") Weight Approx. 580 g (1.3 lb.)
    With Package Weight Approx. 820 g (1.8 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
    Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
    Protection IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
