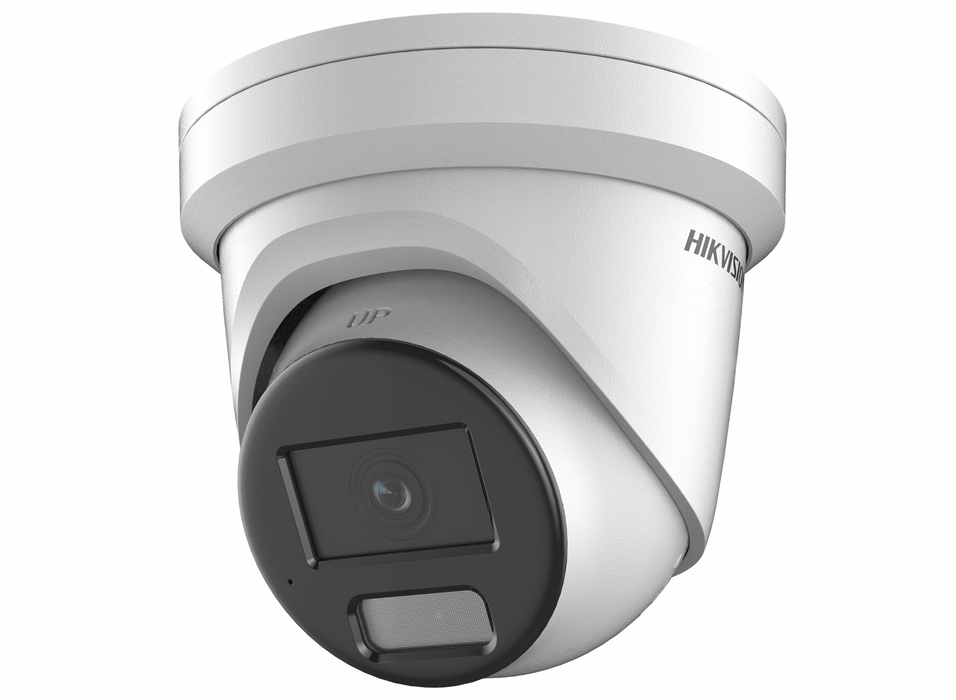

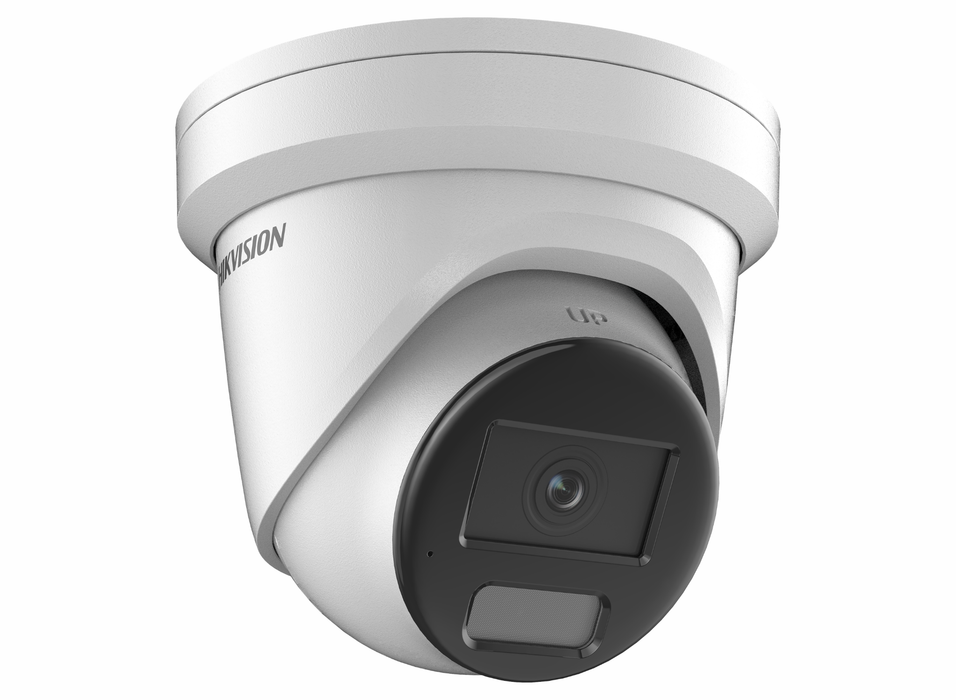

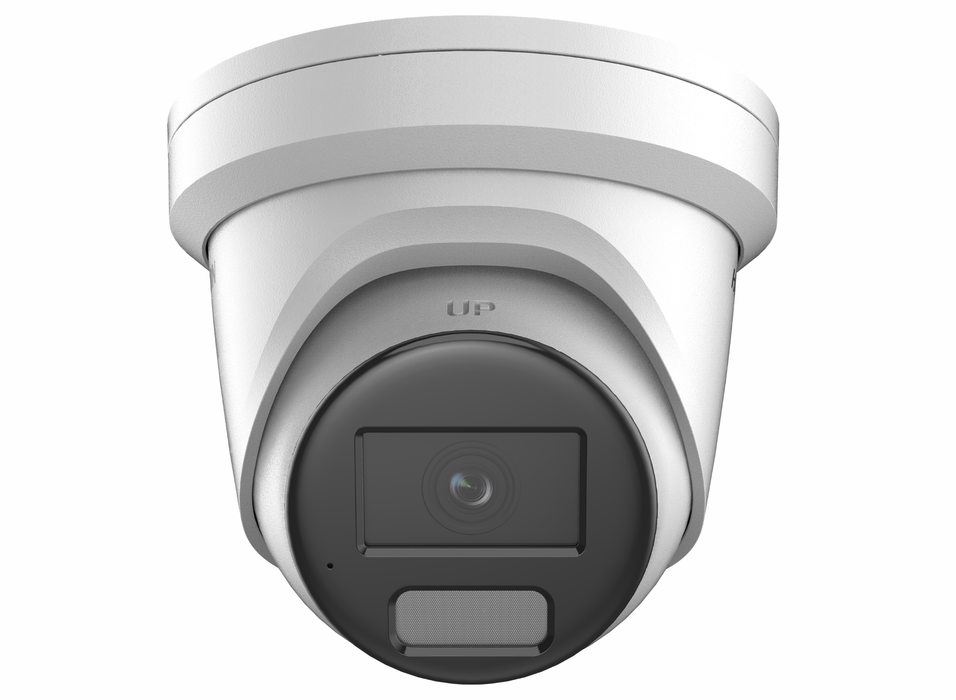

Hikvision DS-2CD2346G2H-I(U) 2.8mm 4 MP Powered by Darkfighter Fixed Turret Network Camera
SKU: 311325041
£116.93 (Excl. VAT)
- Description
- Specifications
- Downloads
-
4MP DarkFighter IP Camera with AI Human & Vehicle Detection
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67) -
Image Sensor 1/3" Progressive Scan CMOS Max. Resolution 2688 × 1520 Min. Illumination Color: 0.001 Lux @ F1.0, AGC ON; B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm: H 100.2°, V 54.7°, D 119.7°; 4 mm: H 81.1°, V 44.7°, D 94.6° Lens Mount M12 Iris Type Fixed Aperture F1.0 Depth of Field 2.8 mm: 1.9 m to ∞; 4 mm: 2.5 m to ∞ DORI 2.8 mm: D 63 m, O 25 m, R 12 m, I 6 m; 4 mm: D 78 m, O 31 m, R 15 m, I 7 m Supplement Light Type IR Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Main Stream 50 Hz: 25 fps; 60 Hz: 30 fps at 2688 × 1520, 1920 × 1080, 1280 × 720 Sub-Stream 50 Hz: 25 fps; 60 Hz: 30 fps at 1280 × 720, 640 × 480, 640 × 360 Third Stream 50/60 Hz: 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360; supported under certain settings Video Compression Main: H.265/H.264/H.265+/H.264+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Bit Rate Control CBR/VBR Scalable Video Coding H.264 and H.265 encoding Region of Interest 1 fixed region for main stream and sub-stream Audio Type -U: Mono sound Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bit Rate -U: 64 Kbps, 16 Kbps, 32 to 192 Kbps, 8 to 320 Kbps, 16 to 64 Kbps depending on codec Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Environment Noise Filtering -U: Yes Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets Simultaneous Live View Up to 6 channels API Open Network Video Interface Profile S, Profile G, Profile T, ISAPI, SDK User/Host Up to 32 users; administrator, operator and user levels Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, HTTP/HTTPS authentication, TLS 1.1/1.2, WSSE and digest authentication Network Storage NAS, ANR, memory card encryption and health detection with high-end Hikvision memory card Client iVMS-4200, Hik-Connect, Hik-Central Web Browser IE 10/11 plug-in live view; Chrome 57.0+, Firefox 52.0+, Edge 89+ plug-in free live view and local service Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain and white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range 120 dB SNR ≥ 52 dB Image Enhancement BLC, HLC, 3D DNR Privacy Mask 4 programmable polygon privacy masks Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, microSD/microSDHC/microSDXC up to 512 GB Built-in Microphone -U: Yes Reset Key Yes Basic Event Motion detection with human and vehicle target types, video tampering alarm, exception Smart Event Scene change detection Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email Face Capture Yes Perimeter Protection Line crossing, intrusion, region entrance, region exiting with human and vehicle target classification Power 12 VDC ±25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial plug, reverse polarity protection; PoE IEEE 802.3af, Class 3, max. 9 W Material Cover: Metal, main body: Metal Dimension Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") Package Dimension 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") Weight Approx. 550 g (1.2 lb.) With Package Weight Approx. 800 g (1.8 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less non-condensing General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding Language 33 languages including English, Turkish, French, German, Spanish, Italian, Portuguese, Dutch, Polish, Russian, Korean, Japanese, Thai, Vietnamese, Ukrainian and more Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less non-condensing EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 Safety UL 62368-1, CB IEC 62368-1:2014+A11, CE-LVD EN 62368-1:2014/A11:2017 Environment CE-RoHS: 2011/65/EU Protection IP67: IEC 60529-2013 -
Description Downloads Datasheet Download
