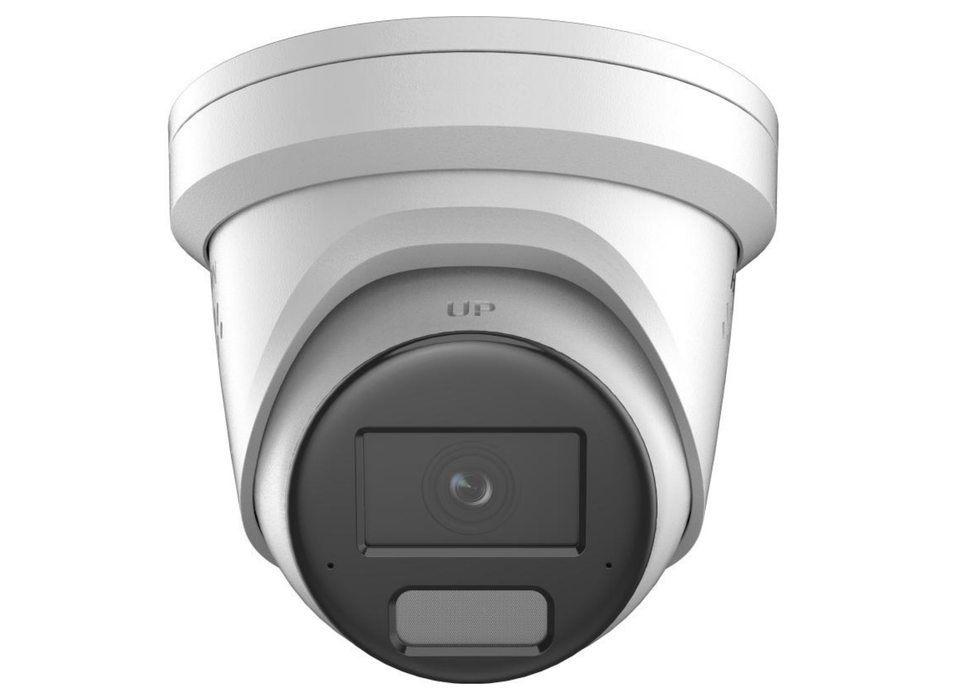

Hikvision DS-2CD2366G2H-IS2U/S(L) 6MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
SKU: 311327137
£146.59 (Excl. VAT)
- Description
- Specifications
- Downloads
-
6MP AI Security Camera with Active Strobe & Two-Way Audio
High quality imaging with 6 MP resolution
Clear imaging against strong back light due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Active strobe light and audio alarm to warn intruders off
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP67)
Audio and alarm interface available -
Image Sensor 1/2.4" Progressive Scan CMOS Max. Resolution 3200 × 1800 Min. Illumination Color: 0.001 Lux @ F1.0, AGC ON; B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm: H 115°, V 60°, D 144°; 4 mm: H 94°, V 50°, D 112° Lens Mount M12 Iris Type Fixed Aperture F1.0 Depth of Field 2.8 mm: 1.7 m to ∞; 4 mm: 2.2 m to ∞ DORI 2.8 mm: D 64 m, O 25 m, R 12 m, I 6 m; 4 mm: D 77 m, O 30 m, R 15 m, I 7 m Supplement Light Type IR Supplement Light Range Up to 30 m Smart Supplement Light Yes IR Wavelength 850 nm Main Stream 50 Hz: 25 fps; 60 Hz: 30 fps at 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720 Sub-Stream 50 Hz: 25 fps; 60 Hz: 30 fps at 1280 × 720, 640 × 480, 640 × 360 Third Stream 50/60 Hz: 10 fps at 1920 × 1080, 1280 × 720, 640 × 480, 640 × 360; supported under certain settings Video Compression Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Bit Rate Control CBR, VBR Scalable Video Coding H.264 and H.265 encoding Region of Interest 1 fixed region for main stream and sub-stream Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Type Mono sound Audio Bit Rate 64 Kbps, 16 Kbps, 32 to 192 Kbps, 8 to 320 Kbps, 16 to 64 Kbps depending on codec Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz Environment Noise Filtering Yes Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP Simultaneous Live View Up to 6 channels API ONVIF Profile S, Profile T, Profile G, ISAPI, SDK, ISUP User/Host Up to 32 users; administrator, operator and user levels Security Password protection, HTTPS encryption, 802.1X authentication, watermark, IP filter, HTTP/HTTPS authentication, RTP/RTSP over HTTPS, audit log, TLS 1.1/1.2/1.3, host authentication Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Client iVMS-4200, Hik-Connect Web Browser IE 10/11 plug-in live view; Chrome 57.0+, Firefox 52.0+, Edge 89+ plug-in free live view and local service Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR, Defog SNR ≥ 52 dB Wide Dynamic Range 120 dB Privacy Mask 4 programmable polygon privacy masks Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, microSD/microSDHC/microSDXC up to 512 GB Built-in Microphone Yes, 2 built-in microphones Built-in Speaker Max. 2 W power consumption, 105 dB sound pressure level at 10 cm Audio Interface 1 input line in, 1 output line out, two-core terminal block, 3.3 Vpp max amplitude Alarm 1 input, 1 output, max. 24 VDC/24 VAC, 1 A Reset Key Yes Basic Event Motion detection with human and vehicle target types, video tampering alarm, exception Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, recording, capture, audible warning and strobe light Smart Event Scene change detection Face Capture Yes Perimeter Protection Line crossing, intrusion, region entrance, region exiting with human and vehicle target classification Power 12 VDC ±25%, 1.34 A, max. 16 W; PoE IEEE 802.3at, Class 4, max. 18 W Material Cover: metal, main body: metal Dimension Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") Package Dimension 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") Weight Approx. 780 g (1.71 lb.) With Package Weight Approx. 1210 g (2.67 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less non-condensing Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less non-condensing General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding Language 33 languages including English, Turkish, French, German, Spanish, Italian, Portuguese, Dutch, Polish, Russian, Korean, Japanese, Thai, Vietnamese, Ukrainian and more Flashing Light /SRB model: Red and Blue Light; /SL model: White Light EMC CE-EMC, RCM, IC, KC standards supported Safety UL 62368-1, CB IEC 62368-1:2014+A11, CE-LVD EN 62368-1:2014/A11:2017 Environment CE-RoHS 2011/65/EU, WEEE 2012/19/EU, REACH Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013 -
Description Downloads Datasheet Download
