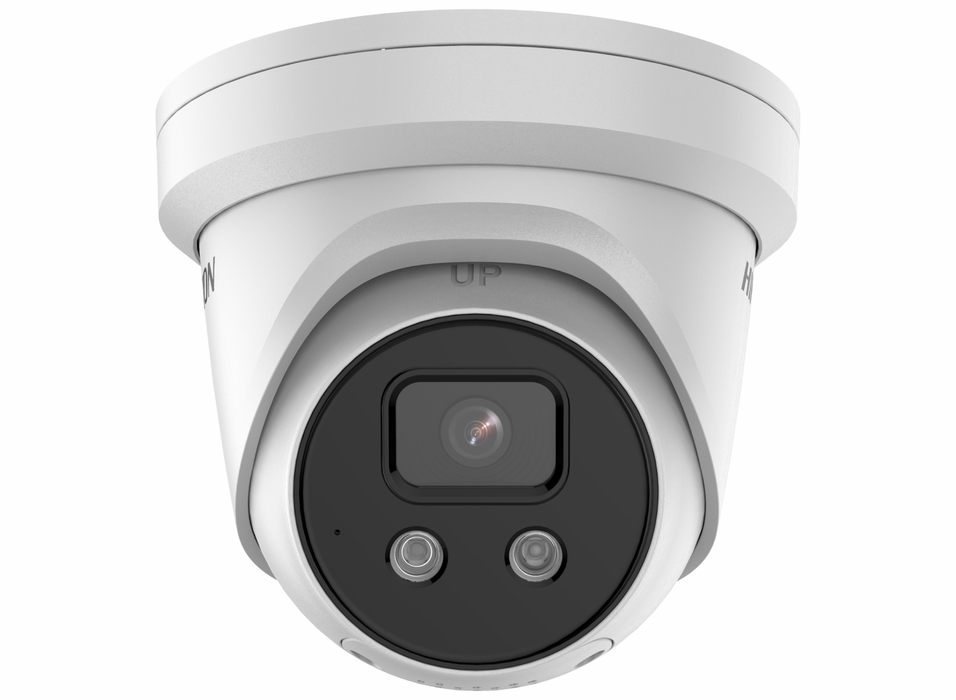

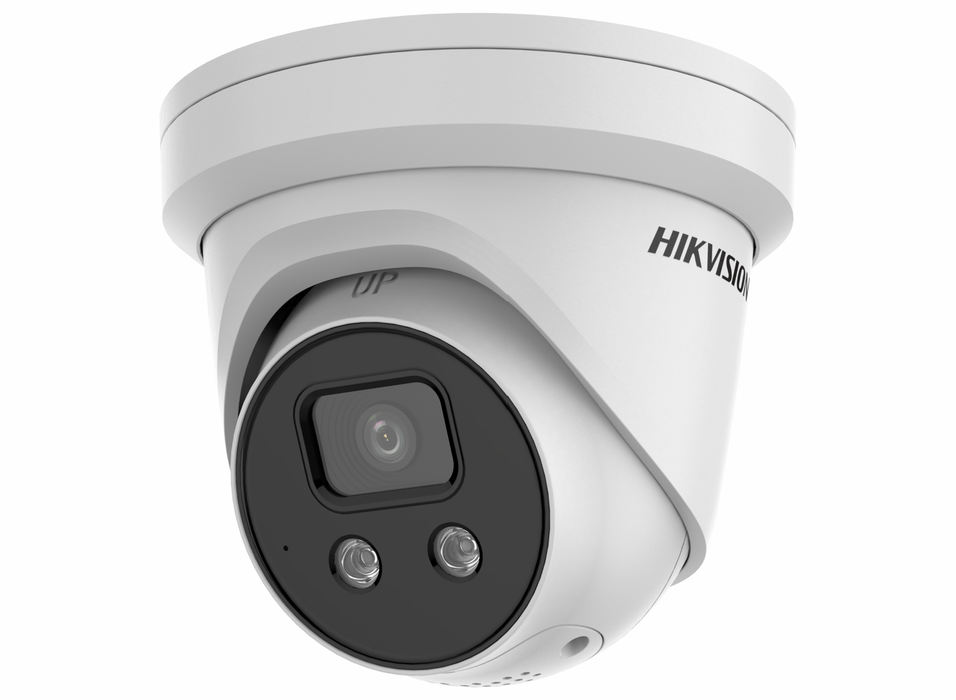

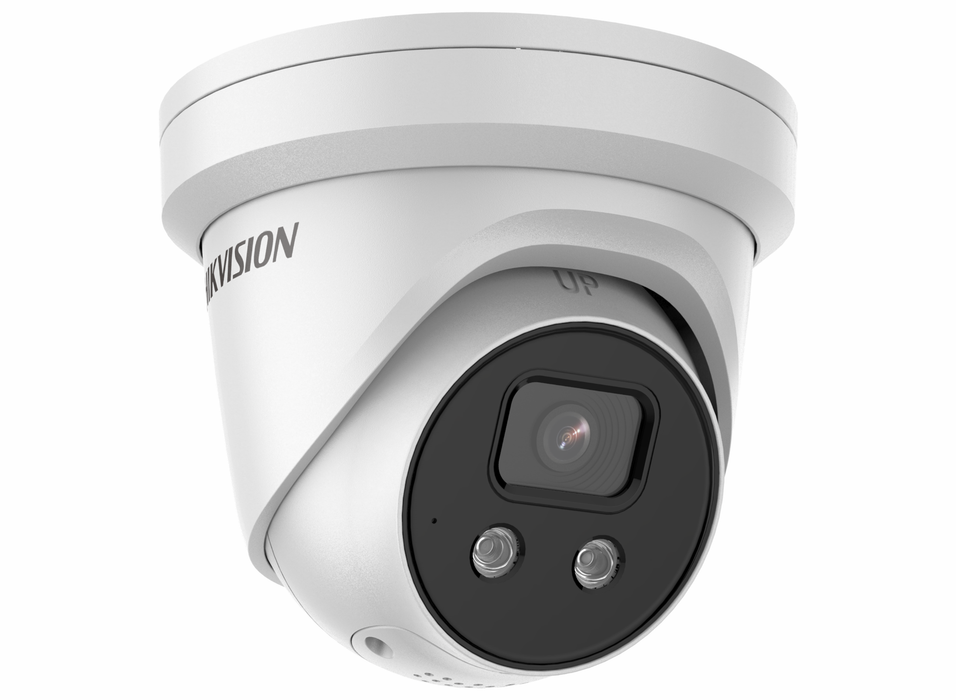

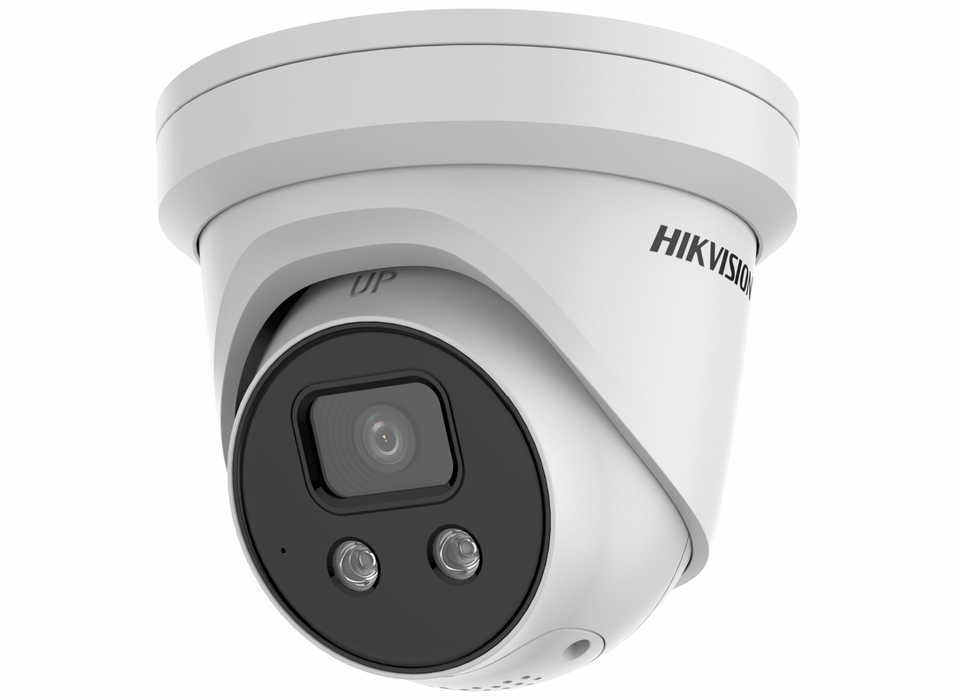

Hikvision DS-2CD2386G2-ISU/SL 4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
SKU: 311316755
£174.51 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Hikvision DS-2CD2386G2-ISU/SL 8MP 4K AcuSense Turret Camera with Strobe & Audio Alarm
4K AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera
High quality imaging with 8 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Active strobe light and audio alarm to warn intruders off
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
-
Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes P/N P/N Wide Dynamic Range 120 dB Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° Max. Resolution 3840 × 2160 Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional Iris Type Fixed Focal Length & FOV 2.8 mm: horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm: horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
6 mm: horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°Aperture F1.6 Lens Mount M12 DORI 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 mSupplement Light Type IR IR Range Up to 30 m IR Wavelength 850 nm Smart Supplement Light Yes Visual Alarm Yes Supplement Light Range Up to 30 m Video Max. Resolution 3840 × 2160 Main Stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.Video Compression Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile H.264+ Main stream supports H.265+ Main stream supports Bit Rate Control CBR/VBR Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 1 fixed region for main stream and sub-stream Target Cropping Yes Audio Type Mono sound Environment Noise Filtering Yes Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) Simultaneous Live View Up to 6 channels API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface Network Storage MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+SNR ≥ 52 dB Image Target Cropping Yes Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Wide Dynamic Range (WDR) 120 dB Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) Audio Interface 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
1 built-in speaker, 1 built-in microphoneBuilt-in Microphone Yes Built-in Speaker Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB. On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB Hardware Reset Yes Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification
Scene change detectionLinkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light Face Capture Yes Perimeter Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classificationLinkage Method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light Web Client Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter Software Reset Yes Firmware Version V5.5.112 Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3Power Consumption and Current 12 VDC, 0.75 A, max. 9 W
PoE (802.3af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 WPower Interface Ø5.5 mm coaxial power plug Camera Material Metal except for trim ring Camera Dimension Ø138.3 mm × 124.5 mm (Ø5.4" × 4.9") Package Dimension 170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9") Camera Weight Approx. 840 g (1.9 lb.) With Package Weight Approx. 1160 g (2.6 lb.) Power 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.28 A to 0.17 A, max. 10 WLanguage 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013) -
Description Downloads User manual Download Datasheet Download
