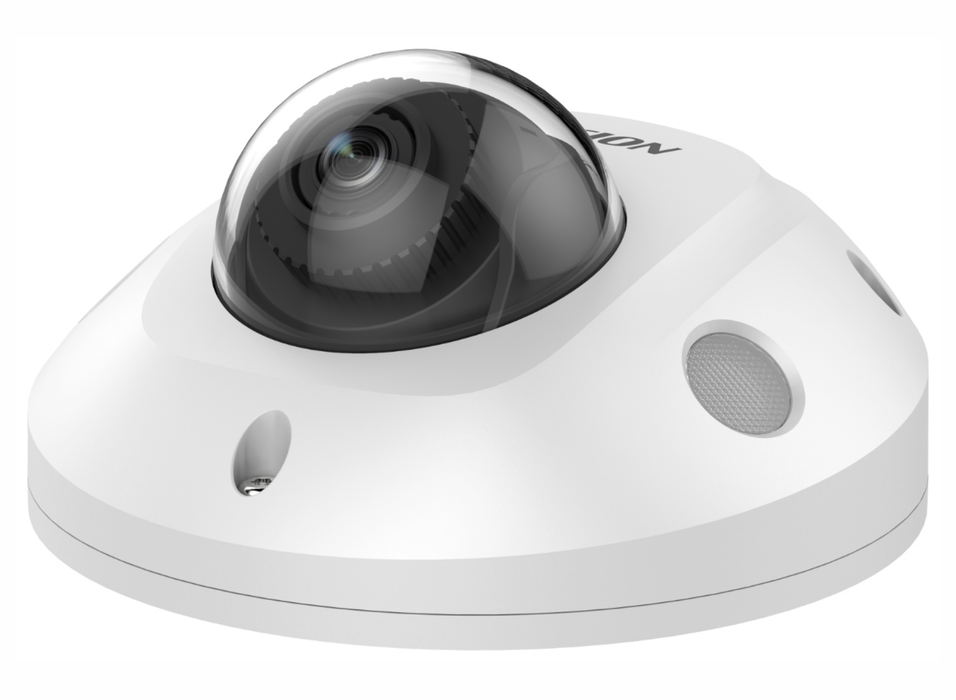

Hikvision DS-2CD2546G2-IS 4 MP Acusense Built-in Mic Fixed Mini Dome Network Camera

SKU: 311318145
Hikvision DS-2CD2546G2-IS 4 MP Acusense Built-in Mic Fixed Mini Dome Network Camera Security Cameras Hikvision
Availability:
Only 1 left at this price!
Save £12.13 Save £12.13

£137.87 (Excl. VAT)

- £165.44 (Inc. VAT)
£137.87 - £137.87
- - £165.44
Availability:
Only 1 left at this price!
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay
  • Paypal
  • Shop Pay
  • Klarna
  • Bank Transfer (BACS)
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Description
  • Specifications
  • Downloads

  • Advanced AI-powered surveillance with human and vehicle detection

    High quality imaging with 4 MP resolution

    Excellent low-light performance with powered-by-DarkFighter technology

    Focusing on human and vehicle classification based on deep learning

    Clear imaging against strong back light due to 120 dB WDR technology

    Efficient H.265+ compression technology

    -S: audio and alarm interface available

    -W: Realizing Wi-Fi connection and easy installation

    Water and dust resistant IP67 and vandal proof IK08

  • Camera - Image Sensor 1/3" Progressive Scan CMOS Camera - Max. Resolution 2688 × 1520
    Camera - Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR Camera - Shutter Time 1/3 s to 1/100,000 s
    Camera - Day & Night IR cut filter Camera - Angle Adjustment Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
    Lens Type Fixed focal lens, 2.8 and 4 mm optional Focal Length & FOV 2.8 mm: horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5°
    4 mm: horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7°
    Lens Mount M12 Iris Type Fixed
    Aperture F1.4 Depth of Field 2.8 mm: 1.6 m to ∞
    4 mm: 2.1 m to ∞
    DORI - 2.8 mm D: 64 m, O: 26 m, R: 13 m, I: 6 m DORI - 4 mm D: 77 m, O: 31 m, R: 16 m, I: 8 m
    Supplement Light Type IR Supplement Light Range Up to 30 m
    Smart Supplement Light Yes IR Wavelength 850 nm
    Video - Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)    		 Video - Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    Video - Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    *Supported under certain settings.    		 Video Compression Main stream: H.265/H.264/H.265+/H.264+
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264
    *Third stream is supported under certain settings.
    Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile
    H.265 Type Main Profile Bit Rate Control CBR/VBR
    Scalable Video Coding H.264 and H.265 encoding Region of Interest 1 fixed region for main stream and sub-stream
    Audio Type -IS/IWS: Mono sound Audio Compression -IS/IWS: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    Audio Bit Rate -IS/IWS: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 192 Kbps (MP2L2), 8 to 320 Kbps (MP3), 16 to 64 Kbps (AAC-LC) Audio Sampling Rate -IS/IWS: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    Environment Noise Filtering -IS/IWS: Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1 (except for -W model), QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
    Simultaneous Live View Up to 6 channels API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
    User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
    Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    Together with high-end Hikvision memory card, memory card encryption and health detection are supported    		 Client iVMS-4200, Hik-Connect, Hik-Central
    Web Browser Plug-in required live view: IE 10, IE 11
    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+    		 Wi-Fi Encryption Mode -W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
    Wi-Fi Protocol -W: 802.11b: CCK, QPSK, BPSK
    802.11g/n: OFDM    		 Frequency Range -W: 2.4 GHz to 2.4835 GHz
    Channel Bandwidth -W: 20/40 MHz Modulation -W: 802.11b: CCK, QPSK, BPSK
    802.11g/n: OFDM
    Transfer Rate -W: 802.11b: 11 Mbps
    802.11g: 54 Mbps
    802.11n: up to 300 Mbps    		 Wireless Range -W: Up to 80 m (performance varies based on actual environment)
    Image Parameters Switch Yes Image Settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    Day/Night Switch Day, Night, Auto, Schedule Wide Dynamic Range 120 dB
    SNR ≥ 52 dB Image Enhancement BLC, HLC, 3D DNR
    Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port On-Board Storage Built-in memory card slot, support microSD card, up to 512 GB
    Built-in Microphone Yes Audio Interface -IS/IWS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, non-equilibrium
    1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, non-equilibrium
    Alarm Interface -IS/IWS: 1 input, 1 output (max. 12 VDC, 20 mA) Reset Key Yes
    Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception Smart Event Line crossing, intrusion, region entrance, region exiting with human and vehicle target support; scene change detection
    Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email Face Capture Yes
    Power - IS 12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
    PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W    		 Power - IWS 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
    PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
    Material Base: aluminum, cover: plastic Dimension Ø110 mm × 57.4 mm (Ø 4.3" × 2.3")
    Package Dimension 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") Weight Approx. 380 g (0.8 lb.)
    With Package Weight Approx. 620 g (1.4 lb.) Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing
    Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less, non-condensing Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter RF Approval -W: FCC ID (FCC Part 15.247 BT or 2.4G); CE-RED (EN 301489-1 V2.1.1, EN 301489-17 V3.1.1, EN 300328 V2.1.1, EN 62311:2008)
    EMC Approval FCC (47 CFR Part 15, Subpart B), CE-EMC, RCM, IC, KC Safety Approval UL, CB, CE-LVD, LOA
    Environment Approval CE-RoHS, WEEE, Reach Protection IP67 (IEC 60529-2013), IK8 (IEC 62262:2002)
  • Description Downloads
    Datasheet Download
    User Manual Download
