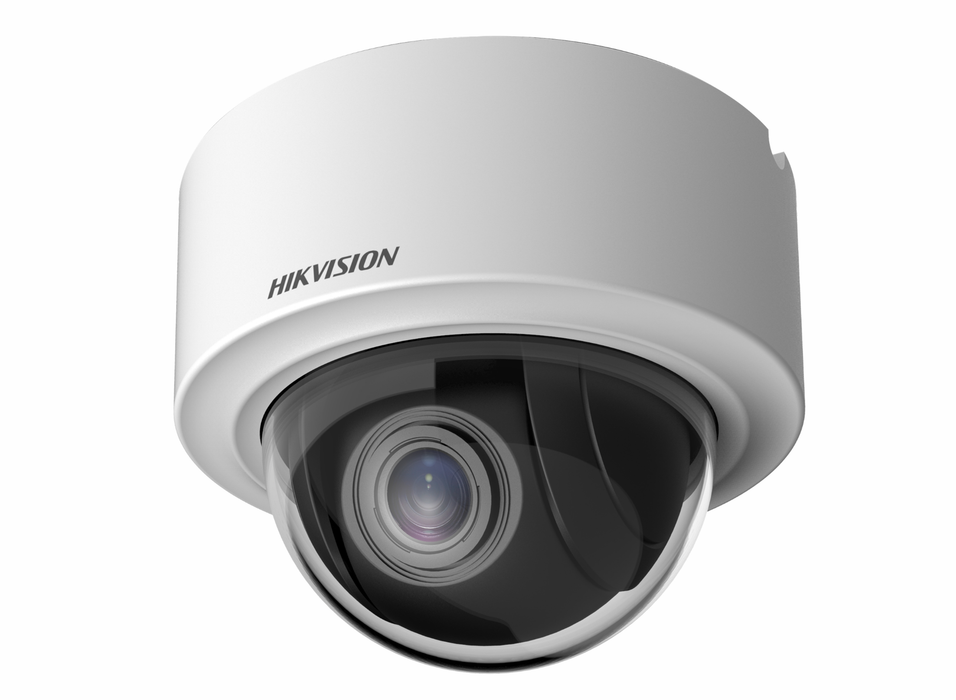

Hikvision DS-2DE3404W-DE(T5) 3-inch 4 MP 4x Zoom Mini PT Dome Network Camera
SKU: 327000441
£217.80 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Flexible PTZ control with smooth pan, tilt, and zoom performance
High quality imaging with 4 MP resolution
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
4 × optical zoom allows for closer viewing of subjects in expansive areas
Water and dust resistant (IP66)
-
Image Sensor 1/2.8" progressive scan CMOS Max. Resolution 2560 × 1440 Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON) Shutter Speed 1/1 to 1/30,000 s Day & Night IR cut filter Zoom 4 × optical, 16 × digital Slow Shutter Yes Focal Length 2.8 to 12 mm FOV Horizontal: 93.8° to 31.7°; Vertical: 50.9° to 17.9°; Diagonal: 110.3° to 36.1° Focus Auto, semi-auto, manual Aperture Max. F1.5 Zoom Speed Approx. 2.0 s Movement Range (Pan) 350° Movement Range (Tilt) 0° to 90° Pan Speed Configurable from 0.1° to 60°/s; preset speed: 60°/s Tilt Speed Configurable from 0.1° to 50°/s; preset speed: 50°/s Proportional Pan Yes Presets 300 Preset Freezing Yes Patrol Scan 8 patrols, up to 32 presets for each patrol Park Action Preset, patrol scan 3D Positioning Yes PTZ Status Display Yes Scheduled Task Preset, patrol scan, dome reboot, dome adjust, aux output Power-off Memory Yes Main Stream 50 Hz: 25 fps; 60 Hz: 30 fps at 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720 Sub-Stream 50 Hz: 25 fps at 704 × 576, 640 × 480, 352 × 288; 60 Hz: 30 fps at 704 × 480, 640 × 480, 352 × 240 Third Stream 50 Hz: 25 fps; 60 Hz: 30 fps at supported resolutions up to 1920 × 1080 Video Compression Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG; Third: H.265/H.264 Video Bit Rate 32 Kbps to 16 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main profile Scalable Video Coding (SVC) H.264 and H.265 encoding Region of Interest (ROI) 8 fixed regions for each stream Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM Audio Bit Rate MP2L2: 32 kbps to 192 kbps Audio Sampling Rate MP2L2: 16kHz, 32kHz, 48kHz; PCM: 8kHz, 16kHz, 32kHz, 48kHz Environment Noise Filtering Yes Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour Simultaneous Live View Up to 20 channels API ISUP, ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface User/Host Up to 32 users; 3 user levels: administrator, operator, and user Security Password protection, complicated password, HTTPS encryption, 802.1X authentication, watermark, IP address filter Network Storage NAS (NFS, SMB/CIFS) Client iVMS-4200, Hik-Connect, HikCentral Web Browser Firefox 52+, Safari 11+, Chrome 57+, IE11 Image Parameters Switch Yes Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable Day/Night Switch Day, night, auto, scheduled-switch Wide Dynamic Range (WDR) 120 dB WDR SNR ≥ 52 dB Defog Digital defog Image Enhancement BLC, HLC, 3D DNR Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable Regional Focus Yes Regional Exposure Yes Ethernet Interface RJ45, self-adaptive 10M/100M Ethernet port On-board Storage Built-in microSD/microSDHC/microSDXC card slot, up to 256 GB Audio Interface 1 input, 1 output Alarm 1 input, 1 output RS-485 1 RS-485, half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive SIFIRLA Yes Basic Event Motion detection, video tampering alarm, alarm input and output, exception Smart Event Line crossing, intrusion, region entrance/exiting, unattended baggage, object removal Linkage Upload to FTP/NAS/memory card, notify surveillance center, email, alarm output, recording, PTZ actions Power 12 VDC, PoE (802.3af), max. 10 W Dimension Ø140.7 mm × 107.2 mm (Ø5.54" × 4.22") Weight Approx. 950 g (2.09 lb.) Material ADC12, PC Operating Condition -30 °C to 65 °C; humidity 90% or less, non-condensing General Function Privacy mask, mirror, password protection, watermark, IP address filter Language 33 languages including English, Turkish, German, French, Spanish, Italian, Russian, Japanese, Korean and others EMC FCC, CE-EMC, RCM, IC, KC Safety UL, CB, CE-LVD, BIS, LOA Environment CE-RoHS, WEEE, Reach Protection IP66, TVS 4000V lightning protection, surge protection and voltage transient protection -
Description Downloads Datasheet Download
