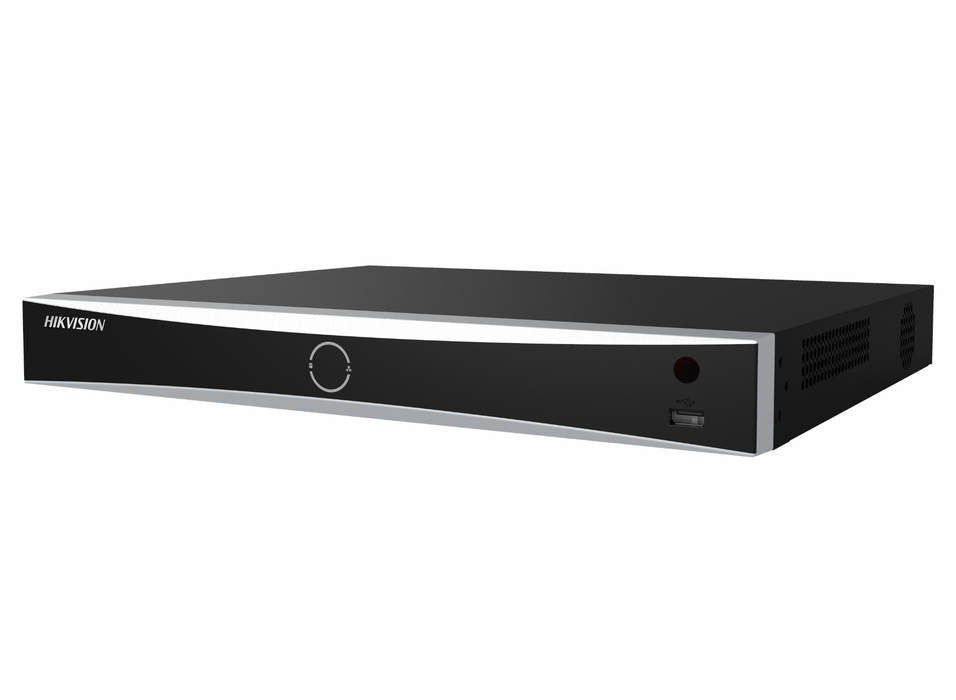

Hikvision DS-7616NXI-K2/16P(D) 16-ch PoE 1U K Series AcuSense 4K Network Video Recorder
SKU: 303621208
£322.84 (Excl. VAT)
- Description
- Specifications
- Downloads
-
16-Channel AcuSense NVR with PoE and 4K Output
16-ch PoE 1U K Series AcuSense 4K NVR
Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs -
AI by Device Facial recognition, perimeter protection, motion detection 2.0 AI by Camera Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA Perimeter Protection by Device 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm Perimeter Protection by Camera All channels Facial Detection and Analytics Face picture comparison, human face capture, face picture search Face Picture Library Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB) Facial Detection Performance 1-ch, 8 MP Face Picture Comparison 4-ch Motion Detection 2.0 by Camera All channels IP Video Input 16-ch Incoming Bandwidth 160 Mbps Outgoing Bandwidth 160 Mbps HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz Video Output Mode HDMI/VGA independent output CVBS Output N/A Audio Output 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) Two-Way Audio 1-ch, RCA (Linear, 1 KΩ) Decoding Format H.265/H.265+/H.264+/H.264 Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 16-ch Decoding Capability AI on: 2-ch@12 MP/3-ch@8 MP/6-ch@4 MP/12-ch@1080p; AI off: 2-ch@12 MP/4-ch@8 MP/8-ch@4 MP/16-ch@1080p; Smooth Playback (HC) ON & AI ON: 1-ch@12 MP/2-ch@8 MP/5-ch@4 MP/11-ch@1080p; Smooth Playback (HC) ON & AI OFF: 2-ch@12 MP/3-ch@8 MP/7-ch@4 MP/15-ch@1080p Stream Type Video, Video & Audio Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC Remote Connection 128 API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface PoE Power ≤ 200 W PoE Standard IEEE 802.3af/at SATA 2 SATA interfaces Capacity Up to 16 TB capacity for each HDD USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 Alarm In/Out 4/1 GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian Power Supply 100 to 240 VAC, 50 to 60 Hz Consumption ≤ 15 W (without HDD and PoE off) Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% Dimension (W × D × H) 385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0") Weight ≤ 3 kg (without HDD, 6.6 lb.) Certification CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS -
Description Downloads Datasheet Download User Manual Download
