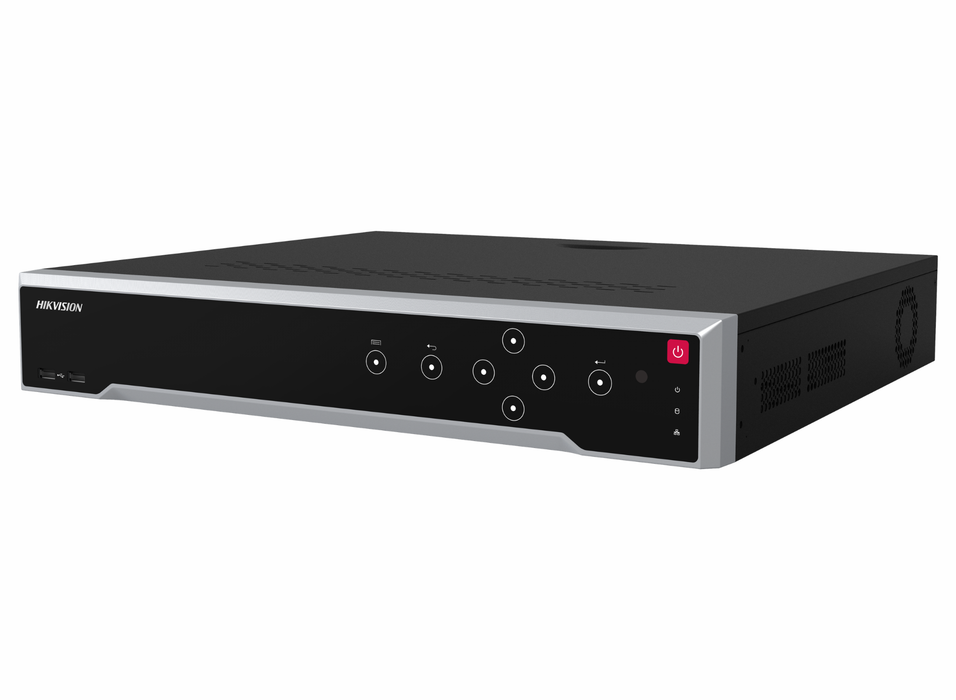

Hikvision DS-7716NI-M4/16P 16-ch 1.5U 16 PoE 8K Network Video Recorder
SKU: DS-7716NI-M4/16P
£515.11 (Excl. VAT)
- Description
- Specifications
- Downloads
-
16-Channel 8K PoE Network Video Recorder
H.265+/H.265/H.264+/H.264 video formats
Up to 16-ch IP camera inputs
Up to 16-ch@4 MP decoding capacity
Up to 256 Mbps incoming bandwidth
Up to 8-ch IP speakers can be connected
-
Section Video and Audio IP Video Input 16-ch
Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.Incoming Bandwidth 256 Mbps Outgoing Bandwidth 256 Mbps HDMI 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.VGA Output 1920 × 1080/60Hz Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 Audio Output 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) Section Decoding Decoding Format H.265+/H.265/H.264+/H.264 Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.Synchronous Playback 16-ch Decoding Capability 2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) Dual-Stream Recording Support Stream Type Video, Video & Audio Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 Section Network Remote Connection 128 Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface Camera Access Protocol ONVIF(Version 2.5), RTSP Section PoE Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface Power ≤ 200 W Standard IEEE 802.3 af/at Section RAID RAID Type N/A Section Auxiliary Interface eSATA 1 eSATA interface SATA 4 SATA interfaces Capacity Up to 16 TB capacity for each disk Serial Interface 2 RS-485 (half-duplex), 1 RS-232 USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Alarm In/Out 16/9 Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.DC 12V 12 VDC, 1 A power output Section General Power Supply 100 to 240 VAC, 50 to 60 Hz Consumption ≤ 15 W (without HDD and PoE off) Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% Chassis 19-inch rack-mounted 1.5U chassis Dimension (W × D × H) 445 × 400 × 75 mm (17.5" × 15.7" × 3.0") Weight ≤ 5 kg (without HDD, 11 lb.) Section Certification FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 -
Description Downloads Datasheet Download User Manual Download
