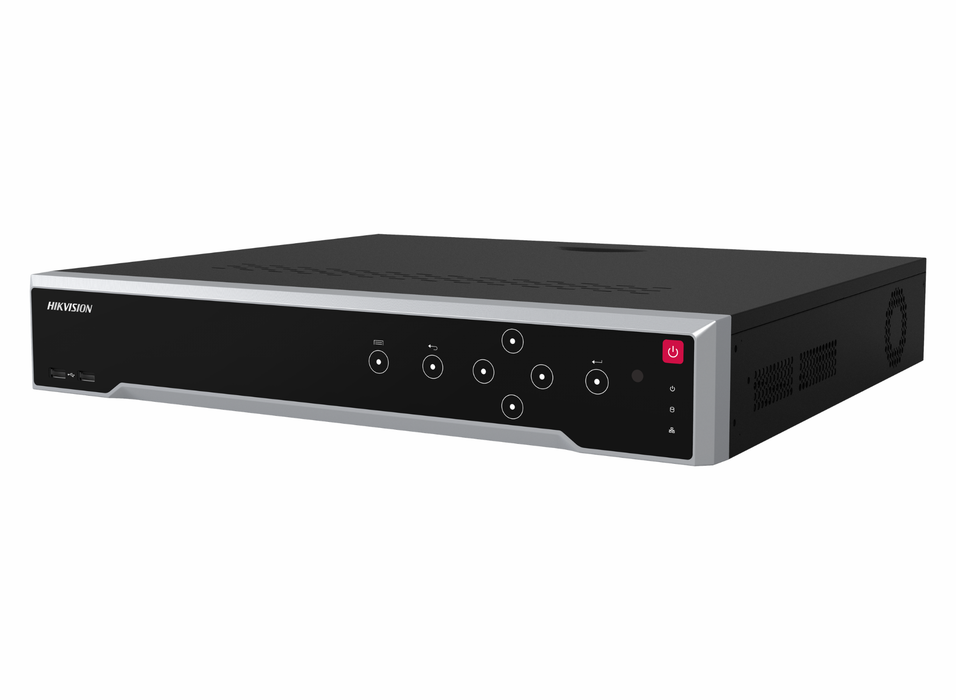

Hikvision DS-7732NI-M4 32-ch 1.5U 8K Network Video Recorder
SKU: DS-7732NI-M4
£434.92 (Excl. VAT)
- Description
- Specifications
- Downloads
-
32 channel 8K network video recorder for advanced surveillance systems
H.265+/H.265/H.264+/H.264 video formats
Up to 32-ch IP camera inputs
Up to 32-ch@1080p decoding capacity
Up to 320 Mbps incoming bandwidth
Up to 8-ch IP speakers can be connected
-
IP Video Input 32-ch Max. Resolution Up to 32 MP Ultra HD Mode Supports up to 8-ch 32 MP/24 MP IP video inputs after ultra HD resolution mode is enabled Incoming Bandwidth 320 Mbps Outgoing Bandwidth 400 Mbps HDMI 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz HDMI Output Note When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p VGA Output 1920 × 1080/60Hz Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480 Audio Output 1-ch, RCA (Linear, 1 KΩ) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) Decoding Format H.265+/H.265/H.264+/H.264 Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Recording Note Supports up to 8-ch 32 MP/24 MP IP video inputs after ultra HD resolution mode is enabled Synchronous Playback 16-ch Decoding Capability 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps) / 10-ch@8 MP (30 fps) / 20-ch@4 MP (30 fps) / 40-ch@1080p (30 fps) Dual-Stream Recording Support Stream Type Video, Video & Audio Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 Remote Connection 128 Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (Version 2.2), OTAP Network Interface 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces Camera Access Protocol ONVIF (Version 2.5), RTSP RAID Type N/A eSATA 1 eSATA interface SATA 4 SATA interfaces Disk Capacity Up to 16 TB capacity for each disk Serial Interface 2 RS-485 (half-duplex), 1 RS-232 Alarm In/Out 16/9 USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; power turns on when alarm output is triggered Ctrl 12V Note Ctrl 12V power is controlled by alarm output 9 DC 12V 12 VDC, 1 A power output Power Supply 100 to 240 VAC, 50 to 60 Hz Consumption ≤ 15 W (without HDD) Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% Chassis 19-inch rack-mounted 1.5U chassis Dimension 445 × 400 × 75 mm (17.5" × 15.7" × 3.0") Weight ≤ 5 kg (without HDD, 11 lb.) FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015+A1:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 -
Description Downloads Datasheet Download User Manual Download
