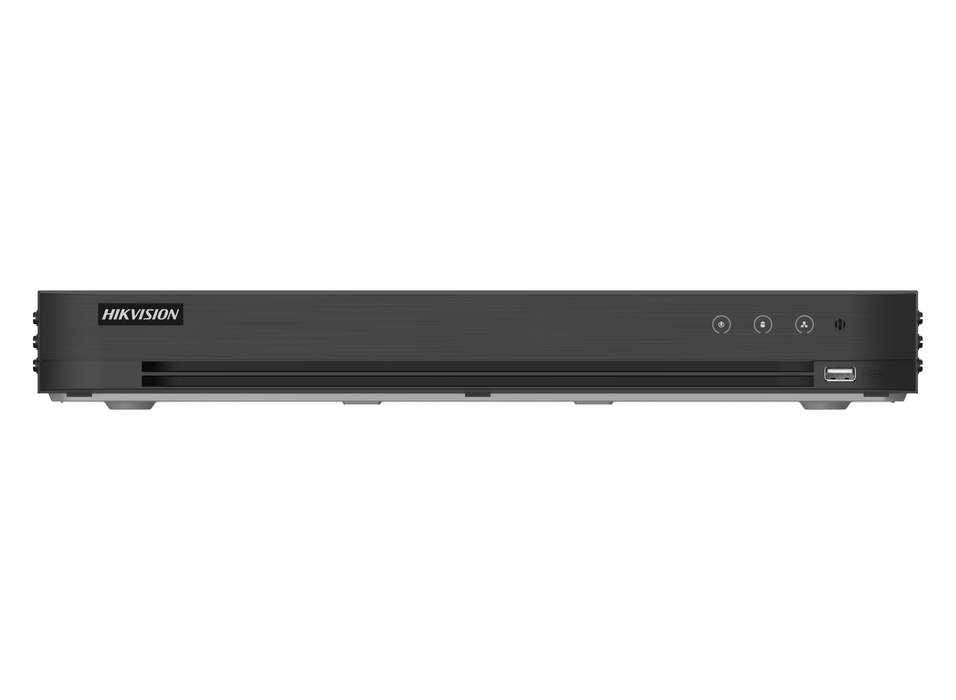

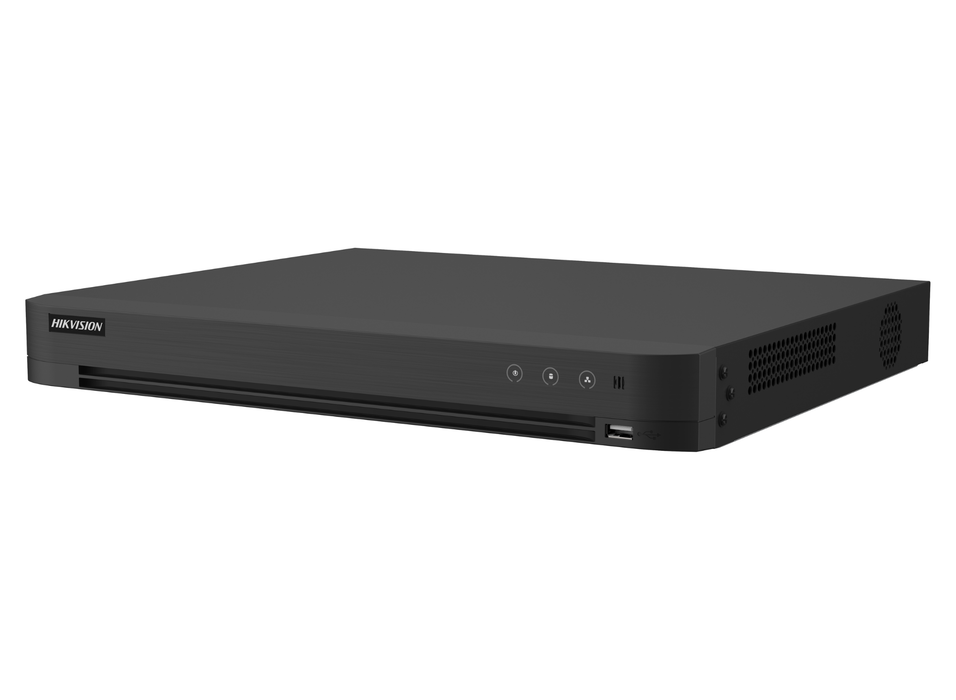

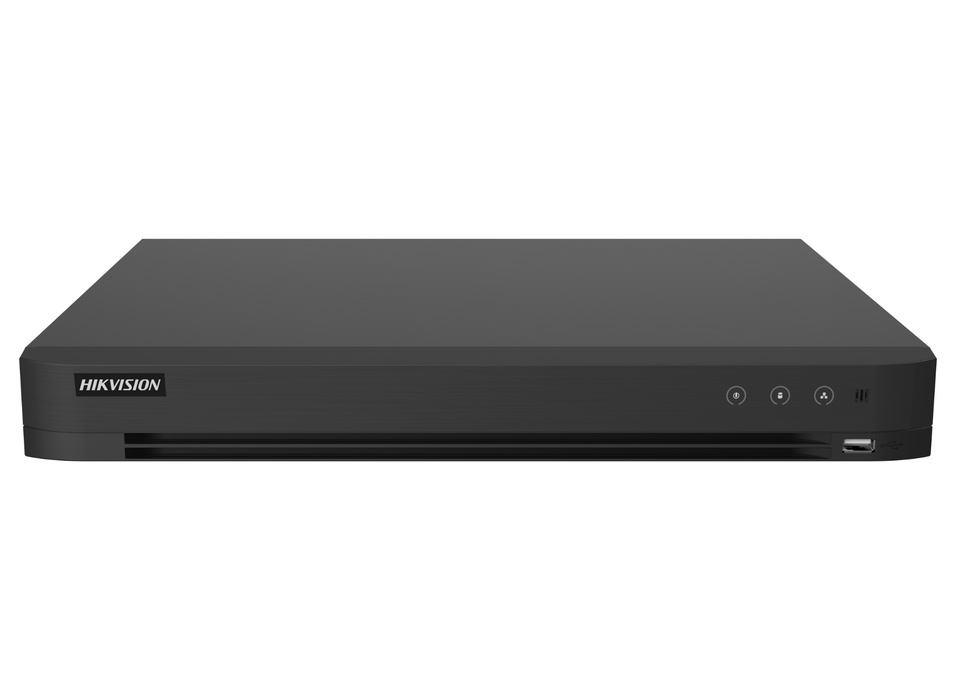

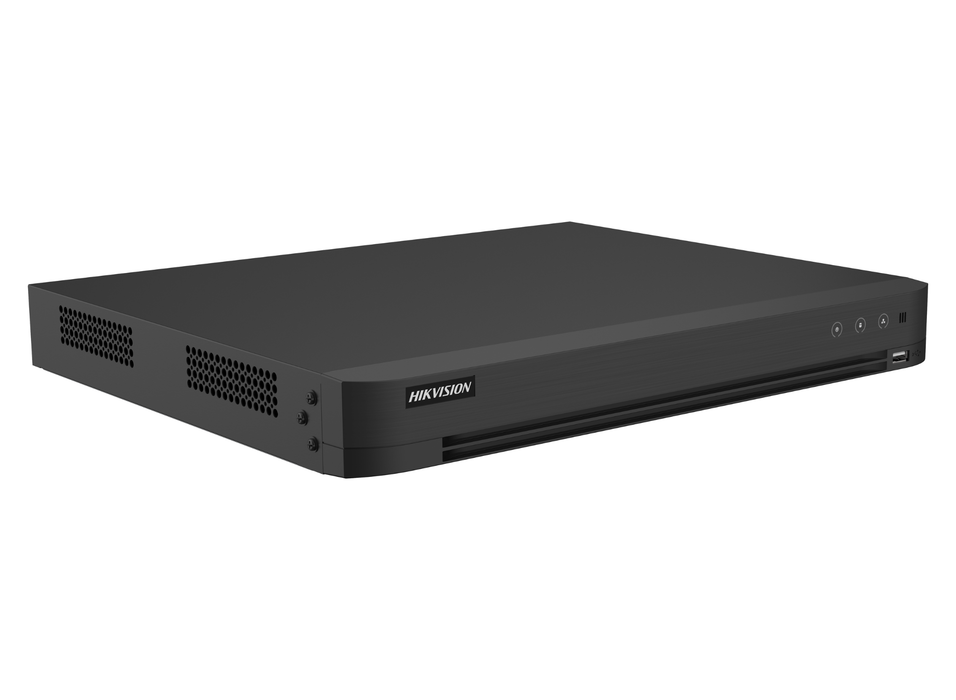

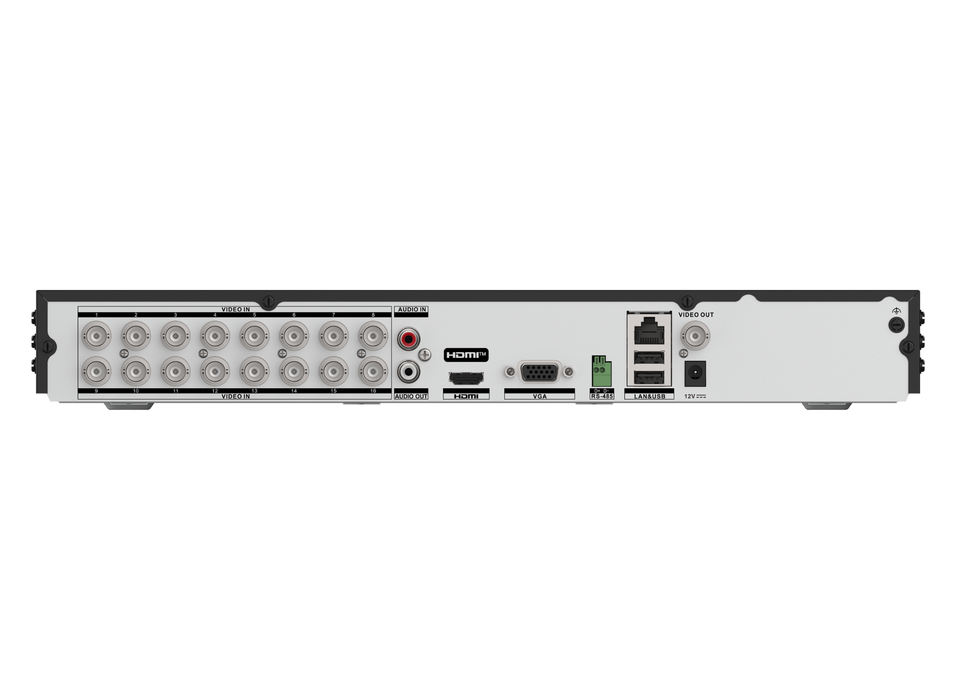

Hikvision IDS-7216HUHI-M2/XT 16-ch 5MP 1U H.265 AcuSense Digital Video Recorder
SKU: 300229469
£338.67 (Excl. VAT)
- Description
- Specifications
- Downloads
-
16CH 5MP AcuSense DVR with 4K Recording & Facial Recognition
16 channels and 2 HDD 1U AcuSense DVR
Support 4-ch Facial Recognition or 16-ch advanced model Perimeter Protection based on Deep Learning algorithm
Support 16-ch AcuSearch Technology
Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
Up to 32 channels IP camera inputs, each channel up to 8MP
Up to 24*1080P@30fps decoding ability
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Support All channels Motion Detection Technology
Support All channels HDTVI Two-Way Audio Technology -
Perimeter Protection Human/Vehicle Analysis Perimeter Protection Channels Up to 16-ch (advanced model) Facial Detection Facial Detection and Capture Face Picture Detection Face picture detection, face picture search Face Picture Capture 4-ch face picture capture Facial Recognition Face Picture Library Face Picture Library Up to 16 face picture libraries Face Library Backup HDD damage will not cause data loss in the face picture library because the library is backed up by HDD and flash Face Picture Comparison 4-ch face picture comparison alarm (HD analog camera) Motion Detection 2.0 Human/Vehicle Analysis Motion Detection Description Deep learning-based motion detection 2.0 is enabled by default for all analog channels, classifies human and vehicle, and reduces false alarms caused by objects like leaves and lights Quick Search By object or event type IP Video Input 16-ch (up to 32-ch), each up to 8MP Analog Video Input 16-ch Analog Interface BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz; HDMI/VGA simultaneous output VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz; HDMI/VGA simultaneous output CVBS Input PAL/NTSC CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480 Synchronous Playback 16-ch HDTVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps, 2K(2304x1296)@20fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps, 1080P@25/30 fps, 720P@25/30fps Audio Output 1-ch, RCA (Linear, 1 KΩ) Audio Input 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ), 16-ch via coaxial cable Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Main Stream Frame Rate 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-Stream Frame Rate WD1/4CIF/CIF@25 fps (P)/30 fps (N) Video Bitrate 32 Kbps to 10 Mbps Dual-stream Support main stream or sub stream Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps Decoding Capability Up to 24-ch 1080P@30fps Total Bandwidth 256 Mbps Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP Remote Connection 128 Network Interface 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface SATA 2 SATA interfaces Capacity Up to 12 TB capacity for each disk Serial Interface RS-485 (half-duplex) USB Interface Front panel: 1 × USB 2.0; Rear panel: 2 × USB 3.0 Alarm In/Out N/A (optional to support) Power Supply 12 VDC, 5 A Consumption ≤ 60 W Working Temperature -10 °C to +55 °C (+14 °F to +131 °F) Working Humidity 10% to 90% Dimension (W × D × H) 384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch) Weight ≤ 2.1 kg (4.6 lb) -
Description Downloads Datasheet Download
