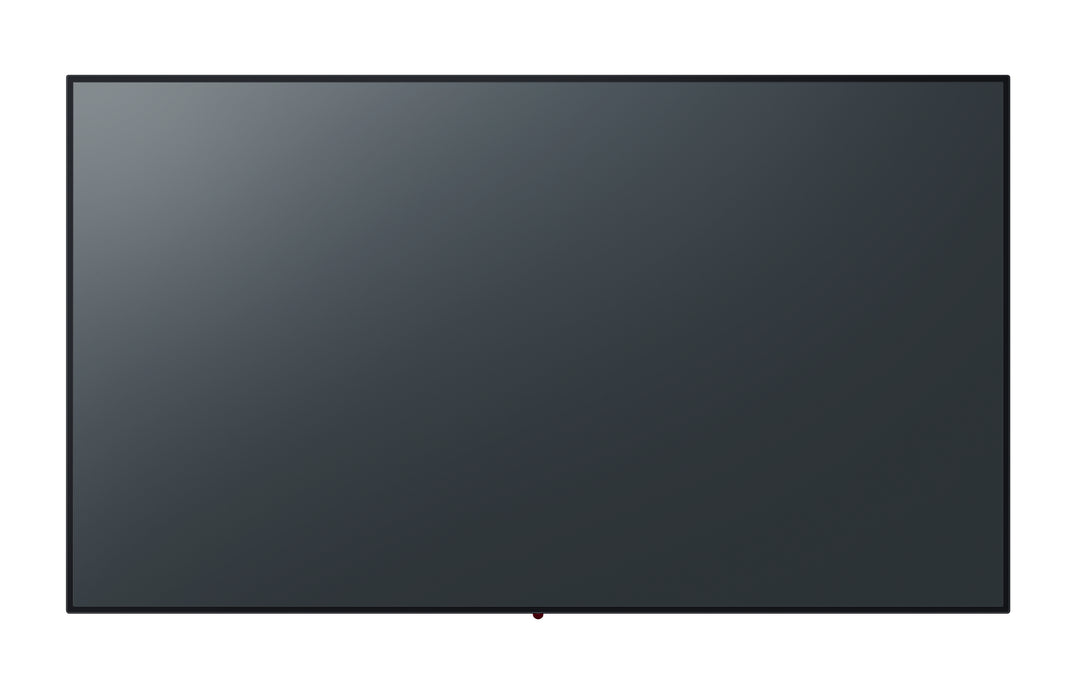

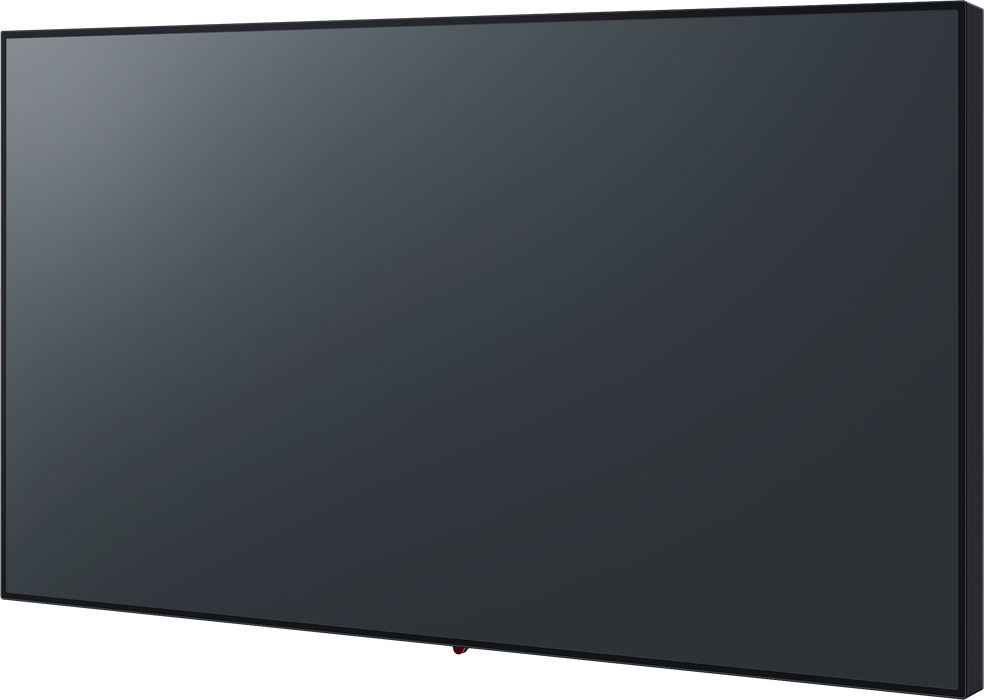

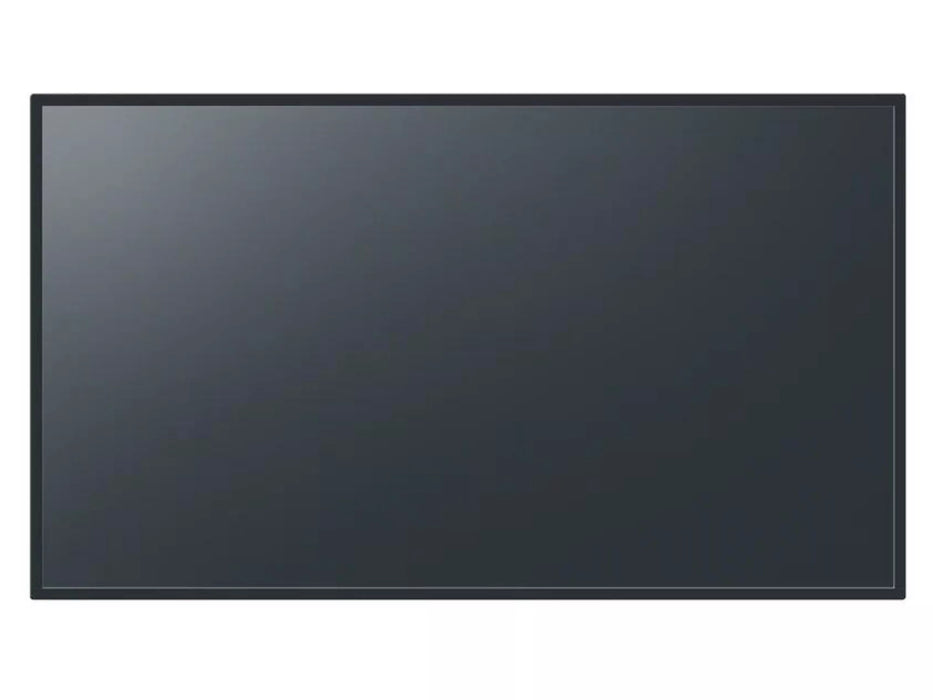

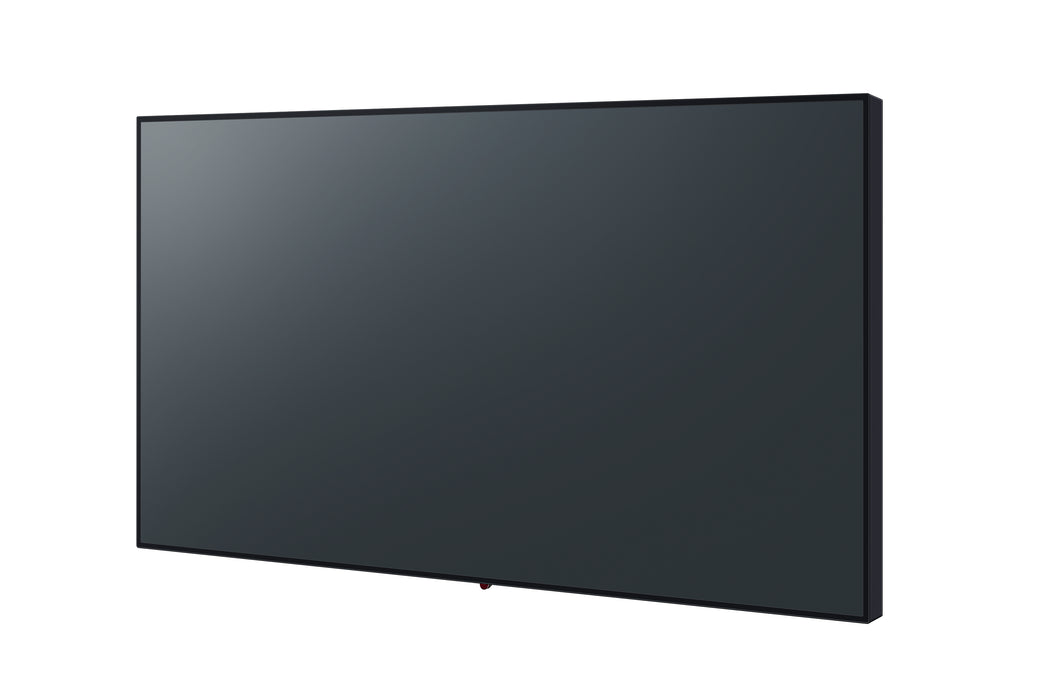

Panasonic TH-86CQE1W 86" 4K UHD Entry Professional Digital Signage Display
SKU: TH-86CQE1W
£3,049.20 (Excl. VAT)
- Description
- Specifications
- Warranty
-
The 4K-resolution CQE1 series supports 4K/60p signal is capable of operating for 24h a day (98“) or 16h a day (43-86”). Equipped with a range of connection terminals, the CQE1 display provides functions required for business use.

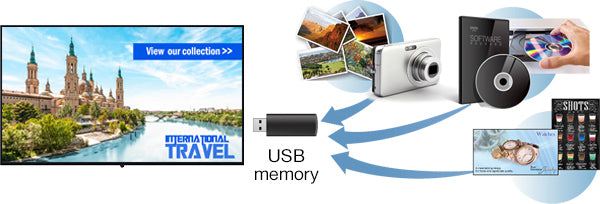

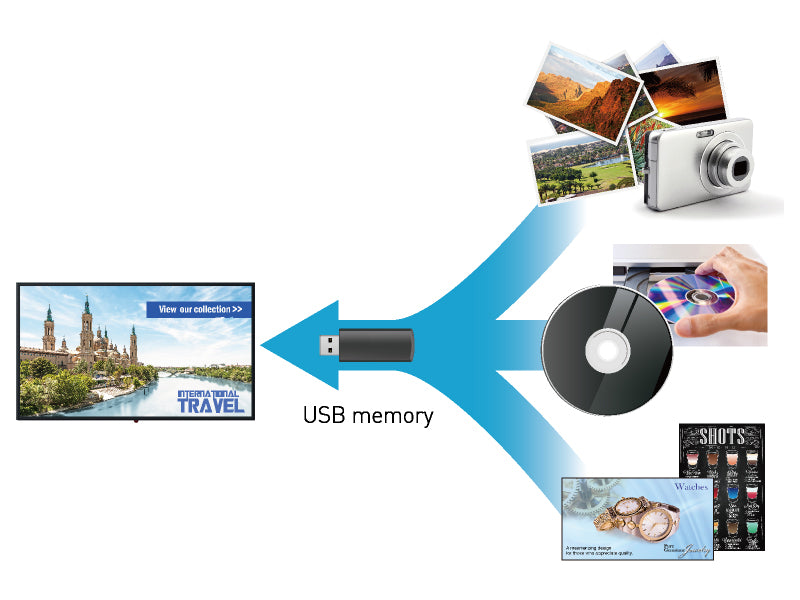

86”, 500 cd/m² and clear view with anti-glare coating 4K USB Media Player: eliminates the need for external devices and allows updates via LAN For superb viewing experience from any angle Sleek and stylish design with narrow bezel and easy installation with built-in speakers and basic terminals Equipped with four HDMI input terminals that support HDMI CEC The 4K-resolution CQE1 series supports 4K/60p signal is capable of operating for 24h a day (98“) or 16h a day (43-86”). Equipped with a range of connection terminals, the CQE1 display provides functions required for business use.

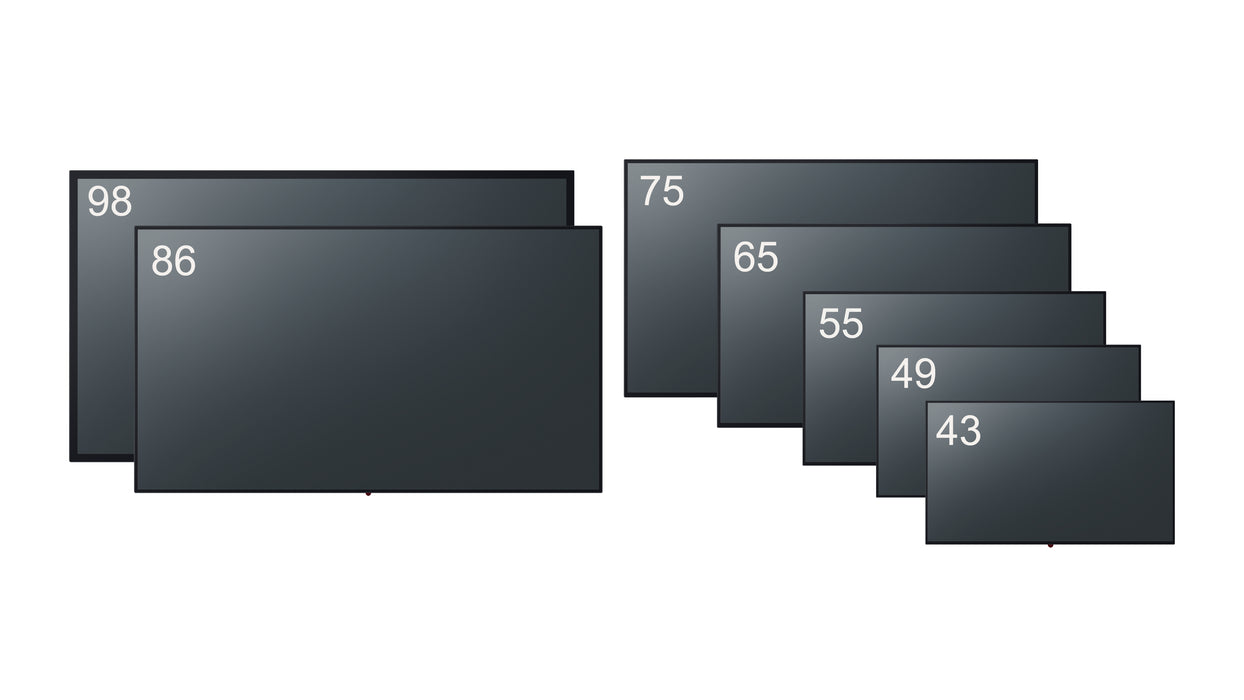

Choose the Installation to Match Your Application

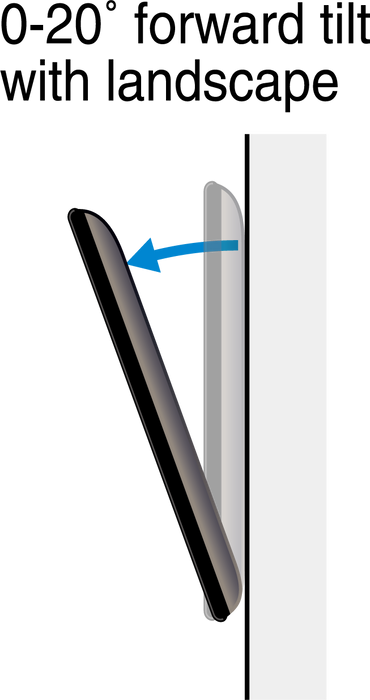

There are screen sizes to match everything, from small rooms, such as huddle rooms, to large rooms. Installation is also possible at a forward inclination of up to 20 degrees to maintain legibility when mounted in high places.
High Reliability Enable Continuous 16/7 Operation
In addition to being impact resistant, the CQE1 Series is capable of constant, 16/7 operation. It offers reliable use in educational institutions, and offices.
* In case of long time period, the moving image is recommended to be displayed. If you display a still picture for an extended period, the image retention might remain on the screen. However, image retention can gradually disappear by displaying a moving images.

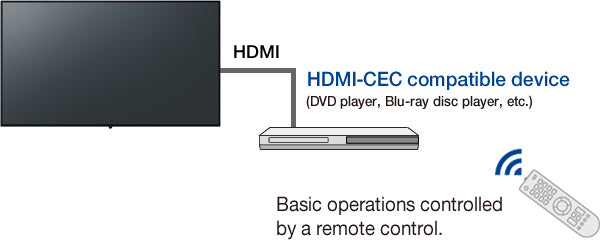

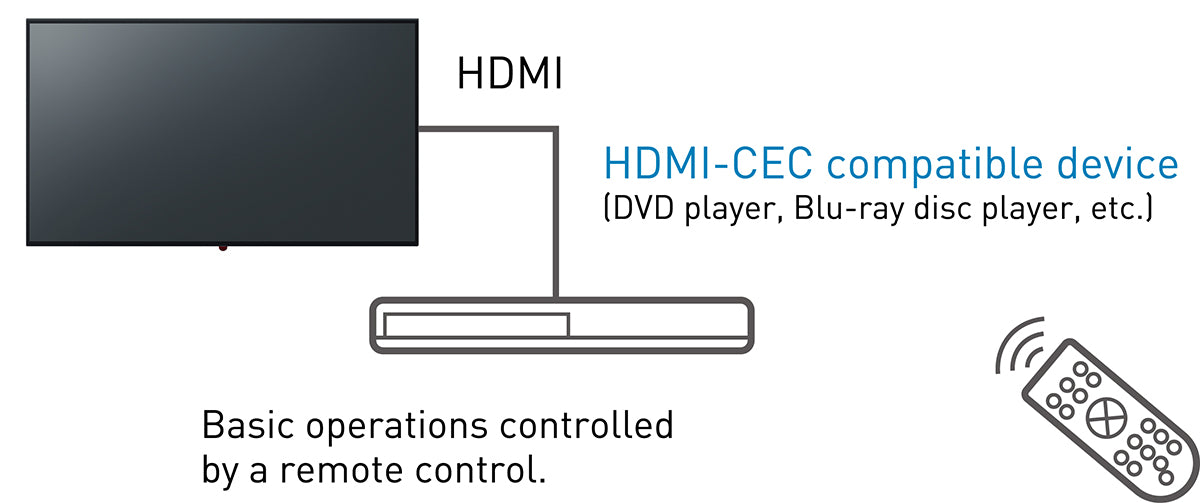

* 98CQE1 supports 24/7 operation.HDMI CEC Device Linking Supported
HDMI-CEC compatible devices can be connected to the display by an HDMI cable, enabling the basic operations, of the compatible devices to be controlled by the display's remote control.
* The control of all devices cannot be guaranteed.
* VIERA link is not supported.Support LAN Control Connection
The CQE1 Series can be controlled by LAN or RS-232C. You can configure the display into your existing control system, and you can control several devices simultaneously.
Cloning Function Saves Labour When Setting Up Multiple Devices
When installing multiple displays, the Cloning function lets you use a USB memory (or LAN network) to copy the settings of a parent display to other units, thus greatly shortening the setup time.

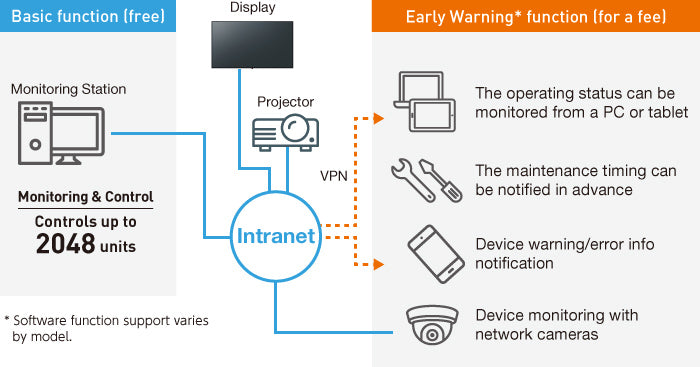

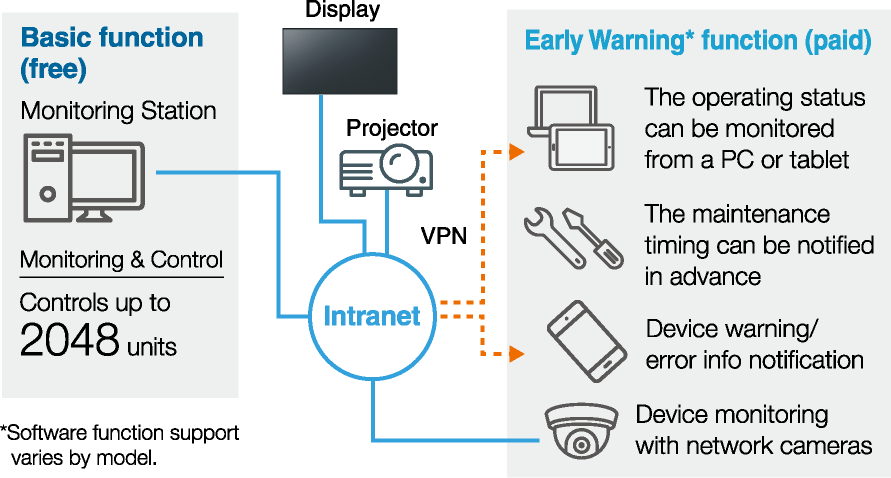

Multi Monitoring & Control Software
Compatible with Multi Monitoring & Control Software for addition of new functions, such as automatic searching for map displays and registered devices. Displays and peripheral equipment on the intranet can be controlled and their status can be monitored. Also error notification and error indication can be detected by an indication monitoring function (for a fee) for improved maintenance.
-
Screen size [diagonal] (inch) 86-inch class (2174.2 mm) Panel Type E-LED Aspect Ratio 16:9 Effective display area (W x H) (mm) 1895.0 x 1065.9 mm (74.60" x 41.96") Resolution 3840 x 2160 Brightness (typ.) 400 cd/m2 Contrast Ratio 1200:1 Response Time 8.0 ms (G to G) Viewing angle [(T/B)/(L/R)] 178° / 178° (CR>10) Panel Surface Treatment Anti-glare low reflection type (Haze 3 %) Terminals HDMI In Terminals PC In Terminals Serial Terminals IR In Terminals Audio In Terminals Audio Out Terminals LAN Terminals USB Wi-Fi Dongle, IEEE 802.11. a/b/g/n/ Dual Wi-Fi CERTIFIED Built-in Speaker 24 W [12 W + 12 W] Power Requirements 110–127 V AC, 50/60 Hz, 220–240 V AC, 50/60 Hz Power Consumption 364 W Power Off Condition 0 W Stand-by Condition Approx. 0.5 W Dimensions (W x H x D) (mm) 1929 x 1100 x 80 mm (75.91" x 43.28" x 3.13") Weight (kg) Approx. 61.7 kg (136.1 lbs) Bezel width (mm) 15.3 mm (T/R/L/B) Bezel width (inch) 0.6" (T/R/L/B) Wall-hanging pitch (mm) VESA Compliant 600 x 400 mm M8 Wall-hanging pitch (inch) VESA Compliant 23.6" x 15.8" M8 Orientation Landscape (Not support to the portrait installation) Tilting angle*1 0-20 degree forward Operating time*2 16 h/day Operating Environment Temperature: 0 °C to 40 °C (32 °F to 104 °F) Humidity: 20-80 % (Non condensation) Altitude: 0-1400 m (4593 ft) Temperature: 0 °C to 35 °C (32 °F to 95 °F) Altitude: 1400 -2800 m (4593 ft to 7874 ft) Note *1: Please contact your sales representative with regard to the tilt angle before installation. *2: Displaying a still image for a long time may cause burn-in (image persistence artifacts), it could be mitigated when displaying a video image. -
PANASONIC PROFESSIONAL DISPLAY
Limited Warranty
3-year Warranty
On-site Swap Out (Collect, repair, return as standard)
A 3-year parts, labor, and logistics warranty for product failure.
