Samsung QM32R-B/LH32QMRBBGCXEN

32" Premium LFD Display

• Description
• Specification
• Warranty

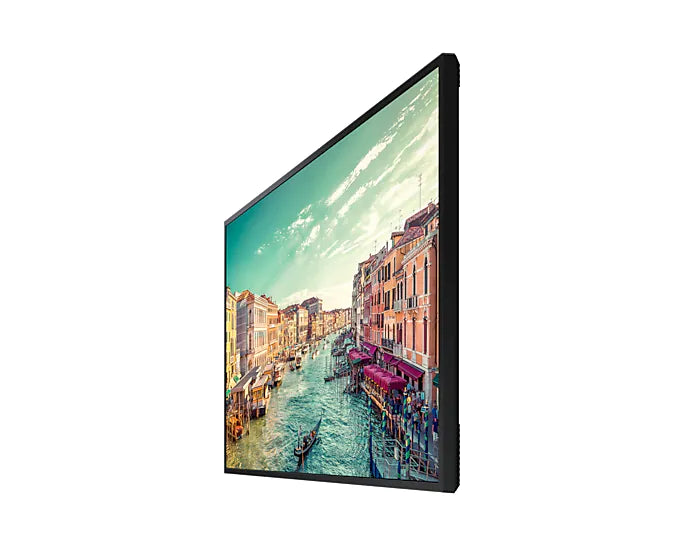

• Slim and symmetrical design
  Slim, symmetrical design that will stand the test of time and ensure the QMR-B series blends seamlessly into any environment, with simple installation to get your display up and running as soon as possible.

  Clean cable management
  With QMR-B's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping experience for customers, even when the back of the display is visible.

  Powerful, all-in-one solution
  SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

  Samsung Workspace secured by Knox
  With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

  Industry standard certified
  The QMR-B series guarantees dependable functionality and is environmentally sustainable. Electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation, the displays are also registered by EPEAT, the global ecolabel for IT.



• Category	Details
  Display
  Diagonal Size	32"
  Panel Type	VA
  Resolution	1,920 x 1,080
  Pixel Pitch (HxV, mm)	0.36375 x 0.36375
  Brightness (Typ)	400 nit
  Contrast Ratio	5,000:1
  Viewing Angle (H/V)	178/178
  Response Time	8ms
  Color Gamut	72%
  Glass Haze	2%
  H-Scanning Frequency	30 ~ 81kHZ
  Maximum Pixel Frequency	594MHz
  V-Scanning Frequency	48 ~ 75HZ
  Contrast Ratio (Dynamic)	Mega

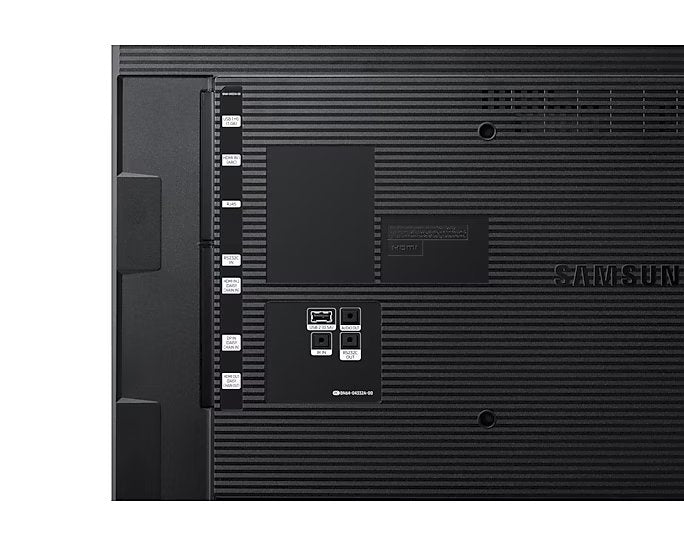

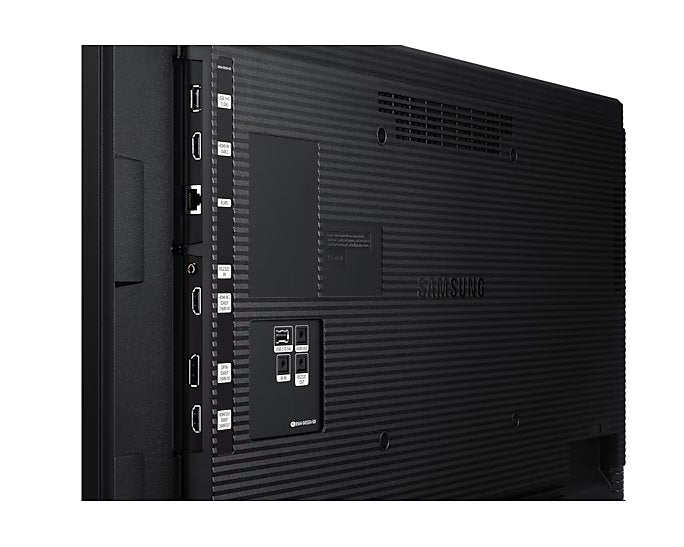

  Connectivity
  HDMI In	2
  DP In	Yes
  Version of HDMI	2
  Version of DP	1.2
  Version of HDCP	2.2
  USB	2
  IR In	Yes
  Audio In	No
  Audio Out	Stereo Mini Jack
  RS232 In	Yes
  RS232 Out	Yes
  RJ45 In	Yes
  WiFi	Yes
  3G Dongle	No
  Power
  Power Supply	AC100-240V 50/60Hz
  Power Consumption (On Mode, W)	72‎
  Power Consumption (Sleep Mode, W)	0.5‎
  Dimension
  Set Dimension (WxHxD, mm)	725.1 x 419.6 x 34.6‎
  Package Dimension (WxHxD, mm)	812 x 513 x 120‎
  Weight
  Set Weight	5.7 kg
  Package Weight	8 kg
  Operation Conditions
  Temperature	0°C~ 40°C
  Humidity	10 ~ 80%, non-condensing
  Mechanical Specification
  VESA Mount (mm)	200 x 200‎
  Bezel Width (mm)	8.8(U/D/L/R)
  Frame Material	Non-Glossy
  Optional Feature
  Mount	WMN4070SG, WMN750ME
  Stand	STN-L3240F
  SoC
  OS Version	Tizen 4.0
  Flash Memory Size	8GB
  Certification and Compliance
  EMC	Class B
  Safety	60950-1, 62368-1

• SAMSUNG SMART SIGNAGE STARDARD
  WARRANTY GUIDE
  SMART SIGNAGE

  1. Warranty Term
  Samsung currently provides a 3 year standard limited warranty, but the warranty period may vary by country. Please contact your local Samsung representative to check the standard warranty period applicable for your country.

  Customers can purchase an extended warranty service pack, which must be purchased when the Product is purchased. The extended warranty period can increase the warranty period up to a total of 5 years.

  2. Warranty Description
  Samsung warrants that the Product will be free from manufacturing defects in material and workmanship during the abovementioned warranty period and fit for being used as commercial digital signage.

  During the warranty period, Samsung will, at its sole discretion,

  1) provide service via phone, mail, technical support website (ex. Service Cloud) or e-support access to Help Desk to assist in resolving issues. Phone support is available during normal business hours.
  2) repair (at Samsung’s own or Samsung’s Authorized Service Center(ASC)), or replace (using new or refurbished replacement parts or Products) any defect within a reasonable period of time and free of charge.
  Generally, On-Site Repair Service is the default service for any Product requiring repair during the applicable warranty period. However, depending on the installed Product, location, environment and any special contract terms, there could be other services available such as Carry-In or Pick-up & Return.

  Service Response Turnaround Time (“TAT”):
  The average TAT for Service Response is D+1 business days. Service Response means first response to a request (phone, e-mail, technical support website and / or verbal).

  Service Response may take more than 1 business day depending on the case.

  Service Repair TAT:
  Service Repair means initial repair activity by Samsung or Samsung’s ASC.

  ※ Initial repair activity means one of below activities; site visit, checking symptoms, defective part exchange, configuration adjustment, etc.

  Samsung shall aim for a Service Repair TAT of D+5 business days, provided however, additional time may be required, due to, by way of example, limitations in transportation/personnel availability, inaccessibility of location, locations requiring special access authorization (i.e. duty free stores), repeatability of the problem, and inaccurate description of the problem provided. Samsung will use its best efforts to solve the problem during its first on-site visit.

  In the event Samsung experiences or foresees such delay, Samsung shall notify the customer and the Parties shall discuss in good faith to arrive at a resolution including a new delivery schedule.

  Samsung recommends that the customer maintain a buffer stock of Products to minimize downtime.

  3. Warranty Coverage
  This limited warranty begins on the original date of purchase, and is valid only on Products purchased directly from Samsung or through Samsung’s authorized partners. To receive warranty service, the customer must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung ASC. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung’s ASC. In the event that no proof of purchase can be presented to Samsung, the limited warranty will commence from the date of manufacture specified on the Product.

  All replaced parts and Products shall become the property of Samsung and must be returned to Samsung. The repaired or replaced parts or Products assume the remaining original warranty
