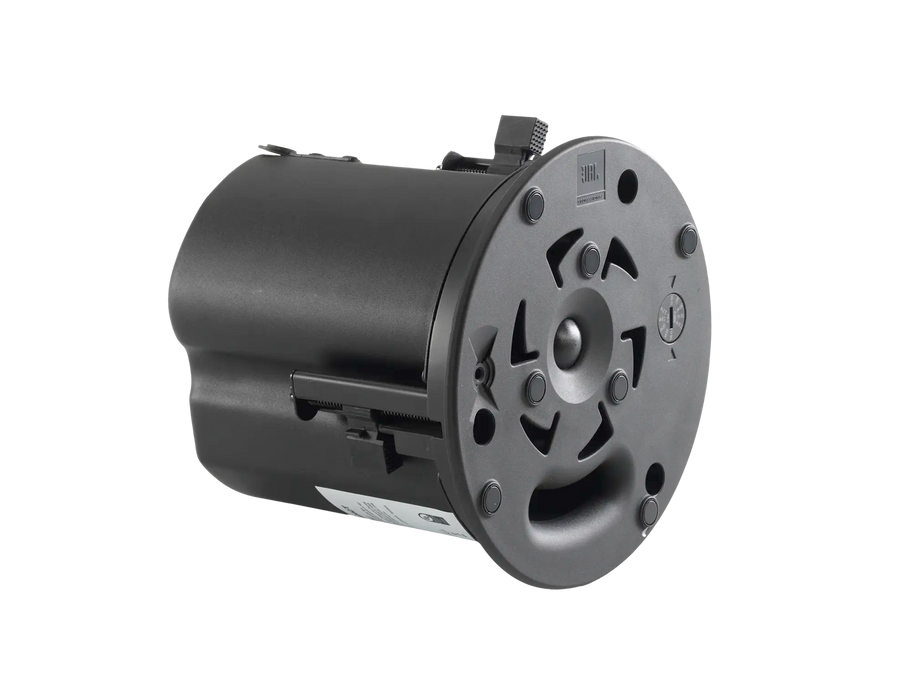

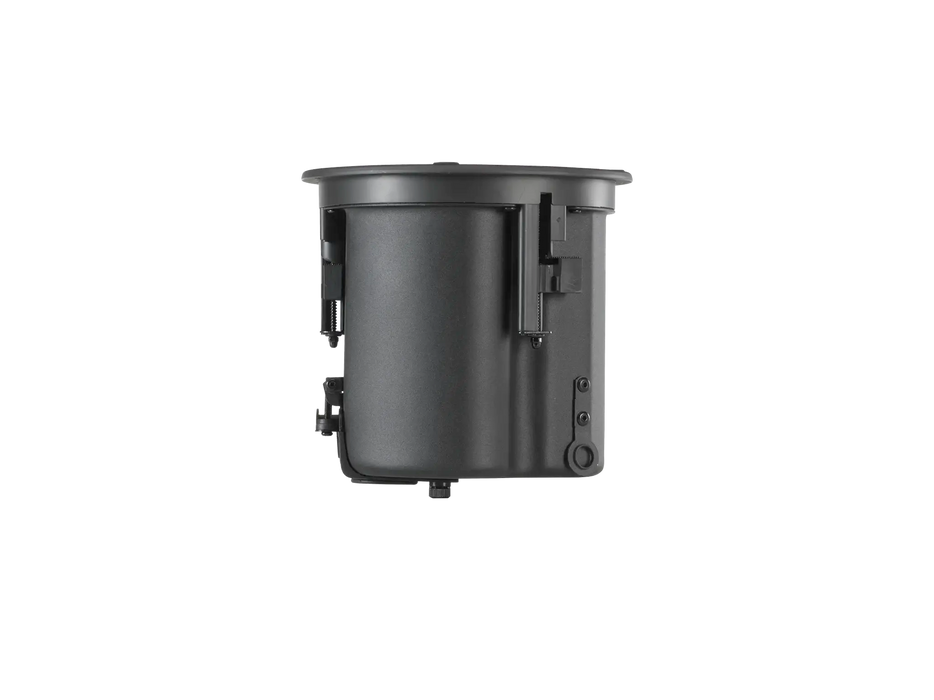

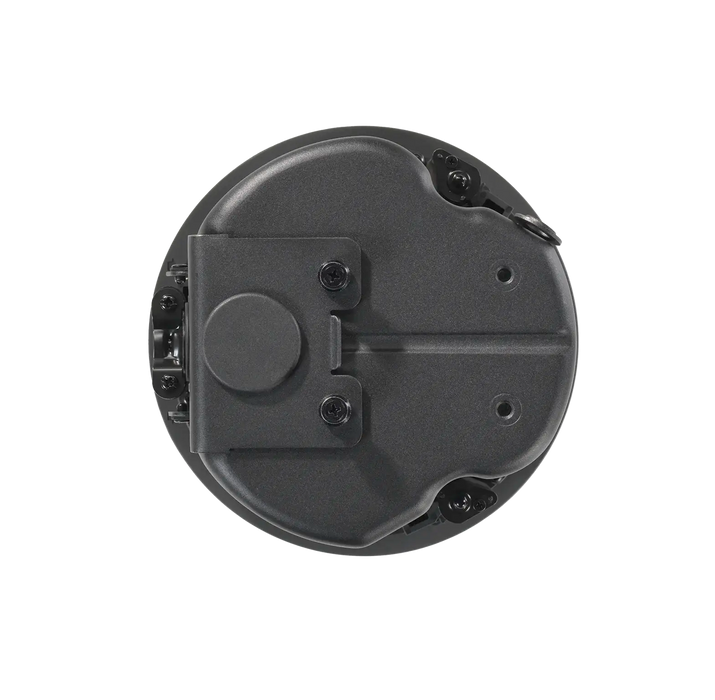

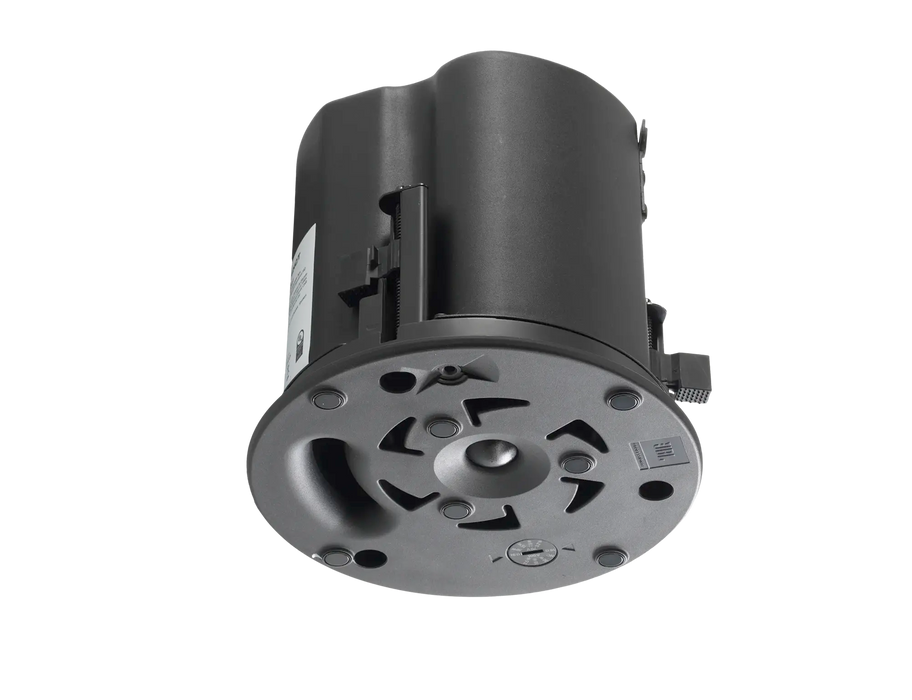

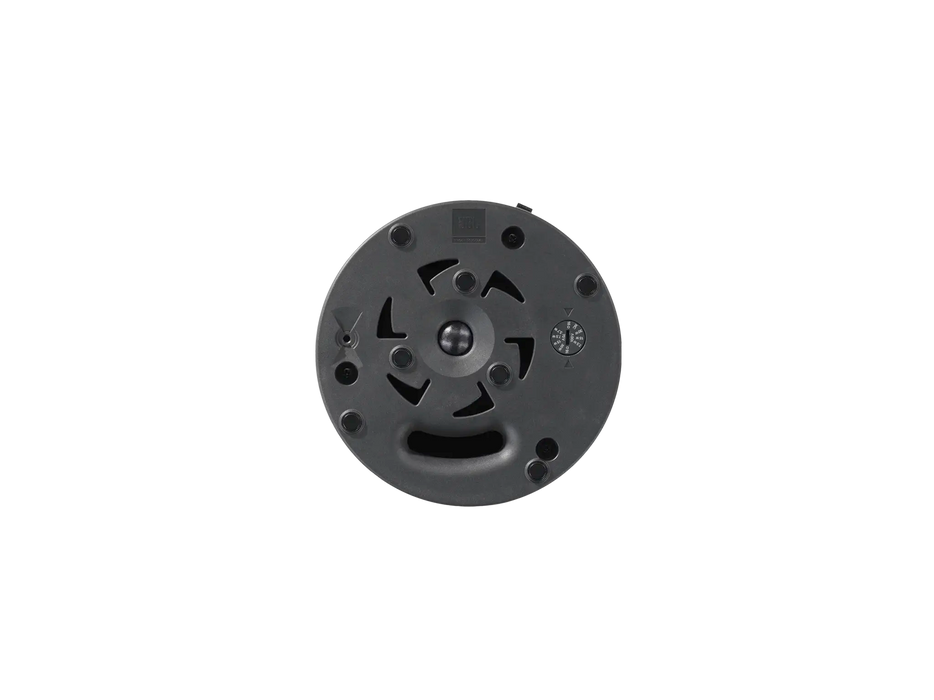

JBL 4" CRBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker | JBL-C424C/T
SKU: JBL-C424C/T
£344.96 (Excl. VAT)
- Description
- Specifications
- Downloads
-
JBL Control 424C/T | 4" Two-Way Coaxial Ceiling Speaker, 60W, 130° Coverage, IP33
The JBL Control 424C/T is a two-way coaxial ceiling loudspeaker, featuring a 4” woofer and integrated enclosure that is ideal for installation in most ceiling plenum spaces. Integrated CRBI™ technology provides 130° of consistent, full, rich sound to the listening area. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 424C/T includes a transformer to support both 70V/100V and low impedance applications.
Features
Coaxially mounted 100 mm (4 in) woofer and 19 mm (0.75 in) soft-dome tweeter
Integrated enclosure that is ideal for installation in most ceiling plenum spaces
CRBI™ technology for consistent 130° coverage across the listening area
Built-in 70V/100V multi-tap transformer, plus 16-ohm direct input

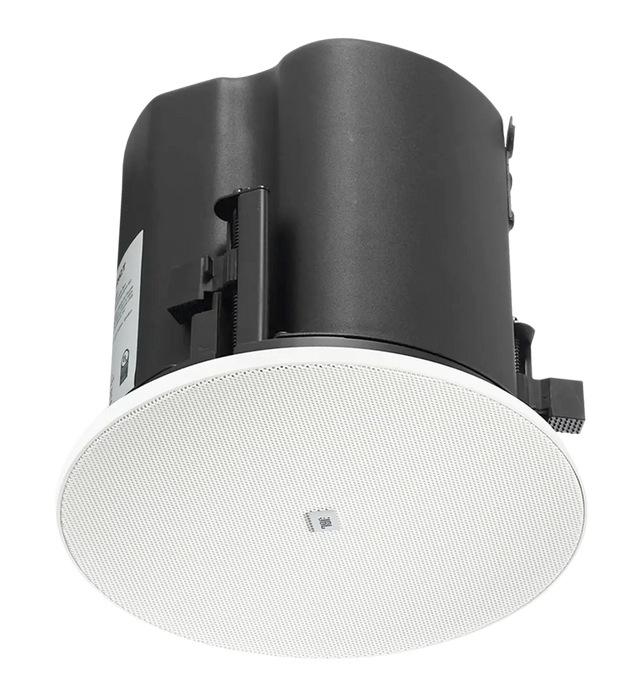

Full-face, easily paintable magnetic grilles
Top and side exit cable entry options
Robust and adaptable dogears for wide range of ceiling thicknesses
IP33 rated -
Frequency Range (-10 dB) 75 Hz – 18 kHz Power Capacity 60W (240W Peak), 40W (160W Peak) Sensitivity (1m/1W) 85 dB Coverage Angle 130° conical Maximum SPL (1m) 103 dB continuous pink noise (109 dB peak) Nominal Impedance 16Ω Transformer Taps 70V: 30W, 15W, 7.5W, 3.7W
100V: 30W, 15W, 7.5WDrivers LF: 100 mm (4 in) treated paper cone
HF: 19 mm (0.75 in) textile soft-domeCeiling Cutout Size 168 mm (6.6 in) Dimensions 182 mm (H) x 196 mm (D) / 173 mm depth Safety Agency Rating UL2043, NFPA 90A, NFPA 70, CSA C22.2 No.205, S7232/UL1480A Listed Environmental IP33 rating per EN/IEC 60529 Operating Temperature 0°C to 45°C Optional Accessories MTC-424BG, MTC-424SG, MTC-424NC, MTC-424MR, MTC-48TRX4 Color White (RAL9003), paintable Net Weight (each) 2.8 kg (6.2 lbs) Shipping Weight (pair) 10.57 kg (23.31 lbs) SKU Number JBL-C424C/T -
Description Downloads JBL 4" CRBI™-Equipped Two-Way Coaxial Ceiling Loudspeaker | JBL-C424C/T DataSheet Download
