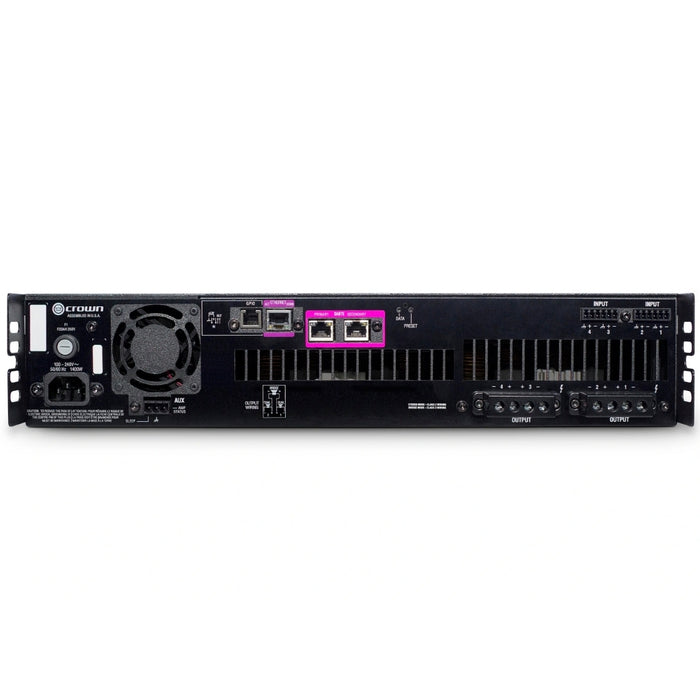

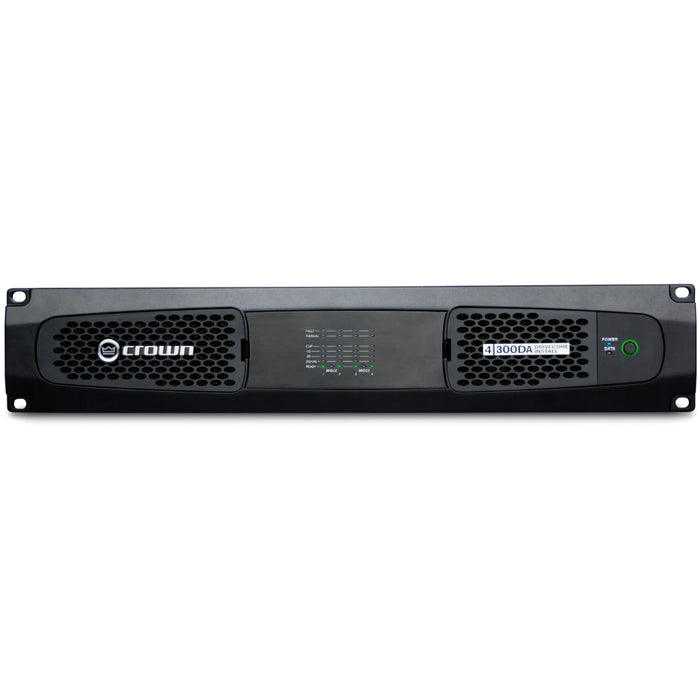

Crown DCi4 300DA Four-channel 300W @ 4Ω Power Amplifier with Dante™ / AES67 Networked Audio and 70V/100V

Crown DriveCore Install DA Series Amplifier | 4-Channel | Dante / AES67 | DSP | 70V/100V

For applications that require Dante or AES67 networked audio, the Crown DriveCore Install DA Series provides a balanced combination of output power, channel count and speaker load flexibility along with proprietary DriveCore® technology for superb efficiency and exemplary audio quality. The DCi DA Series includes a high-powered DSP with JBL speaker tunings, network control/monitoring, and the ability to drive 2/4/8/16 ohm, 70V and 100V speaker loads. The amp’s advanced capabilities and support for Dante Domain Manager makes it perfect for installations that have standardized on Dante for networked audio transport.

Redundant, independent Dante / AES67 ports
Primary & Secondary
Will accept 48khz or 96khz
Capable of sending out Dante / AES67 audio from analog inputs pre/post processing (@ 48kHz)
Audio Architect Control and Monitoring
DriveCore Amplifier Technology
Universal PFC Power Supply
DSP
48kHz processing
20 Presets
Input router
High, medium, and low priority inputs
Input delay up to 2s
Input EQ
Crossover
Output EQ
Output Delay up to 100ms
LevelMAX limiter
Load Monitoring
Pilot tone
Normal
Burst
Continuous Load Monitoring
Sweep Load Monitoring
Channel Auto-Standby
Speaker Tunings
Aux-Port
Sleep contact closure
Amp Status output
Removable air filters
Front panel LED indicators
AES67 Compatible

Features
Integrated Dante™ / AES67 Networked Audio – Simplifies installation by enabling Dante / AES67 networked audio signals to be sent directly to the amplifier. Provides flexibility of installation options available with our expansive line-up of DriveCore Install amplifiers. Includes support for Dante 4.0 firmware for integration with Dante Domain Manager.
Network Configuration, Monitoring & Control – Better monitoring, control and audio manipulation with the HiQnet™ protocol over standard TCP/IP network. The HiQnet Audio Architect software allows for remote configuration, monitoring, and control of all aspects of the DCi-DA Series amplifiers.
Programmable General Purpose Input/Output Port – GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to third-party control system.
Digital Signal Processing – DSP capabilities include the following:
LevelMAX Limiters
Input/Output EQ
Crossover
Delay
Matrix Router
Speaker Line Monitoring
