Aten 4 x 4 True 4K HDMI Matrix Switch | VM0404HB-AT-E

SKU: VM0404HB-AT-E
Aten 4 x 4 True 4K HDMI Matrix Switch | VM0404HB-AT-E Video Switch Aten
Sold out

£517.91 (Excl. VAT)

- £621.49 (Inc. VAT)
£517.91 - £517.91
- - £621.49
Availability:
Out of stock
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay
  • Paypal
  • Shop Pay
  • Klarna
  • Bank Transfer (BACS)
Download Product Datasheet i
Trade pricing for verified resellers, proforma issued on official company letterhead for PO processing.
Education & Public Sector Pricing available for schools, universities, NHS, and government organisations. Contact our Public Sector Team on 020 8191 9223 or email info@screenmoove.com.
  • Description
  • Specifications
  • Downloads

  • Aten 4 x 4 True 4K HDMI Matrix Switch | VM0404HB-AT-E

    VM0404HB-AT-E

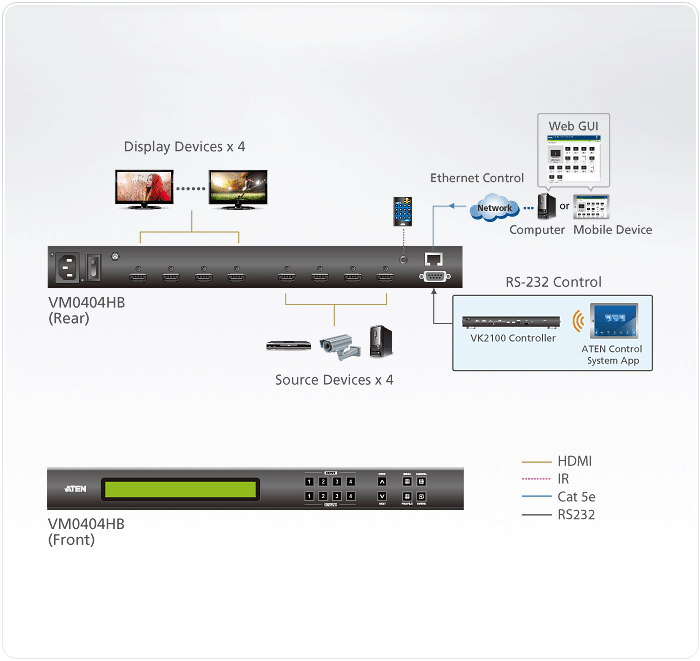

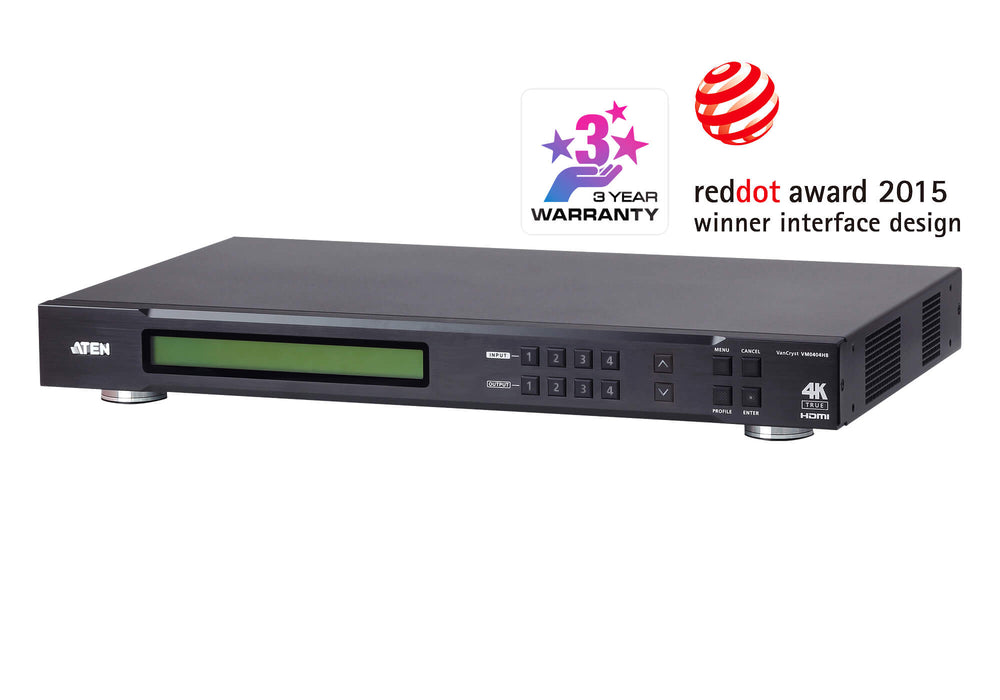

    ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.

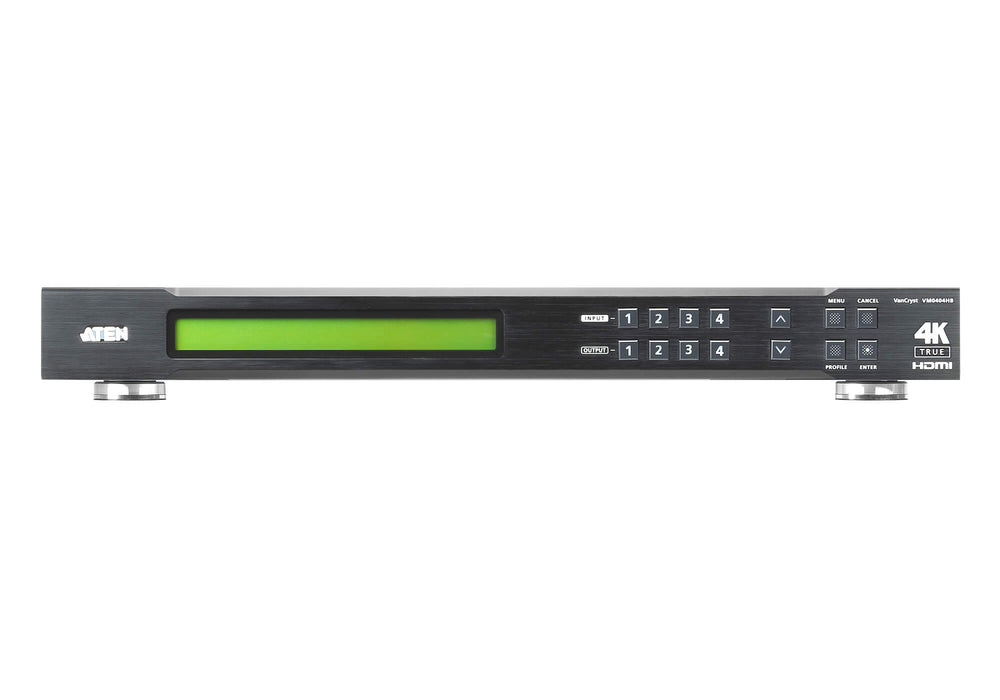

    The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.

    Package Contents
    1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch
    1x Power Cord
    1x IR Remote Control
    1x IR Receiver
    1x Rack Mounting Kit
    1x User Instructions

  • Category Attribute Value

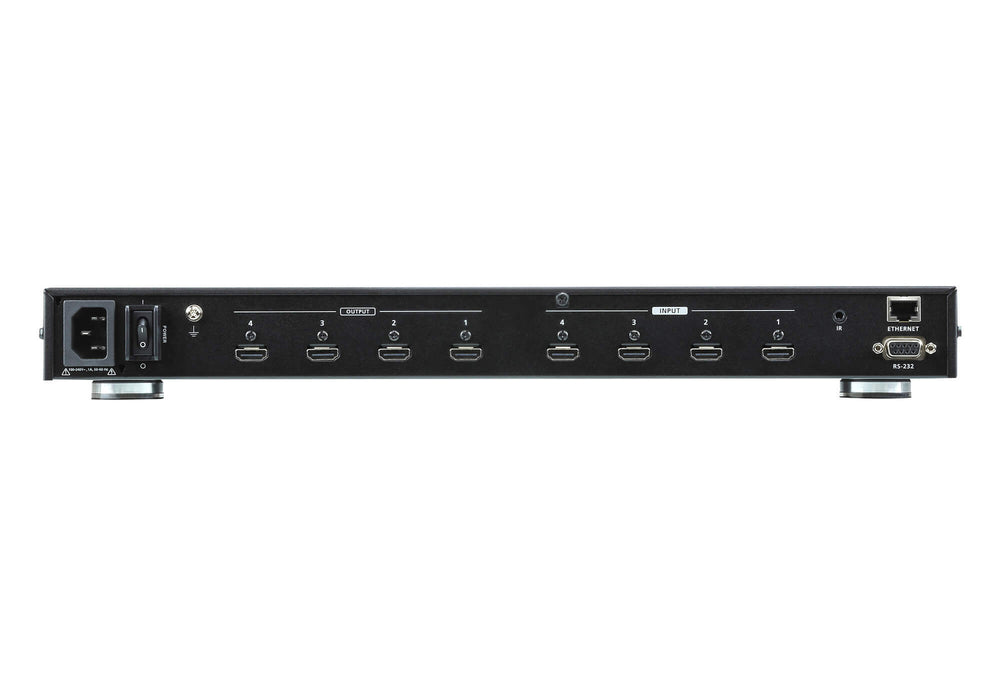

    Video Input Interfaces 4x HDMI Type A (Black)
    Impedance 100 Ω
    Max Distance 5m @ 4K 60Hz (4:4:4)
    Video Output Interfaces 4x HDMI Type A (Black)
    Max Distance 5m @ 4K 60Hz / 15m @ 1920x1200
    Impedance 100 Ω
    Video Max Pixel Clock 600 MHz
    Max Resolution 4096x2160 / 3840x2160 @ 60Hz (4:4:4)
    Max Data Rate 18 Gbps (6 Gbps/lane)
    Compliance HDMI, 3D, 4K, Deep Color, HDCP 2.2, CEC
    Control RS-232 1x DB-9, 19200 Baud, 8N1
    IR 1x Mini Stereo Jack
    Ethernet 1x RJ-45
    EDID Settings Default / Port 1 / Remix / Custom
    Environmental Operating Temp 0–40°C
    Storage Temp -20–60°C
    Humidity 0–80% RH (Non-Condensing)
    Physical Weight 2.47 kg (5.44 lb)
    Housing Metal
    Dimensions 43.72×15.28×4.40 cm (17.21×6.02×1.73 in.)
    Power Connector 1x 3-Prong AC Socket
    Input Rating 100–240V AC, 50–60Hz, 1.0A
    Power (AC110) 17.8W / 83 BTU/h
    Power (AC220) 17.6W / 83 BTU/h
    Packaging Carton Quantity 1 pc
  • Description Downloads
    Aten 4 x 4 True 4K HDMI Matrix Switch | VM0404HB-AT-E DataSheet Downloads
    Aten 4 x 4 True 4K HDMI Matrix Switch | VM0404HB-AT-E User Manual Downloads
    Aten 4 x 4 True 4K HDMI Matrix Switch | VM0404HB-AT-E Drawing Downloads
    Aten 4 x 4 True 4K HDMI Matrix Switch | VM0404HB-AT-E Quick Start Guide Downloads
