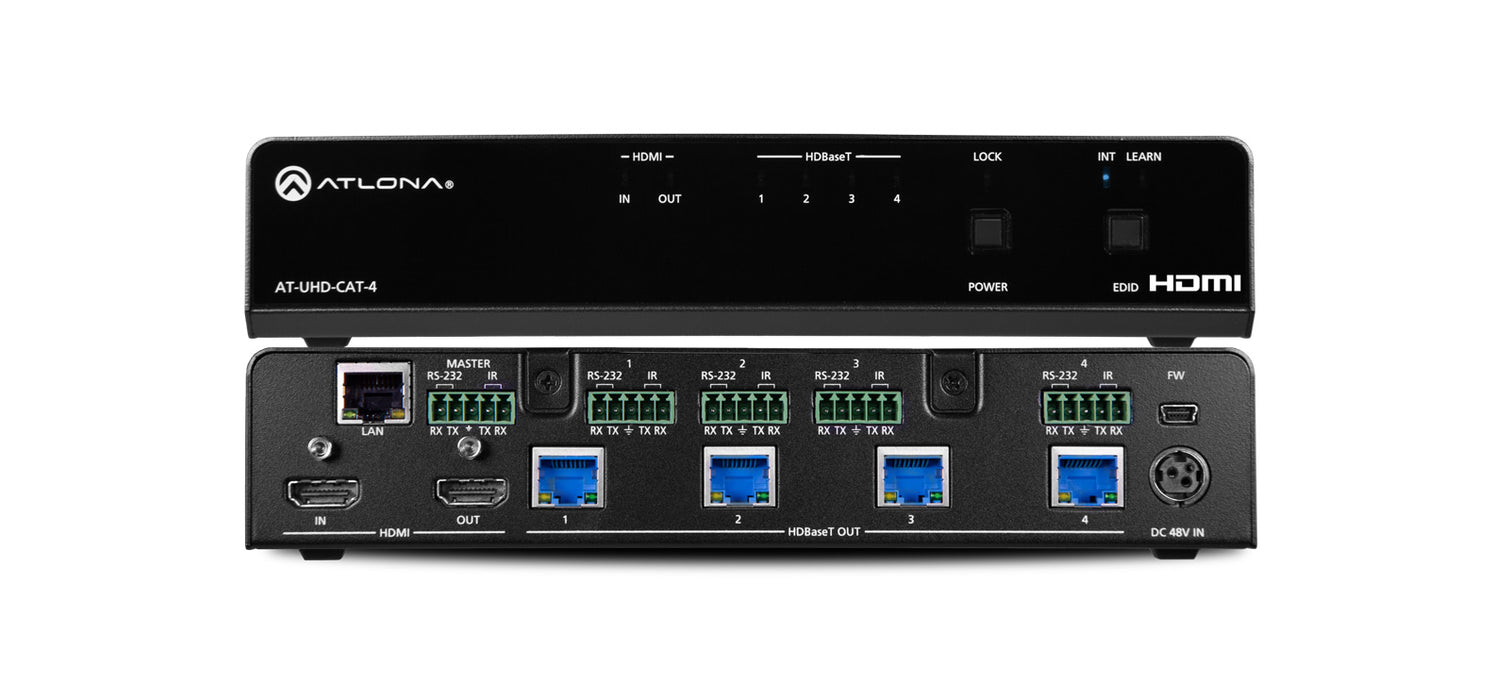

Atlona 4K/UHD HDMI to HDBaseT Distribution Amplifier | AT-UHD-CAT-4
The Atlona AT-UHD-CAT-4 is a 4K/UHD HDMI to HDBaseT distribution amplifier featuring pass-through HDMI input connections, four HDBaseT outputs and display control capability. Each output transmits AV and control signals up to 230 ft. (70 m) @ 1080p and 130 ft. (40 m) @ 4K/UHD. Features include 4K/UHD @ 60 Hz with 4:2:0 color subsampling, HDCP 2.2 compliance, EDID management, and PoE for powering remote receivers. A wide variety of consumer displays may be controlled by the UHD-CAT-4 using CEC*. Designed for commercial distribution applications, the UHD-CAT-4 is control system-friendly and integrates with any TCP/IP, RS-232, or IR control system and features a 1U, half-rack width enclosure with external, international power supply.
Signal distribution applications increasingly require compatibility with HDCP 2.2, 4K/UHD @ 60 Hz support with 4:2:0 color subsampling to ensure images reach displays with compatible copy protection and with the pristine digital image quality of the original signal, without artifacts resulting from inferior image distribution systems. HDBaseT distribution ensures reliable, long-distance transmission of high resolution audio and video signals. These core features along with added display control provide additional flexibility. Power over Ethernet not only provides compatibility with Atlona Extender products but enables HDBaseT Certification.
* Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, and Sony TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.
Applications
Retail, restaurant, and entertainment environments that need long distance signal extension of high-impact messages and program information.
(See this featured application as an example.)
TV showrooms that demand the highest quality signal be delivered to each 4K television to entice customers to make an immediate purchase decision
Any single image/multi-screen environment that requires display control
-
| Category |
Attribute |
Value |
| Resolution |
Video Resolutions |
Up to 4096×2160@60Hz |
|
VESA Resolutions |
Up to 2560×2048 |
|
Chroma Subsampling |
4:4:4, 4:2:2, 4:2:0 |
|
Color Depth |
8-bit, 10-bit, 12-bit |
| Audio |
Formats Supported |
PCM, Dolby, DTS, Atmos, DTS:X |
|
Sample Rate |
Up to 192kHz |
|
Bit Rate |
Up to 24-bit |
| Distance |
CAT6a/7 @ 4K |
Up to 40m / 130ft |
|
CAT6a/7 @ 1080p |
Up to 70m / 230ft |
|
HDMI @ 4K / 1080p |
Up to 5m / 10m |
| Signal |
Bandwidth |
10.2 Gbps |
|
CEC |
Compliant |
|
HDCP |
2.2 Compliant |
| Environment |
Operating Temp |
0°C to 50°C / 32°F to 122°F |
|
Storage Temp |
-20°C to 60°C / -4°F to 140°F |
|
Humidity |
20–90% RH (non-condensing) |
| Power |
Consumption |
52.8W (idle: 12.54W) |
|
Input / Output |
AC 100–240V / DC 48V 2.08A |
| Dimensions |
Unit (mm / in) |
44×219.5×254 mm / 1.73×8.64×10 in |
|
Power Supply |
33×57×136 mm / 1.3×2.24×5.35 in |
| Weight |
Unit |
1.66 kg / 3.70 lbs |
| Certifications |
Unit & Power Supply |
CE, FCC, RoHS, RCM, cULus, Level VI, CCC |
-
